INSTALLATION INSTRUCTIONS
REVISION
Form No. 3313433.025 4/11
(Replaces 3313433.017)
(French 3313434.023)
©2011 Dometic, LLC
LaGrange, IN 46761
Description
Air Conditioner
Air Conditioner
Heat Pump
Heat Pump
This manual must be read and
understood before installation,
adjustment, service, or mainte-
nance is performed. This unit must
be installed by a qualified service
technician. Modification of this
product can be extremely hazard-
ous and could result in personal
injury or property damage.
3313433.025
Important:
stay with unit. Owner read carefully.

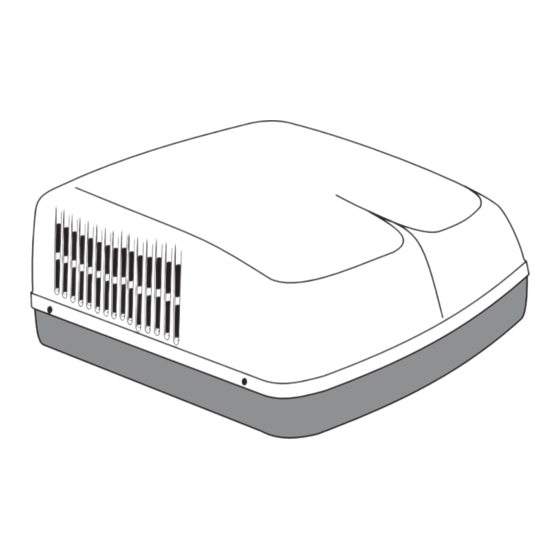

Roof Top Unit
Model
Use With Air
Distribution
Box
457915
Model
459516
3107210.XXX
459530
459156
459196
This unit is designed for OEM installation.
Lire et comprendre ce manuel avant de
procéder à l'installation, à des réglages,
de l'entretien ou des réparations.
L'installation de ce produit doit être
effectuée par un réparateur qualifié.
Toute modification de ce produit peut
être extrêmement dangereuse et
entraîner des blessures ou dommages
matériels.
457915.30X
457915.70X
459156.70X
459196.70X
These instructions must
RECORD THIS UNIT INFORMATION
FOR FUTURE REFERENCE:
Model Number
Serial Number
ADB Model Number
ADB Serial Number
Date Purchased
SZLCD Control
3313189.000 Cool/Furn White
3313189.015 Cool/Furn Black
3313189.049 Cool/Furn/HS White
3313189.056 Cool/Furn/HS Black
3313189.000 Cool/Furn White
3313189.015 Cool/Furn Black
3313189.023 Cool/Furn/HP White
3313189.031 Cool/Furn/HP Black
3313189.064 Cool/Furn/HP White
3313189.072 Cool/Furn/HP Black
AVERTISSEMENT
!
MODELS
459516.30X
459516.70X
459530.70X
Advertisement
Table of Contents
Related Manuals for Dometic 457915.30X
Summary of Contents for Dometic 457915.30X
-
Page 1: Installation Instructions
