Page 1: Table Of Contents

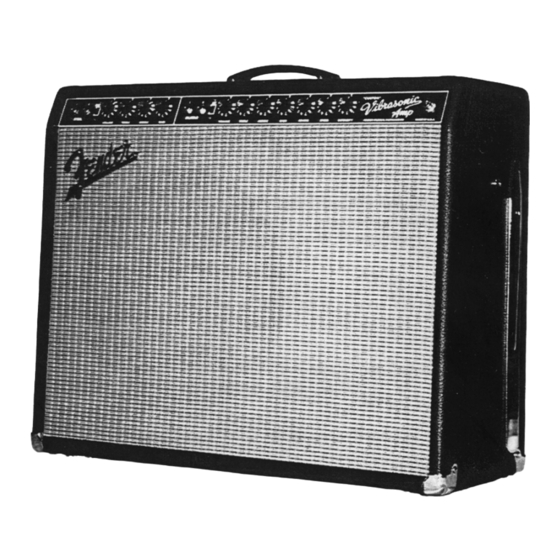

“CUSTOM” VIBRASONIC AMP p/n 021-5200-000 (120V) SERVICE MANUAL CONTENTS: Notices Specifications Theory of operation Parts lists: PCB assembly Chassis assembly Cabinet assembly Footswitch assembly Miscellaneous Schematics/diagrams Fender Musical Instruments Corp. 7975 North Hayden Road Scottsdale, AZ 85258... -
Page 2: Service Manual
Fender Musical Instruments Co. All specifications subject to change without notice. For warranty repair service, only Fender specified part numbers are to be used. It is recommended they also be used for post-warranty maintenance and repair. -
Page 3: Specifications
“CUSTOM” VIBRASONIC SPECIFICATIONS Product Release No.: PR 186 (This is not a model number) Part Number: 120V Version : 021-5200-000 Input impedance: Input 1, both channels 1mΩ Input 2, both channels 132kΩ Power Output: 85 Watts RMS minimum @ 5% THD Rated load impedance: 4Ω... -
Page 4: Theory Of Operation
“CUSTOM” VIBRASONIC THEORY OF OPERATION STEEL CHANNEL J1 is the high sensitivity input and J2 is the low sensitivity input. The input is fed to V1A, which proveds a gain of about 42. The output from V1A drives the Treble (R7), Mid(R9), and Bass(R7) tone controls, then feeds the Volume control (R10). -
Page 5: Chassis Assembly
“CUSTOM” VIBRASONIC PRINTED CIRCUIT BOARD ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION 024833 CAP MPF RDL .022UF 400V 10% C12 C24 024835 CAP MPF RDL .022UF 630V 10% C9 C40 024845 CAP MPF RDL .047UF 400V 10% 024846 CAP MPF RDL .047UF 630V 024853 CAP MPF RDL .1UF 250V 10% 024854... -
Page 6: Cabinet Assembly
“CUSTOM” VIBRASONIC CHASSIS ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION 010401 BUSHING STRAIN RELIEF (220V/240V AC CORD) 026541 CABLE ASSY PWR W/.50 TAB 120V (POWER CABLE 120V ONLY) 048463 CABLE ASSY PWR .250 TAB 100V (POWER CABLE 100V ONLY) 033331 CABLE ASSY PWR 220/240V (POWER CABLE 230V ONLY) 038602... -
Page 7: Footswitch Assembly
“CUSTOM” VIBRASONIC CABINET ASSEMBLY (CONT) PART # DESCRIPTION REFERENCE DESIGNATION 038566 CABLE ASSY SPKR RT ANG 13-1/2” (SPEAKER CABLE) 025722 CABLE REVERB 1100MM 026566 CORNER 2 HOLE W/TAB NI 024653 GLIDE CAB 1.24X.335 NI (STEEL ONLY) 019275 GLIDE-INSERT CUSHION 1.27 DIA (RUBBER ONLY) 049109010 GRILLE BAFFLE ASSY VIBRASONIC...
