Jensen Mobile Multimedia AM/FM/DVD Receiver VM9510 Owner's Manual

Mobile multimedia am/fm/dvd receiver

Advertisement

VM9510
Owner's Manual

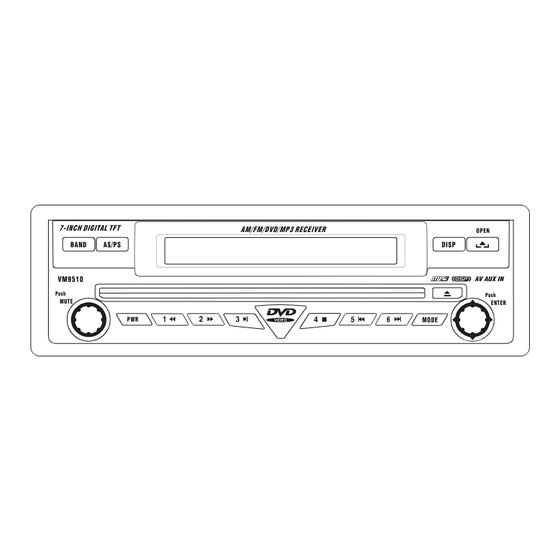

7-INCH DIGITAL TFT
AM/FM/DVD/MP3 RECEIVER
7-INCH TFT
7-INCH TFT
BAND
AS/PS
VM9510
Push
MUTE
PWR
Audiovox Electronics Corporation
150 Marcus Boulevard
Hauppauge, NY 11788
Technical Assistance: 1-800-323-4815
www.jensen.com
© 2004 Audiovox
Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner's
manual clear and easy to follow. If you take a few minutes to look through it, you'll learn how to
use all the features of your new Jensen VM9510 Mobile Multimedia AM/FM/DVD Receiver for
maximum enjoyment.
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CD Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
MP3 Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
DVD Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TV Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
DISP
MODE
v.072004
Introduction
Congratulations on your purchase of the Jensen VM9510 Mobile Multimedia AM/FM/DVD
Receiver.
Features
Motorized 7" digital TFT screen
AM/FM stereo tuner
TV tuner w/diversity antenna input
DVD-R/RW, CD-R/RW compatible
OPEN
Video Select (V Sel.) rear zone output
ESP – Electronic shock protection for DVD, MP3 and CDDA
AV AUX IN
OSD – On Screen Display
Push
Joystick menu navigation
ENTER
AV1 and AV2 inputs for system expansion
Preparation
It's a good idea to read all of the instructions before beginning the installation. We recommend
having your Jensen VM9510 installed by a reputable installation shop.
Tools and Supplies
You will need these tools and supplies to install your VM9510:
Torx type, flat-head and Philips screwdrivers
Wire cutters and strippers
Tools to remove existing radio (screwdriver, socket wrench set or other tools)
Electrical tape
Crimping tool
Volt meter/test light
Crimp connections
18 gauge wire for power connections
16 – 18 gauge speaker wire
Disconnecting the Battery
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery
cable prior to installation.
NOTE: If the VM9510 is to be installed in a car equipped with an on-board drive or
navigation computer, do not disconnect the battery cable. If the cable is disconnected,
the computer memory may be lost. Under these conditions, use extra caution during
installation to avoid causing a short circuit.

Advertisement

Table of Contents
loading

Summary of Contents for Jensen Mobile Multimedia AM/FM/DVD Receiver VM9510

  • Page 1 Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9510 Mobile Multimedia AM/FM/DVD Receiver for maximum enjoyment.
  • Page 2: Table Of Contents

    Guide d'Utilisateur Merci! Merci d'avoir choisi un produit Jensen. Nous espérons que vous allez trouver les instructions dans ce guide de propriétaire claires et faciles à suivre. Prenez quelques minutes à le consulter, vous apprendrez à utiliser toutes les fonctions de votre nouvelle Jensen VM9510 récepteur AM/FM/DVD pour en tirer une jouissance maximum.
  • Page 3 à travers le manchon du montage. Raccordement au Câblage avec un Adaptateur (Achetér Séparément) Vous pouvez effectuer ces branchements même sans être dans la voiture. Effectuez les branchements par raccord ou sertissage. Fixez l’adaptateur de câblage au faisceau de câbles de la voiture. Jensen Connector...
  • Page 4: Wiring Connections

    Wiring Wiring Connections TV TUNER ANTENNA POWER ANTENNA WIRE (Blue) – Connect to a motorized (power) antenna and/or to a remote turn-on lead for an amplifier. CONSTANT POWER WIRE (Yellow) – Connect the 12V PLUS constant power wire to a live 12 volt wire in the vehicle. Before making a connection, check that the wire you intend to connect it to is always live, even when the car’s ignition is turned off.
  • Page 5: Cableado

    VM9510 Cableado Conexiones de Cableado SINTONIZADOR DE TV ANTENA CABLE DE CONEXIÓN DE ANTENA (azul) - Conectar a una antena motorizada (encendida) y/o a una toma remota de encendido para un amplificador. CABLE DE ENERGÍA PERMANENTE (amarillo) - Conectar el cable de energía permanente 12V PLUS a un cable vivo con 12 voltios en el vehículo.
  • Page 6: Instalación

    Installation After completing the wiring connections, turn the unit on to confirm operation (ignition switch must be on). If unit does not operate, recheck all wiring until problem is corrected. Once proper operation is achieved, turn off the ignition switch and proceed with final mounting of the chassis.
  • Page 7 VM9510 Final ISO-DIN Installation Remove trim ring. Mount factory brackets on new radio using existing screws from old radio. Slide radio chassis into dash opening and secure. Reinstall dash panel. Final ISO-DIN Installation Instalación Finale ISO-DIN Installation Finale ISO-DIN 7-I NCH 7-I NCH AS/ PS VM 951...
  • Page 8 Operation/Operación/Opération The buttons located on the radio and the remote controls that perform the same function are assigned the same number for reference on the diagrams and in the text. Los botones ubicados en el radio y en los controles remotos que realizan la misma función poseen el mismo número de referencia en los diagramas y en el texto.
  • Page 9: Remote Controls

    VM9510 Remote Controls The VM9510 has two remote controls: A full- 25. Audio button featured hand-held remote control, and a limited 26. Subtitle button feature "Kid Zone" remote control for rear seat 27. 1-6 Direct Access / Recall Preset 1-6 passengers.
  • Page 10: Operación

    Operation (continued) NOTE: Some DVDs require specific operation or allow only limited operation during playback which may not respond to all operating commands. When this occurs, the symbol appears on the TFT screen, indicating that the operation is not permitted by the player or the disc. Power Press the PWR button (1) to turn the unit on.
  • Page 11 VM9510 Opération (continuée) A NOTER : Certains DVD exigent une opération spécifique ou permet une opération limitée pendant la reproduction qui peuvent ne pas répondre à toutes les commande d'opérations. Lorsque cela arrive, le symbole apparaît sur l'écran TFT indiquant que l'opération n'est pas permise par la platine ou par le disque.
  • Page 12 Operation (continued) Treble TFT Screen Closed: To adjust the treble level, press and hold the ROTARY ENCODER (3) for > 2 seconds until “Sub-W” appears in the LCD. With “Sub-W” displayed, press the knob again 2 times to access the treble control. Turn the ROTARY ENCODER to adjust the treble from -07 (lowest) to +07 (highest).
  • Page 13 VM9510 Operation (continued) Fader TFT Screen Closed: To adjust the fader, press and hold the ROTARY ENCODER (3) for > 2 seconds until “Sub-W” appears in the LCD panel. With “Sub-W” displayed, press the knob again 4 times to access the fader control. Turn the ROTARY ENCODER to adjust the fader between the front and rear speakers from F14 (full front) to R14 (full rear).
  • Page 14 Operation (continued) Clock You can only view the clock or modify its settings with the TFT screen closed. CLOCK DISPLAY Press the DISP (5) button to show the clock in the LCD panel. CLOCK ADJUSTMENT (TIME) Press and hold the DISP (5) button until the clock flashes in the LCD panel. Push the ENTER button (4) to the left or right to adjust the hour.
  • Page 15 VM9510 Operation (continued) System Menu Options To access the system menu, press the OSD (23) button to display the on-screen menu. Push the ENTER (4) button down to highlight “SYSTEM”, and then press the ENTER button. “AUTO” will become highlighted in red. Push the ENTER button down to highlight the property you want to modify, and then press ENTER.
  • Page 16: Operación Del Sintonizador

    Tuner Operation Switching to Radio Mode TFT Screen Closed: Press the MODE button (6) to move through the available modes in the following sequence: FM1, CD, AV1, AV2, and TV1. Stop on “FM1” to access radio mode. The LCD panel displays the current radio station, preset memory number (if applicable), and frequency.
  • Page 17 VM9510 Tuner Operation (continued) Manual Tuning Push the ENTER button (4) up or down to move the radio frequency number up or down one step. Scanning Push the ENTER button (4) to the right to scan forward through strong stations in the current band.
  • Page 18 Tuner Operation (continued) Auto Store (AS) / Preset Scan (PS) Automatic Storing Use the Auto Store function to select six strong stations and store them in the current band. Select a band (if needed). Press AS/PS (8) for > 2 seconds to activate the Auto Store function. The new stations replace stations already stored in that band.
  • Page 19: Cd Player Operation

    VM9510 CD Player Operation You must be familiar with the remote control (see the “Remote Controls” diagram on page 9) to perform some of the steps listed in this section. Switching to CD Mode TFT Screen Closed: Press the MODE button (6) to move through the available modes in the following sequence: FM1, CD, AV1, AV2, and TV1.
  • Page 20 CD Player Operation (continued) Fast Forward/Fast Reverse Press the 2 button (10) to fast forward. Keep pressing and releasing the button to increase the rate from 2X to 4X, 8X, and 32X. Press the 1 button (9) to fast reverse. Keep pressing and releasing the button to increase the rate from 2X to 4X, 8X, and 32X.
  • Page 21: Operación Del Equipo De Mp3

    VM9510 MP3 Player Operation Instructions for Insert/Eject, Play/Pause, Stopping Play, Track Selection, Fast Forward/Fast Reverse, Scan, and Random Play are the same for CD and MP3 operation. Please see the CD Player Operation section for information about these topics. You must be familiar with the remote control (see the “Remote Controls” diagram on page 9) to perform some of the steps listed in this section.
  • Page 22 MP3 Player Operation (continued) Direct Access (Requires Remote Control) Press the number buttons (1, 2, 3, 4, 5, 6, 7, 8, 9, 0) on the remote control to directly access a track in the current folder. Select Directory Press the button (12) to stop MP3 play.
  • Page 23: Operación Del Equipo De Dvd

    VM9510 DVD Player Operation You must be familiar with the remote control (see the “Remote Controls” diagram on page 9) to perform some of the steps listed in this section. NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking break is applied.
  • Page 24 DVD Operation (continued) Adjusting the Position of the TFT Screen Moving the Screen In/Out Press the IN/OUT button (22) to move the screen in or out. You will hear three beep tones. If in the “Out” position, the TFT screen moves to the “In” position. If the TFT screen is “In”, it will move “Out”.
  • Page 25 VM9510 DVD Player Operation (continued) Manually Adjusting the Angle From Left to Right To manually adjust the left/right angle of the TFT screen, follow these steps: Make sure the TFT screen in “Out”. Press the IN/OUT button (22) if necessary. Extender Mechanism - Closed Mecanismo de...
  • Page 26 DVD Player Operation (continued) Accessing the DVD Menu Press the MENU button (37) on the remote control to recall the main DVD menu. Use the directional (arrow) buttons ( , , & ) to select a title from the menu. Press the TITLE button (48) on the remote control to return to the beginning of the disc.
  • Page 27 VM9510 DVD Operation (continued) Direct Search (Requires Remote Control) Title Search Press the P.TIME button (40) on the remote control to display the main menu. Use the left/right arrows ( & ) on the remote control or the ENTER button (4) on the radio to select the Title (T) option.
  • Page 28 DVD Operation (continued) Time Search Press the P.TIME button (40) on the remote control to display the main menu. Use the left/right arrows ( & ) on the remote control or the ENTER button (4) on the radio to select the Time Search ( ) option. 0:00:25 Use the down arrow ( ) on the remote control or the ENTER button (4) on the radio to display the play time in a box below the menu.
  • Page 29 VM9510 DVD Operation (continued) Controlling Playback Stopping Playback Press the button (12) to stop DVD play. Still Playback Press the button (11) to suspend or resume disc play. Frame-by-Frame Playback Press the P.TIME button (40) on the remote control to display the main menu. Use the left/right arrows ( &...
  • Page 30 DVD Operation (continued) Repeat Play (Requires Remote Control) Repeat Chapter, Title, or Disc • Press the REPEAT (44) button on the remote control once to repeat the current chapter. “chapt. ” appears near the top of the TFT screen. • Press the REPEAT button on the remote control twice to repeat the current title.
  • Page 31 VM9510 DVD Operation (continued) Viewing an Alternate Picture Angle (Requires Remote Control) For discs recorded with multiple angles, press the ANGLE button (41) on the remote control to toggle available angles of the on-screen image. Zooming Use the Zoom function to enlarge and pan through the video image. Press the P.TIME button (40) on the remote control to display the main menu.
  • Page 32 DVD Operation (continued) Setting the Aspect Ratio Press the ASPECT button (20) to toggle between Wide, Normal, and Cinema aspects. • Wide = 16:9 ratio • Normal = 4:3 ratio • Cinema = full screen WIDE NORMAL CINEMA NOTE: The ASPECT button does not work in “Tuner” mode. WIDE NORMAL Adjusting the Video Screen Settings...
  • Page 33 VM9510 DVD Operation (continued) Main Menu Functions A number of operations can be carried out using the main menu at the top screen. To access the main menu, press the P.TIME button (40) on the remote control. When the menu bar is visible and an item is selected, it will be become highlighted and the appropriate cursor keys to operate will be displayed below the icon.
  • Page 34 Operación del Equipo de DVD (continuado) Funciones de Menú Principal Un número de operaciones se pueden llevar a cabo utilizando el menú principal de la parte superior de la pantalla. Para acceder al menú principal, presione el botó P.TIME (40) en el control remoto.
  • Page 35 VM9510 Operation Platine DVD (continué) Fonctions menu principal Vous pouvez exécuter de nombreuses opérations en utilisant le menu principal en haut de l'écran. Pour accéder au menu principal, appuyez sur le bouton P.TIME (40) sur la télécommande. Lorsque la barre menu est visible et un article a été sélectionné il sera surligné et les clés curseur appropriés pour opérer seront affiché...
  • Page 36 DVD Operation (continued) Access Control (DVD/VCD) Child Lock Activating Child Lock Press the P.TIME button (40) on the remote control to display the main menu. Use the left arrow ( ) on the remote control or the ENTER button (4) on the radio to move to select the User Preference Settings ( ) option.
  • Page 37 VM9510 CD Operation (continued) Access Control (DVD/VCD) (continued) Authorizing Discs The DVD player maintains a list of 120 authorized (child safe) disc titles. Each time an approved disc is played, the title is placed at the top of the list. Once the list becomes full, new titles are added in place of the last title in the list.
  • Page 38 CD Operation (continued) Access Control (DVD/VCD) (continued) De-authorizing Discs Insert the disc and let playback begin. Press the button while the icon appears and the disc is now de-authorized. Parental Control (DVD Video only) Some DVD movies contain scenes not suitable for children. Many of these discs contain “Parental Control”...
  • Page 39 VM9510 CD Operation (continued) Access Control (DVD/VCD) (continued) Changing the 4-digit Code Display the “Access Control” menu. (See “Activating Child Lock” on page 36.) Enter your 4-digit code. Use the down arrow ( ) to select Change Code. Use the right arrow ( ) to move to the Change Code field. Enter the new 4-digit code.
  • Page 40: Operación De Tv

    TV Operation Switching to TV Mode Press the MODE button (6) to move through the available modes in the following sequence: FM1, CD, AV1, AV2, and TV1. Stop on “TV” to access TV mode. The TFT screen displays the current station and all six preset memory channels. Changing the Channel Searching for Channels Push the ENTER button (4) to the left to search down.
  • Page 41 VM9510 TV Operation (continued) Preset Channels (continued) Storing a Station Select a station. Hold a preset button (9-14) for three seconds. The preset number appears in the LCD panel. Recalling a Station Press a preset button (9-14) to select the corresponding stored station. TV CFG Menu To access the TV CFG menu, press the OSD (23) button to display the on-screen menu.
  • Page 42: Troubleshooting

    Troubleshooting Mechanical Errors If a mechanical error occurs while opening the TFT screen, the screen stops moving and beeps three times. If a mechanical error occurs while closing the TFT screen, the screen beeps three times and returns to the previous position. Problem Cause No power to unit...
  • Page 43: Corrección De Problemas

    VM9510 Corrección de Problemas Errores Mecánicos Si ocurre un error mecánico mientras esté abriendo la pantalla TFT, la pantalla deja de moverse y hace tres sonidos. Si ocurre un error mecánico mientras se cierra la pantalla TFT, la pantalla realiza tres sonidos y retorna a su posición previa.
  • Page 44: Dépannage

    Dépannage Des erreurs mécaniques Si une erreur mécanique parvient en ouvrant l'écran TFT, l'écran s'arrête de bouger et bipe trois fois Si une erreur mécanique parvient en fermant l'écran TFT, l'écran bipe trois fois et revient à la position précédente. Probléme Cause Pas de puissance...
  • Page 45: Month Limited Warranty

    VM9510 12-Month Limited Warranty AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
