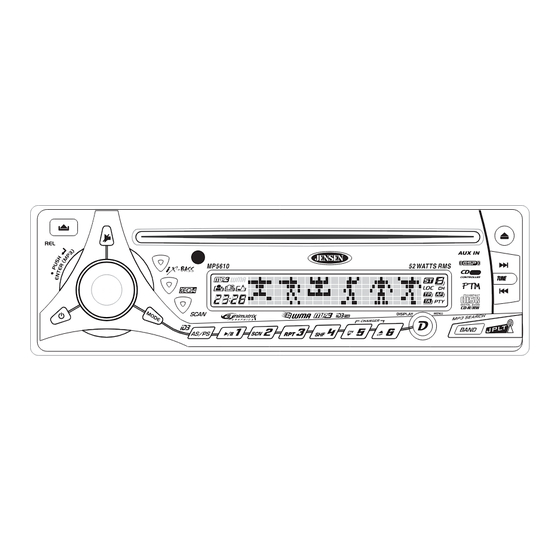

MP5610
Owner's Manual
MP5610
MOSFET POWERED
Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this
owner's manual clear and easy to follow. If you take a few minutes to look through it, you'll
learn how to use all the features of your new Jensen receiver for maximum enjoyment.
Technical assistance is available by phone at 1-800-323-4815.
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
CD Player Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
CD Changer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
MP3/WMA Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
52 WATTS RMS
CD
CONTROLLER
PTM
/
PTM
TEXT
/
MENU
AUX IN
Preparation
Getting Started
It's a good idea to read all of the instructions before beginning the installation.
Tools and Supplies
The following tools and supplies are needed to install the radio.
•
Torx type, Flat-head and Philips screwdrivers
•
Wire cutters and strippers
•
Tools to remove existing radio (screwdriver, socket wrench set or other tools)
•
Electrical tape
•
Crimping tool
•
Volt meter/test light
•
Crimp connections
•
18 gauge wire for power connections
•
16-18 gauge speaker wire
Speaker Requirements: Only connect speakers rated in the load impedance of 4 ohms.
Speakers with a load impedance less than 4 ohms could damage the unit.
Disconnect Battery
Before you begin, always disconnect the battery negative terminal.
Remove Radio from Sleeve
Lift latches on both sides of sleeve to remove half-sleeve from radio.
Remove Radio from Sleeve
Remueva el Radio de la Manga
Enlever la radio du manchon
Advertisement
Table of Contents
Related Manuals for Jensen MP5610
Summary of Contents for Jensen MP5610
-
Page 1: Table Of Contents
MOSFET POWERED Thank You! Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen receiver for maximum enjoyment. -
Page 2: Preparación
Gracias por elegir los productos Jensen. Esperamos que encuentre en este manual instrucciones claras y fáciles de seguir. Si se toma unos pocos minutos para leerlo, aprenderá cómo utilizar todas las funciones de su nuevo radio Jensen para su máximo entretenimiento. La asistencia técnica está disponible por el teléfono en 1-800-323-4815. -
Page 3: Wiring
When replacing a fuse, make sure the new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The MP5610 uses one 15 amp fuse located below the wiring connector (15 amp fast blow ATO). -
Page 4: Cableado
Lors du remplacement d’un fusible, assurez-cous que le fusible de remplacement est du type et de la puissance appropriés. L’utilisation d’un fusible non approprié pourrait endommager la radio. Le MP5610 est doté d’un fusible de 15 A, situé sous le connecteur du câblage (15 A à fusion rapide, type ATO). -
Page 5: Installation
MP5610 Installation Final Installation Connect wiring adapter to existing wiring harness. Connect antenna lead. Slide radio chassis into half-sleeve. Secure radio to bracket using nut (if possible). Replace any items you removed from the dashboard. Final ISO-DIN Installation Remove trim ring. -
Page 6: Operation
Operation Operación Opération MP5610 Operación Potencia Presione el botón de potencia (1) o cualquier otro botón en el frente del radio (excepto el botón de expulsar) para encender la unidad. Presione el botón de potencia para apagar el radio. - Page 7 MP5610 Operation (continued) Volume / Audio Control (continued) Bass To adjust the bass level from “-6” to “+6”, press the volume control until “BAS” appears in the display. Rotate the control clockwise to increase or counter-clockwise to decrease the bass.
- Page 8 Lorsque la fonction égalisateur est activé, les niveaux de bass et d'aigu le plus récemment choisi seront ignorés. Lorsque la fonction égalisateur n'est pas en opération, l'appareil reviendra aux niveaux de bass et d'aigu le plus récemment choisis. MP5610 Pop”, “Jazz”, “Pop”, “Jazz”, “Classic”,...
- Page 9 MP5610 Operation (continued) Animation Press DISPLAY/MENU (7) momentarily to navigate through the following animation options: EQ animation, Animation 1, Animation 2, personal text message and back to the default display. The selected animation will appear in the display when the unit is turned on.
- Page 10 Local n'apparaisse sur l'affichage. Espacement des fréquences Cette option permet la sélection d'un espacement fréquence approprié à votre région. " AREA U.S.A. " est l'espacement par défaut. Tournez le contrôle volume pour sélectionner les options “Latin”, “Europe” ou “Oirt”. MP5610...
- Page 11 MP5610 Operation (continued) Menu Operation (continued) Programmable Turn-on Volume Use the “VOL PGM” option to select the default volume the radio will assume when first turned on. To program a specific start-up volume level, rotate the volume control to select the desired level.
- Page 12 “Good Morning”, “Good Afternoon” or “Good Evening”. When the unit is powered off with the ignition on, the LCD scrolls through the following messages (if the selectable clock display feature is activated): “Radio Off”, “Visit us at Jensen.com”, “Enjoy Driving and Have a Safe Trip”.
-
Page 13: Tuner Operation
MP5610 Tuner Operation Select a Band Press BAND (19) to change between three FM bands and two AM bands. Each band stores up to six preset stations. Tuning Manual Tuning Press the Up Tuning (10) or Down Tuning (11) button for more than three seconds to enter manual tuning mode, then press the Up Tuning or Down Tuning buttons momentarily to move the radio frequency number up or down one step. - Page 14 “ST” icon (18) appears in the display. When no stereo signal is available, the unit will automatically revert to mono operation, and no icon will be displayed. Preset Stations Preselección de Emisoras Stations programmées MP5610 resione y mantenga presionado Preset Number Appears l número preseleccionado aparecerá e numéro préréglé apparaîtra Operación de la radio (continuado)
-
Page 15: Cd Player Operation
MP5610 CD Player Operation Insert and Eject CD Insert a CD label side up. To stop CD play and eject the CD, press the eject button (22). Pause Press the pause button (12) to suspend disc play. Press the pause button again to resume disc play. -
Page 16: Cd Changer Operation
CD Changer Operation Please call Jensen technical support at 1-800-323-4815 for a list of CD changers that are compatible with this unit. Refer to the owner’s manual included with the CD changer for instructions on the installation, loading and use the CD magazine. -
Page 17: Mp3/Wma Operation
CD-R/RW using the buttons on the receiver (or optional remote) as described below. Many types of software are available for converting audio files into MP3/WMA formats. Jensen recommends Nero, MusicMatch Jukebox or Roxio Easy CD Creator. Depending on the media type and recording method, some CD-R/RW's may be incompatible with this unit. - Page 18 L'appareil ne reconnaît et ne joue que des fichiers avec une extension MP3/WMA. A NOTER : Un fichier avec un nom entré qui n'est pas dans la liste des codes est susceptible de ne pas jouer correctement. MP5610...
- Page 19 MP5610 MP3/WMA Operation (continued) Writing Files into a Medium When a medium containing MP3/WMA data is loaded, the unit checks all data. If the medium contains many folders or non-MP3/WMA files, MP3/WMA play will be delayed, it may take time for the unit to move to the next file, and searches may not be performed smoothly.
- Page 20 Appuyez sur SCN pour plus de trois secondes pour jouer les 10 premières secondes de chaque piste. Lorsque la piste désirée est atteinte, appuyez de nouveau sur SCN pour plus de trois secondes pour terminer le balayage et jouer la piste sélectionnée. MP5610...
- Page 21 MP5610 MP3/WMA Operation (continued) Repeat (RPT) Press RPT (14) momentarily to repeatedly play the current file. Press RPT again to resume normal play. Press RPT for more than three seconds to repeatedly play all files in the current folder. Press RPT again for more than three seconds to resume normal play.
-
Page 22: Troubleshooting
DIN chassis dimensions ..... 7" X 7" X 2" (178mm x 178mm x 51mm) ** Specifications subject to change without notice. MP5610... -
Page 23: Corrección De Problemas
MP5610 Corrección de Problemas Problema Causa El equipo no functiona (el No hay corrriente en el cable visualizador no se amarilo. No hay corriente en el enciende) cable rojo. El fusible está quemado La alimentación no va a la El fusible está quemado... -
Page 24: Dépannage
Dimensions ........7"X7"x2" (178mmx178mmx51mm) Ces caractéristiques peuvent être modifiées sans préavis. MP5610... - Page 25 Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 1-800-323-4815 www.jensen.com © 2005 Audiovox v.122304...
