SERVICE MANUAL
Ver 1.4 2003.06
DECK A (the CD player section)
System
Compact disc and digital
audio system
Laser
Semiconductor laser ( λ =
780 nm)
Emission duration:
continuous
Frequency response
20Hz–20,000kHz (0.5
dB)
Signal-to-noise ratio
More than 100 dB
Dynamic range
More than 93 dB
DECK B (the CD-R and CD-RW
recording section)
System
Compact disc digital audio
system
Laser
Semiconductor laser ( λ =
780 nm)
Emission duration:
continuous
Playable discs
CD, CD-R, CD-RW
Recordable discs
CD-R, CD-RW (for music
use)
Frequency response
20 to 20,000 Hz ±0.5 dB
Signal-to-noise ratio
Over 96 dB during
playback
Dynamic range
More than 93 dB during
playback
Sony Corporation
9-929-582-15
Home Audio Company
2003F02-1
Published by Sony Engineering Corporation
© 2003.06
RCD-W1
Model Name Using Similar Machanism NEW
CD-R
CD Mechanism Type
Optical Pick-up Type
Model Name Using Similar Mechanism NEW
CDP
CD Mechanism Type
SPECIFICATIONS
Inputs
ANALOG IN
(Phono jacks)
DIGITAL OPTICAL IN
(Square optical connector jack)
Outputs
ANALOG OUT
(Phono jacks)
OPTICAL DIGITAL OUT
(Square optical connector jack)
General
Power requirements
U.S.A. and Canada
Power consumption
Dimensions (approx.) (w/h/d) incl. projecting parts
Mass (approx.)
Supplied accessories
Design and specifications are subject to change
without notice.

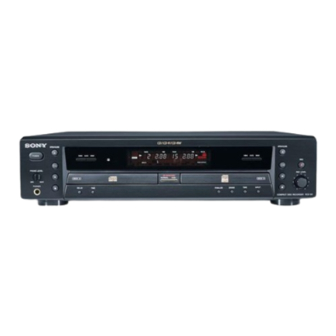

COMPACT DISC RECORDER
US Model
Canadian Model
E Model
CDM-700(CD-RW)
KRS-220C
CDM-700(CDP)
impedance 47 kilohms
Rated input 330 mVrms
Minimum input
125 mVrms
Optical wavelength
660 nm
impedance 47 kilohms
Rated output 2 Vrms
Load impedance over
10 kilohms
Wavelength 660 nm
Output level -18 dBm
120 V AC, 60 Hz
28 W
and control
430 x 108 x 368 mm
4.6 kg
• Audio connecting cord (2)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2).

Advertisement

Table of Contents
loading

Summary of Contents for Sony RCD-W1

  • Page 1 Dynamic range More than 93 dB during • Size AA (R6) batteries (2). playback Design and specifications are subject to change without notice. COMPACT DISC RECORDER Sony Corporation 9-929-582-15 Home Audio Company 2003F02-1 Published by Sony Engineering Corporation © 2003.06...
  • Page 2 REPLACE THESE COMPONENTS WITH SONY PARTS FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. SONT DONNÉS DANS CE MANUEL OU DANS LES...
  • Page 3: Table Of Contents

    RCD-W1 TABLE OF CONTENTS Error Messages 1. SERVICING NOTE ............4 The following table explains the error messages that appear in the display. 2. GENERAL ................8 3. DISASSEMBLY Message Explanation 3-1. Top Case ................9 • A record-related button has been CHECK DISC 3-2.
  • Page 4: Servicing Note

    RCD-W1 SECTION 1 SERVICING NOTE NOTES REGARDING HANDLING OF THE PICK-UP 1. Notes for transport and storage 1) The pick-up should always be left in its conductive bag until immediately prior to use. 2) The pick-up should never be subjected to external pressure or impact.
  • Page 5 RCD-W1 NOTES REGARDING COMPACT DISC PLAYER REPAIRS 1. Preparations 1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These compo- nents are sensitive to, and easily affected by, static electricity. If such static is high voltage, components can be damaged, and for that reason components should be handled with care.
  • Page 6 RCD-W1 Electrostatically Sensitive Devices (ESD) Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components com- monly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated cir- cuits and some field-effect transistors and semiconductor chip components. The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
  • Page 7 RCD-W1 NOTE ON CHECKING POWER SUPPLY CIRCUIT 4. When check the primary part, after remove power cord and dis 1. When check the primary part, you must remove the GND pin of charge the primary capacitor, and then check the system.
  • Page 8: General

    RCD-W1 SECTION 2 GENERAL FRONT PANEL wd ws qlqk LOCATION OF PARTS AND CONTROLS qg ERASE button (DECK B) 1 Power button qh FINALIZE button (DECK B) 2 OPEN/CLOSE button (DECK A) qj DISC tray (DECK B) 3 . AMS button (DECK A) qk CD SYNCHRO HIGH button 4 >...
  • Page 9: Disassembly

    RCD-W1 SECTION 3 DISASSEMBLY Note: Disassemble the unit in the order as shown below. Top case Tray door, Front panel assy Back panel HP board, FL board, VOL board Audio board Power board CDP deck assy (deck A) CDP mechanism assy (deck A)
  • Page 10: Tray Door, Front Panel Assy

    RCD-W1 3-2. TRAY DOOR, FRONT PANEL ASSY Note:After No.2 removal, remove in the state power turns off. Turn power on by pressing POWER button in the drrow A direction and press OPEN/CLOSE button in the drrow B to open the tray.
  • Page 11: Back Panel

    RCD-W1 3-4. BACK PANEL 3 Cord power 5 Back panel 1 Four screws (3X10) Two screws (3X8 BK) 3-5. AUDIO BOARD 5 Connector (PN201) 3 Connector (PN602) 6 Two screws (special) 2 Connector (PN105) 4 Connector (PN606) 7 Three screws (special)
  • Page 12: Power Board

    RCD-W1 3-6. POWER BOARD 2 Two screws (special) Two screws (special) 1 Connector (PN601) 5 POWER board 3-7. CDP DECK ASSY (DECK A), CD-R DECK ASSY (DECK B) 2 Two screws (special) 3 Two screws (special) 1 Wire (flat type)(PN605)
  • Page 13: Bd Board (Deck A)

    RCD-W1 3-8. BD BOARD (DECK A) 1 Three claws 4 Wire (flat type) (PN201) 2 Wire (flat type) (PN301) Connector (PN609) BD board 5 Wire (flat type) (PN401) 3-9. CDP MECHANISM ASSY (DECK A) 3 Clamp holder assy 1 Screw (1.7X6)
  • Page 14: 3-10.Spindle Motor Assy, Pick-Up Block (Deck A)

    RCD-W1 3-10. SPINDLE MOTOR ASSY, PICK-UP BLOCK (DECK A) 5 Screw (1.7X5) 3 Screw (1.7X5) 8 Pick-up block 4 Shaft L 6 Shaft R Spindle motor assy 1 Three screws (2X6) 3-11. BD-R BOARD (DECK B) 1 Three claws 3 Wire (fiat type) (CN401)
  • Page 15: 3-12.Cd-R Mechanism Assy (Deck B)

    RCD-W1 3-12. CD-R MECHANISM ASSY (DECK B) 3 Clamp holder assy 1 Screw (1.7X6) Two screws 4 Push out the disc tray by pushing the 9 CD-R mechanism assy Up/Down suide un the drrow A direction. Up/Down guide Main base...
  • Page 16: Electrical Adjustment

    Start up Procedure: 1. Connect the PC connection jig with the RS-231C cable between the test connector (PN201) on CD-R of RCD-W1 and COM port on PC. (Check SW501 on the PC connection jig to “D” side.) 2. Turn power on RCD-W1.
  • Page 17 RCD-W1 CD-R LD Setting Check (VRDC/VWDC/FPD Level Value Check) This routine is for checking performances of the record/playback D-A converter (IC409), RFIC (IC413), the encoder/decoder IC (IC401), CPLD (IC601), the optical pick-up block (KRS-220C), the microcomputer(IC701) and so on. It diagnoses malfunctions of interface, the pick-up or so on.
  • Page 18 RCD-W1 CD-R LD Power Setting (VRDC/VWDC1 Resetting) The optical pick-up and ICs in the circuit have a characteristics individually. In this routine, the parameters related to the recording/playback power are actually measured and set properly. The parameters are VRDC, VWDC1, VWDC2, VWDC2 Offset and so on. The reading power and playback power are set properly by computing the related parameters on the basis of actually measuring values.
  • Page 19 RCD-W1 Adjustment Data Check Check if the error has occurred on reading “CD-R LD POWER SETTING” value. Procedure: 1. Select “Calibration” on “Calibration” pull-down menu, then “Read Calibration Results” window is open. 2. Click Read, then the calibration data are displayed.
  • Page 20 RCD-W1 Procedure : SERVO Check 1. Connect oscilloscope to TP (RF-TE) and TP (VC). 2. Turned Power switch on. CD SECTION 3. Load a disc (YEDS-18) and playback the number five track. Note : 4. Press the X button. (Becomes the 1 track jump mode.) 1.
  • Page 21 RCD-W1 CD-R SECTION Procedure : Note : 1. Connect oscilloscope to TP (TE) and IC406 1 Pin. 1. CD Block is basically designed to operate without adjustment. 2. Turned Power switch on. Therefore, check each item in order given. 3. Load a disc (YEDS-18) and playback the number five track.
  • Page 22 RCD-W1 [BD-R BOARD] (Conponent Side) IC406 1 pin IC406 IC413 IC401...
  • Page 23: Diagrams

    RCD-W1 SECTION 5 DIAGRAMS THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • Signal path. : CD play c : digital out For schematic diagrams.
  • Page 24: Panel Section

    RCD-W1 WAVEFORMS – CDR SECTION – – CD SECTION – IC401 ig (RRFIN) IC201 id (XTLO) IC301 uf (CDP33M) PLAY MODE 5.0Vp-p 4.8Vp-p 0.8Vp-p 29.5nsec (33.86880MHz) 29.5nsec 2V/div 0.2V/dic (33.86880MHz) 20nsec/div 500nsec/div IC501 yh (EXTAL) IC401 th (FE) IC701 yh (EXTAL) PLAY MODE 1.7Vp-p...
  • Page 25: Block Diagrams - Cd-R Section (1/2)

    RCD-W1 5-2. BLOCK DIAGRAMS – CD-R SECTION (1/2) – IC407 RF AMP IC413 (1/2) IC403 (1/4) RF EQUALIZER, BUFFER FOCUS/TRACKING,ERROR OPTICAL DETECT PICK-UP BLOCK IC401 (KRS-220C) RF AMP IC413 (2/2) EQREP EFM(RFAC) SRFO EQRFN RF EQ IC403 (2/4,3/4) MATRIX PH01...
  • Page 26: Block Diagrams - Cd-R Section (2/2)

    RCD-W1 – CD-R SECTION (2/2) – DATA SELECT IC307 OPT IN CDR DATA TXP OUT DOUT 163 EFM MDA_DATA 10 9,11 MDA_DATA 201 BS MDA_LRCK MDA_LRCK MDA_CLK 203 RP MDA_CLK AUDIO AD_DATA IC306 AD_DATA SECTION 198 TE AD_LRCK (Page 28)
  • Page 27: Block Diagrams - Cdp Section

    RCD-W1 – CDP SECTION – RF_1XL Q102 DIGITAL SERVO DIGITAL SIGNAL PROCESSOR IC201 RX_4XL Q104 RF AMP OPTICAL IC101 PICK-UP BLOCK RFAC DIGITAL DOUT CDP_DOUT REGISTER DEMODULATOR PROCESSOR DA16 P_PCMDTK SERIAL/ CDP_DATA ERROR PARALEL DA15 RFDCO P_BCK RFDC CORRECTOR RF SUM...
  • Page 28: Block Diagrams - Audio Section

    RCD-W1 – AUDIO SECTION – IC112 JK101-1 IC108 LY402 A-D CONVERTER IC102(2/2) IC106 TXP OUT DIGITAL OUT SELECT (5/6) (3/6) 6 AINL+ SDATA AD DATA ANALOG JK103 IC102(1/2) DIGITAL OPTICAL CDR IN CD OUT LRCK 19 AD LRCK AINL- JK104...
  • Page 29: Block Diagrams - Power Section

    RCD-W1 – POWER SECTION – KEY_IN1 KEY MATRIX KEY_IN2 SW801 - 808 SW810 - 822 KEY_IN3 RMC801 REMOTE COMMANDER RMC_IN RECIEVER FLD_TXD T901 POWER SCK1 FLD_CLK TRANSFORMER D920 (F+) (F-)AC2 FLD_CS FLUORESCENT POWER DISPLAY FLD801 T901 SW901 (F-) (F+)AC1 SWITCH T1.6A...
  • Page 30: Printed Wiring Board - Cd-R Section (Side A)

    RCD-W1 5-3.PRINTED WIRING BOARD -CD-R SECTION- • See page 23 for Circuit Board location. • Semiconductor OPTICAL M502 M501 Location PICK–UP SPINDLE SLED Ref. No. Location BLOCK BD-R BOARD (SIDE A) MOTOR MOTOR IC102 IC201 IC304 IC403 IC405 IC406 IC411...
  • Page 31: Printed Wiring Board - Cd-R Section (Side B)

    RCD-W1 BD-R BOARD (SIDE B) M701 LOADING MOTOR • Semiconductor Location Ref. No. Location D101 D401 D701 SW701 IC101 (LOADING/OPEN) IC103 IC203 IC301 IC302 IC303 IC306 IC307 IC310 IC401 IC404 IC407 IC409 IC412 IC414 IC501 IC510 IC511 IC512 IC701 Q401...
  • Page 32: Schematic Diagram - Cd-R Section (1/6)

    RCD-W1 5-4.SCHEMATIC DIAGRAM -CD-R SECTION (1/6)- • See page 24 for Waveforms. • See page 57 for IC Block Diagrams.
  • Page 33: Schematic Diagram - Cd-R Section (2/6)

    RCD-W1 5-5.SCHEMATIC DIAGRAM -CD-R SECTION (2/6)- • See page 56 for IC Block Diagrams.
  • Page 34: Schematic Diagram - Cd-R Section (3/6)

    RCD-W1 5-6.SCHEMATIC DIAGRAM -CD-R SECTION (3/6)- • See page 24 for Waveforms. • See page 55 for IC Block Diagrams.
  • Page 35: Schematic Diagram - Cd-R Section (4/6)

    RCD-W1 5-7.SCHEMATIC DIAGRAM -CD-R SECTION (4/6)- • See page 24 for Waveforms. • See page 51 for IC Pin Function Description.
  • Page 36: Schematic Diagram - Cd-R Section (5/6)

    RCD-W1 5-8.SCHEMATIC DIAGRAM -CD-R SECTION (5/6)- • See page 24 for Waveforms.
  • Page 37: Schematic Diagram - Cd-R Section (6/6)

    RCD-W1 5-9.SCHEMATIC DIAGRAM -CD-R SECTION (6/6)- • See page 24 for Waveforms. • See page 56 for IC Block Diagrams.
  • Page 38: Printed Wiring Board - Cdp Section (Side A)

    RCD-W1 5-10.PRINTED WIRING BOARD -CDP SECTION- • See page 23 for Circuit Board location. OPTICAL M401 PICK–UP SPINDLE BLOCK MOTOR BD BOARD (SIDE A) AUDIO BOARD CN602 (Page 45) AUDIO BOARD CN606 (Page 45) POWER BOARD CN901 (Page 48) BOARD...
  • Page 39: Printed Wiring Board - Cdp Section (Side B)

    RCD-W1 BD BOARD (SIDE B) • Semiconductor Location Ref. No. Location D201 M609 D502 LOADING IC101 MOTOR IC201 IC301 IC302 IC401 IC402 IC403 IC501 IC502 IC601 IC602 Q101 Q102 Q104 Q105 Q401 Q403 SW001 (LOADING/OPEN) IC501 CHECK...
  • Page 40: Schematic Diagram - Cdp Section (1/3)

    RCD-W1 5-11.SCHEMATIC DIAGRAM -CDP SECTION (1/3)- • See page 24 for Waveforms. • See page 59,60 for IC Block Diagrams.
  • Page 41: Schematic Diagram - Cdp Section (2/3)

    RCD-W1 5-12.SCHEMATIC DIAGRAM -CDP SECTION (2/3)- • See page 58 for IC Block Diagrams.
  • Page 42: Schematic Diagram - Cdp Section (3/3)

    RCD-W1 5-13.SCHEMATIC DIAGRAM -CDP SECTION (3/3)- • See page 24 for Waveforms. • See page 50 for IC Pin Function Description.
  • Page 43: Schematic Diagram - Audio Section (1/2)

    RCD-W1 5-14.SCHEMATIC DIAGRAM -AUDIO SECTION (1/2)- • See page 60 for IC Block Diagrams.
  • Page 44: Schematic Diagram - Audio Section (2/2)

    RCD-W1 5-15.SCHEMATIC DIAGRAM -AUDIO SECTION (2/2)- • See page 60 for IC Block Diagrams.
  • Page 45: Printed Wiring Board - Audio Section

    RCD-W1 5-16.PRINTED WIRING BOARD -AUDIO SECTION- • See page 23 for Circuit Board location. AUDIO BOARD (SIDE A) AUDIO BOARD (SIDE B) • Semiconductor Location Ref. No. Location IC102 IC103 IC104 IC105 IC106 IC108 IC109 BOARD IC110 CN805 IC111 E C B...
  • Page 46: Printed Wiring Board - Panel Section

    RCD-W1 5-17.PRINTED WIRING BOARD -PANEL SECTION- • See page 23 for Circuit Board location. POWER BOARD BD BOARD PN201 PN603 (Page 48) (Page 38) FL BOARD > > > > HIGH NORMAL CD SYNCHRO HP BOARD VOL BOARD PN803 JK802...
  • Page 47: Schematic Diagram - Panel Section

    RCD-W1 5-18.SCHEMATIC DIAGRAM -PANEL SECTION- • See page 24 for Waveforms. • See page 53 for IC Pin Function Description.
  • Page 48: Printed Wiring Board - Power Section

    RCD-W1 5-19.PRINTED WIRING BOARD -POWER SECTION- • See page 23 for Circuit Board location. BOARD BOARD BOARD CN801 PN901 PN601 (Page 46) (Page 46) (Page 38) POWER BOARD B C E E C B E C B B C E –...
  • Page 49: Schematic Diagram - Power Section

    RCD-W1 5-20.SCHEMATIC DIAGRAM -POWER SECTION-...
  • Page 50: Ic Pin Functions

    RCD-W1 5-21. IC PIN FUNCTION DISCRIPTION • IC501 HD64F3062AFBL-CD (SYSTEM CONTROL) (BD Board) Pin No. Pin Name Description Pin No. Pin Name Description APCON Audio out mute signal output SRC_OUT Serial data to CS8420 MODE2 PreAmp control2 output SRC_CS CS8420 chip select signal output...
  • Page 51 RCD-W1 • IC701 HD64F3062AFBL-CDR (SYSTEM CONTROL) (BD-R Board) Pin No. Pin Name Description Power supply ATIP/EFM# ATIP/EFM signal output to XC9536 /PRST Preset signal output to OTI-9790 /UCS1 Mode set signal output to OTI-9790 /UCS0 Mode set signal output to OTI-9790...
  • Page 52 RCD-W1 Pin No. Pin Name Description HOT_TX Not used HOT_RX Not used XTOR XTOR signal input from CXA2551R TSTMD1 Servo flag input AS_STRT Test mode 1 (Not used) FLAGB(RFZC) Servo flag input Ground — SRDY OAK data ready AGCON AGC on signal output to CXA2551R...
  • Page 53 RCD-W1 • IC801 DRIVER (uPD780232GC-LG1) (FL Board) Pin No. Pin Name Description VDD1 Power supply VSS1 Ground — Connected to the crystal oscillator (5MHz) Connected to the crystal oscillator (5MHz) Internally connected. (Connect to ground) RESET System reset input SCK1...
  • Page 54 RCD-W1 Pin No. Pin Name Description Fluoresent disply tube segment signal output. Fluoresent disply tube segment signal output. Fluoresent disply tube segment signal output. Fluoresent disply tube segment signal output. Fluoresent disply tube segment signal output. Fluoresent disply tube segment signal output.
  • Page 55: Ic Block Diagrams

    RCD-W1 5-22. IC BLOCK DIAGRAMS IC201 OTI9790 (BD-R board)
  • Page 56 RCD-W1 IC510 BA6664FM-E2 (BD-R board) IC306 CS8420-CSR (BD-R board) DRIVER CONTROL SDA/CDOUT SCL/CCLK PORT & GAIN REGISTER ADO/CS IDO/CDIN SWITCH GAIN CONTROL E MPH C&U CURRENT BUFFER SENSE AMP FGIN DATA DECORD/ VA + VD + ENCORD TORQUE SENSE AMP...
  • Page 57 RCD-W1 IC401 CXA2551AR (BD-R board) B H O 1 W L D O N P H C 1 P H / B H E R G C N T B H C 1 S C L K R Z C...
  • Page 58 RCD-W1 IC301 M56788FP (BD board) REG+ CH3IN VBS2 VBS2 OUT3 REGB IN3- VREG IN1+ VBS2 VBS2 VBS1 VBS1 IN1- IN3+ OUT1 VBS2 VBS1 VM1(-) VM3 (-) Vrefm1 Vrefm2 VM3(+) VM1(+) VBS1 VBS2 VM2(+) VM4(+) VREFO VM2(-) VM4(-) Hi:Sleep BIAS OUT2...
  • Page 59 RCD-W1 IC201 CXD3011-1R (BD board) 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109...
  • Page 60 RCD-W1 IC101 CXA2581N (BD board) DC_OFST RFDCI RFDCO EQ_ON/OFF EQ_IN RW/ROM AC_SUM DV CC RW/ROM DV CC VOFST RW/ROM TE_BAL RW/ROM VOFST RW/ROM DV CC VOFST RW/ROM DV CC RW/ROM APC-OFF (Hi-Z) RW/ROM VOFST DVCC (H/L) V CC RFAC IC105,401 AK4393VF-E2 (AUDIO board)
  • Page 61: Exploded Views

    RCD-W1 SECTION 6 EXPLODED VIEWS NOTE: • Hardware (# mark) list and accessories and pack- • -XX, -X mean standardized parts, so they may have When indicating parts by reference number, ing materials are given in the last of this parts list.
  • Page 62: Chassis Section

    RCD-W1 6-2. CHASSIS SECTION not supplied not supplied not supplied not supplied not supplied Les composants identifiés par une The components identified by marque ! sont critiques pour la mark ! or dotted line with mark ! are critical for safety.
  • Page 63: Cd Play Section (Deck A)

    RCD-W1 6-3. CD PLAY SECTION (DECK A) supplied supplied Les composants identifiés par une The components identified by mark ! or dotted line with mark marque ! sont critiques pour la ! are critical for safety. sécurité. Replace only with part number Ne les remplacer que par une specified.
  • Page 64: Cd Record Section

    RCD-W1 6-4. CD RECORD SECTION (DECK B) 152 180 not supplied supplied supplied supplied not supplied Les composants identifiés par une The components identified by marque ! sont critiques pour la mark ! or dotted line with mark ! are critical for safety.
  • Page 65: Electrical Parts List

    RCD-W1 SECTION 7 AUDIO ELECTRICAL PARTS LIST Note: • SEMICONDUCTORS • Due to standardization, replacements in the parts list The components identified by In each case, u: µ , for example: may be different from the parts specified in the mark ! or dotted line with mark uA...: µ...
  • Page 66 RCD-W1 AUDIO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSISTOR > C409 1-104-665-11 ELECT 100uF C411 1-126-933-11 ELECT 100uF Q202 8-729-036-89 TRANSISTOR KTC3198GR-A C412 1-126-933-11 ELECT 100uF Q204 8-729-016-64 TRANSISTOR KTD1302 C413 1-104-665-11 ELECT...
  • Page 67 RCD-W1 AUDIO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R203 1-216-065-00 RES-CHIP 4.7K 1/10W R432 1-216-061-00 RES-CHIP 3.3K 1/10W R204 1-216-049-11 RES-CHIP 1/10W R433 1-216-079-00 METAL CHIP 1/10W R205 1-216-063-00 RES-CHIP 3.9K 1/10W R206 1-216-073-00 RES-CHIP...
  • Page 68 RCD-W1 Ver 1.3 2002.11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C221 1-162-919-11 CERAMIC CHIP 22PF C704 1-162-970-11 CERAMIC CHIP 0.01uF C222 1-162-919-11 CERAMIC CHIP 22PF C705 1-162-970-11 CERAMIC CHIP 0.01uF C223 1-162-970-11 CERAMIC CHIP 0.01uF...
  • Page 69 RCD-W1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark PN609 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P R239 1-216-809-11 METAL CHIP 1/16W R241 1-216-809-11 METAL CHIP 1/16W < TRANSISTOR > R242 1-216-809-11 METAL CHIP 1/16W R301 1-216-842-11 METAL CHIP...
  • Page 70 RCD-W1 BD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R504 1-216-815-11 METAL CHIP 1/16W R601 1-216-829-11 METAL CHIP 4.7K 1/16W R602 1-216-809-11 METAL CHIP 1/16W R505 1-216-815-11 METAL CHIP 1/16W R603 1-216-809-11 METAL CHIP 1/16W...
  • Page 71 RCD-W1 BD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C226 1-107-826-11 CERAMIC CHIP 0.1uF C404 1-162-966-11 CERAMIC CHIP 0.0022uF 10% C227 1-107-826-11 CERAMIC CHIP 0.1uF C405 1-164-489-11 CERAMIC CHIP 0.22uF C228 1-107-826-11 CERAMIC CHIP 0.1uF...
  • Page 72 RCD-W1 BD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C469 1-162-964-11 CERAMIC CHIP 0.001uF C601 1-164-156-11 CERAMIC CHIP 0.1uF C470 1-127-688-21 TANTAL. CHIP 10uF 6.3V C602 1-164-156-11 CERAMIC CHIP 0.1uF C471 1-127-688-21 TANTAL. CHIP 10uF 6.3V...
  • Page 73 RCD-W1 BD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IC304 8-759-300-71 IC BU4053BCF R221 1-216-833-11 METAL CHIP 1/16W IC306 6-700-346-01 IC CS8420-CSR R227 1-216-864-11 METAL CHIP 1/16W R228 1-216-812-11 METAL CHIP 1/16W IC307 8-759-300-71 IC BU4053BCF...
  • Page 74 RCD-W1 BD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R374 1-216-813-11 METAL CHIP 1/16W R456 1-216-825-11 METAL CHIP 2.2K 1/16W R457 1-216-819-11 METAL CHIP 1/16W R375 1-216-815-11 METAL CHIP 1/16W R458 1-216-833-11 METAL CHIP 1/16W...
  • Page 75 RCD-W1 BD-R Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R575 1-216-837-11 METAL CHIP 1/16W R576 1-216-797-11 METAL CHIP 1/16W R741 1-216-833-11 METAL CHIP 1/16W R742 1-216-817-11 METAL CHIP 1/16W R577 1-216-837-11 METAL CHIP 1/16W R743...
  • Page 76 RCD-W1 POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > < VIBRATOR > IC801 6-800-228-01 IC uPD780232GC-LG1 X801 1-795-348-11 VIBRATOR, CRYSTAL (5MHz) IC802 8-759-971-11 IC KIA7042P-TP ****************************************************** < RESISTOR > A-4726-177-A HP BOARD, COMPLETE...
  • Page 77 RCD-W1 Ver 1.4 2003.06 POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > ACCESSORIES & PACKING MATERIALS **************************** 0 R901 1-244-389-11 RES, MATEL PLATE 1-476-514-11 REMOTE COMMANDER (RM-R50) < TRANSFORMER > 1-790-735-12 CORD, CONNECTION...
  • Page 78: Revision History

    RCD-W1 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2000.
