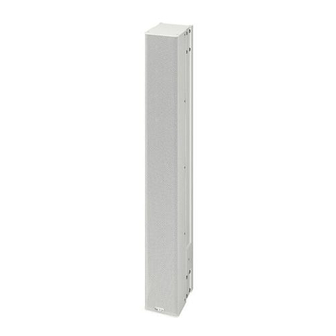

MECHANICALLY STEERABLE
LINE ARRAY SPEAKER SYSTEM
Thank you for purchasing TOAʼs Mechanically Steerable Line Array Speaker System.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
SR-MF1B
SR-MF1W
OPERATING INSTRUCTIONS
SR-MF1B
SR-MF1W
SR-ML1B
SR-ML1W
SR-ML1B
SR-ML1W
Advertisement
Table of Contents
Related Manuals for Toa SR-MF1B
Summary of Contents for Toa SR-MF1B
- Page 1 MECHANICALLY STEERABLE SR-MF1B LINE ARRAY SPEAKER SYSTEM SR-MF1W SR-ML1B SR-ML1W SR-MF1B SR-ML1B SR-MF1W SR-ML1W Thank you for purchasing TOAʼs Mechanically Steerable Line Array Speaker System. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS .................... 3 2. GENERAL DESCRIPTION ..................5 3. FEATURES ........................5 4. ANGLE ADJUSTMENT ....................6 5. COVERAGE AREA ....................... 7 6. AMPLIFIER CONFIGURATIONS ................8 7. JOINING SPEAKERS ....................10 8. INSTALLATIONS 8.1. Wall mounting (using the SR-MB1(B/W)) ..............12 8.2. -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS • Before installation or use, be sure to carefully read all the instructions in this section for correct and safe operation. • Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety. - Page 4 Indicates a potentially hazardous situation which, if mishandled, could CAUTION result in moderate or minor personal injury, and/or property damage. When Installing the Unit • Avoid placing the unit in a doorway or other high traffic area as people may trip on the equipment and cords, or be injured by falling objects.
-
Page 5: General Description
2. GENERAL DESCRIPTION The Mechanically Steerable Line Array Speaker System consists of the SR-MF1(B/W) [Mechanically Steerable Array Speaker] and the SR-ML1(B/W) [Low Frequency Expand Speaker]. A single SR-MF1(B/W) or combination systems with SR-ML1(B/W) can be used. The key feature is that the tilt and dispersion angles of the SR-MF1(B/W) are mechanically and manually adjustable. -
Page 6: Angle Adjustment
4. ANGLE ADJUSTMENT Shifting the angle adjustment bolts mounted on both side of SR- MF1(B/W) allows adjusting its tilt and dispersion angle by multiple steps. [Adjustment Procedure] Step 1. Remove the hex head bolts on both side of the cabinet for releasing the angle adjustment component. -
Page 7: Coverage Area
5. COVERAGE AREA The line array speaker radiates a sound only within a limited range. Since sound is reduced in areas that are outside the range, take care that the listening area is sufficiently covered when installing the speaker. • Installation example Coverage of 2”(5cm) drivers Tilt 0°... -
Page 8: Amplifier Configurations
6. AMPLIFIER CONFIGURATIONS The Mechanically Steerable Line Array Speaker System can be driven by multiple types of amplifier configurations. • Single-amplifier drive (1 SR-MF1(B/W)) Mixer/Preamplifier Digital Processor Power Amplifier * Load impedance for the amplifier • Single-amplifier drive (1 SR-MF1(B/W) and 1 SR-ML1(B/W)) Mixer/Preamplifier Digital Processor Power Amplifier... - Page 9 • Single-amplifier drive (1 SR-MF1(B/W) and 2 SR-ML1(B/W)s) Mixer/Preamplifier Digital Processor Power Amplifier * Load impedance for the amplifier • Bi-amplifier drive (1 SR-MF1(B/W) and 1 SR-ML1(B/W)) Mixer/Preamplifier Digital Processor Power Amplifier * Load impedance for the amplifier...
-
Page 10: Joining Speakers
• Bi-amplifier drive (1 SR-MF1(B/W) and 2 SR-ML1(B/W)s) Mixer/Preamplifier Digital Processor Power Amplifier * Load impedance for the amplifier 7. JOINING SPEAKERS To join the speakers, use the expansion plates supplied with the SR-ML1(B/W). [Joining procedure] Step 1. Remove the truss head screws on both side of the cabinet. - Page 11 [Installation examples] 1 SR-MF1(B/W) and 1 SR-ML1(B/W) 1 SR-MF1(B/W) and 2 SR-ML1(B/W)
-
Page 12: Installations
8. INSTALLATIONS The optional mounting brackets are intended exclusively for the Mechanically Steerable Line Array Speaker System and permits installations suited to the installation location or applications. Installation Location Application Bracket Flat against the wall SR-MB1(B/W) Wall When adjusting horizontal angle up to 90 ° SR-PB1(B/W) Ceiling When suspending from a ceiling... -
Page 13: Mounting Dimensions Of Bracket Bases
8.2. Mounting dimensions of bracket bases Unit: mm (inches) Installing one speaker Installing two speakers Installing three speakers 26 (1.02”) 26 (1.02”) 26 (1.02”) 60 (2.36”) 60 (2.36”) 60 (2.36”) -
Page 14: Wall Mounting (Using The Sr-Pb1(B/W))
8.3. Wall mounting (using the SR-PB1(B/W)) Step 1. Install the bracket bases at the desired positions on the wall. Step 2. Attach the panning brackets on the bracket bases with the supplied screws. Step 3. Hook the speaker on the bracket bases. Slide down the speaker body so that each speaker bracket's hook fits in the bracket base's slit. -
Page 15: Ceiling-Suspended Mounting (Using The Sr-Hb1(B/W))
8.4. Ceiling-suspended mounting (using the SR-HB1(B/W)) Step 1. Attach the supplied eyebolts and nuts on two screw holes of the bracket as shown below. Step 2. Remove the truss head screws on both side of the cabinet. Step 3. Slide the SR-HB1(B/W) hoisting bracket down on the top of the cabinet, and fix the bracket with the supplied M5 machine screws. -
Page 16: Digital Processor Filtering
9. DIGITAL PROCESSOR FILTERING Although the speaker can be operated without a digital processor, it is recommended that the speaker be used in conjunction with a digital processor for better sound reproduction. Recommended setting parameters are as follows. 9.1. Single-Amplifier Drive with 1 SR-MF1(B/W) and 1 SR-ML1(B/W) Filter Model Gain... -
Page 17: Dimensional Diagram
10. DIMENSIONAL DIAGRAM 10.1. SR-MF1(B/W) Unit: mm (inches) 114 (4.49”) 158 (6.22”) 86 (3.39”) [Front] [Side] [Rear] 10.2. SR-ML1(B/W) Unit: mm (inches) 114 (4.49”) 158 (6.22”) 86 (3.39”) [Front] [Side] [Rear]... -
Page 18: Specifications
Finish Enclosure : Alminium Enclosure : Alminium Front Grille : Punched steel plate Front Grille : Punched steel plate *SR-MF1B : Black paint *SR-ML1B : Black paint *SR-MF1W : White paint *SR-ML1W : White pain Dimensions 44.9" (W) x 343.3" (H) x 62.2" (D) - Page 20 URL: http://www.toa.jp/ 625-32-767-40...
