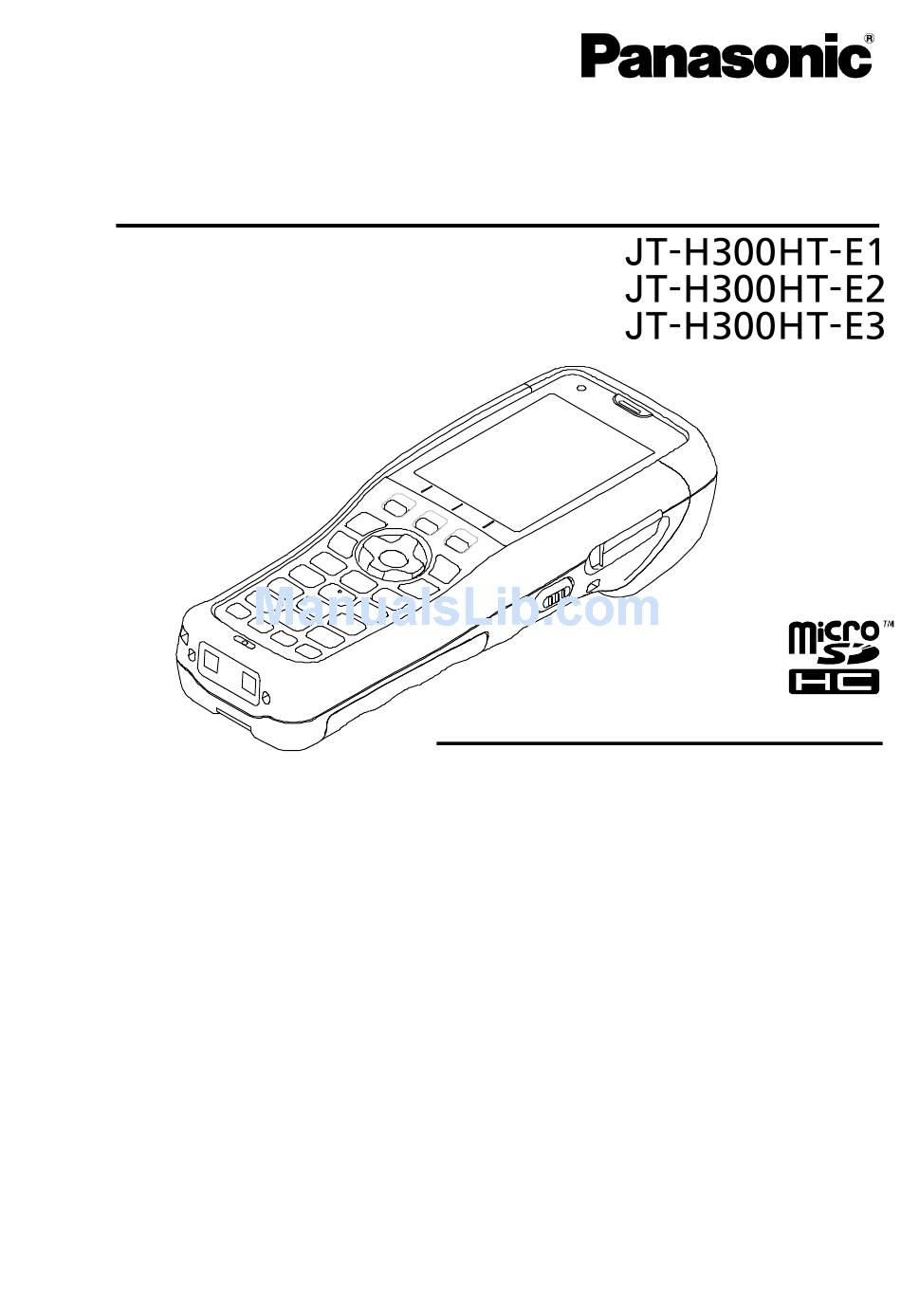

Operating Instructions Operating Instructions Operating Instructions Operating Instructions Handheld Computer Handheld Computer Handheld Computer Handheld Computer Model No. Contents Read Me First............. 2 Getting Started Laser ................5 Warranty Policy ............5 Safety Precautions............. 6 Requirement for Use..........9 Confirmation of Accessories ........11 Names of Parts and Their Functions...... -
Page 2: Read Me First
Read Me First Thank you for purchasing the Handheld Computer JT-H300HT series. This operating instructions describes the instructions for the Handheld Computer. Before connecting, operating or adjusting this product, please read this instruction completely, and save this manual for future use. English Hereby, we declare that this Handheld Computer is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. - Page 3 Italiano [Italian] Con la presente noi dichiara che questo Handheld Computer è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian] Ar šo mēs deklarē, ka Handheld Computer atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
- Page 4 Vi erklærer herved at utstyret Handheld Computer er i samsvar med de grunnleggende kravog øvrige relevante krav i direktiv 1999/5/EF. Norsk [Norwegian] The declaration of conformity may be consulted at http://www.doc.panasonic.de/ Importer’s name and address to follow EU rules: Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F. R. Germany...
-
Page 5: Laser
Laser [EN] CAUTION: Use of controls adjustments or performance of procedures other than those specified herein may result in hazardous laser light exposure. Class 2 Laser scanners use a low power, visible light diode. As with any very bright light source, such as the sun, the user should avoid staring into the beam directly. -
Page 6: Safety Precautions
Safety Precautions [EN] Handheld computer : JT-H300HT-E1,-E2,-E3 Do not stare into the beam directly. There is the risk of damage to the eyes when prolonged directly viewing. Do not operate this product during walking, bicycle riding, or car driving. There is the risk of falling or a traffic accident. - Page 7 Sicherheitshinweise [GE] Handheld Computer: JT-H300HT-E1,-E2,-E3 Nicht direkt in den Strahl blicken. Längeres Blicken direkt in den Strahl kann zu Augenschäden führen. Das Gerät nicht beim Laufen, Radfahren oder Autofahren betreiben. Es besteht die Gefahr eines Falls oder Verkehrsunfalls. microSDHC-Karten nicht in Reichweite von Kleinkindern herumliegen lassen.
- Page 8 Güvenlik Önlemleri [TK] El Bilgisayarı : JT-H300HT-E1,-E2,-E3 Doğrudan ışına bakmayın. Uzun süre doğrudan bakıldığında gözlerde hasar görme riski oluşur. Bu ürünü yürürken, bisiklet sürerken veya araba kullanırken çalıştırmayın. Düşme veya trafik kazası riski vardır. microSDHC kartını çocukların ulaşabileceği yerlere koymayın.
-
Page 9: Requirement For Use
Requirement for Use Observe the following to use this product correctly. Handheld computer – Do not open or modify the main unit case. Battery pack – The battery pack is a consumable. The battery life, which varies with using conditions, is approximately a year as a guideline, and after a year or approximately over 300 times of recharging, the recharging capability becomes weak. - Page 10 Requirement for Use System operation – Be sure to turn off the power before battery pack replacement. How to care – Be sure to turn off the power before taking care of this product. – Use a dry soft cloth to remove dirt from this product. When stubborn stains are observed, use a tightly twisted water soaked cloth to wipe the point softly and use dry another cloth to wipe the point again.
-
Page 11: Confirmation Of Accessories
Confirmation of Accessories Before using, check the following accessories. Note: • In case some items are missing, contact your dealer. > Main unit > Strap > Battery Pack JT-H200BT-30 > Stylus >Safety Precaution Sheet >WEEE Sheet... -
Page 12: Names Of Parts And Their Functions
Names of Parts and Their Functions ■ Main unit (front side) Indicator LCD (Touch panel) Center Trigger Charging USB port cover terminal Side Trigger Optical communication interface connector Name Details Center Trigger / Side Trigger Use this trigger when scanning a barcode or a 2D code. Use this connector when communicating with a mobile Optical communication computer or another device (such as a cradle or mobile... - Page 13 Names of Parts and Their Functions ■ Main unit (back side) Scanner Laser or CMOS Imager Laser warning label Battery pack cover Strap hole Side Trigger SIM card tray Buzzer speaker microSDHC card slot cover Strap hole Name Details This scanner scans barcodes and 2D codes. Scanner Laser marker is radiated while scanning a code.
-
Page 14: Operation
Names of Parts and Their Functions ■ Key layout The following illustration shows the layout of keys. Side Trigger Side Trigger Guide keys Power key Center Trigger Function keys Name Details Power key Turns on/off the power. Trigger Use the trigger when scanning a barcode or a 2D code. Note: •... -
Page 15: Insert/Remove A Sim Card（ （ （ （ Jt-H300Ht-E3
Insert/Remove a SIM Card (JT-H300HT-E3) When a SIM card is removed from the unit while data are read or written, troubles may occur. Refer to the operating instructions of application to be used. How to insert a SIM card Before inserting or removing a SIM card, finish the operation and power off the unit. - Page 16 Insert/Remove a SIM Card (JT-H300HT-E3) Place the SIM card on the tray. Make sure the card is correctly directed. After placing the SIM card on the tray, push back the tray until it clicks. Note: • Push back the tray surely to the end. Otherwise, the battery pack may not be inserted.
- Page 17 • Do not power off or remove the battery pack while data are read from or written into the SIM card. Data may be destroyed. (Panasonic is NOT RESPONSIBLE FOR LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE, ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR RELATING TO THE PRODUCT.)
-
Page 18: Insert/Remove A Microsdhc Card
Insert/Remove a microSDHC Card When a microSDHC card is removed from the unit while data are read or written, troubles may occur. Refer to the operating instructions of application to be used. How to insert a microSDHC card Before inserting or removing a microSDHC card, finish the operation and power off the unit. - Page 19 Insert/Remove a microSDHC Card Insert the microSDHC card into the card pocket. (1) Slide the card pocket backward (i) and (2) Insert the microSDHC card into the card pocket. open it(ii). (ii) (3) Make sure that the microSDHC card is fully (4) Slide the card pocket forward until it clicks.
- Page 20 • Do not power off or remove the battery pack while data are read from or written into the microSDHC card. Data may be destroyed. (Panasonic is NOT RESPONSIBLE FOR LOSS OF REGISTERED DATA CAUSED BY ANY FAILURE, ANY DAMAGE AND LOSS, INCLUDING WITHOUT LIMITATION, DIRECT OR INDIRECT, SPECIAL, CONSEQUENTIAL OR EXEMPLARY, ARISING OUT OF OR...
-
Page 21: Replace A Battery Pack
Replace a Battery Pack How to replace Battery Pack JT-H200BT-30 Note: • Charge a new battery pack before use for the first time. Before replacing the battery pack, finish the operation and power off the unit. Note: • Data may be erased or troubles may happen when the battery pack is removed while the power is on. - Page 22 Replace a Battery Pack Close the battery pack cover, and lock the cover surely. Be sure to lock the battery pack cover to protect the battery pack case from dripping or splashing. Note: • When 3 minutes has passed after the battery pack is removed, data may be erased. To prevent this, replace the battery with a new one immediately.
-
Page 23: Charge The Unit
Charge the Unit Insert the unit into the Cradle. Indicator （Charging） During charging* Lights green: Charging is complete. Indicator Lights red : Charging is under way. Flashes red : Charging error happened. When charging is complete, the indicator that was lighting red goes out once, and then lights green. -
Page 24: Scan A Barcode
Scan a Barcode How to use the laser scanner ■ Press the side or center trigger. A laser will be radiated. Note: • Depending on operations to be performed, another key may be used to scan a code instead of the trigger. Trigger Move the unit so that the barcode is located on the center of scan area. -
Page 25: Scan A 2D Code
Scan a 2D code How to use the 2D scanner ■ Press the side or center trigger. A laser marker will be radiated. Note: • Depending on operations to be performed, another key may be used to scan a code instead of the trigger. -
Page 26: About Connection With Another Device
About Connection with another Device ® Optical communication or radio communication (Bluetooth or wireless LAN) is applied for communication between this unit and another device. For details on how to establish the communication, refer to the operating instructions of application to be used. Notes on optical communication •... -
Page 27: How To Care
How to Care Be sure to power off main unit before cleaning. Main unit When this product gets dirty, clean with a dry soft cloth. ■ When the dirt is hard to remove, wipe the product gently with a twisted wet cloth, and then with a dry soft cloth. -
Page 28: Troubleshooting
Troubleshooting Check the following before requesting repair. Contact a dealer if a problem cannot be solved even after checking and trying the solution or if a problem is not described below, or when having a problem with installations. Symptom Check item Solutions Nothing is displayed on The battery pack may not be... -
Page 29: How To Deal With Troubles
How to Deal with Troubles ■ When a trouble occurs Check the circumstances under which the trouble has happened. Check if the operations are not mistaken. Refer to "Troubleshooting" on page 28. If an alternative unit is available, check the details of trouble using the unit. ■... -
Page 30: Specifications
30 keys, Backlight alphanumeric keypad Laser wave length Approx. 640 – 660 nm, Laser output Less than 1 mW (Class 2 Laser Product) Laser Scanner Laser scan angle Approx. 54° JT-H300HT-E1 EAN-13, EAN-8 (JAN-13,JAN-8), UPC-A, JT-H300HT-E3 Readable UPC-E, UPC/EAN (with addon), Code39,... - Page 31 Depending on the traffic of the network or the concentration of access, actual line speed may lower. *2 Based on the testing program by Panasonic, scanning twice per 10 seconds, sending and receiving 1KB data once per 10 seconds, minimum level of LCD, backlight on, minimum...
- Page 32 Model and function Scanner Model Bluetooth WLAN Weight type JT-H300HT-E1 WINCE 6.0 Laser Approx. 265 g CMOS WINCE 6.0 JT-H300HT-E2 Approx. 265 g Imager JT-H300HT-E3 WINCE 6.0 Laser Approx. 290 g Trademarks and registered trademarks – Freescale is a registered trademark or trademark of Freescale Semiconductor, Inc. in the United State and/or other countries.
