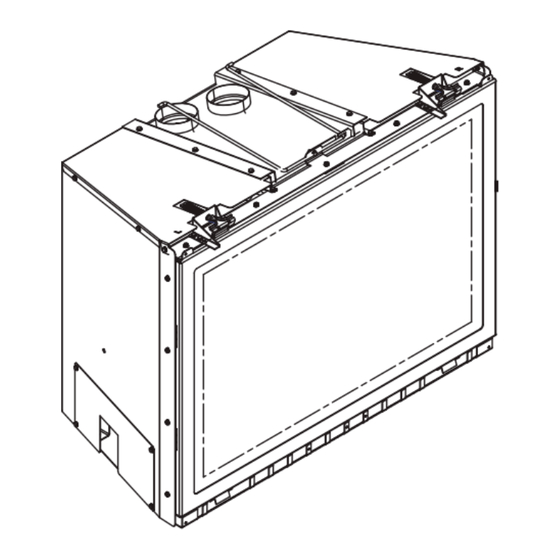

Models:
Escape-I35FB
Escape-I35FB-LP
Escape-I30FB
Escape-I30FB-LP
• Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING: If the information in these
instructions is not followed exactly, a fi re
or explosion may result causing property
damage, personal injury, or death.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.

• What to do if you smell gas

- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Immediately call your gas supplier from a
neighbor's phone. Follow the gas suppli-
er's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
This appliance may be installed as an OEM installation in
manufactured home (USA only) or mobile home and must be
installed in accordance with the manufacturer's instructions
and the manufactured home construction and safety standard,
Title 24 CFR, Part 3280 or Standard for Installation in Mobile
Homes, CAN/CSA Z240MH, in Canada.
This appliance is only for use with the type(s) of gas indicated
on the rating plate.
NOTICE
DO NOT DISCARD THIS MANUAL
• Read, understand and follow
these instructions for safe
installation and operation.
Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11
Owner's Manual
• Leave this manual with
party responsible for use
and operation.
WARNING
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass will cause burns.
• DO NOT touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
fi replace.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other fl ammable
materials.
• Keep clothing, furniture, draperies and other fl ammable
materials away.
This appliance has been supplied with an integral barrier
to prevent direct contact with the fi xed glass panel. DO
NOT operate the appliance with the barrier removed.
Contact your dealer or Hearth & Home Technologies if the
barrier is not present or help is needed to properly install one.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
A CO detector shall be installed in the room where the appliance
in installed.
Installation and service of this appliance should be
performed by qualifi ed personnel. Hearth & Home
Technologies suggests NFI certifi ed or factory trained
professionals, or technicians supervised by an NFI
certifi ed professional.
Installation and Operation
1

Advertisement

Table of Contents
loading

Summary of Contents for Heat & Glo Escape-I35FB

  • Page 1: What To Do If You Smell Gas

    Technologies suggests NFI certifi ed or factory trained This appliance is only for use with the type(s) of gas indicated professionals, or technicians supervised by an NFI on the rating plate. certifi ed professional. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 2: Congratulations

    00,000 00,000 00,000 00,000 MIN. MIN. INPUT INPUT BTUH: BTUH: 00,000 00,000 00,000 00,000 Serial Serial XXXXXXXX XXXXXXXX ORIFICE ORIFICE SIZE: SIZE: #XXXXX #XXXXX #XXXXX #XXXXX (Serie): (Serie): Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 3: Table Of Contents

    B. Flue Damper........21 Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 4: Limited Lifetime Warranty

    3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645C 12-29-10 Page 1 of 2 Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 5 B. Limited Lifetime Warranty (continued) WARRANTY CONDITIONS: WARRANTY EXCLUSIONS: This warranty is void if: LIMITATIONS OF LIABILITY: 4021-645C 12-29-10 Page 2 of 2 Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 6: Listing And Code Approvals

    (0-2000 FT) Escape-I30FB-LP CANADA 31,000 15,500 (2000-4500 FT) 40,000 20,000 (0-2000 FT) Escape-I35FB (NG) CANADA 37,000 19,250 (2000-4500 FT) 38,000 19,000 (0-2000 FT) Escape-I35FB-LP CANADA 35,000 17,000 (2000-4500 FT) Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 7: User Guide

    DECORATIVE DOORS (NOT SHOWN) SECTION 2.E. FIXED GLASS ASSEMBLY SECTION 12.I. CLEAR SPACE SECTION 2.D. MANTEL SECTION 5.B. HEARTH BATTERY BACKUP ACCESS SECTION 2.H. Figure 2.1 General Operating Parts Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 8: Fan Kit (Optional)

    • Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. Figure 2.2 Clear Space See your dealer if you have questions. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 9: Ipi Battery Tray/Battery Installation

    Figure 2.4 Pull Left Side of Tray Out and Disengage Notch SELECTOR SWITCH STATUS INDICATOR LED FLAME HI/LO SWITCH NG/LP SETTING Figure 2.5 Battery Tray Pulled Out Figure 2.6 Control Module Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 10: Before Lighting Fireplace

    fi ve minute time period. Gas may accumulate in fi rebox. Call a quali- fi ed service technician. MODULE RESET SWITCH Figure 2.7. Module Reset Switch Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 11: Lighting Instructions (Ipi)

    See installation and operating instructions accompanying appliance. For additional information on operating your Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Final inspection by Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 12: After Appliance Is Lit

    Is it normal to see the pilot fl ame burn turned off. Some optional control systems available with IPI models may allow pilot fl ame to continually? remain lit. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 13: Maintenance And Service

    • Carefully set fi xed glass assembly in place on appliance. Hold glass in place with one hand and secure glass latches with the other hand. • Reinstall door or decorative front. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 14: Maintenance Tasks-Service Technician

    • Remove the logs, grate, and burner. • Remove the two ember glass retainer tabs. • Remove the ember glass. • Replace light bulb. • Reassemble components in reverse order of disassembly. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 15: Burner Ignition And Operation

    • Verify that there is not a short in fl ame sense circuit by checking continuity between pilot hood and fl ame sense rod. Replace pilot as necessary. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 16: Installer Guide

    SECTION 5.B AND 11.A SURROUND OR FRONT NOT SHOWN SECTION 2.E AND SECTION 8 HEARTH EXTENSION GAS LINE (SECTION 9) ACCESS THROUGH EXISTING MASONRY OR WOODBURNING FIREPLACE Figure 4.1 Typical System Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 17: Design And Installation Considerations

    Noncorrosive leak check solution 1/2 - 3/4 inch length, #6 or #8 Self-drilling screws Caulking material (300ºF minimum continuous exposure rating) Stove cement (1200ºF or higher continuous exposure rating) Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 18: Fireplace Size Requirements

    **Unit depth is measured to the back of the surround to give the depth needed for installation. In addition to these dimensions, also reference Clearances and Mantel Projections (Section 5.B). Figure 5.1 Fireplace Opening Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 19: Mantel And Wall Projections

    fi rebox. Combustible facings must not extend behind the insert surround. For non-combustible material specifi cations refer to section 1.E. Figure 5.2 Mantel Clearance Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 20: Termination Locations

    Over 16/12 to 18/12 ..........7.0 Over 18/12 to 20/12 ..........7.5 Over 20/12 to 21/12 ..........8.0 * 3 foot minimum in snow regions Figure 6.1 Minimum Height From Roof To Lowest Discharge Opening Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 21: Installation Preparation

    • Install gas line into fi rebox cavity. • Check local codes and gas line sizing requirements following NFPA51. See Section 9. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 22: Installing Vent Pipe And Appliance

    NOTE: TO ACHIEVE OPTIMUM PERFOR- INLET AIR STARTING COLLAR MANCE OF INSERT, MINIMIZE OR AVOID BENDS IN EXHAUST VENT PIPE. STARTING COLLAR BRACKET Figure 8.1 EXHAUST STARTING COLLAR Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 23: Connecting Vent Pipe

    • Place 3/8 inch bead of 300º F silicone on fl ue tile top. within chimney. • DO NOT allow vent to sag below connection point to appliance. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 24: Installing Adaptor And Termination Cap

    VENT PIPE VENT PIPE screws. Connect both the LINK-ZC-ADPB to Class A Pipe and the termination cap to the LINK-ZC-ADPB with the self tapping screws provided. Figure 8.5 Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 25: Gas Information

    2000 feet and 4500 feet. Above 4500 feet, (13 mm) control valve inlet. consult local gas utility. • If substituting for these components, please consult local codes for compliance. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 26: Electrical Information

    6V DC (AA X 4) BLACK ORANGE GREEN LIGHT WIRE ASSEMBLY (PILOT) (MAIN) (2201-013) EMBER BULB 20W (2) (2088-136) ACCENT SOCKETS (2) GROUND (2146-402) Figure 10.1 IPI Wiring Diagram Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 27: Ipi Battery Tray/Battery Installation

    See Figure 10.3. WARNING! Risk of Shock! Replace damaged wire with type 105° C rated wire. Wire must have high temperature insulation. ACCESS PANEL POWER CORD Figure 10.2 Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 28: Programming The Rc300 To The Control Module

    fi replace is hot. • Refer to the RC300 Installation Instructions included in appliance manual bag to program the RC300 to the control module. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 29: Finishing

    Combustible facings must not extend behind the insert surround. For non-combustible material specifi cations refer to section 1.E. EXISTING NON-COMBUSTIBLE FACING 12 IN. MAX. 12 IN. MIN. Figure 11.1 Mantel Clearance Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 30: Appliance Setup

    WARNING! Risk of Fire and Electric Shock! Use ONLY Hearth & Home Technologies-approved optional acces- sories with this appliance. Using non-listed accessories could result in a safety hazard and will void the warranty. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 31: Ember Placement

    3 to 5 applications. EMBERS NOT ALLOWED IN PILOT AREA Figure 12.2 Placement of Embers-Escape-I30FB EMBERS NOT ALLOWED IN PILOT AREA Figure 12.3 Placement of Embers-Escape-I35FB Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 32: Install The Log Assembly

    Slide the log forward, until the burner ledge steps contact the vertical wall of the burner top. Ensure the right side of the log is touching the fi rebox. See Figure 4. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 33 Log #6 (SRV2201-706): See Figures 2, 9 and 11 for additional references. Place the thick end of the log on the fl at spot of Log #1. Place the thin end of Log #6 on the fl at spot of log #5 as shown above. 2201-935B Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 34 Log #1 on the burner ledge. The pilot bracket will support the center of the log. The far left end of Log #1 should touch the left fi rebox wall. The log knot should touch the back fi rebox wall. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 35 Log #4 (SRV2202-703): See Figure 2 and Figure 8 for reference details. Locate the log slot on the bottom left end of log #4. Mate the log slot with the right log pin. Rotate the right end of the log clockwise, until it contacts the grate tine. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 36 Log #6 (SRV2202-706): See Figures 2, 5 and Figure 9 for reference details. Place the thick end of the log on the fl at spot of Log #2. Place the thin end of Log #6 on the fl at spot of Log #5 as shown in Figure 11. 2202-935B Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 37: Fixed Glass Assembly

    ESCAPE-I30FB 1/4 in. Full Open ESCAPE-I35FB 1/4 in. Full Open LATCHES (BOTH BOTTOM AND TOP) GLASS ASSEMBLY Figure 12.2 Fixed Glass Assembly Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 38: Troubleshooting

    D. Pilot valve solenoid Verify that 1.5 to 1.8 VDC is supplied to pilot solenoid from module. If below 1.5 volts, replace module. If 1.5 volts or greater, replace valve. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 39 fl ame sensing rod. Verify continuity with a multi-meter with ohms set at lowest range. Replace pilot if any damage is detected. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 40: Reference Materials

    1-9/16 1-9/16 13-3/8 12-1/8 *Note: Location G on Figure 14.1 is measuring the appliance depth, for installation depth reference Location G on Figure 5.1. Figure 14.1 Appliance Dimensions Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 41: Vent Kits Components

    FLEX3-30: One 3 inch fl exible liner expands to 30 feet. FLEX-CNCT: Connector kit - 3 inch liner to 3 inch liner, one connector per kit. Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
  • Page 42: Service Parts

    5647340, 5890485, 5941237, 5947112, 5996575, 6006743, 6019099, 6053165, 6145502, 6170481, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7098269, 7258116, 7470729 or other U.S. and foreign patents pending. 2000-945 Printed in U.S.A. - Copyright 2011 Heat & Glo • Escape-I35FB, Escape-I30FB • 2201-900 Rev. K • 5/11...
