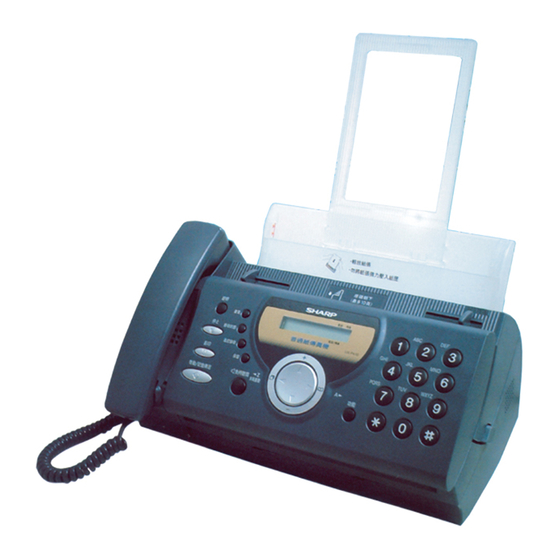

MODELL
UX-P410
TELEFAX
BEDIENUNGSANLEITUNG
1. Installation
2. Faxnachrichten senden
3. Faxnachrichten empfangen
4. Kopieren
5. Anschlu ß eines Anrufbeantworters
6. Sonderfunktionen
7. Ausdruck von Berichten und Listen
8. Wartung
9. St ö rungsbeseitigung

Advertisement

Table of Contents
loading

Related Manuals for Sharp UX-P410

Summary of Contents for Sharp UX-P410

  • Page 1 MODELL UX-P410 TELEFAX BEDIENUNGSANLEITUNG 1. Installation 2. Faxnachrichten senden 3. Faxnachrichten empfangen 4. Kopieren 5. Anschlu ß eines Anrufbeantworters 6. Sonderfunktionen 7. Ausdruck von Berichten und Listen 8. Wartung 9. St ö rungsbeseitigung...
  • Page 2 Dieses Faxgerät kann an öffentliche Fernsprechnetze nach CTR21-Standard in Deutschland, Österreich und in der Schweiz angeschlossen werden. This is a facsimile product operating in German, Austrian and Swiss analogue public switched telephone net- works which follow the CTR21 Standard. The Declaration of Conformity can be viewed at the following URL address. http://www.sharp.de/doc/UX-P410.pdf...
  • Page 3 Introduction Welcome, and thank you for choosing a Sharp fax machine! The features and specifications of your new Sharp fax are shown below. Automatic dialling 30 numbers Imaging film Initial starter roll (included with machine): 10 m (approx. 30 A4 pages)
  • Page 4 Approx. 2.8 kg attachments) As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some...

  • Page 5: Important Safety Information

    Important safety information Do not disassemble this machine or attempt any procedures not described in this manual. Refer all servicing to qualified service personnel. Do not install or use the machine near water, or when you are wet. For example, do not use the machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a swimming pool.

  • Page 6: Table Of Contents

    Table of Contents A Look at the Operation Panel 1. Installation Unpacking Checklist ........9 Connections .
  • Page 7 Table of Contents 5. Answering Machine Connection Preparations ......... . . 53 Using the Answering Machine Connection .

  • Page 8: A Look At The Operation Panel

    A Look at the Operation Panel AUFLÖS./ HILFE EMPFANG TEL FAX TEL/FAX AB STOP ABRUF PQRS WXYZ KOPIE HALTEN START/SPEICHER FUNKTION WAHLW. 10 11 Help Press this key to print out the Help List, a quick reference guide to the operation of the fax machine.
  • Page 9 UP and DOWN arrow keys Enlarge/reduce setting: When making a copy of a document, press these keys to select an enlarge/reduce setting (page 51). Volume setting: When a document is not in the feeder, press these keys to change the speaker volume when the key has been pressed, or the ringer volume at any other time (page 22).
  • Page 10 Monitoring phone conversations When speaking through the handset, you can press to allow a third person to listen to the conversation through the speaker. (To turn off the speaker, press the key again.) To adjust the volume of the speaker when monitoring a conversation, press for high or for low (the volume setting reverts to low each...

  • Page 11: Installation

    1. Installation Unpacking Checklist Before setting up, make sure you have all of the following items. ♦ If any are missing, contact your dealer or retailer. Operation Gears (2) Paper tray Paper tray manual extension Telephone Imaging film Handset Handset cord line cord (initial starter roll) ♦...

  • Page 12: Connections

    Connections Connections Connecting the handset Connect the handset as shown and place it on the handset rest. ♦ The ends of the handset cord are identical, so they will go into either socket. Make sure the handset cord goes into the socket marked with a handset symbol on the side of the machine!

  • Page 13: Connecting The Telephone Line Cord

    Connections Connecting the telephone line cord Insert one end of the line cord into the socket on the back of the machine marked TEL. LINE. Insert the other end into a wall telephone socket. N F N ♦ Note for Germany: In Germany, the machine is supplied with a N-coded line cable, enabling you to use an extension (cordless) telephone on the same line.
  • Page 14 Connections Attach the paper tray and paper tray extension Attach the paper tray extension Attach the paper tray Insert horizontally and rotate up Klicken! Note: The paper tray extension has a top side and a bottom side. If you cannot insert the tabs into the holes, turn the support over.

  • Page 15: Loading The Imaging Film

    The initial starter roll of imaging film included with the machine can print about 30 A4-size pages. ♦ When replacing the film, use a roll of SHARP UX-9CR imaging film. One roll can print about 180 A4-size pages. Important! If the wrong type of film is loaded, printing will not be possible.
  • Page 16 Loading the Imaging Film Remove the new roll of imaging film from its packaging. • Cut the band that holds the rolls together. Insert the green gears. 1 Schlitz Make sure the gears fit into the slots in the ends 2 Schlitz of the rolls.

  • Page 17: Loading Printing Paper

    Loading Printing Paper Loading Printing Paper You can load up to 50 sheets of A4-size, 60 - 80 g/m paper in the paper tray (at room temperature; maximum stack height should not be higher than the line on the tray). Fan the paper, and then tap the edge against a flat surface to even the stack.

  • Page 18: Print Contrast Setting

    Loading Printing Paper Print contrast setting Your fax has been set at the factory to print at normal contrast. If desired, you can change the print contrast setting to LIGHT or DARK. FUNKTION Press once and once. Display: OPTION SETTING Press once and twice.

  • Page 19: Entering Your Name And Fax Number

    Entering Your Name and Fax Number Entering Your Name and Fax Number Before you begin sending faxes, enter your name and fax (telephone) number as explained below and set the date and time as explained on page 19. Once you enter this information, it will automatically appear at the top of each fax page you send.
  • Page 20 Enter your name by pressing number keys for each letter as shown in the chart below. Up to 24 characters can be entered. Example: SHARP = 7777 44 2 777 SPACE = ♦...

  • Page 21: Setting The Date And Time

    Setting the Date and Time Setting the Date and Time The date and time appear in the display and are printed at the top of every page you fax. Set the date and time as shown below. STOP FUNKTION START/SPEICHER FUNKTION Press once and...
  • Page 22 Setting the Date and Time Enter a two-digit number for the month (“01” for January, “02” for February, “12” for December, etc.). Example: January DATE 05-01-2003 Enter the year (four digits). The currently set time appears (example): Example: 2003 TIME 12:19 Enter a two-digit number for the hour (“00”...

  • Page 23: Setting The Reception Mode

    Setting the Reception Mode Setting the Reception Mode Your fax has four modes for receiving incoming faxes: FAX mode: Select this mode when you only want to receive faxes on your line. The fax machine will automatically answer all calls and receive incoming faxes. TEL mode: This mode is the most convenient for receiving phone calls.

  • Page 24: Volume Adjustment

    Volume Adjustment Volume Adjustment You can adjust the volume of the speaker and ringer using the up and down arrow keys. Speaker Press Press until the display SPEAKER: HIGH Display: shows the desired volume level. • SPEAKER: MIDDLE Press again to turn off the speaker.
  • Page 25 Volume Adjustment Ringer Press Display: (Make sure has not been pressed RINGER: HIGH and a document is not loaded in the feeder.) RINGER: MIDDLE • The ringer will ring once at the selected level, then the date and time will reappear in the display.

  • Page 26: Flash Select Setting For Pbx

    Flash Select Setting for PBX Flash Select Setting for PBX Note: This setting is normally only used in Germany. In other countries, you can try changing the setting if you encounter difficulty with the default setting. If your fax machine is connected to a PBX and the PBX uses the “Flash” method to connect to an outside line, you must select the appropriate Flash Select setting depending on whether your PBX line is a normal telephone line or an ISDN line (or other high-speed line).

  • Page 27: Setting The Display Language

    Setting the Display Language Setting the Display Language If desired, you can change the language used in the display, reports and lists. Press the keys on the operation panel as follows: FUNKTION Press once and once. Display: OPTION SETTING Press once and 7 times.

  • Page 28: Sending Faxes

    2. Sending Faxes Transmittable Documents Size and weight The size and weight of documents that you can load in the document feeder depend on whether you load one page at a time or several pages at once. Loading one page at a time: Loading up to 10 pages at once: Minimum size Minimum size...

  • Page 29: Loading The Document

    Loading the Document Other restrictions ♦ The scanner cannot recognise yellow, greenish yellow, or light blue ink. ♦ Ink, glue, and correcting fluid on documents must be dry before they pass through the document feeder. ♦ All clips, staples, and pins must be removed from documents before loading in the feeder.

  • Page 30: Adjusting The Resolution And Contrast

    Adjusting the Resolution and Contrast Adjust the resolution and/or contrast settings as explained in Resolution and Contrast below, then dial the receiving machine as explained on page 30. Adjusting the Resolution and Contrast If desired, you can adjust the resolution and contrast before sending a document.

  • Page 31: Contrast Settings

    Adjusting the Resolution and Contrast Contrast settings AUTO Use AUTO for normal documents. DARK Use DARK for faint documents. Load the document(s). • The document must be loaded before the resolution and contrast can be adjusted. Display: AUFLÖS./ EMPFANG Press one or more times until the desired resolution and contrast STANDARD...

  • Page 32: Sending A Fax By Normal Dialling

    Sending a Fax by Normal Dialling Sending a Fax by Normal Dialling With Normal Dialling, you pick up the handset (or press ) and dial by pressing the number keys. ♦ If a person answers, you can talk with them through the handset before sending the fax.
  • Page 33 Sending a Fax by Normal Dialling • If the other party answers, ask them to press their Start key (if you pressed , pick up the handset to speak with them). This causes the receiving machine to issue a fax tone. START/SPEICHER When you hear the fax tone, press .

  • Page 34: Sending A Fax By Automatic Dialling

    Sending a Fax by Automatic Dialling Sending a Fax by Automatic Dialling You can store up to 30 fax or phone numbers in the machine for automatic dialling. ♦ Auto-dial numbers are dialled by pressing until the desired number START/SPEICHER appears in the display, and then Storing fax and phone numbers for automatic dialling Display:...
  • Page 35 Enter a name by pressing number keys for each letter as shown in the chart below. Up to 15 characters can be entered. (If you do not wish to enter a name, go directly to Step 6.) Example: SHARP = 7777 44 2 777 SPACE = ♦...

  • Page 36: Editing And Clearing Auto-Dial Numbers

    Sending a Fax by Automatic Dialling Editing and clearing auto-dial numbers If you need to make changes to a previously stored auto-dial number, or clear a number, follow these steps: Display: FUNKTION Press once and once. <NEW NUMBER> Press until the number you wish to edit or clear appears in the display.

  • Page 37: Using An Auto-Dial Number

    Sending a Fax by Automatic Dialling START/SPEICHER Press STOP Return to Step 2 to edit or clear another number, or press return to the date and time display. Using an auto-dial number Once you have stored a fax or phone number, you can use it to send a fax or make a phone call.

  • Page 38: Sending A Fax By Direct Keypad Dialling

    Sending a Fax by Automatic Dialling Sending a fax by Direct Keypad Dialling You can also enter a full number with the number keys and then press the START/SPEICHER key to begin dialling. You can use this method to dial a full number when you don't need to speak to the other party before faxing.
  • Page 39 Sending a Fax by Automatic Dialling Redial You can automatically redial the last number dialled. This procedure can be used to send a fax or make a phone call. If you are sending a fax, load the document. AUFLÖS./ • EMPFANG If desired, press to set the...

  • Page 40: Automatic Redialling

    Sending a Fax by Automatic Dialling Automatic redialling If you use automatic dialling (including Direct Keypad Dialling) to send a fax and the line is busy, the fax machine will automatically redial the number. The fax machine will make three redial attempts at an interval of five minutes. During this time, RECALLING will appear in the display, followed by a two-digit number assigned to the fax job.

  • Page 41: Sending A Fax From Memory

    Sending a Fax From Memory Sending a Fax From Memory You can scan a document into the fax’s memory and send the document from memory. This increases transmission speed and allows you to send a fax to multiple destinations in a single operation. After transmission, the document is automatically cleared from memory.

  • Page 42: Memory Transmission

    Sending a Fax From Memory START/SPEICHER When you are ready to begin transmission, press • A Transaction Report is automatically printed out after Broadcasting is completed. Check the "Note" column of the report to see if any of the locations are marked "Busy" or have a communication error code. If so, send the document to those locations again.

  • Page 43: Receiving Faxes

    3. Receiving Faxes Using TEL/FAX Mode AUFLÖS./ EMPFANG To select TEL/FAX mode, press until the arrow in the display points to TEL/FAX. AUFLÖS./ EMPFANG TEL/FAX When the reception mode is set to TEL/FAX, your fax machine automatically answers all calls on two rings. After answering, your fax monitors the line for about five seconds to see if a fax tone is being sent.

  • Page 44: Using A.m. Mode

    Using A.M. Mode Press once and 3 times. PSEUDO RING 1=15 SECONDS Press once. (Selections appear alternately) Enter a number as follows for the desired duration: 15 SECONDS 30 SECONDS 60 SECONDS 120 SECONDS The display briefly shows QUIET TIME your selection, then: STOP Press...

  • Page 45: Using Fax Mode

    Using FAX Mode Using FAX Mode AUFLÖS./ EMPFANG To select FAX mode, press until the arrow in the display points to FAX. AUFLÖS./ EMPFANG TEL/FAX When the reception mode is set to FAX, the fax machine will automatically answer all calls on two rings and receive incoming faxes. ♦...

  • Page 46: Using Tel Mode

    Using TEL Mode Press once. NUMBER OF RING Press once. ENTER # (2-5) 2 The display briefly shows Enter the desired number of rings (any your selection, then: number from 2 to 5). FAX REMOTE # Example: 3 rings STOP Press to return to the date and time display.

  • Page 47: Auto-Cordless Fax Control (Answering With An Extension Phone In Tel Mode)

    Auto-Cordless Fax Control (answering with an extension phone in TEL mode) Answering with the fax’s handset When the fax machine rings, pick up the handset. If you hear a fax tone, wait until the Beep display shows RECEIVING and then RECEIVING replace the handset.

  • Page 48: Stiller Faxempfang

    Stiller Faxempfang Answer the extension phone when it rings. If you hear a soft fax tone, wait until your fax responds (the extension phone will go dead), then hang up. Beep Phone goes dead If the fax doesn't respond, or if the other party first talks to you and then wants to send a fax, press once and twice on the extension...

  • Page 49: Optional Reception Settings

    Optional Reception Settings Drücken Sie die Taste START/SPEICHER zum Bestätigen. Ihr Gerät wird nun alle Faxe ohne Klingelsignal empfangen. Im Falle eines Telefonanrufes wird es leise klingeln. Sofern Sie auch das Klingeln eines Telefonanrufes unterdrücken wollen, stellen Sie vorher mit der Taste EMPFANGSART den Modus FAX ein. Hierbei wird das Gerät den Anruf ohne Klingeln entgegennehmen und sofort ein Faxempfangssignal senden (auch im Falle eines Telefonanrufes).

  • Page 50: Changing The Number For Remote Fax Activation

    Optional Reception Settings Press once. 1=YES, 2=NO The display briefly shows Press to turn on the function, or your selection, then: to turn it off. CALLER-ID STOP Press to return to the date and time display. Changing the number for remote fax activation If desired, you can use a number other than 5 to activate fax reception from an extension telephone.

  • Page 51: Reception Ratio

    Optional Reception Settings Reception Ratio The fax has been set at the factory to automatically reduce the size of received documents to fit the size of the printing paper. This ensures that data on the edges of the document are not cut off. If desired, you can turn this function off and have received documents printed at full size.

  • Page 52: Substitute Reception To Memory

    Substitute Reception to Memory Substitute Reception to Memory In situations where printing is not possible, such as when your fax runs out of paper, the imaging film needs replacement, or the paper jams, incoming faxes will be received to memory. When you have received a document in memory, FAX RX IN MEMORY will appear in the display, alternating with ADD PAPER &...

  • Page 53: Making Copies

    4. Making Copies Your fax machine can also be used to make copies. Single and multiple copies (up to 99 per original) can be made, enabling your fax to double as a convenience office copier. Load the document(s) face down. (Maximum of 10 pages.) AUFLÖS./ •...

  • Page 54: Copy Cut-Off

    Making Copies Copy Cut-off When making a copy of a document that is longer than the printing paper, use the copy cut-off setting to select whether the remaining part of the document will be cut off or printed on a second page. The initial setting is YES (cut off the remainder).

  • Page 55: Answering Machine Connection

    5. Answering Machine Connection Preparations If you have connected an answering machine to your fax as described in Connections in Chapter 1, you can receive both voice messages and fax transmissions on the same line while you are out. To use the connection, first change the outgoing message of your answering machine, and then set the reception mode of your fax to A.M.

  • Page 56: Using The Answering Machine Connection

    Using the Answering Machine Connection Using the Answering Machine Connection Set the reception mode to A.M. AUFLÖS./ EMPFANG TEL/FAX Set your answering machine to auto answer. ♦ Your answering machine must be set to answer on a maximum of two rings. If not, you may not be able to receive faxes sent by automatic dialling.

  • Page 57: Optional A.m. Mode Settings

    Optional A.M. Mode Settings How answering machine mode operates While you are out, all of your incoming calls will be answered by your answering machine and its outgoing message will play. Voice callers can leave a message. During this time, your fax will quietly monitor the line. If your fax detects a fax tone or a duration of silence greater than four seconds, it will take over the line and begin reception.
  • Page 58 Optional A.M. Mode Settings Time selections for the period of silence are 1 to 10 seconds. Quiet Detect Time has been set to 4 seconds at the factory. This gives the best performance with most answering machines; however, you may need to adjust this setting depending on the disconnect time of your answering machine.

  • Page 59: Quiet Detect Start Time

    Optional A.M. Mode Settings Quiet Detect Start Time This setting can be used to delay the start of the Quiet Detect Time function. For example, if you want to insert a pause at the beginning of your answering machine’s outgoing message to ensure clear detection of fax signals, you can use this setting to delay the start of silence detection so that the pause will not cause the fax to take over the line.
  • Page 60 Optional A.M. Mode Settings On A.M. Failure When this function is turned on, your fax will answer the call after 5 rings if the answering machine for some reason fails to answer before that time. This ensures that you will receive fax messages even if the answering machine’s tape fills up or the answering machine is not turned on.

  • Page 61: Special Functions

    6. Special Functions Caller ID (Requires Subscription to Service) Note: The Caller ID function is not available in some countries. If you subscribe to a caller identification service from your telephone company, you can set your fax machine to display the name and number of the caller while the fax rings.

  • Page 62: Display Messages

    Caller ID (Requires Subscription to Service) How Caller ID operates When you receive a call, the name and phone number of the caller will alternately appear in the display, beginning just before the second ring. The information will continue to be displayed until the line is disconnected. Note: Some caller ID services may not provide the name of the caller.

  • Page 63: Viewing The Caller Id List

    Caller ID (Requires Subscription to Service) Viewing the Caller ID list If you subscribe to a Caller ID service and have turned on the Caller ID function, your fax machine will keep information on the most recent 30 calls and faxes you have received. You can view this information, which consists of the name and number of each caller, in the Caller ID List.

  • Page 64: Priority Call

    Caller ID (Requires Subscription to Service) To delete calls from the Caller ID list If you want to delete a single call from the caller list, press while the call appears in the display. If you want to delete all calls from the list, hold down for at least 3 seconds while you are viewing any number in the list.
  • Page 65 Caller ID (Requires Subscription to Service) Blocking voice calls With Caller ID turned on, you can use the Anti Junk Fax function described in Blocking Reception of Unwanted Faxes in this chapter to block voice calls as well as faxes from your specified Anti Junk Number. In this case, when a voice call or a fax transmission comes in from the number you have specified as a "Junk Number", your fax will break the connection as soon as it receives the calling phone number from the caller ID service (before...

  • Page 66: Blocking Reception Of Unwanted Faxes

    Blocking Reception of Unwanted Faxes Blocking Reception of Unwanted Faxes The Anti Junk Fax function allows you to block reception of faxes from a party that you specify. This saves paper by not printing out unwanted "junk" faxes. To use this function, follow the steps below to enter the fax number from which you do not wish to receive faxes.

  • Page 67: Polling (Requesting A Fax Transmission)

    Polling (Requesting a Fax Transmission) Polling (Requesting a Fax Transmission) Polling allows you to call another fax machine and have it send a document to your machine without operator assistance. In other words, the receiving fax machine, not the transmitting fax machine, initiates the transmission. Dial the fax machine you want to poll using one of the following methods: •...

  • Page 68: Pbx Operations

    PBX operations PBX operations If your fax is connected to a PBX, you can use it to perform the following operations: Making enquiry calls: During a call, you can put the other party on hold, make a further call to a third party, and then go back to your original caller. Transferring calls: You can transfer a call to another number on the same PBX without operator assistance.

  • Page 69: Printing Lists

    7. Printing Lists You can print lists showing settings and information entered in the fax machine. The lists are described below. To print a list, follow these steps. Display: FUNKTION Press once and once. LISTING MODE TEL # LIST Press once.

  • Page 70: Transaction Report

    Printing Lists Transaction Report This report is printed out automatically after an operation is completed to allow you to check the result. Your fax machine is set at the factory to print out the report only when an error occurs. ♦...

  • Page 71: Help List

    Printing Lists Transaction Report print condition You can change the condition under which a Transaction Report is printed out. Follow the steps below. Display: FUNKTION Press once and once. OPTION SETTING TRANSACTION Press once and twice . 1:ALWAYS PRINT Press once.

  • Page 72: Maintenance

    8. Maintenance Print head Clean the print head frequently to ensure optimum printing performance. Note: Remove the paper from the paper tray before cleaning the print head. Unplug the telephone line and then the power cord, and open the operation –...

  • Page 73: Scanning Glass And Rollers

    Maintenance Place the imaging film back in the print compartment. Rotate the front gear until the film is taut, and then close the operation panel (press down on both sides to make sure it clicks into place). Scanning glass and rollers Clean the scanning glass and rollers frequently to ensure the quality of transmitted images and copies.

  • Page 74: The Housing

    Maintenance Flip up the green levers on each side of the white roller. Wipe the scanning glass (under the white roller) and rollers with a cotton swab. • Make sure that all dirt and stains (such as correcting fluid) are removed. Dirt and stains will cause vertical lines on transmitted images and copies.

  • Page 75: Troubleshooting

    9. Troubleshooting Problems and Solutions Line error Problem Solution LINE ERROR appears in Try the transaction again. If the error persists, check the display. the following: • Check the connection. The cord from the TEL. LINE socket to the wall socket should be no longer than two meters.

  • Page 76: Dialling And Transmission Problems

    Problems and Solutions Dialling and transmission problems Problem Solution No dial tone when you • Make sure the handset cord is connected to the correct socket. See Connecting the handset on pick up the handset or page 10. press the key.

  • Page 77: Reception And Copying Problems

    Problems and Solutions Reception and copying problems Problem Solution The power is on, but no • Make sure that the telephone line cord is plugged reception takes place. into the TEL. LINE socket, and not the TEL. SET socket. The printing paper comes •...
  • Page 78 Problems and Solutions Reception/copying is • If reception or copying takes place continuously for interrupted. a long time, the print head may overheat. Turn off the power and let it cool down. If overheating frequently occurs, try changing the print contrast setting to LIGHT (see page 16).

  • Page 79: General Problems

    Problems and Solutions General problems Problem Solution A loud howling sound • Feedback (a loud howling sound) may occur if you occurs when the speaker replace the handset while the speaker is on. To is used. avoid feedback, turn off the speaker (press before you replace the handset.

  • Page 80: Messages And Signals

    Messages and Signals Messages and Signals Display messages Note: If you have turned on the Caller ID function, see page 60 for display messages related to Caller ID. ADD PAPER & / Check the printing paper. If the tray is empty, add PRESS START KEY paper and then press the START/MEMORY key.
  • Page 81 INCORRECT FILM/ The wrong type of imaging film is loaded in the CHECK FILM machine. Printing is not possible. The machine can only print when SHARP UX-9CR imaging film is loaded. LINE ERROR Transmission or reception was not successful. Press the STOP key to clear the message and then try again.

  • Page 82: Audible Signals

    Messages and Signals PRINT HEAD FAIL/ The print head has failed and requires service. YOU NEED SERVICE (alternating messages) READY TO SEND A document has been loaded and the fax machine is waiting for you to begin faxing or copying. RECALLING This appears if you attempt to send a fax by automatic dialling and the line is busy or the receiving...

  • Page 83: Clearing Paper Jams

    Clearing Paper Jams Clearing Paper Jams Clearing a jammed document If the original document doesn’t feed properly during transmission or copying, or DOCUMENT JAMMED appears in the display, first try pressing START/SPEICHER . If the document doesn't feed out, remove it as explained below. Important: Do not try to remove a jammed document without releasing it as explained below.

  • Page 84: Clearing Jammed Printing Paper

    Clearing Paper Jams Flip down the green levers on each side of the white roller. Rotate the front gear until the film is taut, and then close the operation panel (press down on both sides to make sure it clicks into place). Clearing jammed printing paper –...

  • Page 85: Quick Reference Guide

    Quick Reference Guide Sending Faxes Receiving Faxes 01-JAN 10:30 Place your document (up to 10 pages) face TEL/FAX AUFLÖS./ down in the document feeder. 01-JAN 10:30 EMPFANG TEL/FAX 01-JAN 10:30 TEL/FAX 01-JAN 10:30 TEL/FAX FAX mode: The fax machine automatically answers and receives faxes.

  • Page 86: Guide De Référence Rapide

    Guide de référence rapide Envoi de télécopies Réception de télécopies 01-JAN 10:30 Placez le document (pouvant compter TEL/FAX AUFLÖS./ 01-JAN 10:30 jusqu'à 10 pages) face imprimée vers le EMPFANG TEL/FAX bas dans le chargeur de documents. 01-JAN 10:30 TEL/FAX 01-JAN 10:30 TEL/FAX Mode FAX : Le télécopieur répondra et recevra les télécopies automatiquement.

  • Page 87: Index

    Index A.M. reception mode, 21, 54 FAX reception mode, 21, 43 Answering machine connection Fax Signal Receive, 47 Activating, 54 Flash Select setting, 24 Connecting, 53 On A.M. Failure, 58 Quiet Detect Start Time, 57 Halftone setting, 28 Quiet Detect Time, 55 Handset, 10 Troubleshooting, 76 Hold, 47...
  • Page 88 Index Power cord, 10 Print contrast setting, 16 Scanning glass, cleaning, 71 Print head, cleaning, 70-71 Sender’s name and number, entering, Priority Call, 62 17-18 Pseudo Ring Duration, 41 Setup List, 67 Speaker volume, 22 Reception mode A.M. mode, 21, 54 TEL reception mode, 21, 44 FAX mode, 21, 43 TEL.
  • Page 89 Quick48 )KIJ=KI?DIAHLE?A Hotline: 0180/5 23 46 76 (0,12 EUR/Min.) Hotline: 0180/5 23 46 77 (0,12 EUR/Min.)
  • Page 90 Wer heutzutage etwas erreichen will, muß erreichbar sein. Um Sie auch nach der Entscheidung, ein SHARP Produkt z u k a u f e n , w e i t e r b e i d e r V e r w i r k l i c h u n g d i e s e s Zieles zu unterstützen, haben wir einen neuen Kunden-...
