Description

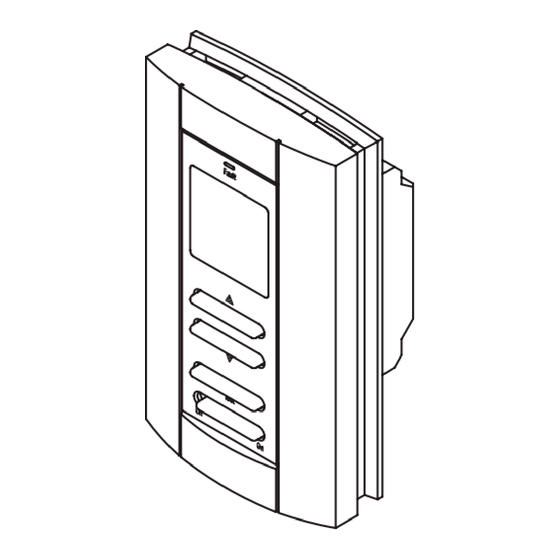

Aube's TH114 non-programmable thermostat can be used to control
the ambient air temperature or floor temperature. You can select
among the following temperature control modes:
A mode: controls and displays the ambient air temperature
F mode: controls and displays the floor temperature using
an external temperature sensor
AF mode: controls and displays the ambient air temperature
maintains the floor temperature within desired
limits using an external temperature sensor
Arrow appears
when the setpoint
is displayed
Heating
1
indicator
1
The thermostat displays the percentage use of heating required to maintain the desired
temperature. For example, is displayed when heating is at 40 percent.
Display
% use of heating 1 to 24% 25 to 49% 50 to 74% 75 to 99%
2
GFI appears when the ground fault protection has triggered.
3
Place the thermostat in Standby to cut power to the heater when it is not in use (e.g. in
summer).
4
To reset the ground fault protection, switch the thermostat to Standby and back to On.
Configuration
The configuration switches are located at the back of the control
module (faceplate).
TH114
1.
Actual or setpoint
temperature
Unoccupied mode
indicator
2
Ground fault indicator
Temperature
adjustment button
Backlight button
3, 4
On/Standby switch
100%
2.
2.1 Temperature Display (S1)
The S1 switch is used to select between °C (default) and °F.
2.2 Temperature Control Mode (S2)
This switch is used to select the temperature control mode.
F: To select the F mode
AF: To select the A or AF mode (default)
Installation
Refer to the installation instructions of the power base.
Insert the tabs at the top of the control module in the slots at the
top of the power base.
Secure the control module using the captive screw underneath
the base.
Control module
Air vents
NOTE: Keep the thermostat's air vents clean and unobstructed at all
times.
Power-up
Upon power-up, the thermostat undergoes a series of
tests before displaying the actual (measured) tempera-
ture.

Error Messages

The measured temperature is below the thermostat's dis-
play range. Heating is activated.
The measured temperature is above the thermostat's dis-
play range. Heating is deactivated.
Verify the thermostat and sensor connections.
400-114-000-C
TH114

User Guide

Non-programmable Thermostat
Air vents
Power base
1/3/07
3.
4.
5.
