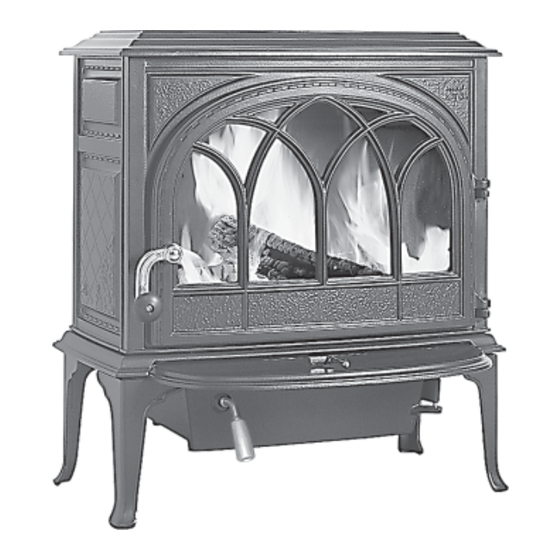

Jøtul F 400 USA
USA/CAN - Installation and Operating Instructions
2
Kindly save these instructions for future references.

Advertisement

Table of Contents
loading

Summary of Contents for Jøtul F 400 USA

  • Page 1 Jøtul F 400 USA USA/CAN - Installation and Operating Instructions Kindly save these instructions for future references.
  • Page 2 USA/Canada Installation and Operation Instructions for USA/Canada Installation et fonctionnement pour Canada Safety Notice: If this solid fuel room heater is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
  • Page 3: Table Of Contents

    USA/Canada Safety Notices Table of Contents Safety Notices Burn solid wood fuel only. • Do not use chemicals or fluids to start the fire. Do not burn • 1.0 Installation garbage or flammable fluids. 1.1 Assembly Before Installation ..........3 If this room heater is not properly installed, a house fire •...
  • Page 4: Flue Collar Reversal

    USA/Canada 1.2 Flue Collar Reversal 2.0 Chimney Requirements The Flue Collar is oriented in the Top Exit position. If a Rear Exit position is required, remove the two mounting bolts, and turn There are two types of chimneys suitable for the Jøtul F 400 : the collar 180 degrees.
  • Page 5: Prefabricated Chimneys

    USA/Canada • Brick or modular block must be a minimum of 4” (10 cm) • The Pass-through must be at least 18” (45.7 cm) from nominal thickness. Stone construction must be at least 12” combustible ceiling materials. (30 cm) thick. •...
  • Page 6: Connecting To The Chimney

    USA/Canada 4.0 Clearance to Combustibles 3.0 Connecting to the Chimney 4.1 Floor Protection (For both U.S. and Canada) 3.1 Masonry Chimney The Jøtul F 400 requires one of the following two forms of hearth When installing a Jøtul F 400 into a masonry chimney through protection: a “thimble”...
  • Page 7: Alcove Installation

    USA/Canada 5.0 Operation In the U.S. refer to NFPA 211, Standard for Chimneys, Fireplaces, • Vents and Solid Fuel Burning Appliances, for acceptable materials, proper sizing and construction guidelines. Please read the following section completely, before building a In Canada, refer to CAN/CSA-B365, Installation Code for Solid- •...
  • Page 8: Starting / Maintaining The Fire

    USA/Canada 5.5 Adding Fuel 5. Light a third fire and gradually allow the stove to reach a surface temperature of 400°F (204°C). When reloading the stove while it is still hot and a bed of hot 6. Cool stove to room temperature. This completes the “break-in” embers still exist, follow this reloading procedure: procedure.
  • Page 9: Maintenance

    USA/Canada 6.0 Maintenance 6.4 Enamel Care • DO NOT ATTEMPT TO CLEAN HOT ENAMEL SURFACES. As with your car, regular maintenance will prolong the life of Clean only cold enamel surfaces with a soft damp cloth your stove and ensure satisfactory performance. and polish with a clean dry cloth.
  • Page 10: Glass Replacement

    USA/Canada 6.6 Glass Removal 7.0 Accessories 1. Remove the door from the stove and place on a flat surface. Use only accessories that are specifically designed for use with 2. Carefully remove all of the glass clips from the inside of the the Jøtul F 400.
  • Page 11: Floor Bracket Kit

    USA/Canada Outside air should be considered if: 7.6 Bottom Heat Shield (# 154384) 1. The stove does not “draw” steadily. Smoke rollout occurs when The bottom heat shield supplied with your stove has been the door are opened. Fuel burns poorly. Backdrafts occur with specifically designed for the Jøtul F 400 .
  • Page 12: Illustrations Clearance Diagrams

    USA/Canada Jøtul F 400 Woodstove Clearances Unprotected Surface Protected Surface PER NFPA 211 or Parallel to the Wall CAN/CSA-B365 Parallel to the Wall Important Connector heatshields and double wall pipe must be a listed product. Always follow the manufacturer’s instructions. SINGLE WALL PIPE WITH CONNECTOR SHIELDS DOUBLE WALL PIPE Unprotected Surface...
  • Page 13: Clearance Chart

    USA/Canada Jøtul F 400 Woodstove Clearances Stove Unprotected Surface Protected Surface Installation Clearances Installation PER NFPA211 OR CAN/CSA -B365-M93 Side Rear Corner* Side Rear Corner* Stove -no heatshield 19” A 25” B 18” C 11” D 7” E 8” F single wall pipe 485mm 635mm...
  • Page 14: Figures

    USA/Canada Fig. 2 Fig. 1 25 3/4" Toward Stove Flue Gas Direction 23 1/4" Fig. 3 At least 2 feet At least 3 feet 10 feet 29 1/2” top exit 25 1/2” rear exit Fig. 4 Flue liner Wood stud 2" clearance 13”...
  • Page 15: Hearth Protection

    USA/Canada Fig. 8 Fig. 5 (Measurements in mm for Canada) Connector pipe shall Hearth Protection be flush with the inside 2" (50 mm) of the flue tile Stove pipe connector Min. Depth 44" (1168 mm) Thimble Flue tile Min. Width 42" (1070 mm) Fig.
  • Page 16 USA/Canada Fig. 11 Far left Far right Full closed Full open Fig. 12 Stove top thermometer Fig. 13 Doors Gasket Glass...
  • Page 17: Parts Diagram And List

    USA/Canada...
  • Page 18: Appendix A - Alternate Floor Protection

    USA/Canada Part list for the Jøtul F 400 woodstove 9.0 Appendix A Consult your dealer for part numbers and replacement parts. Alternate floor protection Description Ashlip Packed All floor protection materials must be non-combustible ie. metal, Handle Ash Door Compl. brick, stone, mineral fiber boards).
  • Page 19: Exclusions And Limitations

    USA/Canada 9.0 JØTUL N.A. WOOD- for pickup or delivery of the component after repairs have been made. If, upon inspection, JØTUL determines that the component is covered by this warranty, the repair or replacement will be BURNING PRODUCT made as set forth above. This warranty is not transferable and is extended only to, and is solely for the benefit of, the original LIMITED LIFETIME retail purchaser of the Jøtul or Scan Stove or Fireplace Insert.
  • Page 20 USA/Canada IN NO EVENT SHALL JØTUL, ITS PARENT COMPANY, SHAREHOLDERS, AFFILIATES, OFFICERS, EMPLOYEES, AGENTS OR REPRESENTATIVES BE LIABLE OR RESPONSIBLE TO YOU FOR ANY SPECIAL, INDIRECT, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHER SIMILAR DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY, OR DAMAGES TO A STRUCTURE OR ITS CONTENTS, ARISING UNDER ANY THEORY OF LAW WHATSOEVER.
  • Page 24 Jøtul’s vast experience dating back to when the company first started in 1853. Jøtul North America Inc. 55 Hutcherson Drive Gorham, Maine 04038 Jøtul AS P.o. box 1411 N-1602 Fredrikstad, Norway www.jotul.com...
