NOTE: Check all parts for shipping damages before us-
ing. In case of damage, do NOT use the equipment. Con-
tact the Carrier/ Dealer for further instructions.

SAFETY SUMMARY

WARNING
DO NOT install this equipment without first
reading and understanding this instruction
sheet. If you are unable to understand
these instructions, contact a healthcare
professional, dealer or technical personnel if
applicable before attempting to install this
equipment - otherwise, injury or damage may
occur.
INTRODUCTION

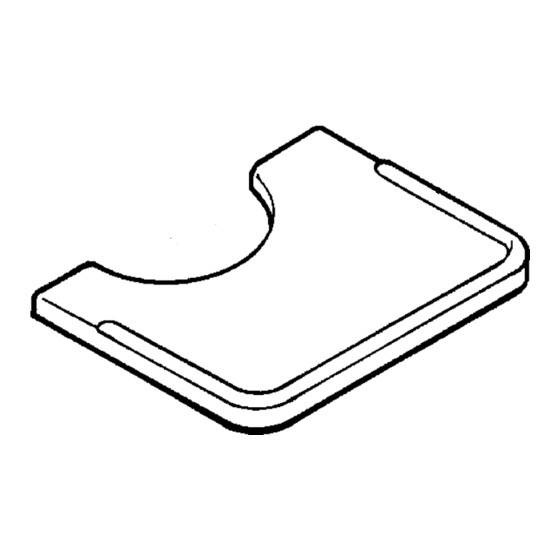

The Lap Trays are fully molded and designed to fit most
wheelchairs. They feature a continuous lip along three (3)
sides to prevent items from sliding off and is designed
without comers or crevices which helps prevent the col-
lection of food and dirt.
The Lap Trays are available in two (2) styles - Clear and
Black. The clear trays are composed of a Thermal Poly-
ester composition that allows surface scratches to be
removed with a heat gun or hair dryer. The Black trays are
made of ABS Plastic. Both styles are extremely durable.
The trays are available with or without a torso cutout.
The tray mounts firmly to the wheelchair by sliding onto
the arm rests. The tray will mount on flat padded (SR -
mounting hardware) or tubular (TR - mounting hard
ware) arm rests.
NOTE: These mounting holes/ screws must be posi-
tioned at the rear of the lap tray.
Standard Rail
(Shown)
NOTE: These
mounting holes/
screws must be
positioned at the
front of the lap
tray.
INSTALLATION (FIGURE 1)
1. Remove Lap Tray/tray rails from packaged container.
2. Measure the distance (outside to outside) at the
3. Subtract this measurement from the width of the Lap
4. Take the difference between the two (2) measure-
5. Measure the distance from the outside edge of the
6. Position tray rails with the mounting holes that are
7. Loosely secure the tray rails to the Lap Tray with the
REAR
Desk Arm Pad
Pin Position
Full Length Arm
Pad Pin Position
FIGURE 1 - INSTALLATION
1
front and rear of armrest pads.
Tray. Refer to the example.
Example:
Width of Lap Tray
Armrest Measurement
ments and divide by 2.
Example:
4-inches = 2
2
Lap Tray toward the inside of the tray rail using the
distance measurement obtained in STEP 4. Perform
this procedure for both sides of the Lap Tray.
closest to the outside of the tray rails at the rear of the tray.
screws provided.
Difference between the width of the lap tray and
the outside of the armrests divided by two.
Sling T-nuts
Mounting Screws
Sling T-nuts
Tray Rails
FRONT
24-inches
- 20-inches (minus)
- 4-inches
Install Tray
