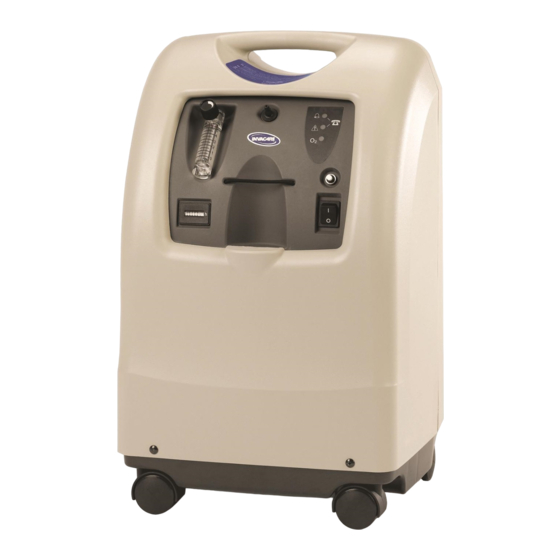

Invacare Perfecto2 IRC5PO2W Installation And Operating Instructions

Attaching Air Scoop
on the Perfecto ™
2
Assembly, Installation and Operating Instructions
Model No. IRC5PW and IRC5PO2W
SAVE THESE INSTRUCTIONS
NOTE: Check all parts for shipping damage. If damage is found, DO NOT use. Contact Carrier/Invacare for further instructions.
Safety Summary
To ensure the safe and proper installation of the Air Scoop, these instructions and warnings MUST be followed:
WARNING
DO NOT use this product or any available optional equipment without first completely reading and
understanding these instructions and any additional instructional material such as owner's manuals, service
manuals or instruction sheets supplied with this product or optional equipment. If you are unable to understand
the warnings, cautions or instructions, contact a healthcare professional, dealer or technical personnel before
attempting to use this equipment - otherwise, injury or damage may occur.
ACCESSORIES WARNING
Invacare products are specifically designed and manufactured for use in conjunction with Invacare accessories.
Accessories designed by other manufacturers have not been tested by Invacare and are not recommended for
use with Invacare products.
Attaching the Air Scoop
NOTE: For this procedure, refer to FIGURE 1.
Install the air scoop onto the filter access door by inserting the six tabs on the air scoop into the six slots on
the sides of the filter access door.
NOTE: An audible click will be heard.
NOTE: The top of the air scoop should be flush with the top of the filter access door when properly installed.
Filter Access
Door
Air
Scoop
Slots
Tabs
FIGURE 1 Attaching the Air Scoop
For more information regarding Invacare products, parts, and services, please visit www.invacare.com
Part No 1161718 Attaching Air Scoop
