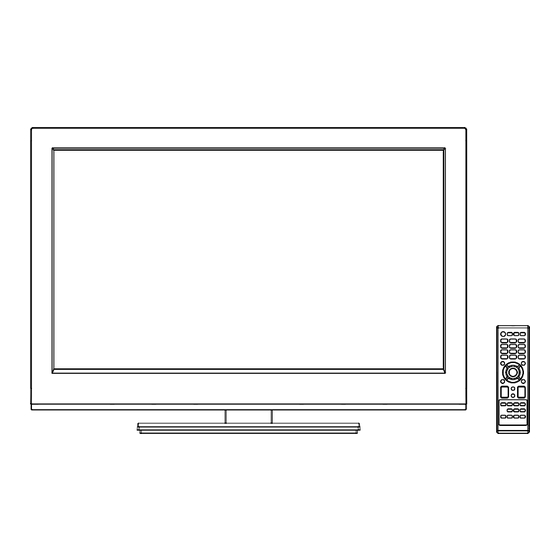

- Page 1 Operating Instructions LCD-TV Model-No.: 26MT6000 32MT6000 Before operating the unit, please read this manual thoroughly. 3BR2901A_EN.indd 1 3BR2901A_EN.indd 1 3/8/11 12:13:47 PM 3/8/11 12:13:47 PM...
-
Page 2: Features
Features • 16:9-LCD-TV • Bass-/Treble setting • Panel-Resolution: 1920 x 1080 • 2 x A/V-IN • LED technology • 1 x VGA-Connector • PAL/SECAM-tuner • 1 x PC-Audio-IN • DVB-T-tuner • HDMI • TOP-/FASTEXT • 1 x Component-(YCrCb)-IN • Digital Noise reduction DNR •... -
Page 3: Table Of Contents
Contents Features ............2 Contents ............3 Important safety information......4 Location of controls ........7 Remote Control ..........8 Antenna connection ........10 Auto setup............11 Quick guide for Menu operation ....11 Selecting the input source ......12 On-screen Language Selection ....12 Station search ..........12 Changing the order of stored channels ..12 Update Scan ..........12 Auto Synchronization ........13 Basic Operation ...........13... -
Page 4: Important Safety Information
Important safety information This unit has been produced according to all current safety regulations. The following safety tips should safeguard users against careless use and the dangers connected with such use. • Although this appliance has been carefully manufactured and rigorously checked prior to leaving the factory, as with all electrical appliances it is possible for problems to develop. - Page 5 Important safety information How to attach the stand NOTE: • Unplug the AC cord from the AC INPUT terminal. • Before beginning this process, assure that TV is laid on a clean, safe, and cushioned space to avoid any damage to the unit. •...
- Page 6 Important safety information WARNING • To prevent fire, never place any type of candle or open flame on the top or near the TV set. Moving the unit or carrying by hand When the unit is moved a long way, unplug the power cord and disconnect the antenna, connecting cables and any fall-prevention apparatus.
-
Page 7: Location Of Controls
Location of controls Description of Indicators and Controls 1. Remote sensor (Standby/On) indicator: The LED indicator lights up red in standby mode, and blue in the power ON mode. 3. Loudspeakers (Power)-key: Preparation: Connect power-cable to AC220~240V/50Hz. a) If standby-LED is red, you may power-off. To power-off, press power-key 1x and release. For confirmation, standby-LED will change to dark. -
Page 8: Remote Control
Remote Control Function Page Enter standby mode or turn on the power Display program information Select an input source Select picture format Select channel Select Teletext page Enter password Select between the available broadcast audio Display the EPG (Electronic Progr. Guide) Activate menu Exit the menu screen Cursor buttons... - Page 9 Remote Control Install the batteries Use batteries type UM4 (AAA-Size). Do not use old or weak batteries. The remote control may not work properly with a weak voltage from such batteries. Replace exhausted batteries with new ones. Never try to recharge normal batteries - this could cause an explosion.
-
Page 10: Antenna Connection
P.25, 26. If you have problems with reception, consult a specialist of antenna. (B) (32MT6000) (A) USB input: See P.22. (B) HDMI/DVI (32MT6000: HDMI/DVI1/HDMI2/3 / 26MT6000: HDMI/DVI1/HDMI2) : See P.24. (C) AV1/AV2 input: Input for analogue AV-Signal (Composite) See P.25. (D) COMPONENT input: See P.25, 26. -
Page 11: Auto Setup
Note: Auto setup • If you do not wish to carry out the autotuning for Analog TV-channels, press RETURN to exit the menu. Your television has an Automatic Tuning System which makes tuning in your television Auto Installation Channel Scan easy. -
Page 12: Selecting The Input Source
Selecting the input source When all DVB-T programs have been stored (100%), you will be asked if you want to proceed to autotuning Analog TV-channels. Press INPUT SELECT to view a signal from If you wish to start the tuning Analog cable- another device connected to your TV, such as a TV channels. -
Page 13: Auto Synchronization
Note: Auto Synchronization • If the current watching DVB-channel has more than one audio language or subtitle language, This feature can display the time based on the you can change them by each pressing of DVB signal information. AUDIO I/II or If you wish to set the time manually, select •... -
Page 14: Stereo Reception In Analogue Cable Tv Channel Mode
Switch on / off Teletext Stereo reception in analogue cable Teletext is not transmitted by all channels. TV channel mode Select a channel that shows teletext. Press . You will now see a teletext page. The following types of broadcast are possible (If “100”... -
Page 15: Remarks On Dvb-T System
Remarks on DVB-T system DVB-T is at present still being developed. You can get information regarding the current stage of development from your specialist retailer. As a digital service DVB-T basically works differently to previous analogue TV reception. Reception Possibilities: In contrast to cable TV, DVB-T is received via room or roof antennas. -
Page 16: Password Setup (Parental Lock)
Password Setup (Parental lock) EPG (Electronic Program Guide) Parental lock is a function of the channel The Guide menu shows the available provider. If it is not supported by the channel, programme listings for the next 8 days only, parental lock is without function. Currently there including today. -
Page 17: Picture Size And Resolution
Picture size and resolution Resolution and picture quality Broadcast wide screen films in different resolutions. The following table shows the resolution options for wide screen film broadcast media. Broadcast media Resolution of the wide Analogue Digital DVB-T Satellite HDTV Blu-ray- screen signal cable TV cable TV... -
Page 18: Picture Format
Picture format Picture Size Other formats The required picture format can be set by pressing Press PICTURE SIZE until the desired size is reached. the PICTURE SIZE button. Press PICTURE SIZE until the required format is displayed. You move through the following formats when you The picture is displayed in 4:3 press the button: Auto, 4:3, 16:9, 14:9, Cinema, Real format with black bars to the... -
Page 19: Other Convenience Functions
Other convenience functions You can change the default settings to convenience use. Setup hint Selected Items Picture Preference Memory Your personal preferences Sport Bright and dynamic picture (factory-set) Standard Standard picture quality (factory-set) Movie Movie-like picture setting (factory-set) Brightness / Contrast / Colour / Tint / Sharpness You can adjust the picture to your preference. - Page 20 Other convenience functions Setup hint Selected Items Country Set the country where you use this product. Audio Language Select preferred audio language, if the current watching DTV channel has more than one audio language. This option is not available for ATV channel. •...
- Page 21 Other convenience functions Setup hint Selected Items Subtitle Analog Subtitle If the receiving analog signal has the Teletext subtitle page, it displays the Teletext subtitle. On / Off Digital Subtitle Language Select preferred subtitle language, if the current watching DTV channel has more than one subtitle language.
-
Page 22: Media Operation
Media Operation You can enjoy viewing pictures from your USB You can view the files with the following remote storage device. control buttons. Connect the USB storage device into the Button Action Media Input terminal. Press to display Operation guide panel. Press USB to display the Media Menu. -
Page 23: Pc Connection
PC connection Follow these steps: On your PC monitor choose a resolution of 1920 × 1080 at 60Hz and save this configuration. Shut down your PC and connect the shut off LCD TV. Use a screensaver to avoid burning-in of static picture content. Select PC input Use a PC-VGA cable (not supplied) to connect the LCD-Monitor to your PC. -
Page 24: Connecting An Hdmi Or A Dvi Device To The Hdmi Input
Connecting an HDMI or a DVI device to the HDMI input The HDMI input receives digital audio and uncompressed video from a HDMI equipped device or uncompressed digital video from a DVI equipped device. When you connect to a DVI device with a HDMI-to-DVI adapter cable, it only transfers the video signal, so it is necessary to use separate analogue leads to transfer the audio signals. -
Page 25: Connection To Other Equipment
Connection to other equipment Attention: Preparation: • Disconnect all equipment from the AC-supply, to prevent any possible damage. • Make the necessary connections. • Make sure all connections are safe & secure before reconnecting your equipment the AC-supply. Note: • Select a appropriate external input mode. - Page 26 Connection to other equipment 4. Connecting to a DVD player or other AV device with Component Video outputs If your DVD player (or other device) has Component Video output jacks, use a suitable set of leads (RCA/ Phono) to connect these to the Component Video inputs on this TV as shown - it can greatly enhance the picture quality and performance.
-
Page 27: Troubleshooting Table
