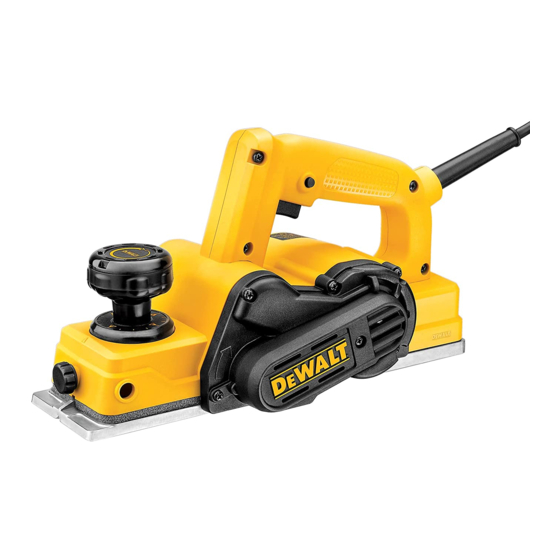

DeWalt D26676-XE Instruction Manual

1.5 mm planer
Hide thumbs Also See for D26676-XE:
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
D26676-XE
1.5 mm PLANER

Advertisement

Table of Contents
loading

Related Manuals for DeWalt D26676-XE

Summary of Contents for DeWalt D26676-XE

  • Page 1 INSTRUCTION MANUAL D26676-XE 1.5 mm PLANER...

  • Page 3: Definitions: Safety Guidelines

    CALL US AT: 1800 338 002 (Aust) or 0800 339 258 (NZ). period. Technical Data Identify additional safety measures to protect the operator from the effects of D26676-XE vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. Voltage...

  • Page 4: Work Area Safety

    SAVE ALL WARNINGS AND INSTRUCTIONS FOR under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. FUTURE REFERENCE b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing The term “power tool”...

  • Page 5: Extension Cords

    Extension Cords e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s CAUTION: Use only extension cords that are approved by the country’s Electrical operation. If damaged, have the power tool repaired before use. Many Authority.

  • Page 6: Intended Use

    COMPONENTS (FIG. 1) Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and WARNING: Never modify the power tool or any part of it. Damage or personal work with approved safety equipment, such as those dust masks that are specially injury could result.

  • Page 7: Assembly And Adjustments

    Adjusting the Depth of Cut (Fig. 2) FIG. 1 Turn the planing depth adjustment knob (D). One revolution of the adjustment knob equals a 1.5 mm change in depth. Each click of the adjustment knob represents 0.1 mm of depth, and will increase up to 1.0 mm in depth.

  • Page 8: Operation

    FIG. 6 FIG. 4 Sharpening Blades (Fig. 6) 1. Fasten the blade to the sharpening holder (V). Make sure both blade edges are facing the same direction. 2. Place the blade edges so they rest flat on the grinding stone. 3.

  • Page 9: Maintenance

    Planing (Fig. 1, 7) Move the tool slowly into the work and maintain downward pressure to keep the planer flat. Be particularly careful to keep the tool flat at the beginning and the end of CAUTION: Risk of property damage. Allow the tool to reach full speed before the work surface.
  • Page 10 Repairs To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement) should be performed by certified service centers or other qualified service organizations, always using identical replacement parts. Accessories WARNING: Since accessories, other than those offered by D WALT, have not been tested with this product, use of such accessories with this tool could be hazardous.
  • Page 12 Stanley Black & Decker 82 Taryn Drive, Epping, VIC 3076 Australia • 1800 338 002 (Aust) or 0800 339 258 (NZ) www.dewalt.com.au • www.dewalt.co.nz (APR14) Part No. N396019 D26676-XE Copyright © 2009, 2014 D WALT The following are trademarks for one or more D WALT power tools: the yellow and black color scheme;...
