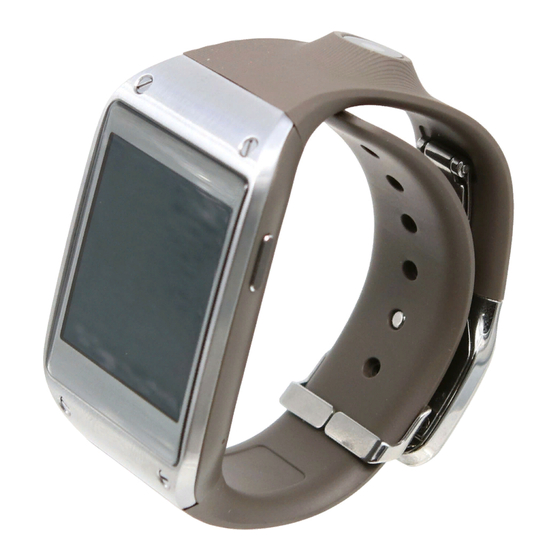

About this manual ™ You can use this Gear as a companion device to some Samsung Android smartphones or tablet PCs. This user manual is specially designed to explain applications and features that are available when the Gear is connected to a mobile device.
Page 3
Samsung Electronics. Trademarks • S AMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. ® • B luetooth is a registered trademark of Bluetooth SIG, Inc. worldwide.
Table of Contents Getting started Gear Manager Package contents About Gear Manager Device layout Configuring the Gear settings Connecting to a mobile device Customising the Home screen Button Managing applications Charging the battery Finding the Gear Wearing the Gear Using notifications Turning the Gear on and off Activating the auto lock feature Locking and unlocking the Gear...
Page 5
Table of Contents Today’s Schedule Voice Memo Weather Settings About Settings Clock Sound Volume Display Battery Bluetooth Motions Privacy lock Language Reset Gear Gear info Troubleshooting...
• A ppearances and specifications are subject to change without prior notice. • Y ou can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the Gear before purchase. • O ther accessories may not be compatible with your Gear.
Getting started Device layout Gear Touch screen Power button Microphone Camera Microphone Buckle Charging terminals Strap Speaker Humidity and liquids may damage your Gear. Keep your Gear dry. • D o not use a screen protector. This causes sensor malfunctions. •...
Getting started Charging dock Charging terminals Switch NFC tag (Back of the charging cradle) Multipurpose jack Connecting to a mobile device By connecting the Gear to another mobile device, you can use applications and features on the connected mobile device. Use the charging dock that has an NFC tag and an embedded Bluetooth address that matches your Gear.
Page 9
Getting started Gear: Turn on the Gear. The Gear switches to connection mode automatically. Play the connection tutorial. Charging dock: Touch the back of the charging dock to the back of the mobile device. The mobile device emits a sound and a Gear Manager pop-up window appears. NFC antenna (Back of the mobile device)
Page 10
Getting started Mobile device: Tap OK → Install. Gear Manager is installed. Ensure that a Wi-Fi or mobile network is active before installing Gear Manager. Mobile device: When the Bluetooth pairing request window appears, tap OK. Gear: Tap ▲ Gear ▲...
Page 11
Settings → Connections, and then confirm that the NFC option is listed. • T he steps and screens may vary depending on the mobile devices. Mobile device: Access Samsung Apps, and then download and install Samsung GALAXY Gear Manager.
Page 12
Getting started Mobile device: Launch Gear Manager on the mobile device, and then tap Connect manually. Mobile device: When the Notice window appears, tap OK. The mobile device activates Bluetooth and shows detected devices. Mobile device: Select the Gear from the list of detected Bluetooth devices. Check the ID number on the Gear, and then select the Gear with the same number from the list of detected Bluetooth devices.
Page 13
Getting started Mobile device: When the Bluetooth pairing request window appears, tap OK. Gear: Tap ▲ Gear ▲ Mobile device The Gear and the mobile device are connected via the Bluetooth feature. On the mobile device: Read and agree to the terms and conditions. Device connection is complete and Gear Manager launches.
Use the charging dock to charge the battery before using it for the first time. A computer can be also used to charge the Gear by connecting them via the USB cable. Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the Gear.
Page 15
Getting started Charging with the charging dock Slide and hold the switch, and then open the cover of the charging dock. Place the Gear on the charging dock with the charging terminals facing each other. Close the cover of the charging dock.
Page 16
Gear’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging. • I f the Gear is not charging properly, take the Gear and the charger to a Samsung Service Centre. After fully charging, disconnect the Gear from the charging dock.
Getting started Checking the battery charge status When you charge the battery while the Gear is off, the following icons will show the current battery charge status: Charging Fully charged Wearing the Gear Release the buckle. • B e careful not to damage your fingernails when you release the buckle. •...
Getting started Press the buckle until it clicks. Turning the Gear on and off When turning on the Gear for the first time, follow the on-screen instructions to connect the Gear to a smartphone or tablet PC and set up your Gear. Press and hold the Power button for a few seconds to turn on the Gear.
Getting started Locking and unlocking the Gear When not in use, lock the Gear to prevent unwanted operation. Pressing the Power button on the Clock screen turns off the screen and puts the Gear into lock mode. The Gear automatically gets locked if it is not used for a specified period. Press the Power button to unlock the Gear.
Getting started Switching to silent mode Use one of the following methods: • P ress and hold the Power button, and then tap Sound or Vibrate. • O n the Home screen, scroll to Apps, tap Apps → Settings → Sound → Sound mode → Vibrate or Mute.
Basics Indicator icons The following icons provide information about the status of the Gear. These icons appears when you double-tap the screen with two fingers. Icon Meaning Bluetooth feature activated Another Bluetooth device connected Battery power level Using the touch screen Use only fingers to use the touch screen.
Basics Finger gestures Tapping To open an application, to select a menu item, or to press an on-screen button, tap it with a finger. Tapping and holding Tap and hold the screen with two fingers to open the list of recent applications.
Page 23
Basics Double-tapping • D ouble-tap on an image to zoom in a part. Double-tap again to return. • D ouble-tap the screen with two fingers to access the brightness and volume control panel and view indicator icons and the remaining battery life.
Basics Flicking Flick left or right on the Home screen or the Applications screen to see another panel. Pinching Spread two fingers apart on an image to zoom in a part. Pinch to zoom out. Notifications Once the Gear is connected to a mobile device and the mobile device is locked, you can receive notifications of activities, such as missed calls or new messages on the Gear.
Basics Home screen The Home screen is the starting point to access all of the Gear’s features. It displays the clock, widgets, shortcuts to applications, and others. The Home screen can have multiple panels. To view other panels, scroll left or right. Panels on the Home screen Number Application or feature...
Basics Clock screen Press the Power button to open the Clock screen. On the Clock screen, you can launch Dialler by flicking up and launch Camera by flicking down. Tap the weather information to launch Weather. Applications screen The Applications screen displays icons for all applications. On the Home screen, scroll to Apps, and then tap Apps to open the Applications screen.
Basics Returning to the previous screen While using applications or on the Applications screen, flick down from the top of the screen. Securing the Gear Prevent others from using or accessing personal data and information stored in the Gear by using the pattern lock.
Basics Unlocking the Gear Turn on the screen by pressing the Power button, and enter the unlock code. Or, connect to the mobile device again to unlock the Gear automatically. Bluetooth Bluetooth creates a direct wireless connection between two devices over short distances. To activate Bluetooth, on the Applications screen, tap Settings →...
Page 29
Basics Pairing with other Bluetooth devices When the other Bluetooth device sends a request to pair with, accept the auto-generated passkey on the Gear to confirm. Sending files to a mobile device You can send images, videos, voice memos, or pedometer records from the Gear to the mobile device.
Basics Using calling features Making a call On the Applications screen, tap Dialler, enter a number with the keypad, and then tap . Or, tap Logs or Contacts, select a contact, and then tap if necessary. During a call The following actions are available: •...
Gear Manager About Gear Manager This application allows you to connect to a mobile device, customise your Gear settings and applications, and use features of the connected mobile device. From the connected mobile device, tap Gear Manager on the Applications screen. Configuring the Gear settings Access Gear information and update Gear software.
Gear Manager Customising the Home screen Customise the settings to change the clock type, add frequently-used applications to the Home screen, or reorganise applications on the Home screen. Changing the clock type Tap Clocks, and then select a clock under Available. To select what information to show on the Clock screen, tap next to the clock under Current selection.
Installing applications Tap Samsung Apps. Browse applications and select an application to download. To browse and download suggested applications, tap My Apps → Featured. To install applications from sources other than Samsung Apps, tap Settings → Unknown Sources. Uninstalling applications Tap My Apps →...
Gear Manager Finding the Gear If you misplace the Gear, Gear Manager will help you find the Gear by making it emit sounds and turn on the screen. Tap Find my Gear → Start. Using notifications Stay up-to-date with a variety of events, such as missed calls or new messages, of the connected mobile device.
Gear Manager Activating the auto lock feature Use this feature to set the mobile device to lock automatically when it is disconnected from your Gear. Tap Settings, and then drag the Auto lock switch to the right. Tap Continue, draw a pattern by connecting four dots or more, and then draw the pattern again to verify it.
Gear Manager Smart relay Use this feature to view new messages, events, and other information on the mobile device when you receive notifications. Before using this feature, make sure the motion feature of the mobile device is activated. Tap Settings → Smart relay, and then drag the Smart relay switch to the right. When you receive a notification, pick up the connected mobile device while your Gear’s screen is on.
Applications Camera Use this application to take photos or videos. The Gear can save up to 50 photos and 15 videos. Use Gallery to view photos and videos taken with the Gear’s camera. (p. 39) Tap Camera on the Applications screen. •...
Applications Taking photos Taking a photo Tap the screen to take a photo. Switch between still and video Change the camera settings. mode. Taking a photo with sound → Sound & shot → On. Tap the screen to take a photo. The Gear records a few seconds of audio after taking a photo. To stop recording, tap the screen again.
Applications Configuring settings for Camera to configure settings for Camera. Not all of the following options are available in both still camera and video camera modes. • F ocus mode: Select a focus mode. Auto is camera-controlled. Macro is for very close objects.
Applications Playing videos Video files show the icon on the preview. Select a video to watch it and tap Deleting files → Delete. When viewing a file, tap Sharing files → Share to send it to others or share it via social network services. When viewing a file, tap Contacts Use this application to view contacts on the connected mobile device.
Applications Logs Use this application to view call and message logs on the mobile device. Tap Logs on the Applications screen. Media Controller Use this application to play and control media files. You can launch the music player on the connected mobile device and control playback with the Gear.
Page 42
Applications Before You Start Exercising This app can be used to monitor your exercise. While moderate physical activity, such as brisk walking, is safe for most people, health experts suggest that you talk with your doctor before you start an exercise program, particularly if you have any of the following conditions: •...
Page 43
Applications Setting a profile Read and agree to the terms and conditions. Select a unit of measurement, and then enter your physical statistics. Starting the pedometer On the step count screen, start the pedometer to count your steps and view the walking distance and burned calories.
Page 44
Applications Checking the walking status On the walking status screen, view the calorie burning status based on your walking pace. On the step count screen, flick to the right to access the walking status screen while counting your steps. Exercising with training courses On the S trainer screen, begin exercising by following the on-screen instructions.
Applications S Voice Use this application to command the Gear remotely by voice to dial a number, send a message, and more. Tap S Voice on the Applications screen. Alternatively, press the Power button twice. • T his application may not be available depending on the region or service provider. •...
Applications Timer Use this application to use the Gear as a countdown timer. Tap Timer on the Applications screen. Set the duration, and then tap Start. Tap Dismiss when the timer goes off. Today’s Schedule Use this application to view today’s events. Tap Today’s Schedule on the Applications screen.
Applications Playing voice memos Select a voice memo to play. If spoken text is recorded and the text converting is finished, appears next to the filename. The Gear shows the text on the screen during playback. • : Start playback. •...
Settings About Settings Use this application to configure the Gear and set application options. Tap Settings on the Applications screen. Clock Access and alter the following settings to control how the Gear displays the time and date. If the battery remains fully discharged, the time and date is reset. •...
Settings Sound Change settings for various sounds on the Gear. • S ound mode: Activate silent mode to make your Gear vibrate or mute all sounds, except for media sounds. • T ouch sounds: Set the Gear to sound when selecting an application or option on the touch screen.
Settings Battery View the remaining battery life. Bluetooth • B luetooth: Turn the Bluetooth wireless feature on or off. • V isibility: Set the Gear to be visible to other Bluetooth devices. Motions • S mart relay: Set to view new messages and other information when you pick up your connected mobile device after receiving notifications on your Gear.
• R estart your Gear to clear any temporary software bugs. • E nsure that your Gear software is upgraded to the latest version. • I f the touch screen is scratched or damaged, visit a Samsung Service Centre. Your Gear freezes or has fatal errors If your Gear freezes or hangs, you may need to close applications and turn on the Gear to regain functionality.
Page 53
• E nsure that your Gear and the other Bluetooth device are within the maximum Bluetooth range (10 m). If the tips above do not solve the problem, contact a Samsung Service Centre. A Bluetooth connection is not established or your Gear and the mobile device are disconnected •...
Page 54
The battery icon is empty Your battery is low. Recharge the battery. The battery does not charge properly (For Samsung-approved chargers) • E nsure that you place the Gear on the charging dock and connect the dock to the charger properly.
Page 55
• E nsure that you have the proper driver installed and updated on your computer. • I f you are a Windows XP user, ensure that you have Windows XP Service Pack 3 or higher installed on your computer. • E nsure that you have Samsung Kies installed on your computer.
Page 56
Data stored on the Gear has been lost Always make backup copies of all important data stored on the Gear. Otherwise, you cannot restore data if it is corrupted or lost. Samsung is not responsible for the loss of data stored on the Gear.
Page 57
Some content may differ from your Gear depending on the region, service provider, or software version, and is subject to change without prior notice. www.samsung.com English (EU). 01/2014. Rev.1.3...
