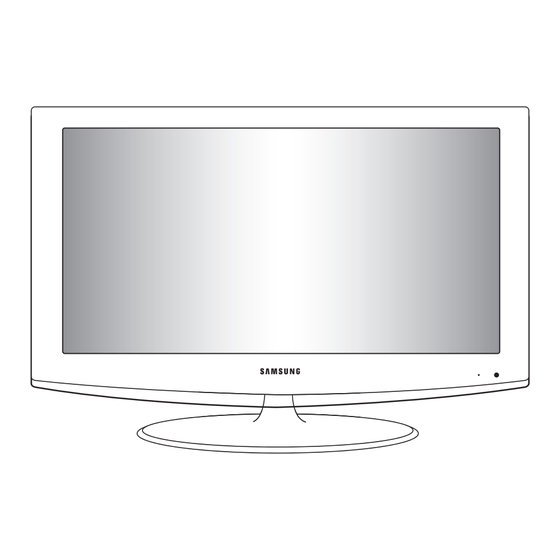

Samsung LN26A450C1D Quick Setup Manual
Monitors
Hide thumbs
Also See for LN26A450C1D:
- User manual (160 pages) ,
- User manual (158 pages) ,
- User manual (37 pages)
Table of Contents
Advertisement
Quick Links
1-800-SAMSUNG (7267864)
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ 07660-0511
Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Call center hours of operation (Mon-Sun 9AM-12AM EST).
To register this product please visit
www.samsung.com/global/register.
Rear Panel / Side Panel Jacks
1
AUDIO OUT
2
DIGITAL AUDIO OUT (OPTICAL)
3
PC IN [PC] / [AUDIO]
4
HDMI IN , 2, 3 / DVI IN (HDMI2)
[R-AUDIO-L]
LN26A450CD/LN32A450CD/
(LN26A450CD, LN40A450CD)
5
ANT IN
6
AV IN 2
7
HEADPHONE
8
POWER INPUT
English-
LN37A450CD/LN40A450CD
9
SERVICE
0
COMPONENT IN , 2 / AV IN
!
EX-LINK
@
KENSINGTON LOCK
Advertisement
Table of Contents
Related Manuals for Samsung LN26A450C1D
Summary of Contents for Samsung LN26A450C1D
- Page 1 1-800-SAMSUNG (7267864) Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 Samsung Electronics Canada Inc., Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Call center hours of operation (Mon-Sun 9AM-12AM EST). To register this product please visit www.samsung.com/global/register.
- Page 2 Rear Panel / Side Panel Jacks (LN32A450CD, LN37A450CD) SERVICE COMPONENT IN , 2 / AV IN KENSINGTON LOCK DIGITAL AUDIO OUT (OPTICAL) ANT IN POWER INPUT PC IN [PC] / [AUDIO] HDMI IN , 2, 3 / DVI IN (HDMI) AV IN 2 [R-AUDIO-L] AUDIO OUT...
-
Page 3: Remote Control
Press to exit the menu. Used to display Channel Lists on the screen. DMA (Digital Media Adapter) TOOLS Use this when connecting a SAMSUNG DMA device Use to quickly select frequently through an HDMI interface and used functions. switching to DMA mode. INFO... -
Page 4: Connecting A Dvd Player Or Cable Box/Satellite Receiver (Set-Top Box) Via Hdmi
Connections (LN26A450CD, LN40A450CD) Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI Connect an HDMI Cable between TV Side Panel the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the TV Rear Panel DVD Player or Cable Box/Satellite receiver (Set-Top Box). -
Page 5: Connecting A Dvd Player Or Cable Box/Satellite Receiver (Set-Top Box) Via Component Cables
Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables Connect a Component Cable between TV Rear Panel the COMPONENT IN (1 or 2) [Y, P ] jacks on the TV and the COMPONENT [Y, P ] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box). -
Page 6: Connecting A Vcr
Connecting a VCR Video Connection Unplug the cable or antenna from the back of the TV. TV Side Panel TV Rear Panel VCR Rear Panel Connect the cable or antenna to the ANT IN terminal on the back of the VCR. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal... -
Page 7: Connecting A Digital Audio System
Connecting a Digital Audio System Connect an Optical Cable between TV Rear Panel the “DIGITAL AUDIO OUT (OPTICAL)” jacks on the TV and the Digital Audio Input jacks on the Digital Audio System. Digital Audio System When a Digital Audio System is connected to the “DIGITAL AUDIO OUT (OPTICAL)”... -
Page 8: Connecting A Pc
Connecting a PC Using the D-Sub Cable TV Rear Panel Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer. - Page 9 Connections (LN32A450CD, LN37A450CD) Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via HDMI Connect an HDMI Cable between TV Side Panel TV Rear Panel the HDMI IN (1, 2 or 3) jack on the TV and the HDMI jack on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
- Page 10 Connecting a DVD Player or Cable Box/Satellite receiver (Set-Top Box) via Component cables Connect a Component Cable TV Rear Panel between the COMPONENT IN (1 or 2) [Y, P ] jacks on the TV and the COMPONENT [Y, P ] jacks on the DVD Player or Cable Box/Satellite receiver (Set-Top Box).
- Page 11 Connecting a VCR Video Connection Unplug the cable or antenna from the back of the TV. TV Rear Panel Connect the cable or antenna TV Side Panel to the ANT IN terminal on the back of the VCR. VCR Rear Panel Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN terminal...
- Page 12 Connecting a Digital Audio System Connect an Optical Cable between TV Rear Panel the “DIGITAL AUDIO OUT (OPTICAL)” jacks on the TV and the Digital Audio Input jacks on the Digital Audio System. Digital Audio System When a Digital Audio System is connected to the “DIGITAL AUDIO OUT (OPTICAL)”...
- Page 13 Connecting a PC Using the D-Sub Cable TV Rear Panel Connect a D-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your computer.
-
Page 14: Turning The Tv On And Off
Turning the TV On and Off The TV begins memorizing all available stations. After all the available channels are stored, it start to remove scrambled channels. Press the POWER button on the remote control. Press the EXIT button to exit. You can also use the POWER button on the TV. -
Page 15: Customizing The Picture Settings
Setting the Channel List Picture Mode Using this menu, you can Add/Delete or set Favorite • Dynamic: Selects the picture for high-definition in a bright channels and use the program guide for digital broadcasts. room. To use the Channel List function, first run “Auto Program”. •... -
Page 16: To Select The Source
To Select the Source Source List : ---- : ---- S-Video : ---- Component : ---- Component2 : ---- : ---- ▼ more Move Enter Return Press the SOURCE button on the Remote Control You can select the TV mode or an input source connected to the TV set. Use this button to choose an input source that you would like to watch. -
Page 17: Troubleshooting
Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung service center. Problem Possible Solution Poor picture Try another channel. / Adjust the antenna. / Check all wire connections. - Page 18 Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Contacte con SAMSUNG WORLDWIDE Si tiene alguna pregunta o comentario referente a nuestros productos, por favor contacte con nuestro Servicio de Atención al Cliente.
