Carrier 58RAV Product Data
High-efficiency downflow/horizontal induced-combustion input capacities: 50,000 thru 135,000 btuh
Hide thumbs
Also See for 58RAV:
- Installation, start-up, and operating instructions manual (16 pages) ,
- Product data (9 pages) ,
- Operation manual (8 pages)
Advertisement
Table of Contents
HEATING & COOLING
Copyright 1994 Carrier Corporation
Product
Data

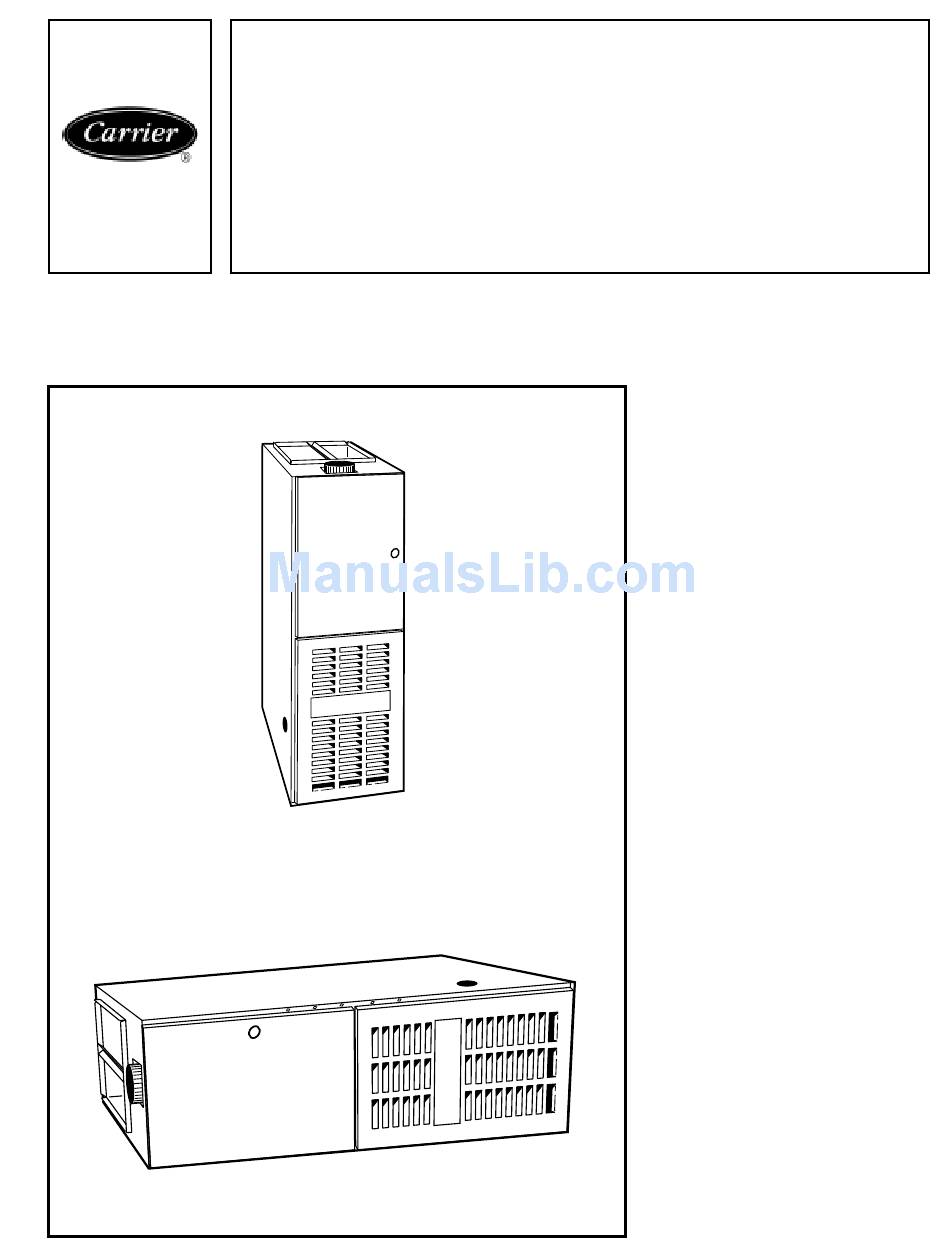

DOWNFLOW
HORIZONTAL
High-Efficiency
Downflow/Horizontal
Induced-Combustion
Gas Furnace
Input Capacities:
50,000 thru 135,000 Btuh
80% AFUE At Budget Price
Carrier provides an 80% Annual
Fuel Utilization Efficiency (AFUE)
gas furnace for the budget conscious
consumer and builder. The 58RAV
offers the same high quality you
demand and receive from Carrier.
The cabinet is constructed from a
specially selected galvanized
embossed steel with a clear coating.
This material provides the same
protection from humidity and rust as
our other cabinets.
The 58RAV offers a hot surface
ignition system which provides a
superior and more reliable ignition
than older spark relight systems.
The heat exchangers are constructed
of aluminized steel and covered by a
10-year Limited Warranty. They are
Carrier's patented Super-S heat
exchangers that improve heat transfer
and enables downsizing of this furnace
to only 40 in. tall.
To improve the sound level, we have
incorporated a soft mount inducer
assembly and a slow opening gas
valve.
The control board is the brain of
this induced-combustion gas furnace.
It offers a unique self-test feature
that checks all the major functions of
the furnace within 1 minute. The
control board also features a 3-amp
fuse that protects the transformer
and control board. Another feature
on the control board is a LED status
indicator light to ensure top furnace
performance.
58RAV
Form No. 58RAV-4PD
Advertisement
Table of Contents
Related Manuals for Carrier 58RAV
Summary of Contents for Carrier 58RAV
- Page 1 This material provides the same protection from humidity and rust as our other cabinets. The 58RAV offers a hot surface ignition system which provides a superior and more reliable ignition than older spark relight systems.
-
Page 2: Model Number Nomenclature
MEETS DOE RESIDENTIAL CONSERVATION SERVICES PROGRAM STANDARDS. Before purchasing this appliance, read important energy cost and efficiency information available from your retailer. Model number nomenclature 58RAV Downflow/Horizontal Induced-Combustion Gas-Fired Furnace Cooling Size (Airflow) (400 CFM per 12,000 Btuh) Input Capacity 08 —... -
Page 3: Physical Data
HUMIDIFIER AIR CLEANER One base fits all furnace sizes. The base is By adding moisture to winter-dry air, a Carrier designed to be installed between the furnace or humidifier can often improve the comfort and Cleans the air of smoke, dirt, and many pollens coil box and a combustible floor. - Page 4 Dimensions CLEARANCES (In.) UNIT SIZE 050 AND 070 095—135 UNIT SIZE 050 AND 070 095—135 DOWNFLOW (In Alcove or Closet) HORIZONTAL (In Attic, Alcove, or Crawlspace) Sides —Single-Wall Vent Sides* Type B-1 Double-Wall Vent Back Back Top — Single-Wall Vent Type B-1 Double-Wall Vent Front —...
- Page 5 Accessory downflow subbase DIMENSIONAL DATA (In.) PLENUM OPENING FRAMED FLOOR HOLE FURNACE HOLE NO. FOR WIDTH WIDTH ADJUSTMENT 14-3/16 11-13/16 13-7/16 20-3/8 17-1/2 15-1/8 16-3/4 20-3/8 18-5/8 20-1/4 20-3/8 24-1/2 22-1/8 23-3/4 20-3/8 * The plenum should be constructed 1/4-in. smaller in width and depth than the plenum dimensions shown above. LOCATING ″...
- Page 6 Performance data UNIT SIZE 050-08 050-12 070-08 070-12 095-12 095-16 115-16 115-20 135-20 DIRECT-DRIVE MOTOR Hp (PSC) MOTOR FULL LOAD AMPS 11.1 11.1 RPM (Nominal)—SPEEDS 1075 — 3 1075 — 4 1075 — 3 1075 — 4 1075 — 4 1075 — 4 1075 — 4 1075 — 4 1075 — 4 BLOWER WHEEL DIAMETER x WIDTH (In.) 10 x 6 10 x 6...
- Page 7 Electrical data UNIT SIZE 050-08 050-12 070-08 070-12 095-12 095-16 115-16 115-20 135-20 UNIT VOLTS — HERTZ — PHASE 115 — 60 — 1 MINIMUM WIRE SIZE MAXIMUM WIRE LENGTH (Ft)* MAXIMUM UNIT AMPS 10.2 10.1 13.3 14.3 OPERATING VOLTAGE RANGE (Min—Max)† 104 —...
- Page 8 Syracuse, New York 13221 5-94 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Book Page 8 Catalog No. 525-851 Printed in U.S.A. PC 101 Form 58RAV-4PD Replaces: 58RAV-3PD 6a 8a...
