Installer:
Leave this manual
with homeowner.
Homelink
is a registered trademark of
®
Johnson Controls Technology Company.
Car2U
®
is a registered trademark of
Lear Corporation.
© GMI Holdings, Inc. d/b/a The Genie Company
PN# 37026500123, 5/15/2009
A L W AY S AT Y O U R C O M M A N D

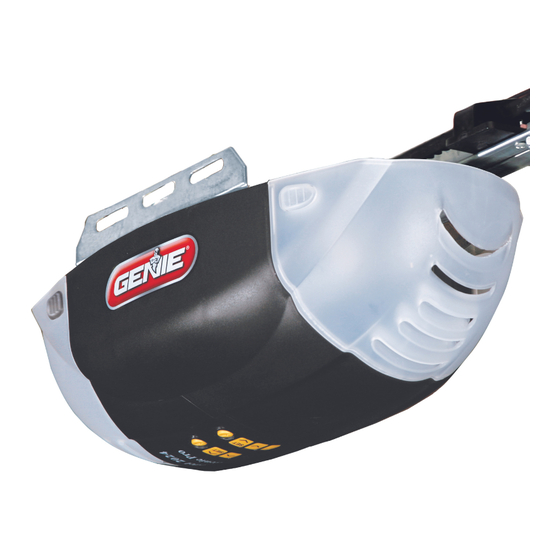

Models 2022/2024/2042
Includes: 2-Bulb Light System
Wall Console
Includes INTELLICODE
Safe-T-Beam
System must be installed to close door.
®
For use only with sectional doors.
Homelink
and Car2U
®
For Answers and Assistance:
1.800.354.3643
or visit www.geniecompany.com
SAVE THIS MANUAL FOR FUTURE REFERENCE
GARAGE DOOR OPENERS
Remote Control
®
compatible
®
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Genie 2022
Summary of Contents for Genie 2022
- Page 1 Homelink is a registered trademark of ® Johnson Controls Technology Company. Car2U ® is a registered trademark of SAVE THIS MANUAL FOR FUTURE REFERENCE Lear Corporation. © GMI Holdings, Inc. d/b/a The Genie Company PN# 37026500123, 5/15/2009...
-
Page 2: Safety Information
If you have questions or do NOT understand the information presented, contact The Genie Company or an authorized Genie Dealer. -
Page 3: Table Of Contents
TABLE OF CONTENTS OPENER FEATURES INTELLICODE Rolling Code Security System. SECTION ......... PAGE ®... -
Page 4: Pre-Installation Check List
They are as follows: The Genie Company recommends that you read and fully understand all information and instructions contained herein before choosing a "Do-it-yourself" installation. Any questions should be directed to The Genie Company or an authorized Genie Dealer. - Page 5 TYPICAL SECTIONAL DOOR INSTALLATION FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM Pg. 19 Pg. 13 Pg. 12-13 TYPICAL SUPPORT ADDED BRACKET HEADER BRACKET (NOT PROVIDED) MOUNTING BOARD BRACES POWER CORD (APPROX. 45 IN.) TO 120V GROUNDED OUTLET EXTENSION SPRING TORSION SPRING Pg. 14 NOTE: This opener is designed for use with SECTIONAL doors only.
-
Page 6: Recommended Tools
RECOMMENDED TOOLS FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM Pencil 3/16" Drill Bit Carpenter’s level Drill Wire strippers Adjustable wrench Ratchet Tape measure Safety Glasses Step ladder Hammer 1/4", 7/16", 3/8" and Phillips screwdriver 1/2" Sockets PARTS IDENTIFICATION - Not Shown Full Size . ARRANGING BOX CONTENTS FOR ASSEMBLY ORGANISATION DU CONTENU DE LA BOÎTE POUR LE MONTAGE DISPOSICIÓN DEL CONTENIDO DE LA BOLSA PARA EL MONTAJE... - Page 7 FASTENERS - Shown Full size (See Parts List below for full description.) BAG NO. DESCRIPTION QUANTITY RAIL SECTION CLAMP RAIL CLAMP BOLT – 5/16 -18 x 5/8'' HEX FLANGE NUT – 5/16 -18 BOLT – 5/16 -18 x 1/2'' Rail Clamp Bolt - 5/16 -18 x 5/8" CLEVIS PIN, LONG –...
-
Page 8: Key Illustrations
1-PIECE RAIL HARDWARE ASSEMBLED VIEW FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM Power Cord Rail with chain Power Head Carriage Slide CHAIN Release Knob or s nt ac . Co ut or ci ng r fo b ra di st tu re io ns IO N uf ac m an... -
Page 9: Safety Installation Information
(If you have until instructed to do so. questions or do not understand an instruction, call The 6. Locate the Wall Control: Genie Company or an authorized Genie Dealer.) ® • Within sight of door, 2. Install only on a properly balanced sectional garage door. - Page 10 Rail Assembly for CHAIN DRIVE OPENER CHAIN DRIVE RAILS NOTE: For split rail clamps, nuts, and bolts locate Bag 0 from Box 1. Chain Rail Center Rail 3. Remove the two rail sections that are not connected to the chain and place them on floor (Fig.
-
Page 11: Installation
POWER HEAD & RAIL ASSEMBLY Assembly for CHAIN DRIVE OPENER 5/16"-18 x 1/2" Bolts NOTE: Handle carefully! Drive chain can slide out of rail. NOTE: For power head and rail assembly locate Bag 1 from Box 1. NOTE: Copy serial number from power head frame and record it on warranty page. -
Page 12: Opener Installation
OPENER INSTALLATION FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM b) - extend HEADER AND DOOR vertical line MOUNTING BRACKETS: 2-1/2" WARNING Header bracket must be fastened to garage d) - final framing. Do NOT fasten to drywall, particle c) - door at height mark board, plaster or other such materials. - Page 13 MOUNTING THE OPENER: HEADER BRACKET 1. Getting started. • Position assembled rail on wall next to header bracket (Fig. 2-4). – Place material on floor under power head to protect from scratching. (A box, stool, or VIEW similar device may be needed to clear a FROM ABOVE torsion spring.) (not to scale)
- Page 14 Contact door manufacturer or distributor for a bracing kit. centerline The Genie Company is not responsible for even with or damage caused due to improperly braced door. above top roller NOTE: For door bracket and bolts locate Bag 4 FIG.
-
Page 15: Wall Control Installation
WALL CONTROL INSTALLATION FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM Wire from WARNING power head Verify there is NO power to the opener before to Wall Control installing Wall Control wires and Wall Control. CAUTION Staples which are too tight can cut or pinch wires. Cut or pinched wires can cause the Wall Control to stop working. - Page 16 3. Securely fasten wires. Locking wire guide Clips • Securely fasten wires to ceiling and Terminal Holes wall using insulated staples provided. – Use insulated staples. – Staples should be snug only. Insulated • If rear cover is attached to power head, Staple remove it.
-
Page 17: Safe-T-Beam ® System Installation
– If not: center of tongue bracket a) Mounting bracket extensions are available through an authorized Genie Dealer. ® b) Blocks of wood, etc. may be substituted for FIG. 4-2 Mounting brackets extensions. • Center bracket on your mark (Fig. 4-2). - Page 18 3b. Wiring (pre-wired). • Route wire from wall to Safe-T-Beam sensors ® Wall Wall (Fig. 4-5b). • Splice pre-wiring to shortened sensor wire, Green match wire pairs dash-to-dash (striped-to- Source Sensor striped) and plain-to-plain (white-to-white). - Trim sensor wire to approximately one foot (1 ft) from sensor.
-
Page 19: Connecting To Power
• Replace motor cover and rear cover and will not be influenced if the Safe-T-Beam re-energize the circuit. ® obstructed. NOTE: The Genie Company is not responsible for is obstructed before the 2. If the Safe-T-Beam ® charges resulting from work performed by an garage door fully closes, the door will not close. -
Page 20: Limit Switches & Force Adjustment
DOOR LIMITS FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM WARNING • Severe injury or death can result if the door Limit Controls location closing force is set too high. on power head. • Never increase the door closing force above the minimum required to move the door. •... -
Page 21: Keyed Emergency Release
CARRIAGE LOCK DOOR The Carriage Lock can be manually engaged or disengaged. • To disengage Carriage Lock – Pull handle downward opener power head. • To engage Carriage Lock – Pull handle towards door. LOCK UNLOCK TO RECONNECT TO RELEASE PULL TOWARD PULL TOWARD DOOR... -
Page 22: Adjustments
ERASE - OPEN/CLOSE TRAVEL LIMIT 1. Press and hold both of the "SET" buttons ( & ) together until the green indicator light blinks (about 5 seconds). 2. All close and open travel limit settings are erased. Then follow the steps above to reprogram close and open travel limits. -
Page 23: Programming Remote Controls
PROGRAMMING REMOTE CONTROLS WARNING A moving door can cause serious injury or death. 1. Keep people clear of opening while door is moving. NOTE: To program a 2. Do NOT allow children to play with opener, Homelink and Car2U ® including Wall Control, remote control, or ®... -
Page 24: Battery/Visor Clip Installation
REMOTE CONTROL BATTERY REPLACEMENT AND VISOR CLIP INSTALLATION 1. Battery replacement. Slide out • To open, gently push straight out on battery cover lock tab as shown. (Fig. 8-1). • Slide open battery cover. – Remove old battery. • Make sure new battery is facing proper direction (Match battery polarity with symbols inside battery housing) (Fig. -
Page 25: Safety Instructions
Have a trained door system technician make repairs to cables, spring assemblies, and other hardware. SAVE THESE INSTRUCTIONS. If you have any questions, please do not hesitate to contact Genie customer service at: ®... -
Page 26: Wiring Diagram
CIRCUIT WIRING DIAGRAM FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM Opener circuit wiring diagram. This wiring diagram is for reference only. Diagrama del circuito del abrelatas. Este diagrama es sólo para referencia. Schéma de câblage de l’ouvreur. Ce schéma de câblage est indiqué à titre de référence uniquement. Opening Cover May Cause Electric Shock. -
Page 27: Troubleshooting Guide - Opener
• Check "OPEN FORCE" adjustment (See section WARNING: If you suspect a problem with the garage door hardware or springs, contact • an authorized Genie Dealer or a trained door system technician, or contact The Genie ® Company at 1-800-35-GENIE. Door will only run in •... -
Page 28: Troubleshooting Guide - Power Head Led
• Door obstruction going down • Check for obstruction, remove. • Door obstruction going up – Check door spring (See section – Contact The Genie Company at 1-800-35-GENIE 2 BLINKS, Pause • Limit Programming incomplete • Set UP LIMIT programming (Repeat) •... -
Page 29: Transmitter Compliance Statement
TRANSMITTER COMPLIANCE STATEMENT Transmitters comply with all United States and Canadian legal requirements as of the date of manufacture. No warranty is made that they comply with all legal requirements of any other jurisdiction. If transmitters are to be used in another country, the importer must determine compliance with any local laws and regulations which may differ from United States and Canadian requirements prior to use. -
Page 30: Warranty
Limited Warranty GMI Holdings, Inc. d/b/a The Genie Company ("Seller") warrants to the original purchaser of the below identified opener, Model 2022/2024/2042 (“Product”), subject to all of the terms and conditions hereof, that the Product and all components thereof will be free from defects in materials and workmanship for the following period(s) of time, measured from the date of purchase: MOTOR - Seller warrants the motor for a period of TEN (10) YEARS.
