WARNING:
Improper installation,
adjustment, alteration, service
or maintenance can cause
injury or property damage.
Read the installation,
operation and maintenance
instructions thoroughly
before installing or servicing
this equipment.
DANGER:
Failure to follow these
instructions could result in
fire or explosion that could
cause property damage,
personal injury or death.
DANGER:
DO NOT use gas grill for
indoor cooking or heating.
TOXIC fumes can accumulate
and cause asphyxiation. DO
NOT use in or on boats or
recreational vehicles.
PROP 65 WARNING:
Chemicals known to the state
of California to cause cancer,
birth defects or other
reproductive harm are created
by the combustion of
propane.
WARNING:
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
GSS3219A
Instruction Manual

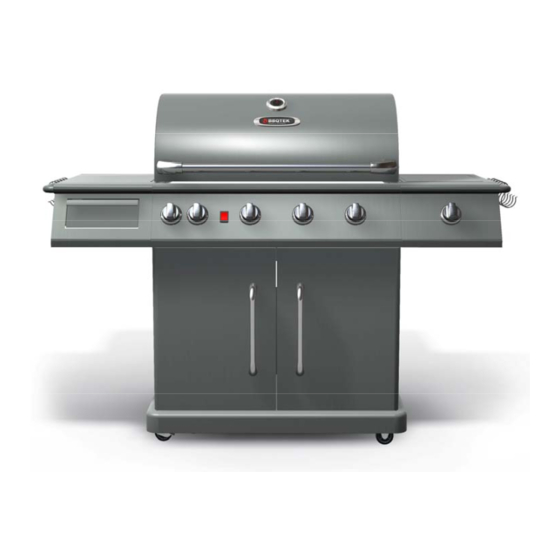

5 Burner LP Gas Barbecue Grill
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IF YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE,
GIVE THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE
REFERENCE.
FOR CUSTOMER SERVICE, EMAIL TO
SERVICE@BBQTEK.COM OR
CALL 1-877-885-8225 (TOLL-FREE), 10:00 A.M. – 19:00 P.M.
(EST), MONDAY-FRIDAY.
0
MODEL # GSS3219A
Advertisement
Table of Contents
Related Manuals for BBQ GSS3219A
Summary of Contents for BBQ GSS3219A
- Page 1 MODEL # GSS3219A 5 Burner LP Gas Barbecue Grill WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment. DANGER: Failure to follow these...
-
Page 2: Grill Operation
NOTE: This grill must be used with propane gas only (propane gas cylinder not included). Installer: Leave this manual with the consumer. Consumer: Retain this manual for future reference. GSS3219A Instruction Manual... -
Page 3: Table Of Contents
Operating Your Grill....................... 13 Connecting Gas Cylinder ....................14 Checking for Leaks......................14 Lighting Your Grill......................14 Excess flow safety valve reset procedure ..............17 Care and Maintenance ....................18 Troubleshooting ......................19 Warranty Program ......................20 GSS3219A Instruction Manual... -
Page 4: For Your Safety
Never keep a filled gas container in a hot car or car trunk. Heat will cause the gas pressure to increase, which could open the relief valve and allow gas to escape. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Safe Locations For Use Of This Outdoor Grill GSS3219A Instruction Manual... -
Page 5: General Information
*** A clogged tube can lead to a fire beneath the grill. *** Step 3. Ensure that the valve nozzle is pointing straight and completely inserted into the venturi tube. General Information A propane gas cylinder is required for operation. This gas grill is NOT intended for commercial use. GSS3219A Instruction Manual... -
Page 6: Package Contents
1 PC Magnet Bracket Side burner frame Bracket 1 PC 1 PC Door 2 PCS Heat plate 3 PCS Left side shelf 1 PC Cooking grid 3 PCS Side bar tool hanger Warming rack 2 PCS 1 PC GSS3219A Instruction Manual... -
Page 7: Hardware Contents
HH: M4 Spring Washer ..8 PCS II: M4 Nut ......4 PCS JJ: Screwdriver ....... 1 PC Hardware listed above is not scaled to exact size. (A screwdriver is required on assembly and is included for your convenience). GSS3219A Instruction Manual... -
Page 8: Assembly Instructions
Align the four holes on the cart back panel (D) with the four bolts extended from the cart right side panel and cart left side panel. Push down the cart back panel (D) until it locks into place. Tighten all bolts using the screwdriver provided. GSS3219A Instruction Manual... - Page 9 Push down the top pin of left door (G-1) it into the pre-drilled hole on the left end of front beam. Repeat the procedure for the right door (G-2). d) Close the two doors. GSS3219A Instruction Manual...
- Page 10 M6X15 Bolt 4 PCS M6 Spring Washer 4 PCS M6 Flat Washer 4 PCS GSS3219A Instruction Manual...
- Page 11 Screw one M4 x10mm bolt (DD) with one flat washer (GG) into each pre-drilled hole by hand. b) Tighten the bolts using the screwdriver provided. Insert the side knob (M) onto the valve shaft. M4 x 10 Bolt 2 PCS M4 Flat Washer 2 PCS GSS3219A Instruction Manual...
- Page 12 Place the heat plates (P) onto the heat plate support. b) Place the cooking grids (Q) upon the heat plates. Place the warming rack (R) on the warming grid support as shown. d) Close the top lid. GSS3219A Instruction Manual...
- Page 13 Step 17 (Grease cup & support assembly) a) Hook the grease cup support (S) into the two holes on the grease pan. b) Place the grease cup (T) onto the grease cup support. GSS3219A Instruction Manual...
-
Page 14: Operating Your Grill
(OPD). DANGER: A fire causing death or serious injury may occur if the following is not followed exactly: Never store or use gasoline or other volatile substances in the vicinity of this grill. GSS3219A Instruction Manual... -
Page 15: Connecting Gas Cylinder
Failure to open lid while igniting the grill’s burners or not waiting five minutes to allow gas to clear if the grill does not light, mayresult in an explosion, which could cause serious bodily injury or death. WARNING: GSS3219A Instruction Manual... - Page 16 Press the control knob and rotate it counterclockwise to the ‘’HIGH’’ position. The burner should light immediately. Adjust burner to the desired cooking temperature. 2 in. Observe flame height when lit: 1 in. Flame should be a blue/yellow color between 1 to 2 inches high. 0 in. GSS3219A Instruction Manual...
- Page 17 WARNING: Always monitor the grill closely when cooking and turn the flame level down to LOW or OFF if flare-ups intensify. GSS3219A Instruction Manual...
-
Page 18: Excess Flow Safety Valve Reset Procedure
When all front burners are lit, close the grill lid. Wait for 10-15 minutes; the temperature should reach 400 – 450°F. WARNING: The cylinder valve always has to be above the horizontal position, for the cylinder to have vapor withdrawl only. GSS3219A Instruction Manual... -
Page 19: Care And Maintenance
Inspect burner for damage (cracks or holes). If damage is found, replace with a new burner. Reinstall burner. Make certain the gas valve orifices are correctly positioned, pointing straight into burner inlet (venturi tube). Also, check position of spark electrode. GSS3219A Instruction Manual... -
Page 20: Troubleshooting
Turn front of grill to face wind or Flame blow out. Increase flame height. Low on propane gas. Replace or refill propane tank. GSS3219A Excess flow valve tripped. Refer to the Excessive flow safety Instruction Manual valve reset procedure on page 17. -
Page 21: Warranty Program
If you have any questions related to the product or warranty, please visit our website at www.bbqtek.com or email us to service@bbqtek.com or call our customer service center at 1-877-885-8225, 10:00 A.M. to 19:00 P.M. (EST), Monday through Friday.
