Side Beam View

(only with QuadraBeam PLUS™ transducer)
Side Beam View is only available if you have connected a QuadraBeam™
transducer accessory (included with the 957 and optional-purchase on the
917) and when Transducer Select is set to QuadraBeam (see Sonar Menu
Tab: Transducer Select). On the 917, the QuadraBeam PLUS™ transducer
requires a separate purchase. This view shows sonar information from both
the left and right 455 kHz beams and the 200 kHz down-looking beam in one
view. You can customize the way the sonar data is displayed in the Side
Beam View to suit your personal preferences. Depending on the layout
selected from the Quad Layout Sonar X-Press™ menu (only available on the
Sonar X-Press™ menu when in Side Beam View), the display will represent
the same sonar data in one of the following three layouts: Default, Classic,
and Slanted.
Default layout: The top portion of the display presents a historical log of
sonar returns from the 200 kHz down-looking sonar beam. New information
in the down beam panel scrolls from right to left. The bottom portion of the
display presents a historical log of sonar returns from the 455 kHz right- and
left-looking sonar beams. New information in the side beam panels scrolls
from the center out.

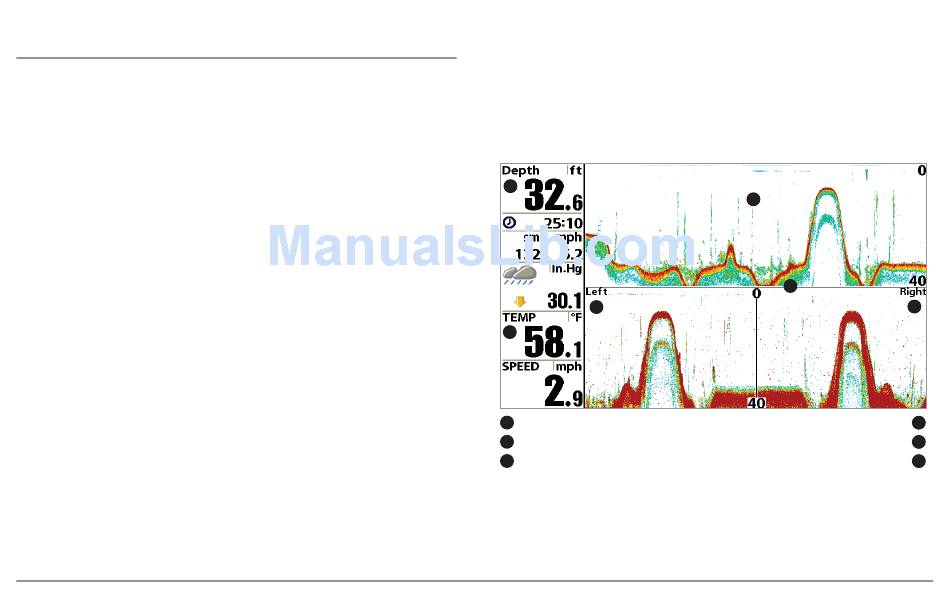

Side Beam View, Default Layout
1
3
2
1
Depth
2
Temperature
3
Left Side 455 kHz Sonar History Window
45
4
5
200 kHz Sonar History Window
Water Surface Line for 455 kHz Sonar History Windows
Right Side 455 kHz Sonar History Window
6
4
5
6
