QuickSpecs
Overview
1. Rear I/O: (6) USB 2.0, (1) DisplayPort, (2) PS/2, (1) RJ-45, (1)
VGA port, (1) audio in, (1) audio out
2. (1) 2.5" internal hard disk drive bay
3. Front I/O: (2) USB 2.0, headphone and microphone
4. 135W 87% efficient external power adapter
5. Tower stand (sold separately)
Ultra-slim Desktop
DA - 13029
Worldwide QuickSpecs — Version 24 — 10/30/2009

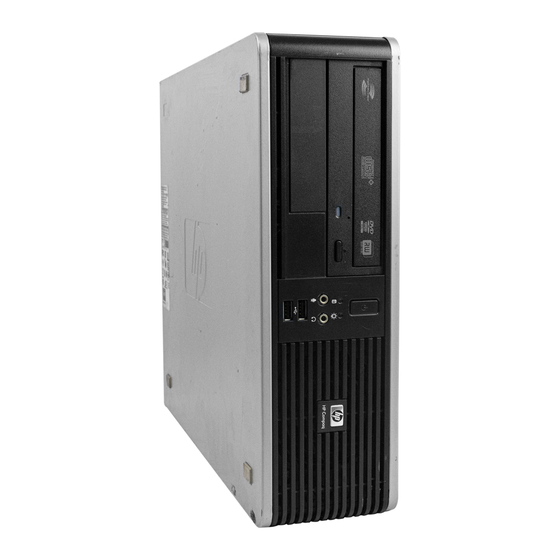

HP Compaq dc7900 Business PC
HP recommends
Windows Vista® Business
6. (1) Optical disk drive (slimline)
7. HP 2-button optical scroll mouse
8. HP keyboard
9. HP Monitor (sold separately)
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP QUICKSPECS DC7900

Summary of Contents for HP QUICKSPECS DC7900

  • Page 1 HP Compaq dc7900 Business PC HP recommends Windows Vista® Business Ultra-slim Desktop 6. (1) Optical disk drive (slimline) 7. HP 2-button optical scroll mouse 8. HP keyboard 9. HP Monitor (sold separately) Worldwide QuickSpecs — Version 24 — 10/30/2009 Page 1...
  • Page 2 (2) low profile PCI Express x16 slots (NOTE: 2 x16 slot has x4 connectivity.) 4. Front I/O: (2) USB 2.0, headphone and microphone 5. HP 2-button optical scroll mouse DA - 13029 HP Compaq dc7900 Business PC Small Form Factor HP keyboard (1) 3.5-inch external drive bay supporting media card...
  • Page 3 (1) parallel port, (1) eSATA port 5. Media card reader or Floppy disk drive DA - 13029 HP Compaq dc7900 Business PC Convertible Minitower Front I/O: (2) USB 2.0, headphone and microphone (3) full-height PCI slots, (1) full-height PCI Express x1...
  • Page 4 (http://h10019.www1.hp.com/business-site/index.html) Tailored HP Factory Express deployment and lifecycle services available (http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx) Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions and exclusions apply) Tool-less serviceability features for easier upgrades and repairs Choice of professional chassis form factors to accommodate the desired mix between expandability and size * TPM module and cryptographic software disabled where use is restricted by law;...

  • Page 5: Configurable Components - Select Models (Localized By Regions)

    DA - 13029 HP Compaq dc7900 Business PC Worldwide QuickSpecs — Version 24 — 10/30/2009 Page 5...

  • Page 6: Standard Features And Configurable Components

    FreeDOS) † Not included on models configured with less than 1 GB system memory. * Computrace agent is in HP BIOS. For tracking and tracing services, available in select countries, separate software and purchase of a subscription is required. DA - 13029...
  • Page 7 Terms and conditions may vary by country. Certain restrictions and exclusions apply. On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
  • Page 8 Graphics slots support 35W cards PCIe x16 slot functions electrically as a Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Convertible Minitower 17.63 x 7.0 x 17.8 in (447.8 x 177.8 x 452.12 mm) 26.2 lb (11.89 kg)
  • Page 9 3.33 GHz, 6 MB L2 cache, 1333 MHz FSB Featuring Core 2 Processor with vPro Technology Intel Core 2 Quad Processors: DA - 13029 HP Compaq dc7900 Business PC Worldwide QuickSpecs — Version 24 — 10/30/2009 USDT SFF CMT Page 9...
  • Page 10 Technology are part of the Intel 2008 Stable Image Platform Program (SIPP) designed to ensure the stability promise inherent in the value proposition of the HP Compaq dc7900 Series business desktop, thus making these model the most stable, secure, and manageable platforms available to enterprises today.
  • Page 11 The RAID Setup Utility (accessed through CTRL-I) can be protected by the F10 Setup password. NOTE: RAID 1 is the only RAID configuration that HP Compaq dc7900 Business PC products offer as factory configurations. The pre-configured systems: Are only available on the CMT and SFF form factors. The USDT does not support RAID as it does not allow for more than one hard disk drive.
  • Page 12 1-GB 1-GB 2-GB 4-GB Slot Channel A 2 (white) 1-GB 2-GB 4-GB Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Slot Channel B 2 (white) 1-GB 2-GB 4-GB Channel B 3 (white) 4 (white) 1-GB 1-GB...
  • Page 13 SATA 1.5-Gb/s and 3.0-Gb/s hard drives (3) Serial ATA interfaces (1) Serial ATA for eSATA Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC USDT SFF CMT (3) FH (4.2"), length (10.5”) (2) FH (4.2”), full-length...
  • Page 14 4 and then purchase a media card reader as an after-market option kit (which contains a 5.25" bracket) and install it in position 3. † Installing a 3.5-inch hard drive in position #2 (a 5.25-inch optical drive bay) requires the optional HP Optical Bay HDD Mounting Bracket. DA - 13029 Small Form Factor 2.5”...
  • Page 15 Sonic/Roxio Easy Media Creator 9 Roxio Business Creator 10 Media Card Reader – HP 22-in-1 Media Card Reader One of the following HP 22-in-1 Media Card Reader with 1394 port DA - 13029 1,2,3 1,2,3 Worldwide QuickSpecs — Version 24 — 10/30/2009...
  • Page 16 * Available after initial product release; use of this network card disables the vPro technology features. Wireless HP 802.11 b/g/n PCIe x1 Wireless card Intel WiFi Link 5100 a/b/g/n (USDT) Wireless NIC NOTE: These wireless network solutions disable the vPro technology features.
  • Page 17 HP USB Standard Keyboard HP USB Smartcard Keyboard HP USB PS2 Washable Keyboard Mouse - One of the following HP PS/2 2-button Optical Scroll Mouse HP USB 2-button Optical Scroll Mouse HP USB 2-Button Laser Scroll Mouse Miscellaneous HP FireWire (IEEE 1394) PCI Card PCI riser card for SFF - adds 2 full-height PCI slots NOTE: Low profile slots are unusable with riser card installed.

  • Page 18: After-Market Options (Availability May Vary By Region)

    HP 320-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD HP 500-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD HP eSATA Adapter HP Removable SATA Hard Drive Enclosure (Frame & Carrier) HP Removable SATA Hard Drive Enclosure (Carrier Only) HP Optical Bay HDD Mounting Bracket...
  • Page 19 HP 2 GB PC2-6400 (DDR2 800 MHz) SODIMM HP 4 GB PC2-6400 (DDR2 800 MHz) SODIMM Monitors All HP monitors are supported that accept a graphics output provided by this PC. The LP3065 monitor can be supported by installing a graphics card that supports a dual-link DVI-D output.
  • Page 20 HP Tower Stand for SFF Miscellaneous HP Serial Port adapter kit Accessories HP Parallel Port Adapter HP 5.25” Blank Bezel Kit (50 pack) HP FireWire (IEEE 1394) PCI Card Graphics – Cables HP DMS59 DVI Dual-head Connector Cable HP DVI to DVI Cable...

  • Page 21: Technical Specifications

    (132 kg-cal/hr) (258 kg-cal/hr) Ultra-slim Desktop Small Form Factor 80mm variable speed < 2.7W Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Convertible Minitower Convertible Minitower 365W standard efficiency active PFC 365W 85% efficient active PFC 90 –...
  • Page 22 Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology. Stability – HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and advanced change notification. Security – HP BIOS Configuration for ProtectTools offers a robust and flexible set of security features to help the system administrator secure their systems from removal of sensitive data, and help prevent access by unauthorized users.
  • Page 23 It is a secure, web-services based successor to ASF. environments TXT allows for secure management (via TPM) and measured launch of Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC CMOS Battery Holder for easy Replacement Processor ZIF Socket for easy...
  • Page 24 IOEDC: I/O Error Detection Circuitry Detects errors in Read/Write buffers on HDD cache RAM Interface in F10 setup for all dc7900 platforms provides confirmation of SMART IV support. Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 24...

  • Page 25: Technical Specifications - Audio

    Temperature (operating) 14° to 104° F (-10° to 40° C) Relative Humidity 40% to 90% (operating) L-channel cord: 3.28 ft (1000mm±35mm) USB cord: 5.91 ft (1800mm±35mm) HP Carbonite Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 25...

  • Page 26: Technical Specifications - Communications

    100BASE-TX (half-duplex) 100 Mbps 100BASE-TX (full-duplex) 200 Mbps 1000BASE-T (full-duplex) 2000 Mbps Operating temperature Operating humidity Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC 32° to 131°F (0° to 55° C) 85% at 131° F (55° C) Page 26...
  • Page 27 0.08 pounds (40 g) Ralink RT2790 PCIExpress x1 802.11 b/g/n 2.400 - 2.497 GHz –40° to 176°F, non-operating (-40° to 80°C, non-operating) 10–90% operating 5–95% non-operating Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 27...
  • Page 28 22.5 Mbps 6.5 Mbps (20 MHz EWC) 4.5 Mbps 13 Mbps (20 MHz EWC) 9 Mbps Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC EWC modes +17 dBm +/- 1.0 dB maximum (total power in all transmit chains)
  • Page 29 Wi-Fi certified (802.11abg only) Cisco Compatible Extensions Program compliant (802.11abg only) with Microsoft Windows Vista and XP Tested with wireless access points from several major manufacturers Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 29...
  • Page 30 Operating Non-operating Operating Non-operating Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC 600 feet – Outdoor Open Area 150 feet – Indoor, Office environment 1200 feet – Outdoor Open Area 300 feet – Indoor, Office environment 1200 feet –...
  • Page 31 CardBus support Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and supports high- and low-profile brackets Single RJ-11 connector Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 31...
  • Page 32 (TUV, NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO, SEMKO, CE mark Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC edition (U.S. and Canada); IEC 950 edition, EN 55024, annex A, EN edition (U.S. and Canada); IEC 950...
  • Page 33 The SV92EX device is packaged in a 32-pin micro leadless chip carrier (MLCC). The SV92EX is fully compliant with the PCI Express revision 1.1 specification. WHQL approved; ASPM compliant. Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC edition, EN 55024, annex A, EN Page 33...

  • Page 34: Technical Specifications - Hard Drives

    Logical Blocks 156,301,488 Operating Temperature 41° to 131° F (5° to 55° C) Capacity 500,107,862,016 bytes Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC 2.0 ms 12 ms 22 ms 2.0 ms 12 ms 22 ms 2.0 ms...
  • Page 35 Height 1 in (2.54 cm) Width Media diameter: 3.5 in (8.89 cm) Physical size: 4 in (10.2 cm) Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC 2.0 ms 11 ms 21 ms 1.0 ms 8.5 ms 18 ms 0.9 ms...
  • Page 36 Rotational Speed 10,000 RPM Logical Blocks 156,301,488 Operating Temperature41° to 131° F (5° to 55° C) Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC 2.0 ms 9.3 ms 21 ms 0.3 ms 4.6 ms 10.2 ms 0.3 ms...

  • Page 37: Technical Specifications - Graphics

    Shared System Memory: Memory dynamically allocated for Graphics use Hardware Accelerated decode for MPEG2 encrypted video; support for PAVP Lite (default) and Heavy ( or Paranoid) modes Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC DVMT (MB) 1024 Dedicated...
  • Page 38 Multi-display Support Dual monitor support facilitated via one VGA port and one DisplayPort Graphics/Video API Support NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP. Resolution 640x480 800x600...
  • Page 39 Display max resolution ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP DA - 13029...
  • Page 40 CISPR 24:1997/EN 55024:1998 – Information Technology Equipment – Immunity Characteristics – Limits and Methods of Measurement. PCI Express (x16 lanes) 85 Hz Integrated 400 MHz RAMDAC Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Digital Connection 60-R 60-R Description RV610...
  • Page 41 Display max resolution ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Resolution 640x480...
  • Page 42 Japanese VCCI Australian C-Tick Korean (MIC) EMC Immunity: CISPR 24:1997/EN 55024:1998 – Information Technology Equipment Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Description RV635 600 MHz 500 MHz 512 MB DDR2, 128 bit wide Page 42...
  • Page 43 Technical Specifications - Graphics ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Resolution...
  • Page 44 Linux x86 and x86_64 distributions using XFree86 or X.Org**. ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ 21 W...
  • Page 45 1200 at 60 Hz with reduced blanking using optional DisplayPort to DVI-D (Single Link) adapter OpenGL 3.0 DirectX 10.0 Genuine Windows Vista Business (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) 23 Watts Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 45...

  • Page 46: Technical Specifications - Input/Output Devices

    42 in (107 cm) on concrete, 16-drop sequence UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC Keyboard, installation guide, warranty card, safety and comfort guide Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 46...
  • Page 47 System interface USB Type A plug connector CE level 4, 15-kV air discharge EMI - RFI Conforms to FCC rules for a Class B computing device Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 47...
  • Page 48 From card From computer Landing mechanism Contact device Card insertions rating Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Programmable from 9,600 baud to 115,200 baud Up to 38,400 baud Friction contact Up to 100,000 insertion cycles...
  • Page 49 42 in (107 cm) on concrete, 16-drop sequence UL, cUL, FCC, CE, TUV GS, VCCI, BSMI, C-Tick, KCC, USB-IF, WHQL, EN/IEC 60601-1, IP66/NEMA4X Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC 89/336/CEE guideline USAFCC part 15 Page 49...
  • Page 50 UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC 0.27 lb (0.12 kg) 72.8 in (185 cm) Microsoft Windows 95, 98, 2000, Me, XP and Vista Available USB port Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 50...

  • Page 51: Technical Specifications - Optical Storage

    12 VDC (< 600 mA typical, 1400 mA maximum) Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 90% Maximum Wet Bulb 86° F (30° C) Temperature Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 51...
  • Page 52 12 VDC -< 600 mA typical, < 1400 mA maximum Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 90% Maximum Wet Bulb 86° F (30° C) Temperature Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Write Page 52...
  • Page 53 Channel Separation 65 dB Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 90% Maximum Wet Bulb 86° F (30° C) Temperature Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 53...
  • Page 54 0.7 Vrms (typical) Temperature 41° to 122° F (5° to 50° C) Relative Humidity 5% to 85% Maximum Wet Bulb 86° F (30° C) Temperature (operating) Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 54...
  • Page 55 Channel Separation 65 dB Temperature 41° to 122° F (5° to 50° C) Relative Humidity 5% to 85% Maximum Wet Bulb 86° F (30° C) Temperature (operating) Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 55...

  • Page 56: Technical Specifications - Removable Storage

    140°F (60°C) @ 80% R.H. for 96 hours -22°F (-30°C) @ 20% R.H. for 48 hours No power applied Delta °C < 1.0°C/min Delta % R.H. < 1.5% R.H./min Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 56...
  • Page 57 USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design Guide V. 1.3 FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC Page 57...

  • Page 58: Technical Specifications - Environmental Data

    137 BTU/hr 10 BTU/hr 10 BTU/hr 6 BTU/hr 6 BTU/hr Sound Power (LWAd, bels) Worldwide QuickSpecs — Version 24 — 10/30/2009 HP Compaq dc7900 Business PC – Gold 100 VAC 39.94 W 2.96 W 1.68 W 100 VAC 137 BTU/hr...
  • Page 59 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive – 2002/95/EC. This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986).
  • Page 60 This product is in compliance with California Proposition 65 (State of California; Safe Drinking Water and Toxic Enforcement Act of 1986). This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level www.epeat.net...
  • Page 61 This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level www.epeat.net This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC. Plastics parts weighing over 25 grams used in the product are marked per ISO 11469 and ISO1043.
  • Page 62 European Union Restriction of Hazardous Substances (RoHS) Directive. HP's goal is to exceed compliance obligations by meeting the requirements of the RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to...
  • Page 63 Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
