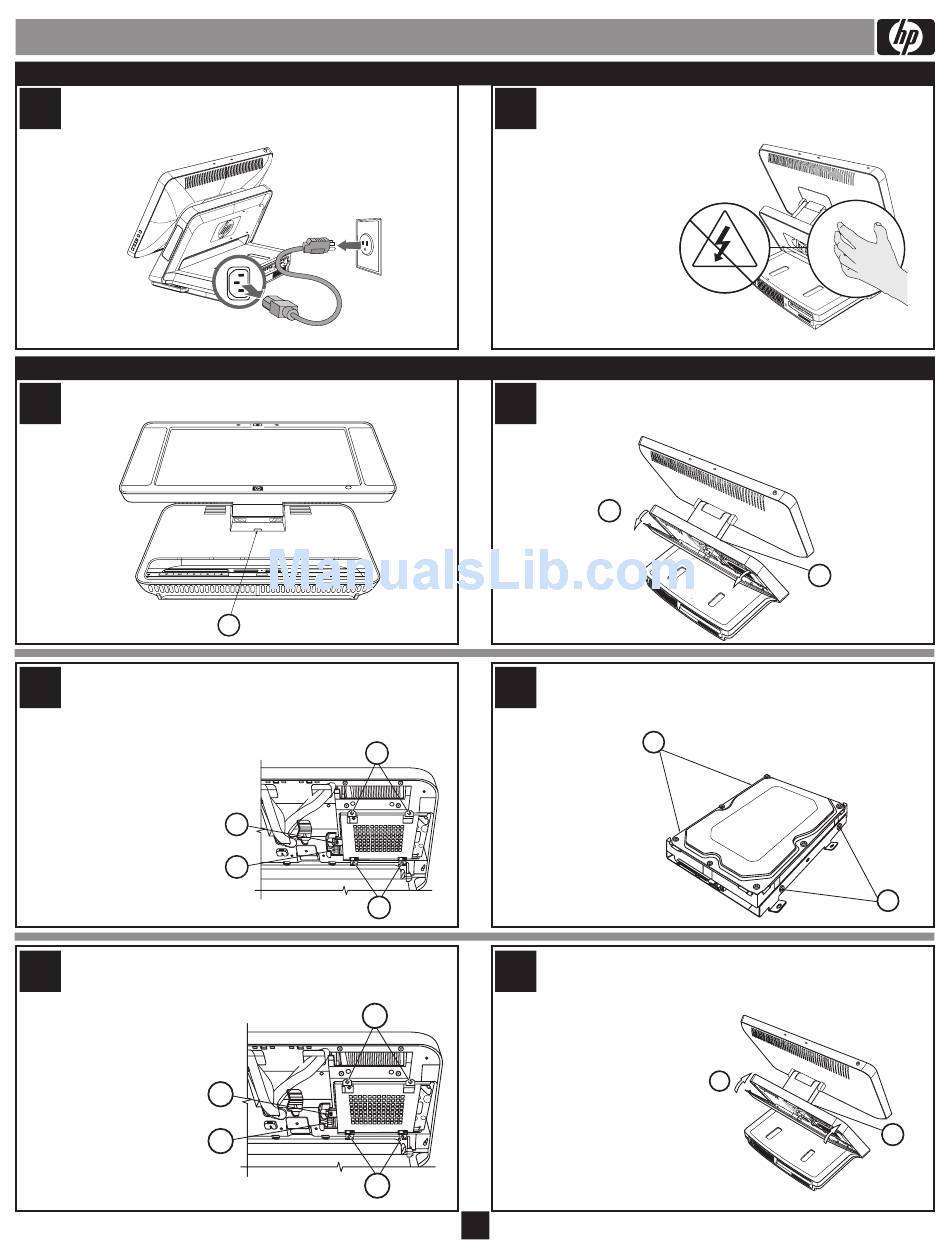

HP Desktop PCs Replacement Instructions

BEFORE YOU BEGIN
1
Unplug the computer.
HARD DISK DRIVE (For DVD, see page 2)
1
Raise the display (monitor) to see release lever (A).
On the hard disk drive cage, loosen the two bottom
3
screws (C) three turns, remove the two top screws
(D), lift the cage up off the bottom screws, and then
disconnect the power
cable (E) and the data
cable (squeeze the
connector) (F).
Connect the power cable (E) and the data cable
5
(F), place the hard disk drive cage over the two
bottom screws (C) in
the chassis, insert the two
top screws (D), and then
tighten all the screws.
Part Replacement Instructions
A
D
E
F
C
D
E
F
C
2
Ground yourself.
Note: Before doing any work inside
your computer, ground yourself by
touching a metal part of the computer
frame.
CAUTION: This product contains
components that are easily damaged
by Electrostatic Discharge (ESD). To
reduce the chance of ESD damage,
work over a non-carpeted floor, use
a static dissipative work surface (like
a conductive foam pad), and wear
an ESD wrist strap that is connected
to a grounded surface, like the metal
frame of the PC.
Holding down the lever (A), pull up the vertical
2
cover (B), and remove it from the chassis.
B
Remove the four screws (G) from the cage, and lift
4
the hard disk drive from the cage. Place the new
hard disk drive into the cage and insert the four
screws.
G
Align and insert the hooks on the vertical cover
6
(B) into the holes on the back of the chassis, and
reaching beneath
the display, hold down
the lever (A) while sliding
the vertical cover down
and into place. Release
the lever.
1
A
G
B
A
