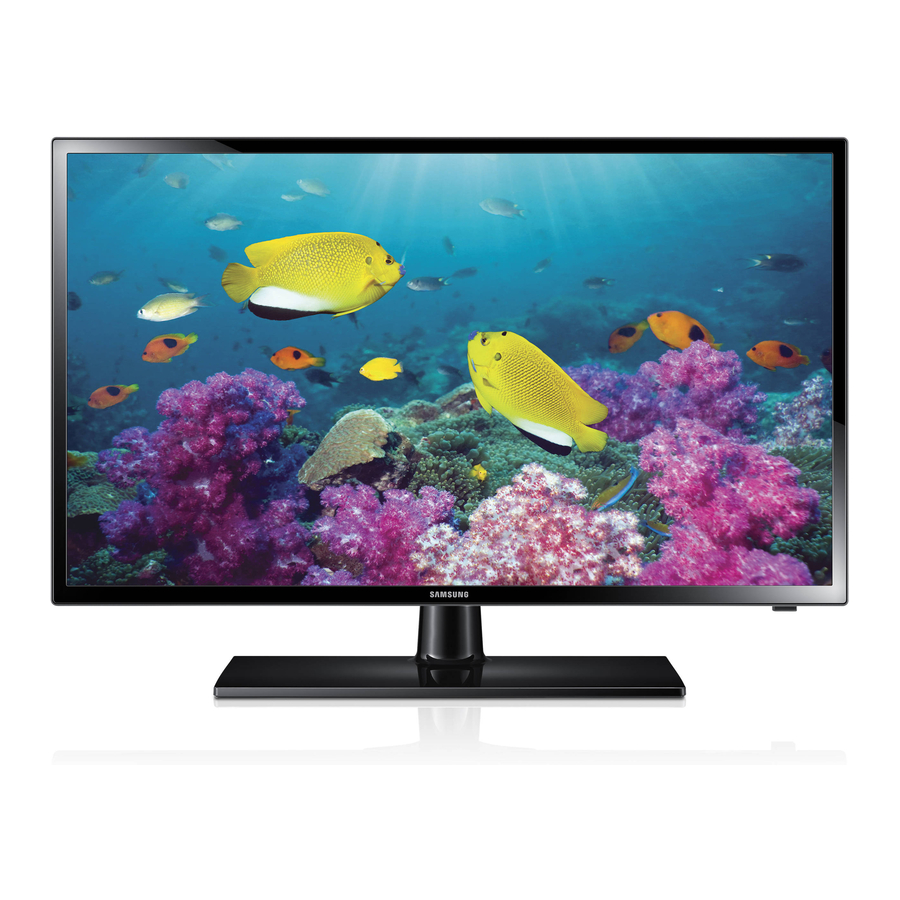

Samsung 4000 series User Manual

LED TV
user manual
Transportation to and from the Service Center is the responsibility of
Figures and illustrations in this User Manual are provided for reference
the purchaser. Conditions covered are limited only to manufacturing
only and may differ from actual product appearance. Product design and
specifications may be changed without notice.
defects in material or workmanship, and only those encountered
Important Warranty Information Regarding in normal use of the product. Excluded, but not limited to, are
any originally specified provisions for, in-home or on-site services,
Television Format Viewing
minimum or maximum repair times, exchanges or replacements,
accessories, options, upgrades, or consumables.
✎
See the warranty card for more information on warranty
For the location of a SAMSUNG Authorized Service Center, please
terms.
call toll-free:
Wide screen format LED Displays (16:9, the aspect ratio of the
–– In the United States : 1-800-SAMSUNG (1-800-726-7864)
screen width to height) are primarily designed to view wide screen
format full-motion video. The images displayed on them should –– In Canada : 1-800-SAMSUNG
primarily be in the wide screen 16:9 ratio format, or expanded to
Still image warning
fill the screen if your model offers this feature and the images are
constantly moving. Displaying stationary graphics and images on Avoid displaying still images (such as jpeg picture files) or still
screen, such as the dark sidebars on non- expanded standard image elements (such as TV channel logos, TV shows or movies
format television video and programming, should be limited to no in panorama or 4:3 format, stock or news scroll bars, etc.) on the
more than 5% of the total television viewing per week. Additionally, screen. The constant display of still pictures can cause ghosting or
viewing other stationary images and text such as stock market image burn-in (image retention) on the LED screen, which will affect
reports, video game displays, station logos, web sites or computer image quality. To reduce the risk of this effect, please follow the
graphics and patterns, should be limited as described above for recommendations below:
all televisions. Displaying stationary images that exceed the above
• Avoid displaying the same TV channel for long periods.
guidelines can cause uneven aging of LED Displays that leave
• Always try to display any image in full screen mode. Use the TV's
subtle, but permanent burned-in ghost images in the LED picture.
Picture Options menu to select the optimal screen size.
To avoid this, vary the programming and images, and primarily
• Reduce brightness and contrast values to the minimum required
display full screen moving images, not stationary patterns or dark
to achieve the desired picture quality. Values that exceed the
bars. On LED models that offer picture sizing features, use these
minimum may speed up the burn-in process.
controls to view different formats as a full screen picture. Be careful
• Frequently use all TV features designed to reduce image retention
in the selection and duration of television formats you use for
and screen burn-in. Refer to proper user manual section for
viewing. Uneven LED aging as a result of format selection and use,
details.
as well as burned-in images, are not covered by your Samsung
limited warranty.
Contact SAMSUNG WORLDWIDE
• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED
If you have any questions or comments relating to Samsung products,
WARRANTY STATEMENT
please contact the SAMSUNG customer care center.
Subject to the requirements, conditions, exclusions and limitations
Country CANADA
of the original Limited Warranty supplied with Samsung Electronics
(SAMSUNG) products, and the requirements, conditions, exclusions Samsung Electronics
Canada Inc., Customer
and limitations contained herein, SAMSUNG will additionally
Address Service 55 Standish Court
provide Warranty Repair Service in the United States on SAMSUNG
Mississauga, Ontario L5R
products purchased in Canada, and in Canada on SAMSUNG
4B2 Canada
products purchased in the United States, for the warranty period
Customer Care
1-800-SAMSUNG(726-7864)
originally specified, and to the Original Purchaser only. Center 
The above described warranty repairs must be performed by a www.samsung.com/ca
(English)
SAMSUNG Authorized Service Center. Along with this Statement,
Web Site
the Original Limited Warranty Statement and a dated Bill of Sale www.samsung.com/ca_fr
as Proof of Purchase must be presented to the Service Center. (French)
BN68-05829B-01 © 2014 Samsung Electronics Co., Ltd. All rights reserved.
- 1 -
■ Timer Viewing: You can schedule a channel to be displayed Programmed List (on the Channel List Screen)
automatically at a set time, even when you are watching another
The Programmed list displays the channels and programs you
channel. You must set the current time first in the Time > Clock
have scheduled for viewing using the Time Viewing function. You
function to use Time Viewing.
can view, modify, or delete a show you have scheduled using the
To schedule a channel, follow these steps:
functions on the Programmed List screen Tools menu.
1. Select a channel in the Added Channels list using the ▲/▼
buttons and the Yellow Select button on your remote.
Programmed List Screen Tools Menu
2. Press the TOOLS button on your remote. The Tools menu
■ Change Info: Change the scheduling information for a show or
appears.
channel you have scheduled.
3. Select Time Viewing in the Tools menu, and then press the
To change the information, follow these steps:
ENTERE button. The Time Viewing screen appears.
1. Select the Programmed List icon on the left side of the
Timer Viewing Channel List screen, and then press the ENTERE button.
Antenna Channel Repeat 2. On the Programmed List screen, select the show or channel
▲ entry you want to change, and then press the
DTV Air 6-1 Once
The Tools Menu appears.
▼
Date Start Time 3. Select Change Info, and then press the ENTERE button.
The Time Viewing screen appears.
01-01-2014 12 : 01 am
4. Use the ◄/► buttons to move from entry field to entry field
L Move U Adjust E Enter R Return
and the ▲/▼ buttons to change the entries. Where numbers
4. Use the ◄/► buttons to move from entry field to entry field
are displayed, you can also enter numbers directly using the
and the ▲/▼ buttons to change the entries. Where numbers number keypad on your remote.
are displayed, you can also enter numbers directly using the
5. Press the ENTERE button when done.
number keypad on your remote.
■ Cancel Schedules: Cancel a show or channel you have
✎
If you select Everyday or Every Week, the date you
scheduled.
select in the Date field becomes the start date for your
To cancel a scheduled show or channel, follow these steps:
scheduled viewing. For Everyday, the TV will turn on
every day, at the time you selected, starting from that 1. Select the Programmed List icon on the left side of the
date. For Everyweek, the TV will turn on every week, Channel List screen, and then press the ENTERE button.
on the same day of the week as the start date you
2. On the Programmed List screen, select the show or channel
selected, at the time you selected, from that day on. If
entry you want to cancel, and then press the
you select Once, the TV will turn on once, on the date
The Tools Menu appears.
and time you selected.
3. Select Cancel Schedules, and then press the ENTERE
5. Press the ENTERE button on your remote when done.
button. The Cancel Schedule screen appears.
✎
Only Added Channels can be scheduled. 4. Select OK, and then press the ENTERE button.
✎ Scheduled programs and channels are displayed in the ■ Information: Display the information for a show or channel you
have scheduled. You can also change the schedule Information.
Programmed List.
1. Select the Programmed List icon on the left side of the
✎ When you select a digital channel, press the ► button to
Channel List screen, and then press the ENTERE button.
view the digital program list. If you highlight a program in
the list, and then press the ENTERE(Schedule) button, 2. On the Programmed List screen, select the show or channel
entry you want information for, and then press the
you set Timer Viewing for that program directly.
button. The Tools Menu appears.
■ Select All: Select all the channels in the displayed channel list.
■ Deselect All: Deselect all the selected displayed channels. 3. Select Information, and then press the ENTERE button.
The Time Viewing Information screen appears.
✎
You can only select Deselect All when one or more
channels are selected. 4. Select Change Info and press the ENTERE button to
change information, or select Close and press the ENTERE
■ Channel Name Edit: Analog channels only. Lets you assign a
button to close the Information screen.
name of up to five characters to an analog channel. For example,
Hist, Food, Golf, etc. This makes it easier to find and select a
■ Select All / Deselect All: You can select or deselect all channels
channel .
in the channel list.
■ Auto Program: See Auto Program under Memorizing Channels.
- 5 -
1_BN68-05829B_ENG-US.indd 1
Advanced Settings
The On Screen Menus
Available in Standard and Movie mode only.
Your TV has two kinds of menus, the Main menu and the various
Compared to previous models, new Samsung TVs offer a more
Tools menus. The Main menu gives you access to most or all of
precise picture with more precise controls.
the menu options available on your TV. The Tools menus display
✎ When your TV is connected to a PC, you can only make
a selected number of frequently used menu options that change
changes to Gamma and White Balance.
depending on the screen you are viewing. A Tools menu symbol
(T) in the lower right side of the screen indicates that a Tools menu ■ Color Space (Auto / Native): Auto automatically matches the
is available. range of colors available to create pictures to the color range of
the video source. Native provides a color range wider than the
The Main menu has seven primary categories:
color range of the video source.
■ White Balance: Adjusts the color temperature of the picture so
y Picture y Input
that white objects look white (instead of, for example, slightly
y Sound y Application
pink or slightly yellow) and the overall color of the picture looks
natural.
y Channel y Support
R-Offset / G-Offset / B-Offset: Adjusts each color's (red,
y Setup
green, blue) darkness.
R-Gain / G-Gain / B-Gain: Adjusts each color's (red, green,
To view the Main menu, press the MENU button on your remote. To
blue) brightness.
view a Tools menu, press the TOOLS button on your remote.
Reset: Resets the White Balance to it's default settings.
✎ The menu options that appear in the Main menu depend
■ Gamma: Adjusts the primary color intensity.
on the Source you have selected. For example, if you have
■ Dynamic Contrast (Off / Low / Medium / High): Adjusts the
selected the HDMI source, the Channel category will not
screen contrast.
appear. To see the Channel category, you must first select TV
in the Source List. ■ Black Tone (Off / Dark / Darker / Darkest): Selects the black
level to adjust the screen depth. Darker settings make blacks
The Menu options are presented below, arranged by Main menu
look darker.
categories. A Tools button symbol t ) next to an option
(
■ Flesh Tone: Adjusts the amount of red in skin tones.
name indicates the option is also available in one of the Tools
■ Motion Lighting (Off / On): When on, the TV automatically
menus.
adjusts the brightness of the screen in response to the
brightness of the room. In bright light, the screen brightens. In
Picture Menu
dim light, the screen dims.
✎
Available in Standard mode only.
Mode t
Picture Options
Select your preferred picture mode.
✎ When the TV is connected to a PC, you can only make
✎
When your TV is connected to a PC, you can only select changes to the Color Tone, Size and HDMI Black Level.
Entertain and Standard
. ■ Color Tone (Cool / Standard / Warm1 / Warm2): Cool makes
the picture bluer (cooler). Warm 1 and Warm 2 make the picture
■ Dynamic: Brightens the screen. Suitable for a bright room.
redder (warmer).
■ Standard: Suitable for a normal.
✎
Warm1 and Warm2 are deactivated when the picture
■ Movie: Darkens the screen, making it less glary. Suitable for
mode is set to Dynamic.
watching movies in a darkened room.
■ Size: Set the size and aspect ratio of the picture on the screen.
■ Entertain: Sharpens the picture. Suitable for games.
Your cable box or satellite receiver may have its own set of
✎ Only available when the TV is connected to a PC. screen sizes as well. However, we highly recommend you use
the TVs 16:9 mode most of the time.
Backlight / Contrast / Brightness / Sharpness /
16:9: Sets the picture to the 16:9 wide screen format.
Color / Tint (G/R) Zoom1: Provides moderate magnification of the picture. Sides,
top, and bottom are cut off.
■ Backlight: Adjusts the brightness of the screen by adjusting the
Zoom2: Provides larger magnification of the picture. Sides, top,
brightness of the individual pixels.
and bottom are cut off.
■ Contrast: Increases or decreases the contrast between dark and Wide Fit: Enlarges the aspect ratio of the picture so the picture
U.S.A.
fits the entire screen.
light areas of the picture.
Samsung Electronics 4:3: Sets the picture to the old, 4:3 format and puts black or gray
■ Brightness: Adjusts the brightness of the screen. Not as
America, Inc. borders on the right and left of the picture.
effective as Backlight.
85 Challenger Road ✎ Do not watch your TV in the 4:3 format for a long time.
■ Sharpness: Sharpens or dulls the edges of objects.
Ridgefield Park, NJ Traces of borders displayed on the left, right and center of
07660-2112 ■ Color: Adjusts the color saturation. The higher the Color setting, the screen may cause image retention (screen burn) which
the more intense the color. Low settings remove color and the is not covered by the warranty.
picture becomes black, white and gray. Screen Fit: Displays the full image without any cut-off when
your TV is inputting HDMI (720p / 1080i / 1080p) or Component
■ Tint: Adjusts the amount of green and red in the picture. As you
(1080i / 1080p) HD signals.
increase the amount of green, the amount of red decreases and
www.samsung.com/us ✎ HD (High Definition) has a 16:9 aspect ratio and 1080i/1080p
vice versa.
(1920x1080) or 720p (1280x720) resolution.
✎
When the TV is connected to a PC, you can only make
✎ You can adjust and store settings for each external device you
changes to Backlight, Contrast, Brightness, and
have connected to an input on the TV. Picture Sizes available
Sharpness.
by Input Source are listed below:
- 2 -
If you selected Manual:
❑ Other Channel Menu Functions
The Clock Set screen appears. Use the ▲/▼ buttons to
Channel Mode (Added Channels/Favorite change the values in each field or use the number buttons to
enter the values directly. Use the ◄/► buttons to move from
Channels)
field to field. When done with all the fields, press ENTERE.
Lets you select the channel list displayed when you press the
✎ Available only when Clock Mode is set to Manual.
t <CH> (Channel) button on your remote. For example, if you
■ Sleep Timer t
select Favorite Channels, you will only see Favorite channels when
you press the <CH> button. Automatically shuts off the TV after a preset period of time. (30,
60, 90, 120, 150 and 180 minutes).
Fine Tune
✎
To cancel the Sleep Timer, select Off.
Analog channels only.
Timer 1 / Timer 2 / Timer 3
If the reception is clear, you do not have to fine tune the channel,
as this is done automatically during the search and store Turns the TV on and off automatically at times and days you
operation. If the signal is weak or distorted, fine tune the channel select. You can set three different on/off timer settings.
TOOLS button.
manually.
✎ You must set the clock first.
✎
Select the channel, and then select Fine Tune.
■ On Time / Off Time: Set the hour, minute, am/pm, and
✎
Fine tuned channels that have been saved are marked with Activate/Inactivate fields for the On Time and Off Time. Use the
an asterisk "*" on the right-hand side of the channel number ◄/► buttons to move from field to field. Use the ▲/▼ buttons
in the channel banner. to change the values in each field. To activate the timer with
the setting you have chosen, set the Activate/Inactivate field to
✎ To reset fine-tuning, select the channel, select Fine Tune, and
Activate.
then select Reset on the Fine Tune screen.
■ Volume: Set the desired loudness.
■ Contents: To select what will be turned on when the timer
Setup Menu
setting is activated. You can set the TV to turn on a specific
channel or play back contents such as photo or audio files.
Plug & Play
Use the ◄/► buttons to move to move to the Contents field,
and then press the ENTERE button. The Contents screen
Lets you re-run the Plug & Play initial setup procedure. For
appears. Use the ◄/► buttons to move from field to field. Use
instructions, see your Quick Start Guide.
the ▲/▼ buttons to change the values in each field.
Language
TOOLS button.
- TV/USB: Select TV or USB. The USB device must be
connected to your TV before you can select USB.
Set the menu language.
✎ - Antenna: Displays the current antenna source, Air or Cable.
Choose between English, Español, and Français.
- Channel: If you have selected TV, select the desired channel.
❑ Setting the Time
- Music/Photo: If you have selected USB, follow these steps to
select a folder containing MP3 (Music) or JPEG (Photo) files on
Time
the USB device:
✎ The time you set will appear when you press the INFO
✎
The maximum displayed number of files, including sub
button.
folders, in one folder of USB storage device is 2000.
■ Clock: Set the clock so you can use the various timer features
✎ The media may not be playing smoothly when using the
of the TV.
TOOLS device lower than USB 2.0.
✎ If you disconnect the power cord, you have to set the
1. Use the ◄/► buttons to move to the field under Music
clock again.
or the field under Photo, and then press the ENTERE
To set the clock, follow these steps: button. The TV displays a single folder (the Root folder)
and the type or name of the device.
1. Select Setup >Time > Clock.
2. Press the ENTERE button. A list of folders on the device
2. Press ENTERE and select Auto or Manual, and then press
appears.
ENTERE again.
✎
If you selected Auto:
The TV will automatically download the correct time from a
digital channel.
• Select Time Zone, and then press the ENTERE button.
3. Use the ▲/▼ buttons to highlight a folder that contains
Use the▲/▼ buttons to select your Time Zone, and then
music or photos, and then press the Yellow select button
press ENTERE.
to select the folder.
• Select DST (Daylight Savings Time), and then press
4. Press the
ENTERE. Select On if you want to turn the DST
■ Repeat: Select Once, Everyday, Mon~Fri, Mon~Sat,
adjustment on and off manually. Select Off to turn off the
Sat~Sun or Manual. If you select Manual, you can select the
DST adjustment. Select Auto if you want the TV to adjust
days you want to activate the timer by using the ◄/► buttons
to DST automatically. Press ENTERE when done.
to highlight the day, and then pressing the ENTERE button.
✎ DST and Time Zone function are only available when
To unselect a day, highlight it, and then press the ENTERE
the Clock Mode is set to Auto.
button.
When you finished making all your selections on the Timer screen,
press either the ENTERE or
- 6 -
Input Source Picture Size
16:9, Zoom1,
ATV, AV, Component (480i, 480p)
Zoom2, 4:3
DTV (1080i, 1080p), Component (1080i, 16:9, Wide Fit,
1080p), HDMI (720p, 1080i, 1080p) 4:3, Screen Fit
■ Digital Clean View (Off / Low / Medium / High / Auto) : If the
broadcast signal received by your TV is weak, you can activate
the Digital Clean View feature to reduce any static and ghosting
that may appear on the screen.
✎
When the signal is weak, try all the Digital Clean View
options until the TV displays the best picture.
■ MPEG Noise Filter (Off / Low / Medium / High / Auto) :
Reduces MPEG noise to provide improved picture quality.
■ HDMI Black Level (Normal / Low) : For HDMI signals, select
the black level to adjust the screen depth. Low make blacks look
darker.
✎
Available only in HDMI mode (RGB signals).
■ Film Mode (Off / Auto1 / Auto2) : Sets the TV to automatically
sense and process film signals from all sources and adjusts the
picture for optimum quality.
✎ Available in ATV, DTV (interlace), AV, COMPONENT (480i /
1080i) and HDMI (480i / 1080i).
■ LED Clear Motion (Off / On): Removes drag from fast scenes
with a lot of movement to provide a clear picture.
Picture Reset
■ Picture Reset (Reset Picture Mode/Cancel): Resets the
picture settings to their factory defaults.
Sound Menu
Mode t
■ Standard: Selects the normal sound mode.
■ Music: Emphasizes music over voices.
■ Movie: Provides the best sound for movies.
■ Clear Voice: Emphasizes voices over other sounds.
■ Amplify: Increase the intensity of high-frequency sounds to allow
a better listening experience for the hearing impaired.
Equalizer
Available in Standard sound mode only.
■ Balance L/R: Adjusts the balance between the right and left
speaker.
■ 100Hz / 300Hz / 1KHz / 3KHz / 10KHz (Bandwidth
Adjustment): Adjusts the loudness of specific bandwidth
frequencies.
■ Reset: Resets the equalizer to its default settings.
SRS TruSurround HD (On/Off)
Available in Standard sound mode only.
SRS TruSurround HD is a patented SRS technology that solves
the problem of playing 5.1 multichannel content through two
speakers. TruSurround delivers a compelling, virtual surround
sound experience through any two-speaker playback system,
including internal television speakers. It is fully compatible with all
multichannel formats.
Preferred Language
Digital channels only.
Digital-TV broadcasts can transmit many audio tracks
simultaneously (for example, simultaneous translations of a program
into foreign languages).
✎ You can only select a language from among the ones being
broadcast.
❑ Other Features
Program Rating Lock
The Program Rating Lock feature lets you block programs
you've determined are inappropriate for your children based on
the program's ratings. To access the Program Rating Lock
feature and make any changes, you must enter a PIN (personal
identification number). To watch a blocked program, you must also
enter the same PIN.
✎
Program Rating Lock is not available in HDMI or
Component mode.
✎ The default PIN number of a new TV set is "0-0-0-0". You can
set your own PIN using the Change PIN function.
How It Works
When you access the Program Rating Lock Menu functions for
the first time, the PIN input screen appears. Enter 0-0-0-0. The PIN
screen closes and the Program Rating Lock Menu appears. Every
time you access the Program Rating Lock functions, the PIN
screen will appear and you must enter a PIN.
When the Rating Lock screen appears, select Program Rating
Lock, and then press ENTERE. Select On, and then press the
ENTERE key again. Depending on what type of programs or
movies you want to block, select one of the options on the screen,
and then press the ENTERE button. The options are listed below:
■ TV Parental Guidelines: You can block TV programs based
on their ratings. This function allows you to control what your
children are watching.
■ MPAA Rating: You can block movies based on their MPAA
ratings. The Motion Picture Association of America (MPAA) has
implemented a rating system that provides parents or guardians
with advanced information on which films are appropriate for
children.
■ Canadian English: You can block TV programs based on their
Anglophone Canadian ratings.
■ Canadian French: You can block TV programs based on their
French Canadian ratings.
■ Downloadable U.S. Rating: Parental restriction information can
be used while watching DTV channels.
Locking/Blocking Programs or Movies
You lock or block programs and/or movies in essentially the same
way for each option. Each option displays a grid or table. All the
tables have ratings listed on the left. The TV Parental Guidelines
option also has kinds of content listed across the top: ALL: Lock all
TV ratings. / FV: Fantasy violence / V: Violence / S: Sexual situation
/ L: Adult Language / D: Sexually Suggestive Dialog.
To lock/block movies or shows with certain ratings and/or kinds of
content, click the square next to the rating and/or under the kind of
If there are no folders on your device, press the
content. A lock appears. To unlock/unblock, click the square again.
Yellow select button to select the Root folder, and
When you click a low rating, all the ratings above it will also display
then press the RETURN button. The Timer screen
locks. You can also Allow All or Lock All. When done, press the
re-appears.
RETURN button on your remote.
■ Change PIN: The Change PIN screen will appear. Choose any
4 digits for your PIN and enter them in Enter New PIN fields.
Re-enter the same 4 digits in Confirm New PIN fields. When the
RETURN button. The Timer screen re-appears.
Change PIN screen disappears, press the OK button. The TV
has memorized your new PIN.
✎ If you forget the PIN, press the remote-control buttons in
the following sequence, which resets the pin to "0-0-0-0" :
POWER (off) → MUTE → 8 → 2 → 4 → POWER
RETURN button.
Multi-Track Sound (MTS) Auto
If you choose Auto, and then press
Analog channels only.
automatically select the correct Antenna source. Go to
■ Mono: Select for channels that are broadcasting in mono or if
you are having difficulty receiving a stereo signal. Step 3.
■ Stereo: Select for channels that are broadcasting in stereo.
1. On the Cable Type screen, use the ◄/►/▲/▼ buttons to select
■ SAP: Select to listen to the Separate Audio Program, which is the type of digital and analog cable systems you have: STD, HRC,
usually a foreign-language translation.
or IRC. Most systems are STD (Standard). When done, select
✎ Depending on the program being broadcast, you can listen to Start, and then press ENTERE. The TV will start memorizing
channels.
Mono, Stereo or SAP.
✎ Channel memorization can take up to 45 minutes, depending
Auto Volume
on your cable system.
Automatically adjusts the volume level when you change video
✎ Memorized channels are added to the Added Channels
sources or content so the level remains the same.
list. These are the channels you will see when you use the
Channel buttons on your remote.
Sound Reset
Clear Scrambled Channel
■ Reset All: Resets all sound settings to the factory defaults.
This function filters out scrambled channels after Auto Program is
Channel Menu completed. This process may take up to 20~30 minutes.
✎ Press the ENTERE button to stop the Clear Scrambled
Channel.
❑ Memorizing Channels
✎
This function is only available in Cable mode.
When you first set up your TV using Plug & Play, the TV
❑ Managing Channels
memorized the channels that were available over the air or through
your cable system and added them to the Channel List. The
Channel List
Antenna and Auto program functions described below let you
re-run the channel memorization function without having to re-run See your list of Added channels, Favorite channels, or channels
the Plug & Play procedure.
you've scheduled for viewing. Add or delete Favorite channels, add
or delete channels from the Added Channels list, schedule channels
Antenna (Air / Cable)
or programs for viewing. Watch a channel by selecting the channel
Before your television can memorize the available channels, you in the All Channels, Added Channels, or Favorite screen, pressing
the ▲ / ▼ buttons, and then pressing the ENTERE button.
must select your TV's signal source, Air (using an antenna) or
Cable. Select Menu >Channel > Antenna > Air or Cable. After
you have selected the signal source, go on to the Auto Program 6 Air
6-1 ♥ TV #6
function.
✎ 7-1 ♥ TV #7
Selecting the signal source using the Antenna function also
determines the signal source the TV is tuned to. For example, 8 Air
9 Air
if you receive your TV signal over the air, and you select
9-1 ♥ TV #9
Cable, you will see only snow. You must select Air to see a
10 Air
picture.
10-1 ♥ TV #10
11-1 ♥ TV #11
Auto Program
Air ' Zoom ' Select T Tools ► Next Program
The Auto Program function memorizes all channels that are
available over the air or through your cable system and adds them
Channel List Screens icons are listed on the left side. Select an
to the Channel List.
icon using the ▲/▼ buttons to view each list.
To start Auto Program, follow these steps:
All Channels: Shows all currently available channels including
■
those you deleted from the Added Channels
1. Push MENUm → Channel → Auto Program → ENTERE
on your remote. The Antenna Source screen appears. list.
Added Channels: Shows all Added Channels. These are the
2. On the Antenna Source screen, select the source of your TV ■
channels that appear when you press the CH button.
signal.
■ * Favorite: Shows all favorite channels.
Air
■ Programmed: Shows all channels and programs currently
If your TV is connected to an antenna choose Air, and then press
scheduled using Timer Viewing.
ENTERE. The TV will automatically start memorizing channels.
✎ Remote control buttons active on the Channel List screen.
Cable
x
Green (Zoom): Enlarges or shrinks a channel number.
If your TV is connected to a cable outlet, choose Cable, and
x
then press ENTERE. Go to Step 3. Yellow (Select): Move the cursor to a channel. Press the Yellow
button to select the channel. A c mark appears. Repeat to select
additional channels. Then, open the Tools menu and apply a
function to the channels you selected.
x
T (Tools): Displays the Channel List Tools menu. (The Tools
menus may differ depending on the situation.)
- 3 -
Game Mode (On/Off) Auto Protection Time
■ Auto Protection Time (Off / 2 hours / 4 hours / 8 hours / 10
When you connect a game console such as a PlayStation™
or Xbox™ to your TV, you can enjoy a more realistic gaming hours): If the screen remains idle with a still image for a certain
experience by turning on the Game Mode function. period of time you define, the screen saver is activated to prevent
the formation of ghost images on the screen.
✎ Precautions and limitations for game mode:
x Eco Solution
Before you disconnect the game console and connect another
external device, set Game Mode to Off in the setup menu.
■ Energy Saving (Off / Low / Medium / High / Picture Off) :
x
If you display the TV menu in Game Mode, the screen shakes
This adjust the brightness of the TV in order to reduce power
slightly.
consumption. If you select Picture Off, the screen is turned
✎ Game Mode is not available when the input source is set to
off, but the sound remains on. Press any button except volume
TV.
button to turn on the screen.
✎
After connecting the game console, set Game Mode to On.
■ No Signal Power Off (Off / 15 min. / 30 min. / 60 min.): Sets
You may notice slightly reduced picture quality.
how quickly the TV switches to standby mode, if no picture is
being received.
Caption
✎ Disabled when the PC is in power saving mode.
(On-Screen Text Dialogue)
■ Auto Power Off (Off / On): The TV will be automatically turned
■ Caption: You can switch the caption function on or off. If off when no user operation is received for 4 hours.
captions are not available, they will not be displayed on the
screen. Support Menu
✎ The Caption feature does not work in Component or
HDMI mode.
Self Diagnosis
■ Caption Mode: You can select the desired caption mode.
■ Picture Test: Use to check for picture problems. If the problem
Default / CC1~CC4 / Text1~Text4: (analog channels only) The
appears in the test picture, select Yes and follow the directions
Analog Caption function operates in either analog TV channel
on the screen.
mode or when a signal is supplied from an external device to the
■ Sound Test: Use the built-in melody sound to check for sound
TV. (Depending on the broadcasting signal, the Analog Caption
problems. If the problem occurs during the test, select Yes and
function may or may not work with digital channels.)
follow the directions on the screen.
Default / Service1~Service6 / CC1~CC4 / Text1~Text4:
■ Signal Strength: (Digital channels only) An HD channel's
(Digital channels only) The Digital Captions function works with reception quality is either perfect or the channels are unavailable.
digital channels.
Adjust your antenna to increase signal strength.
✎ Service1~6 may not be available in digital caption mode
■ Reset: Reset all settings to the factory defaults.
depending on the broadcast.
✎ The PIN input screen appears before the setup screen.
■ Digital Caption Options: (Digital channels only)
✎ Enter your 4-digit PIN. Change the PIN using the Change
Size: Options include Default, Small, Standard and Large. The PIN option.
default is Standard.
Software Upgrade
Font Style: Options include Default and Styles 0 to 7. The
default is Style 0. Software Upgrade can be performed by downloading the latest
firmware from samsung.com to a USB memory device.
Foreground Color: Options include Default, White, Black, Red,
Green, Blue, Yellow, Magenta and Cyan. You can change the
HD Connection Guide
color of the letters. The default is White.
Background Color: Options include Default, White, Black, Red, Refer to this information when connecting external devices to the
Green, Blue, Yellow, Magenta and Cyan. You can change the TV.
background color of the captions. The default is Black.
Contact Samsung
Foreground Opacity: This adjusts the opacity of text. Options
include Default, Transparent, Translucent, Solid and Flashing. View this information when your TV does not work properly or
when you want to upgrade the software. You can find information
Background Opacity: This adjusts the opacity of the caption
background. Options include Default, Transparent, Translucent, regarding our call centers and how to download products and
Solid and Flashing. software.
Return to Default: This option sets each Size, Font Style,
Foreground Color, Background Color, Foreground Opacity and Media Play
Background Opacity to its default.
✎ Digital Caption Options are available only when you can
Enjoy photos, music and/or movie files saved on a
select Default and Service1 ~ Service6 in Caption Mode.
USB Mass Storage Class (MSC) device.
✎
The Foreground and Background cannot be set to the
same color.
Melody
❑ Connecting a USB Device
Set so that a melody plays when the TV is turned on or off.
✎ The Melody does not play:
(on) 1. Turn on your TV.
x
When no sound is output from the TV because the MUTE
2. Connect a USB device containing photo, music, and/or movie
button has been pressed.
files to the USB jack on the back of the TV. A pop up window
x
When no sound is output from the TV because the volume has appears.
been reduced to minimum with the VOL – button.
3. Press the MEDIA.P button on your remote. The Media Play
x
When the TV is turned off by Sleep Timer function.
menu appears.
- 7 -
Display Icons Used in the Channel List Screens
, the TV will
ENTERE
Icons Meaning
c A selected channel.
* A Favorite channel.
A reserved program.
)
( A program currently being broadcast.
❑ The Channel List Tools Menu t
The Channel List Tools menu contains most of the functions you
can use on the All Channel, Added Channels, and Favorite List
screens. To view, select a list screen, select a channel, and then
press the TOOLS button.
■ Add / Delete: Delete a channel from or add a channel to the
Added Channels list.
To delete channels from the Added Channels list, follow these steps:
1. Select one or more channels in the Added Channels list using
the ▲/▼ buttons and the Yellow Select button on your remote.
2. Press the TOOLS button on your remote. The Tools menu
appears.
3. Select Delete in the Tools menu, and then press the ENTERE
button.
To add channels to the Added Channels list, follow these steps:
1. Select one or more channels in the All Channels list using the
▲/▼ buttons and the Yellow Select button on your remote.
2. Press the TOOLS button on your remote. The Tools menu
appears.
3. Select Add in the Tools menu, and then press the ENTERE
button.
■
✎
All deleted channels will be shown on the All Channels list.
You add channels back to the Added Channels list on the
All Channels list.
✎ A gray-colored channel indicates the channel has been
deleted from the Added Channels list.
✎ The Add menu option only appears for deleted channels.
■ Add to Favorite/Delete from Favorite: Lets you add channels to
and delete channels from your Favorites list.
To add channels to the Favorites list, follow these steps:
1. Select one or more channels in the All Channels list using the
▲/▼ buttons and the Yellow Select button on your remote.
2. Press the TOOLS button on your remote. The Tools menu
appears.
3. Select Add to Favorite in the Tools menu, and then press the
ENTERE button.
To delete channels from the Favorites list, follow these steps:
1. Select one or more channels in the Favorite Channels list using
the ▲/▼ buttons and the Yellow Select button on your remote.
2. Press the button on your remote. The Tools menu
TOOLS
appears.
3. Select Delete from Favorite in the Tools menu, and then press
the ENTERE button.
- 4 -
❑ Using the Media Play Menu
Media Play
Videos
■
SUM Change Device E Enter R Return
To open Media Play in the Menu, follow these steps:
1. Press the button. Then, press the ▲ or ▼ button to
MENU
select Application on the left, and then press the ENTERE
button.
2. Press the ▲ or ▼ button to select Media Play (USB), and then
press the ENTERE button.
3. Press the ◄ or ► button to select an icon (Videos, Music,
Photos, Settings), and then press the ENTERE button.
✎ Media Play might not work properly with unlicensed
multimedia files.
✎ Need-to-Know List before using Media Play (USB)
x The file system supports FAT16, FAT32 and NTFS.
x
Certain types of USB Digital camera and audio devices may not
be compatible with this TV.
x
Media Play only supports USB Mass Storage Class (MSC)
devices. MSC is a Mass Storage Class Bulk-Only Transport
device. Examples of MSC are Thumb drives and Flash Card
Readers. Devices should be connected directly to the TV's USB
port. USB HDD is not supported.
x
Before connecting your device to the TV, please back up your
files to prevent them from damage or loss of data. SAMSUNG is
not responsible for any data file damage or data loss.
x A USB device that requires high power (more than 0.5A) may not
be supported.
x
Do not disconnect the USB device while it is loading.
x
The higher the resolution of the image, the longer it takes to
display on the screen.
x
The maximum supported JPEG resolution is 15360 x 8640 pixels.
x
If a file is corrupted or the TV does not support the file type, the
"Not Supported File Format" message appears.
x
The TV cannot play MP3 files with DRM that have been
downloaded from a for-pay site. Digital Rights Management
(DRM) is a technology that supports the creation, distribution,
and management of digital content in an integrated and
comprehensive way, including protecting the rights and interests
of content providers, preventing illegal copying of contents, and
managing billing and settlements.
x
PTP devices are not supported.
x If an over-power warning message is displayed while you are
POWER
P
connecting or using a USB device, the device may not be
recognized or may malfunction.
x
If the TV has no input during the time period set in Auto
Protection Time, the Screensaver will run.
x
The power-saving mode of some external hard disk drives may
be released automatically when your connect them to the TV.
x
If you use a USB extension cable, the TV may not recognize the
USB device or may not be able to read the files on the device.
x
If a USB device connected to the TV is not recognized, the list of
MEDIA.P
files on the device is corrupted, or a file in the list is not played,
connect the USB device to a PC, format the device, and check
the connection.
x
If a file you deleted from the PC is still found when you run Media
Play, use the "Empty the Recycle Bin" function on the PC to
permanently delete the file.
x
Photos only supports the sequential jpeg format.
x
The Videos option does not support the scene search and
thumbnail functions.
x
If the number of files and folders saved on a USB storage device is
over approximately 4000, the files and folders may not appear and
some folders may not open.
- 8 -
2014-01-29 2:33:29
