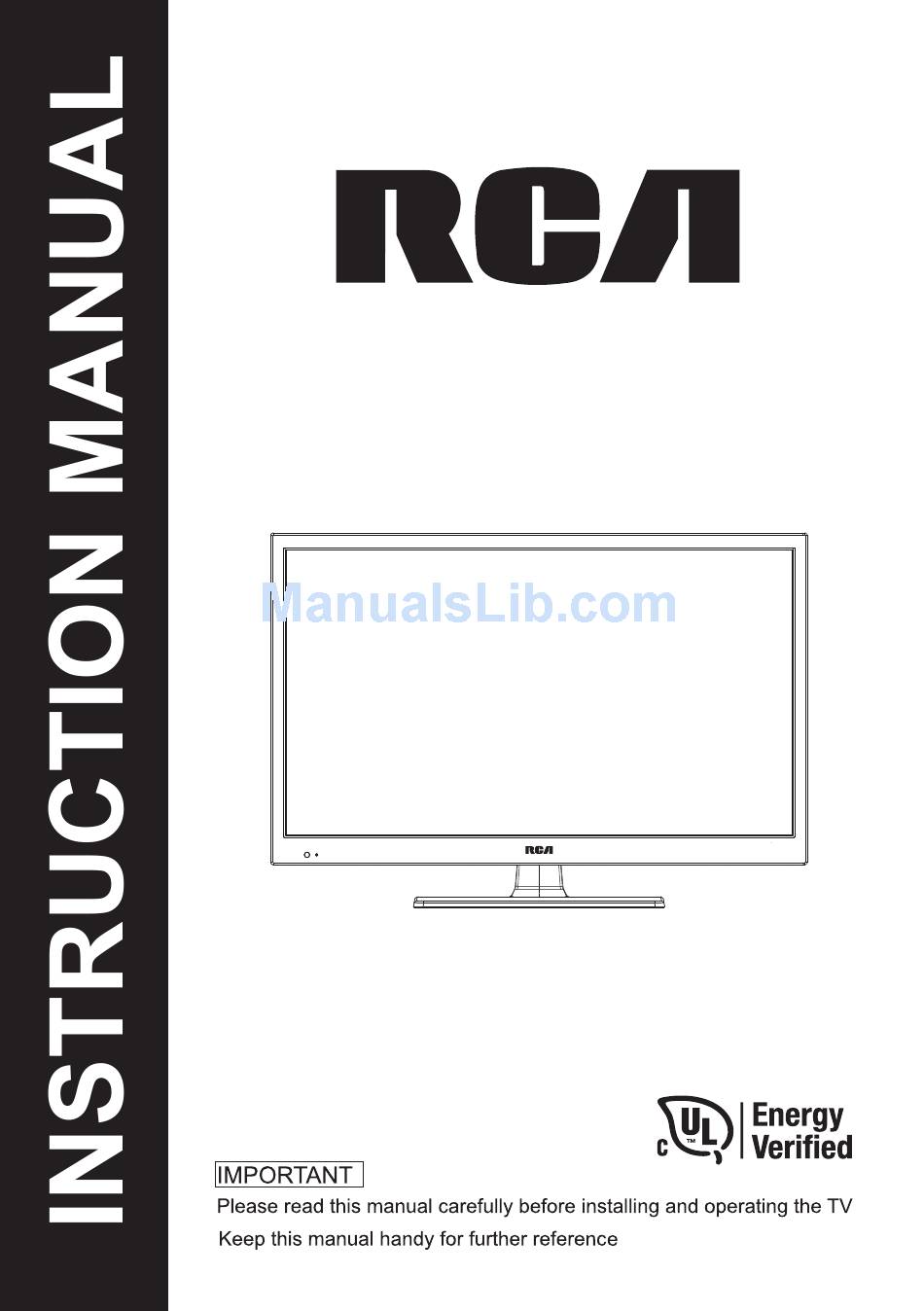

  • Page 1 LED TV RLED2445A-B...

  • Page 2: Table Of Contents

    Table of Contents Caution Important Safety Precautions Wall Mount Installation TV Bracket assembly Top/Side panel diagram Remote Controller Battery Installation Using the Remote Control Install TV Set your TV Connect Antenna and power Turn On TV Systems Connection Select Input Source 13-29 Picture Menu 13-15...

  • Page 3: Caution

    Caution The lightening flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated "dangerous voltage" within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

  • Page 5: Wall Mount Installation

    Wall Mount Installation 3.95” x 3.95” 3.95” 3.95”...

  • Page 6: Tv Bracket Assembly

    TV Bracket assembly 1.Match the TV unit into the stand, then hold the TV stand, revolve and lock the tv unit tightly as the arrowhead point. 2.Fix the screws into the TV stand after installing the tv unit and tv stand. screws...
  • Page 7 Top panel diagram (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby) LED Indicator: Press to turn on and off Indicator on(Red) Standby mode Indicator on(Green) Power on mode The functions of the buttons on the are as follows: CH+/-:When watching TV: select channels.

  • Page 8: Top/Side Panel Diagram

    Side Panel Diagram COAXIAL (Left Side) Serv ice Port (Back Side) Name Function Description Digital Audio Output COAXIAL AV INPUT Earphone output EARPHONE VGA IN VGA signal from computer output PC AUDIO IN PC audio input ANT 75 Ω Connect to ANT or cable source Connect to HDMI of DVD or other equipment HDMI IN Service Port...

  • Page 9: Remote Controller

    Mon o, or SAP( se co nd au di o pr og ram) . GUIDE: Universal remote code This is the code for remote control of RLED2445A-B,if you want to change to a universal remote control,you can edit this code into your universal remote control. (1)Open the battery compartment cover on the back side (2)Insert two 1.5V batteries of AAA type...

  • Page 10: Install Tv

    10cm 10cm 10cm side LED TV indicator...
  • Page 11 COAXIAL COAXIAL Serv ice Port...
  • Page 12 Serv ice Port Serv ice Port...

  • Page 13: Select Input Source

    Select Input Source Source YPbPr HDMI Press SOURCE button to display the input source list, Press ▼ / ▲ or SOURCE button to select the input source you want to, Press ENTER button to enter the input source, Press EXIT button to quit.

  • Page 14: Picture Menu

    Main Menu Operation Picture Menu Press MENU button to display the main menu. ENTER / ▼ Press ◄ / ► button select PICTURE in the main menu,then p ress to enter. 1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu. 2.
  • Page 15 Main Menu Operation Brightness/ Contrast/ Sharpness/ Color/ Tint Press ▼ / ▲ button to select option, then press ◄ / ► button to adjust. Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture. Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.
  • Page 16 Main Menu Operation Dynamic Contrast Automatically adjust picture detail and brightness. Press ▼ / ▲ button to select Dynamic Contrast , then press◄ / ► button to select . (Available Aspect Ratio: Off,Low,Medium,High). PC Settings Press INPUT to select PC source. Press ENU to enter the main menu,then press ◄...

  • Page 17: Audio Menu

    Main Menu Operation Audio Menu Press MENU button to display the main menu. ENTER / ▼ Press ◄ / ► button select AUDIO in the main menu,then p ress to enter. 1. Press ▼ / ▲ button to select the option that you want to adjust in the AUDIO menu. 2.
  • Page 18 Main Menu Operation Audio Effe ct Press ▼ / ▲ button to select Audio Effe ct , then press◄ / ► button to select On or Off. Set the auto volume contro l. Press ▼ / ▲ button to select AVL , then press◄ / ► button to select On or Off. Analog Language Configures the multi-tra ck sound.

  • Page 19: Channel Menu

    Main Menu Operation Channel Menu Press MENU button to display the main menu. ENTER / ▼ Press ◄ / ► button to select CHANNEL in the main menu,then p ress to enter. 1. Press ▼ / ▲ button to select the option that you want to select in the CHANNEL menu. 2.
  • Page 20 Main Menu Operation Channel List Press ▼ / ▲ button to select Channel List , then press Enter / ►button to enter sub-menu. You can view all the channels and choose one quickly. Press ▼ / ▲ button to highlight a channel and press ENTER to view it. Favorite List Press ▼...
  • Page 21 Main Menu Operation Channel Label Press ▼ / ▲ button to select Channel Label , then press Enter / ►button to enter sub-menu. Label Rename label of the channels. Press ▼ / ▲ button to select the channel and ENTER to enter the edit state. Press ▼...

  • Page 22: Parental Menu

    Main Menu Operation Parental Menu Press MENU button to display the main menu. ENTER / ▼ Press ◄ / ► button select PARENTAL in the main menu,then p ress to enter. 1. Press ▼ / ▲ button to select the option that you want to adjust in the PARENTAL menu. 2.
  • Page 23 Main Menu Operation Change Password Press ▼ / ▲ button to select Change Password , then press Enter / ►button to enter sub-menu. At first you should enter the correct old password,then e nter a 4-digital number you want to set twice. Keypad Lock Set to prevent it from being used by young children,or other unexpected usage.
  • Page 24 Main Menu Operation Rating Setup Press ▼ / ▲ button to select Rating Setup , then press Enter / ►button to enter sub-menu. For the United States, the rating setting basically include the following options: MPAA,TV. MPAA This system defines the rating control which come from MPAA rules. Rating Define General audience.
  • Page 25 Main Menu Operation US TV Rating The TV rating compose of two aspects: age-based and content-based. Define Content Define TV-Y General audience Fantasy violence TV-Y7 Parental guidance suggested Suggestive dialogue TV-G Parents strongly cautioned Strong language TV-PG Retricted Sexual situations Violence TV-14 No one 17 and under admitted...
  • Page 26 Main Menu Operation Canada For Canada, the rating setting include the following options: English Rating, French Rating. Canadian English These ratings are for programs which are using English rating system. Rating Defined as No Rating Children Children 8 years and older General programming Parental guidance Viewers 14 and older...

  • Page 27: Setup Menu

    Main Menu Operation Setup Menu Press MENU button to display the main menu. ENTER / ▼ Press ◄ / ► button select SETUP in the main menu,then p ress to enter. 1. Press ▼ / ▲ button to select the option that you want to adjust in the SETUP menu. 2.
  • Page 28 Main Menu Operation Caption Adjust Closed Captioning settings. Only available under TV and AV source. Press ▼ / ▲ button to select Caption , then press Enter / ►button to enter sub-menu. CC Mode Turn Closed Captioning on/off. Press ▼ / ▲ button to select CC Mode , then press Off , On or On Mute.
  • Page 29 Main Menu Operation FG Color Adjust the color of the digital Closed Captioning font. Press ▼ / ▲ button to select FG Color p ress ◄ / ► button to select. Available FG Color:by Program, Black ,White , Red , Green , Blue ,Yellow , Cyan, Magenta). Color Adjust the digital Closed Captioning background color.
  • Page 30 Main Menu Operation Daylight Saving Time Set the daylight saving time for your area. Press ▼ / ▲ button to select Daylight Saving Time p ress ◄ / ► button to select On or Off. Day of Week The TV will calculate curre nt day of week according to the time. Default Settin g Reset TV to factory default.

  • Page 31: Help

    Help...

  • Page 32: Specifications

    Specifications Resolution 640x480 800X600 1024x768 1360x768 1920x1080 60HZ 60HZ 60HZ 60HZ 60HZ Vertical frequency hz HDMI 576 i/P 720 P 1080 i/P Format 480 i/P 50HZ/60HZ Vertical frequency hz 50HZ 50HZ/60HZ 60HZ Parameter specification Screen Size 24” NTSC / ATSC PAL, NTSC 1253 IN:TV, AV, YPbPr, PC AUDIO,VGA, HDMI.
