Husqvarna 50 Operator's Manual
Handheld saw
Hide thumbs
Also See for 50:
- Owner's maintenance manual (9 pages) ,
- Workshop manual (59 pages) ,
- Workshop manual (58 pages)
Related Manuals for Husqvarna 50
Summary of Contents for Husqvarna 50
- Page 1 Operator’s Manual Read these instructions carefully and make sure you understand them before using the 50.
-
Page 2: Table Of Contents
Your 50 Handheld saw has been shipped from the factory thoroughly inspected. The durable travel case contains the Table of contents ………………………….. 50 saw, a blade shaft cover, a blade shaft wrench, an owner’s Unpacking ..........manual, a part list, a warranty card, and a joint protector sam- Transporting .......... -
Page 3: I Ntroduction, Personal Safety
If you have further questions you can contact the closest Husqvarna Construction Products location by writing or calling, see information below. You can also find the closest location by searching the internet at;... -
Page 4: Registration Of The Product
SERIAL No: __________________ ENGINE MODEL: _____________ ENGINE TYPE: ______________ ENGINE CODE: ________________ The 50 Handheld serial number as well as the engine model number, engine type and code are critical in order to obtain the correct service parts. SAFETY DEFINITIONS... -
Page 5: Safety Warnings
• Keep visitors, children and animals out of the work area. • Husqvarna Excel Series diamond blades is designed to only cut green concrete. Cutting any other material may result in • Keep all body parts and foreign material away from the blade failure or a dangerous condition. -
Page 6: Excel Series Blades
EXCEL SERIES BLADES The Excel Series of diamond blades have been designed specifically for the Soff-Cut Ultra Early Entry dry cutting system of green concrete. These specialty blades are designed to increase speed and life while cutting a wide range of aggregates. Choose the correct specification of diamond blade for your area as follows: Red Excel Series 3000 XL5-3000A-X50... -
Page 7: What Is What

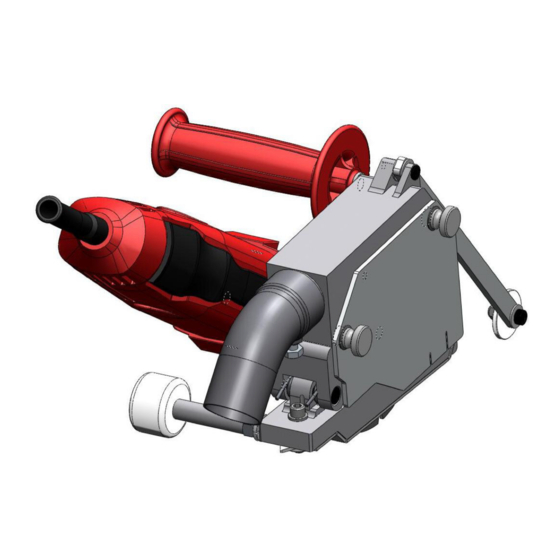

WHAT IS WHAT Model number and serial number What is what? Guide Depth indicator label C. Handle mount D. Depth adjust thumb screw Depth adjust arm Blade guide notches G. Depth stop washer and bolt H. Hub clamp bolt Spindle lock button Rear wheel Handle On-Off paddle switch... -
Page 8: Operating Instructions
An undersized cord will cause a drop in line voltage, resulting in loss of power and overheating. When using a generator, Husqvarna Soff-Cut recommends a generator with minimum rating of 2800 Watts and a 20 Amps circuit breaker. -
Page 9: Proedge Blade Installation
PROEDGE SERIES BLADES The ProEdge Line of beveled diamond blades is especially designed for architectural scoring to replace labor-intensive hand tooling. These specialty blades are ideal for residential and commercial applications to chase standard joints for a beveled look. Chasing cuts using the ProEdge blades would begin the next day or later after the concrete is placed and control joints have been made. -
Page 10: Maintenance
Cut is being specified more today than ever, sometimes the ultra early-entry spec is not always followed on the job site. In order for the Soff-Cut system and an experienced Husqvarna contractor to do a satisfactory job, four components must exist to meet the “specification”:... -
Page 11: Sawing Contraction Joints
Husqvarna sawed contraction joints should be a minimum of 1/8th the concrete depth and a minimum of 1”... -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS Weight and Dimensions 50 Weight – dry 9 lbs 4.1 kg Operating weight 9.5 lbs 4.3 kg Length 22 inch 559 mm Width 10 inch 254 mm Height 9.5 inch 241 mm Blade Material cut Green concrete only Blade type 5.0 inch (127 mm) dry cut diamond blade with tri-arbor... -
Page 13: Warranty
The use of any other blade except Husqvarna Construction Products blades and skid plates will void the warranty and could cause internal damage to the motor. - Page 14 505 41 78-12 Printed In U.S.A. 2009-18...
