Insignia NS-24D510NA15` Quick Setup Manual

TM
QUICK
SETUP GUIDE

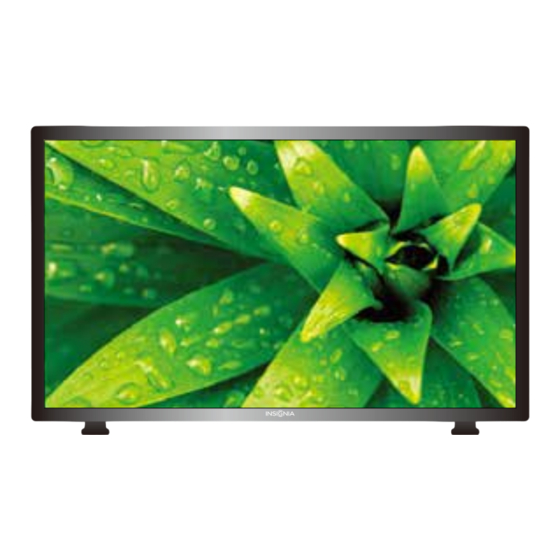

24" LED TV
NS-24D510NA15
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Roku Ready®
Your TV is certi ed to work with the
Roku Streaming Stick™.
Instantly stream 1000+ entertainment
channels, including Net ix, Hulu Plus,
Pandora, and more. Connect the
Streaming Stick (not included) to the
purple MHL port on your TV and enjoy.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product
Information, then click .
START HERE
How do I attach the stands to my TV?
(not for wall mounting)
You'll need: Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Find the front of the left and right TV stands. Secure the stands to your TV using
the two provided M4 × 16 mm screws.
- OR -
How do I prepare my TV for wall mounting
(not for use with a TV stand)
A Carefully place your TV face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
B See the instructions that came with your wall mount for more informa-
tion about how to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
that came with your devices.
Do not plug your
power adapter in
until all other devices
VIDEO QUALITY
have been
connected.
BEST
BETTER
Component video and analog audio
GOOD
Composite video and analog audio (AV)
GOOD
Note: You can also connect a DVI device to your TV. See your online User Guide for connection instructions.
Power adapter
Features
Front view
Remote control and
two AAA batteries
Back view
TV stand bases (2 pcs.)
M4 screws (16 mm length)
(2 pcs.)
Note: Images may not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
A
A
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game console, Roku Streaming Stick™, or MHL-enabled device?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Power indicator
Remote control sensor
Note: Connect the yellow video cable to the green
Y/Video jack on the back of your TV.
How do I connect my TV to an antenna or cable wall jack?
(ARC/DVI)
B
M4 (16 mm)
(ARC/DVI)
Component cable option
AUDIO/VIDEO OUT
AUDIO/VIDEO
OUT
AV cable option
M4 (16 mm)
Multi-purpose ports: You can plug any
device that uses HDMI into either HDMI
jack. However, certain devices must be
connected to the ARC/DVI or MHL
jacks. See the instructions that came
with your ARC, MHL-enabled device, or
Roku Streaming Stick™ for more
information.
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
CABLE
OVER
