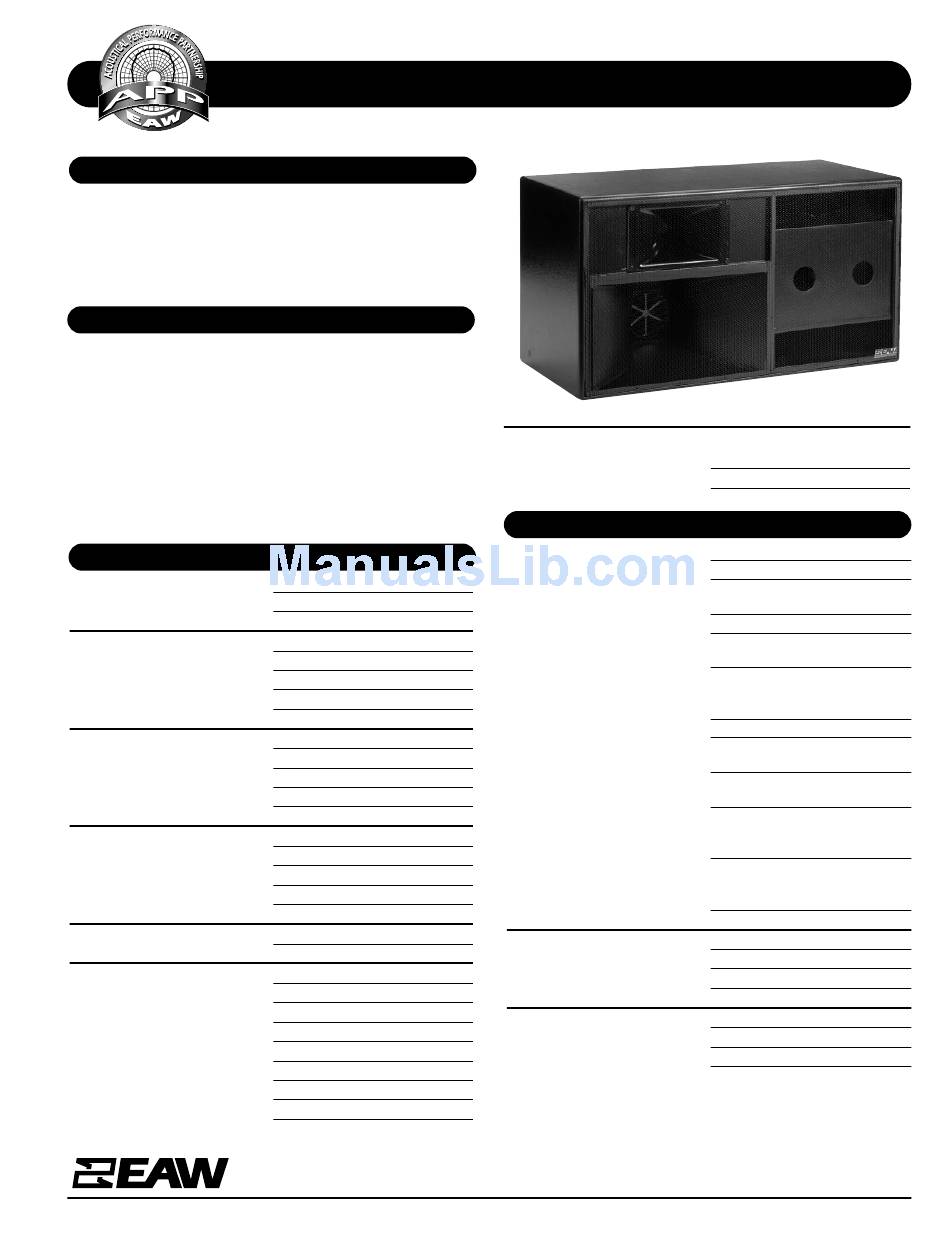

EAW ASR690e Specifications

DESCRIPTION
A bi-amplified (passive mid/high crossover) or tri-amplified
3-way full range system in a rectangular enclosure. Includes
2x 12-in woofers (separated vertically), a horn-loaded 10-in
MF cone with Radial Phase Plug™ and a 1.4-in exit/2.5-in
voice coil HF neodymium compression driver on a 90° x 45°
constant directivity horn.
APPLICATION
The ASR690e is engineered for use in permanent installations.
Optimized subsections provide excellent full range frequency
response in a medium format enclosure. The low profile 22.5-
in enclosure height is optimized for use is applications where
mounting space is limited. Includes comprehensive 3/8"-16
mounting/suspension points. Six year warranty.
Applications include:
Stadiums
Performing Arts Centers
PERFORMANCE
Frequency Response (Hz)
±3 dB 67 Hz to 15 kHz
-10 dB 50 Hz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Passive MF/HF 107
LF 102
MF 109
HF 109
Impedance (Ohms)
Passive MF/HF 8
LF 4
MF 8
HF 8
Power Handling (Watts, Continuous)
Passive MF/HF 450
LF 800
MF 400
HF 125
Recommended High-Pass Frequency
24 dB/Octave 40 Hz
Calculated Maximum Output (dB SPL)
Passive MF/HF Peak 139
LF Peak 137
MF peak 141
HF Peak 136
Passive MF/HF Long term 133
LF Long Term 131
MF long Term 135
HF Long Term 130
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Arenas
Houses of Worship
508 234 6158 Toll Free 800 992 5013
SPECIFICATIONS ASR690e
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal 90
Vertical 45
PHYSICAL
Product Group I
System Configuration 3-way, full range
Powering Configuration(s) Bi-amplified (passive MF/HF) or
LF Subsystem & Loading 2x 12-in, vented
MF Subsystem & Loading 1x 10-in cone, Radial Phase
HF Subsystem & Loading 1x 1.4-in exit/2.5-in voice coil
Cabinet Type (shape) Rectangular
Enclosure Materials Exterior grade Baltic birch
Finish Wear-resistant textured black
Connectors 2 x 6-Contact terminal strip,
Suspension Hardware (18) 3/8"-16 threaded mounting/
Grille Powder coated perforated steel
Dimensions
Height 22.5
Width 41.5
Depth 22.5
Weights
Net Weight 175
Shipping Weight 190
FAX 508 234 8251
ASR690e/2 pp
tri-amplified
Plug™ horn-loaded
neodymium compression driver
on constant directivity horn
plywood
paint
jumpers used for powering
configuration
suspension points (4 each top,
bottom and sides, 2 on back)
inches millimeters
572
1054
572
pounds kilograms
79.6
86.5
info@eaw.com www.eaw.com
October 2001 Printed in USA
