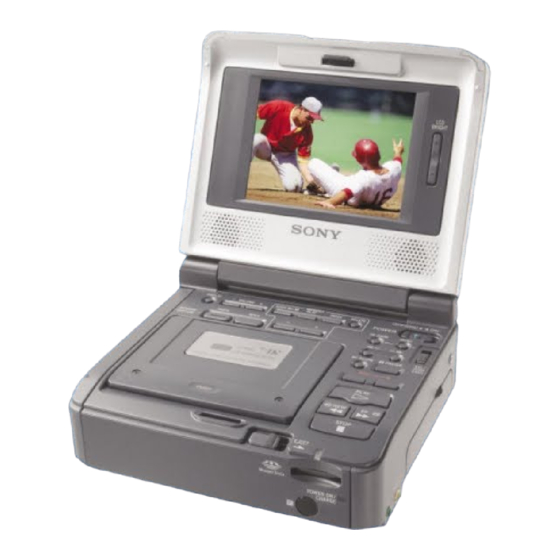

Page 1 GV-D1000/D1000E RMT-811 SERVICE MANUAL LEVEL US Model Ver 1.0 2002. 01 Canadian Model Revision History Revision History GV-D1000 AEP Model UK Model E Model GV-D1000E Photo : GV-D1000E J200 MECHANISM Link Link SPECIFICATIONS BLOCK DIAGRAMS PRINTED WIRING BOARDS SPECIFICATIONS BLOCK DIAGRAMS...
Page 2 CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
Page 3 Size R6 (AA) battery for Remote Commander (2) power cord (mains lead) 2 A/V converting cable (1) CD-ROM (SPVD-008 (I) USB Driver) (1) (GV-D1000) CD-ROM (SPVD-008 USB Driver) (1) (GV-D1000E) 3 A/V connecting cable (1) 4 USB cable (1) 8 21-pin adaptor...
Page 4: Table Of Contents
GV-D1000/D1000E TABLE OF CONTENTS SERVICE NOTE • VC-275 (DV INTERFACE)(3/13) SCHEMATIC DIAGRAM ···························· 4-21 1-1. SERVICE NOTE ····························································· 1-1 • VC-275 (VIDEO IN/OUT)(4/13) POWER SUPPLY DURING REPAIRS ·························· 1-1 SCHEMATIC DIAGRAM ···························· 4-23 TO TAKE OUT A CASSETTE WHEN NOT EJECT •...
Page 5 GV-D1000/D1000E ADJUSTMENTS LCD Initial Data Input (2) ············································· 5-27 VCO Adjustment (PD-130 board) ································· 5-27 Adjusting items when replacing main parts and boards. · 5-2 RGB AMP Adjustment (PD-130 board) ························ 5-28 5-1. ADJUSTMENT PREPARATIONS ································· 5-3 Contrast Adjustment (PD-130 board) ···························· 5-28 1-1.
Page 6: Service Note
GV-D1000/D1000E SECTION 1 COVER COVER SERVICE NOTE 1-1. SERVICE NOTE POWER SUPPLY DURING REPAIRS In this unit, about 10 seconds after power is supplied (8.4V) to the battery terminal, the power is shut off so that the unit cannot operate.
Page 7: Self-Diagnosis Function
GV-D1000/D1000E 1-2. SELF-DIAGNOSIS FUNCTION SELF-DIAGNOSIS FUNCTION SELF-DIAGNOSIS DISPLAY When problems occur while the unit is operating, the self-diagnosis When problems occur while the unit is operating, the counter of the function starts working, and displays on the LCD screen what to LCD screen shows a 4-digit display consisting of an alphabet and do.
Page 8: Self-Diagnosis Code Table
GV-D1000/D1000E SELF-DIAGNOSIS CODE TABLE Self-diagnosis Code Block Detailed Symptom/State Correction Function Code Non-standard battery is used. Use the info LITHIUM battery. Condensation. Remove the cassette, and insert it again after one hour. Video head is dirty. Clean with the optional cleaning cassette.
Page 9: Disassembly
GV-D1000/D1000E SECTION 2 COVER COVER DISASSEMBLY The following flow chart shows the disassembly procedure. 2-1. LCD cabinet assembly PD-130 board service position 2-2. PD-130 board, LS-56 board 2-3. LCD window cabinet assembly (LCD901, ND901, SP901, SP902) 2-4. Bottom cabinet assembly, FP-571 flexible board (V/L rechargeable battery) 2-5.
Page 10: Lcd Cabinet Assembly
GV-D1000/D1000E NOTE: Follow the disassembly procedure in the numerical order given. 2-1. LCD CABINET ASSEMBLY 2 Two screws (M2 × 4), lock ace, p2 6 Remove the LCD cabinet assembly in the direction of the arrow. 3 Two screws (M2 × 3), lock ace, p2 1 Two screws (M2 ×...
Page 11: Board, Ls-56 Board
GV-D1000/D1000E 2-2. PD-130 BOARD, LS-56 BOARD 9 Three screws (M2 × 3), lock ace, p2 4 Harness (EP-51) (2P) 2 Two tapping screws (B2 × 6) 0 Remove the PD-130 board in the direction of the arrow. 3 FP-569 flexible...
Page 12 GV-D1000/D1000E 2-3. LCD WINDOW CABINET ASSEMBLY (LCD901, ND901, SP901, SP902) 1 Two tapping screws (B2 × 6) 2 Two tapping screws (B2 × 6) 4 LCD ground plate 5 PD frame 3 Screw (M2 × 3), lock ace, p2 6 LCD901...
Page 13: Board (V/L Rechargeable Battery)
GV-D1000/D1000E 2-4. BOTTOM CABINET ASSEMBLY, FP-571 FLEXIBLE BOARD (V/L RECHARGEABLE BATTERY) 7 Bottom cabinet assembly 4 Three MI screws 3 Three MI screws (M2 × 4) (H) (M2 × 4) (H) 6 Open the jack lid assembly in the direction of the arrow B.
Page 14: Board
GV-D1000/D1000E 2-6. BATTERY TERMINAL BOARD 3 Battery frame 5 Battery terminal board 4 Battery panel assembly 2 Two MI screws (M2 × 4) (H) 1 MI screw (M2 × 4) (H) 2-7. FP-575 FLEXIBLE BOARD (LANC), PR-41 BOARD, IO-69 BOARD 1 Three tapping screws qa Screw (M2 ×...
Page 15: Flexible Board (Lanc), Pr-41 Board
GV-D1000/D1000E 2-8. MS-95 BOARD 3 Two FP-404 flexible boards (60P) 2 Two screws (M2 × 3), lock ace, p2 4 MS-95 board 1 FP-405 flexible board (10P) 2-9. MECHANISM DECK 1 Screw (M2 × 3), 2 Screw (M1.4 × 1.5) lock ace, p2 qa Three screws (M1.4 ×...
Page 16: Board
GV-D1000/D1000E 2-10.EJ-35 BOARD 1 Two MI screws (M2 × 4) (H) 2 Cassette lid assembly 3 Press the cassette EJECT button in the direction of the arrow A and open the Lid frame assembly. 4 Four tapping screws (B2 × 6)
Page 17: Board
GV-D1000/D1000E 2-11.EX-39 BOARD 1 Tapping screw (B2 × 6) 4 FP-570 flexible board 3 Lid lock assembly 9 EX-39 board 7 Two screws (M2 × 3), 8 EX frame lock ace, p2 2 Two MI screws (M2 × 4) (H)
Page 18: Memory Stick Connector (10P)
GV-D1000/D1000E 2-12.MEMORY STICK CONNECTOR (10P), FK-81 BOARD 1 Three screws (M1.7 × 3), lock ace, p2 3 Memory stick connector (10P) 2 FP-405 flexible board (10P) 4 Four tapping screws (B2 × 6) 7 FK frame 8 FK-81 board 6 Three screws (M2 × 3),...
Page 19 GV-D1000/D1000E 2-13.FP-602 FLEXIBLE BOARD (DV IN/OUT), LCD BLOCK ASSEMBLY 8 Hinge retainer bracket 4 Hinge retainer bracket 5 FP-602 flexible board 7 Two dowels (5P) 3 Two screws (M2 × 3), lock ace, p2 6 Two MI screws (M2 × 4) (H) 1 Two MI screws (M2 ×...
Page 20: Hinge Unit, Fp-569 Flexible Board
GV-D1000/D1000E 2-14.HINGE UNIT, FP-569 FLEXIBLE BOARD When attaching the hinge unit, wrap the FP-569 flexible board hinge shaft as shown while taking care so that the flexible board must not be caught or pinched. Hinge unit FP-569 flexible board (26, 32P)
Page 21 GV-D1000/D1000E [SERVICE POSITION TO CHECK THE VTR SECTION (Mainly for voltage measurement and check)] (VC-275, MS-95, IO-69 PR-41 BOARDS, MECHANISM DECK) Connection to Check the VTR Section Operate the VTR functions using the adjustment remote commander (with the HOLD switch set in the OFF position).
Page 22: Circuit Boards Location
GV-D1000/D1000E 2-15.CIRCUIT BOARDS LOCATION PD-130 FP-602 EJ-35 LS-56 EX-39 FK-81 FP-575 MS-95 IO-69 VC-275 PR-41 NAME FUNCTION EJ-35 EJECT SWITCH EX-39 MULTI CONNECTOR FK-81 CONTROL SWITCH BLOCK FP-575 LANC FP-602 DV IN/OUT IO-69 AV IN/OUT LS-56 LCD SWITCH MS-95 CAMERA CONTROL, Y/C PROCESS, DIGITAL STILL CONTROL, MEMORY...
Page 23: Flexible Boards Location
GV-D1000/D1000E 2-16.FLEXIBLE BOARDS LOCATION The flexible boards contained in the mechanism deck are not shown. Flexible flat cable (FFC-322) FP-570 FP-569 FP-571 FP-404 FP-247 FP-405 2-15E...
Page 24: Block Diagrams
GV-D1000/D1000E COVER COVER 3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/5) POWER BLOCK DIAGRAM (1/3) OVERALL BLOCK DIAGRAM (1/5) POWER BLOCK DIAGRAM (1/3) OVERALL BLOCK DIAGRAM (2/5) POWER BLOCK DIAGRAM (2/3) OVERALL BLOCK DIAGRAM (2/5) POWER BLOCK DIAGRAM (2/3)
Page 25 GV-D1000/D1000E SECTION 3 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER BLOCK DIAGRAMS 3-1. OVERALL BLOCK DIAGRAM (1/5) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. IO-69 BOARD...
Page 26 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. 3-2. OVERALL BLOCK DIAGRAM (2/5) CN101 CN103 CN940 SPCK (DV) IN/OUT...
Page 27 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER 3-3. OVERALL BLOCK DIAGRAM (3/5) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. CN933 J MECHA DECK FOR ADJUSTMENTS...
Page 28 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. 3-4. OVERALL BLOCK DIAGRAM (4/5) CN5502 PD-130 BOARD(2/3) R5553 8.2K HD OUT...
Page 29 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER 3-5. OVERALL BLOCK DIAGRAM (5/5) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. FK-81 BOARD VC-275 BOARD (4/4) PD-130...
Page 30 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. 3-6. POWER BLOCK DIAGRAM (1/3) VC–275 BOARD (1/2) SHOE ON BATT SIG...
Page 31 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER 3-7. POWER BLOCK DIAGRAM (2/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. FP-571 (FLEXIBLE) VC-275 BOARD(2/2) BT001 BATT LI3V...
Page 32 GV-D1000/D1000E 3. BLOCK DIAGRAMS 3. BLOCK DIAGRAMS COVER COVER 3-8. POWER BLOCK DIAGRAM (3/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located. MS-95 BOARD IC361 IC391 IC302 IC303...
Page 33: Printed Wiring Boards And Schematic Diagrams
GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS COVER COVER SECTION 4 PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-1. FRAME SCHEMATIC DIAGRAM (1/2) CN939 CN102 REG_GND REG_GND REG_GND REG_GND REG_GND REG_GND REG_GND REG_GND...
Page 34: Frame Schematic Diagram (1/2)
GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS COVER COVER FRAME SCHEMATIC DIAGRAM (2/2) ND901 BACK LIGHT LCD 901 4 INCH COLOR LCD UNIT LS-56 BOARD PL-53 CN5502 HARNESS CN001 CN5608 AD_6 AD_6...
Page 35 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS COVER COVER THIS NOTE IS COMMON FOR WIRING BOARDS AND SCHEMATIC DIAGRAMS...
Page 36: Schematic Diagrams
GV-D1000/D1000E COVER COVER 4-2. SCHEMATIC DIAGRAMS Link Link PD-130 BOARD (1/2) VC-275 BOARD (8/13) PD-130 BOARD (1/2) VC-275 BOARD (8/13) (LCD DRIVER) (LCD DRIVER) (HI CONTROL) (HI CONTROL) PD-130 BOARD (2/2) VC-275 BOARD (9/13) PD-130 BOARD (2/2) (BACK LIGHT) VC-275 BOARD (9/13)
Page 37 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS PD-130 BOARD SIDE A PD-130 BOARD SIDE A PD-130 BOARD SIDE B PD-130 BOARD SIDE B COVER COVER For Schematic Diagram 4-2. SCHEMATIC DIAGRAMS • Refer to page 4-55 for printed wiring board.
Page 38 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS PD-130 BOARD SIDE A PD-130 BOARD SIDE A PD-130 BOARD SIDE B PD-130 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-55 for printed wiring board. PD-130 BOARD(2/2) BACK LIGHT(BL BLOCK)
Page 39 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS FK-81 PRINTED WIRING BOARD FK-81 PRINTED WIRING BOARD COVER COVER For Schematic Diagram • Refer to page 4-53 for printed wiring board. FK-81 BOARD SWITCH BLOCK CL301 S319 MPEG D301 SML-211UT-T86 R304 (MS ACCESS) CN301 D_2.8V...
Page 40 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS EX-39 PRINTED WIRING BOARD EX-39 PRINTED WIRING BOARD COVER COVER For Schematic Diagram • Refer to page 4-59 for printed wiring board. EX-39 BOARD MULTI CONNECTOR CN203 CN201 VIDEO_OUT VIDEO_GND VIDEO_OUT_GND FB201 V/Y_IN...
Page 41 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS IO-69 PRINTED WIRING BOARD 4-2. SCHEMATIC DIAGRAMS IO-69 PRINTED WIRING BOARD COVER COVER For Schematic Diagram • Refer to page 4-61 for printed wiring board. IO-69 BOARD AV IN/OUT R408 XX MARK:NO MOUNT CN401 R412 NO MARK:REC/PB MODE...
Page 42 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. • Refer to page 4-75 for waveforms.
Page 43 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. • Refer to page 4-74 for waveforms.
Page 44 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(3/13) DV INTERFACE(JC-2 BLOCK)
Page 45 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. • Refer to page 4-74 for waveforms.
Page 46 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(5/13) NO MARK:REC/PB MODE...
Page 47 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. • Refer to page 4-74 for waveforms.
Page 48 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. • Refer to page 4-75 for waveforms.
Page 49 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. • Refer to page 4-74 for waveforms.
Page 50 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(9/13) AUDIO(AU BLOCK)
Page 51 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(10/13) S1701...
Page 52 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(11/13) DC IN,CHARGE(FU BLOCK)
Page 53 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(12/13) Q1330 2SD1938(F)-S(TX).SO...
Page 54 GV-D1000/D1000E 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B 4-2. SCHEMATIC DIAGRAMS VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER For Schematic Diagram • Refer to page 4-67 for printed wiring board. VC-275 BOARD(13/13) SIGNAL PATH...
Page 55 Schematic diagram of the MS-95 board are not shown. Pages from 4-43 to 4-52 are not shown.
Page 56: Printed Wiring Boards
GV-D1000/D1000E COVER COVER 4-3. PRINTED WIRING BOARDS Link Link FK-81 BOARD FP-575 FLEXIBLE BOARD FK-81 BOARD FP-575 FLEXIBLE BOARD PD-130 BOARD (SIDE A) FP-100, FP-228, FP-102 FLEXIBLE BOARDS PD-130 BOARD (SIDE A) FP-100, FP-228, FP-102 FLEXIBLE BOARDS PD-130 BOARD (SIDE B)
Page 57: Printed Wiring Boards
GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER 4-3. PRINTED WIRING BOARDS • : Uses unleaded solder. FK-81 (SWITCH BLOCK) PRINTED WIRING BOARD For printed wiring boards •...
Page 58 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER PD-130 (LCD DRIVER, BACK LIGHT) PRINTED WIRING BOARD • : Uses unleaded solder. For printed wiring boards •...
Page 59 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER LS-56 (LCD SWITCH) PRINTED WIRING BOARD • : Uses unleaded solder. • : Uses unleaded solder. PD-130/LS-56...
Page 60 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER EX-39 (MULTI CONNECTOR) PRINTED WIRING BOARD • : Uses unleaded solder. For printed wiring boards • Refer to page 4-77 for parts location.
Page 61 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER IO-69 (AV IN/OUT) PRINTED WIRING BOARD • : Uses unleaded solder. For printed wiring boards • Refer to page 4-77 for parts location.
Page 62 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER PR-41 (REMOTE COMMANDER RECEIVER), FP-575 (LANC) PRINTED WIRING BOARDS • : Uses unleaded solder. FP-575 FLEXIBLE BOARD...
Page 63 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER FP-100 (MODE SWITCH), FP-228 (DEW SENSOR), FP-102 (TAPE TOP/END SENSOR, S/T REEL), FP-571 (BATTERY) FLEXIBLE BOARDS •...
Page 64 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER VC-275 (REC/PB AMP, DV SIGNAL PROCESS, DV INTERFACE, VIDEO IN/OUT, USB SIGNAL PROCESS, MECHANISM CONTROL, DRUM/CAPSTAN MOTOR DRIVE, HI CONTROL, AUDIO, VIDEO, USB JACK, DC IN, CHARGE, DC/DC CONVERTER, CONNECTOR) PRINTED WIRING BOARD •...
Page 65 GV-D1000/D1000E MOUNTED PARTS LOCATION 4-2. SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS MOUNTED PARTS LOCATION COVER COVER • : Uses unleaded solder. VC-275 4-69 4-70...
Page 66 Printed wiring board of the MS-95 board are not shown. Pages from 4-71 to 4-72 are not shown.
Page 67: Waveforms
GV-D1000/D1000E PD-130 BOARD SIDE A PD-130 BOARD SIDE B PD-130 BOARD SIDE A PD-130 BOARD SIDE B COVER COVER 4-4. WAVEFORMS PD-130 BOARD IC5501 w; IC5501 rk 400mVp-p 3.6Vp-p IC5501 ws IC5502 1 2.8Vp-p 3.7Vp-p IC5501 wf IC5502 rk 2.8Vp-p 3.6Vp-p...
Page 68 GV-D1000/D1000E VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER VC-275 BOARD IC1104 yl (PB) IC3701 ef (REC) IC3301 rg (REC) 3.4Vp-p 0.5Vp-p 3.6Vp-p 50nsec 33.5nsec IC3701 eh (REC) IC3301 <zzc IC1104 <z//...
Page 69 GV-D1000/D1000E VC-275 BOARD SIDE A VC-275 BOARD SIDE B VC-275 BOARD SIDE A VC-275 BOARD SIDE B COVER COVER VC-275 BOARD IC1001 qh IC3101 rs, IC3103 wj (PB) 450mVp-p 2.8Vp-p 3.3msec 1.1msec IC1001 ws IC3103 eg 2.0Vp-p 2.8Vp-p 6.7msec 6.7msec IC1001 edra IC3103 r;...
Page 70: Waveforms Of The Ms-95 Board Are Not Shown
Waveforms of the MS-95 board are not shown. Page 4-76 is not shown.
Page 71: Mounted Parts Location
GV-D1000/D1000E 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS COVER COVER 4-5. MOUNTED PARTS LOCATION no mark : side A * mark : side B FK-81 BOARD PD-130 BOARD EX-39 BOARD IO-69 BOARD CN301 I-2 C5501 R5501 E-7 CN201 F-4...
Page 72 GV-D1000/D1000E 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS COVER COVER no mark : side A * mark : side B PR-41 BOARD EJ-35 BOARD VC-275 BOARD IC502 S101 * C901 A-22 C1309 C3105 C3724 D-10 * CN926 A-23 * C903...
Page 73 GV-D1000/D1000E 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS COVER COVER no mark : side A * mark : side B VC-275 BOARD * IC1001 H-18 * Q1103 D-17 * R1018 H-18 R1229 D-6 * R1347 C-17 R3326 E-4 R4848 C-2...
Page 74 Mounted parts location of the MS-95 board is not shown. Page 4-80 is not shown.
Page 75: Adjustments
GV-D1000/D1000E SECTION 5 COVER COVER ADJUSTMENTS...
Page 76: Adjusting Items When Replacing Main Parts And Boards
GV-D1000/D1000E Adjusting items when replacing main parts and boards. When replacing main parts, adjust the items indicated by in the following table. *1: When replacing the drum assy. or mechanism deck, reset the data of page: 2, address: A2 to A4 to “00”. (Refer to “Record of Use check”...
Page 77: Adjustment Preparations
GV-D1000/D1000E 5-1. ADJUSTMENT PREPARATIONS For details of the adjustment remote commander, refer to “5-4. SERVICE MODE”. 1-1. PREPARATIONS BEFORE ADJUSTMENT 1-1-1. List of Service Tools • Oscilloscope • Regulated power supply • Frequency counter • Monitor TV • Digital voltmeter •...
Page 78: Mechanism Section Adjustment
GV-D1000/D1000E 5-2. MECHANISM SECTION ADJUSTMENT On the mechanism section adjustment 2-3. TAPE PATH ADJUSTMENT For detail of mechanism section adjustments, checks, and replacement of mechanism parts, refer to the separate volume “DV 1. Preparation for Adjustment MECHANICAL ADJUSTMENT MANUAL J Mechanism ”.
Page 79: Electrical Adjustment
GV-D1000/D1000E 5-3. ELECTRICAL ADJUSTMENT 3-1. PREPARATIONS BEFORE ADJUSTMENTS Use the following measuring instruments for video section adjustments. Note: NTSC model: GV-D1000 PAL model: GV-D1000E 3-1-1. Equipment to Required TV monitor Oscilloscope (dual-phenomenon, band width above 30 MHz with delay mode) (Unless specified otherwise, use a 10 : 1 probe.)
Page 80: Precautions On Adjusting
GV-D1000/D1000E 3-1-2. Precautions on Adjusting Note1: Setting the “Forced VTR Power ON” mode (VTR mode) 1) Select page: 0, address: 01, and set data: 01. 1) Disconnecting the VC-275 board CN926 (4P, 0.8mm) means 2) Select page: D, address: 10, set data: 02, and press the PAUSE disconnecting the lithium 3V power supply (FP-571 board button of the adjustment remote commander.
Page 81: Connecting The Equipment
GV-D1000/D1000E 3-1-4. Connecting the Equipment Connect the measuring instruments as shown in Fig. 5-3-2, and perform the adjustments. LANC jack Pattern generator Adjustment VIDEO remote (Yellow) Video output commander (75 Ω) AUDIO L (White) Main unit AUDIO R (Red) AUDIO/VIDEO INPUT jack...
Page 82: Alignment Tapes
GV-D1000/D1000E 3-1-5. Alignment Tapes Use the alignment tapes shown in the following table. Use tapes specified in the signal column of each adjustment. Name Tracking standard (XH2-1) Tape path adjustment SW/OL standard (XH2-3) Switching position adjustment Audio operation check Audio system adjustment...
Page 83: Initialization Of E, F, 7 Page Data
Set the following data, and press 8E to FF Fixed data-1 PAUSE button. Table. 5-3-3. 2D: GV-D1000 (NTSC) 2F: GV-D1000E (PAL) 4. E Page Table Set the data, and press PAUSE button. Note: Fixed data-1: Initialized data. (Refer to “1. Initializing the E, F, 7 Check that the data changes to Page Data”.)
Page 84: Initialization Of C, D, 8 Page Data
GV-D1000/D1000E 3-2-2. INITIALIZATION OF C, D, 8 PAGE DATA 3. C Page Table 1. Initializing the C, D, 8 Page Data Note: Fixed data-1: Initialized data. (Refer to “1. Initializing the C, D, 8 Page Data”.) Fixed data-2: Modified data. (Refer to “2. Modification of C, D, 8 Note1: If “Initializing the C, D, 8 Page Data”...
Page 85 GV-D1000/D1000E Address Remark Address Remark Initial value Initial value F0 to F3 Fixed data-1 Fixed data-2 Emergency memory address (Modified data. Copy the data built in the same model.) 8A to 91 Fixed data-1 Fixed data-2 93 to 99 Fixed data-1...
Page 86 GV-D1000/D1000E 4. D Page Table Initial value Address Remark Note: Fixed data-1: Initialized data. (Refer to “1. Initializing the C, D, 8 NTSC PAL Page Data”.) Fixed data-2 Fixed data-2: Modified data. (Refer to “2. Modification of C, D, 8 Page Data”).
Page 87: Page Table
GV-D1000/D1000E 5. 8 Page Table Initial value Address Remark Note: Fixed data-1: Initialized data. (Refer to “1. Initializing the C, D, 8 NTSC PAL Page Data”.)Fixed data-2: Modified data. (Refer to “2. Modification Fixed data-2 of C, D, 8 Page Data”).
Page 88: Initialization Of B Page Data
GV-D1000/D1000E 3-2-3. INITIALIZATION OF B PAGE DATA 2. Modification of B Page Data If the B page data has been initialized, change the data of the “Fixed Note1: When reading the B page data, insert a “Memory Stick” into the data-2”...
Page 89: System Control System Adjustment
GV-D1000/D1000E 3-3. SYSTEM CONTROL SYSTEM ADJUSTMENT 1-2. Serial No. Input Write the serial No. and model code in the EEPROM (nonvolatile memory). Convert the serial No. on the name plate from decimal to 1. Serial No. Input hexadecimal, and write in the EEPROM.
Page 90 GV-D1000/D1000E Hexa- Hexa- Hexa- Hexa- Hexa- Hexa- Hexa- Hexa- Decimal Decimal Decimal Decimal Decimal Decimal Decimal Decimal decimal decimal decimal decimal decimal decimal decimal decimal 0000 8192 2000 16384 4000 24576 6000 32768 8000 40960 A000 49152 C000 57344 E000...
Page 91: Servo And Rf System Adjustment
GV-D1000/D1000E 3-4. SERVO AND RF SYSTEM ADJUSTMENT 2. PLL f & LPF f Adjustment (VC-275 board) Before perform the servo and RF system adjustments, check that the specified value of “40.5MHz/54MHz Origin Oscillation Mode VTR stop Adjustment” of “VIDEO SYSTEM ADJUSTMENT” is satisfied.
Page 92: Switching Position Adjustment (Vc-275 Board)
GV-D1000/D1000E 3. Switching Position Adjustment (VC-275 board) 4. AGC Center Level and APC & AEQ Adjustment 4-1. Preparations before adjustments Mode VTR playback Signal SW/OL reference tape (XH2-3) Mode Recording Measurement Point Display data of page: 3, address: 03 Signal...
Page 93: Agc Center Level Adjustment (Vc-275 Board)
GV-D1000/D1000E 4-2. AGC Center Level Adjustment (VC-275 board) 4-3. APC & AEQ Adjustment (VC-275 board) Mode Playback Mode Playback Signal Recorded signal at “Preparations Signal Recorded signal at “Preparations before adjustments” before adjustments” Measurement Point Pin w; of CN933 (RF MON) (Note 1) Measurement Point Pin w;...
Page 94: Processing After Completing Adjustments
GV-D1000/D1000E 4-4. Processing after Completing Adjustments 5. PLL f & LPF f Fine Adjustment (VC-275 board) Order Page Address Data Procedure Mode VTR stop Set the data. Signal Arbitrary Set the data. Measurement Point Display data of page: 3, address: 02, 03 Set the data.
Page 95: Video System Adjustments
GV-D1000/D1000E 3-5. VIDEO SYSTEM ADJUSTMENTS 2. Chroma BPF fo Adjustment (VC-275 board) Set the center frequency of IC3701 chroma band-pass filter. 1. 40.5MHz/54MHz Origin Oscillation Adjustment Mode VTR stop (MS-95 board) Signal No signal Set the frequency of the clock for synchronization.
Page 96: S Video Out Y Level Adjustment (Vc-275 Board)
GV-D1000/D1000E 3. S VIDEO OUT Y Level Adjustment (VC-275 board) 4. S VIDEO OUT Chroma Level Adjustment (VC-275 board) Mode VTR stop Mode VTR stop Signal No signal Signal No signal Measurement Point Y signal terminal of S VIDEO OUT jack (75Ω...
Page 97 GV-D1000/D1000E 5. VIDEO OUT Y, Chroma Level Check (VC-275 board) Mode VTR stop Signal No signal Measurement Point VIDEO OUT jack (75Ω terminated) Measuring Instrument Oscilloscope Specified Value Sync level: A = 286 ± 18mV(NTSC) A = 300 ± 18mV(PAL) Burst level: B = 286 ±...
Page 98: Audio System Adjustments
GV-D1000/D1000E 3-6. AUDIO SYSTEM ADJUSTMENTS 1. Playback Level Check Mode Playback [Connecting the measuring instruments for the audio] Signal Alignment tape: Connect the audio system measuring instruments in addition to the For audio operation check video system measuring instruments as shown in Fig. 5-3-11.
Page 99: Overall Noise Level Check
GV-D1000/D1000E 4. Overall Noise Level Check Mode Recording and playback Signal No signal: Audio terminal left and right of AUDIO/VIDEO INPUT jack Measurement Point AUDIO OUT jack LEFT or RIGHT Measuring Instrument Audio level meter Specified Value Below –45dBs (IHF-A filter ON, 20kHz LPF ON)
Page 100: Lcd System Adjustment
Fixed data Table. 5-3-12. Fixed data Fixed data Fixed data Fixed data Fixed data Fixed data Fixed data Fixed data PD-130 board CN5502 Fixed data 2 10 Fixed data Note 2: NTSC/PAL NTSC: GV-D1000, PAL: GV-D1000E Table. 5-3-13. Fig. 5-3-12. 5-26...
Page 101: Lcd Initial Data Input (2)
Select page: 0, address: 01, and set data: 00. f = 15625 ± 30Hz (PAL) Address Data Remark Note 1: NTSC: GV-D1000 PAL: GV-D1000E Fixed data Fixed data Adjusting method: VCO adj. Order Page Address Data Procedure Fixed data (NTSC), VCO adj.
Page 102: Rgb Amp Adjustment (Pd-130 Board)
GV-D1000/D1000E 4. RGB AMP Adjustment (PD-130 board) 5. Contrast Adjustment (PD-130 board) Set the D range of the RGB decoder used to drive the LCD to the Set the level of the VIDEO signal for driving the LCD to the specified specified value.
Page 103: Com Amp Adjustment (Pd-130 Board)
GV-D1000/D1000E 6. COM AMP Adjustment (PD-130 board) 7. V-COM Adjustment (PD-130 board) Set the common electrode drive signal level of LCD to the specified Set the DC bias of the common electrode drive signal of LCD to the value. specified value.
Page 104: White Balance Adjustment (Pd-130 Board)
GV-D1000/D1000E 8. White Balance Adjustment (PD-130 board) Correct the white balance. If deviated, the reproduction of the LCD screen may degenerate. Mode VTR stop Signal No signal Measurement Point Check on LCD screen Measuring Instrument Adjustment Page Adjustment Address A8, A9...
Page 105: Service Mode
GV-D1000/D1000E 5-4. SERVICE MODE 4-1. ADJUSTMENT REMOTE COMMANDER 2. Precautions upon using the adjustment remote commander The adjustment remote commander is used for changing the calculation coefficient in signal processing, EVR data, etc. The Mishandling of the adjustment remote commander may erase the adjustment remote commander performs bi-directional correct adjustment data at times.
Page 106: Data Process
GV-D1000/D1000E 4-2. DATA PROCESS The calculation of the DDS display and the adjustment remote commander display data (hexadecimal notation) are required for obtaining the adjustment data of some adjustment items. In this case, after converting the hexadecimal notation to decimal notation, calculate and convert the result to hexadecimal notation, and use it as the adjustment data.
Page 107: Service Mode
GV-D1000/D1000E 4-3. SERVICE MODE 2-1. EMG Code (Emergency Code) 1. Setting the Test Mode Codes corresponding to the errors which occur are written in Page D Address 10 addresses F4, F8 and FC. The type of error indicated by the code are shown in the following table.
Page 108: Msw Code
GV-D1000/D1000E 2-2. MSW Code MSW when errors occur: Information on MSW (mode SW) when errors occur MSW when movement starts: Information on MSW when movements starts when the mechanism position is moved (When the L motor is moved) MSW of target of movement:...
Page 109: Bit Value Discrimination
GV-D1000/D1000E 3. Bit value discrimination Bit values must be discriminated using the display data of the Display on the Bit values adjustment remote commander for following items. Use the table adjustment bit3 bit2 bit1 bit0 below to discriminate if the bit value is “1” or “0”.
Page 110: Switch Check (4)
GV-D1000/D1000E 7. Switch check (4) Page 2 Address 81 Function When bit value = 1 When bit value = 0 AUDIO/VIDEO IN jack (VC-275 board J1701) Used Not used S VIDEO IN jack (IO-69 board J402) Not used Used Using method: 1) Select page: 2, address: 81.
Page 111: Record Of Use Check
GV-D1000/D1000E 9. Record of Use check Note: When replacing the drum assembly, initialize the data of address: A2 to A4. Page 2 Address A2 to AA Function Remarks Drum rotation Minute counted time Hour (L) 10th place digit and 1st place digit of counted time (decimal digit)
Page 112: Repair Parts List
GV-D1000/D1000E SECTION 6 COVER COVER REPAIR PARTS LIST 6-1. EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may • The mechanical parts with no reference number The components identified by mark 0or have some differences from the original one.
Page 113: Cabinet (Upper) Section-1
GV-D1000/D1000E 6-1-2. CABINET (UPPER) SECTION-1 ns : not supplied LCD section (See page 6-4) Cabinet (upper) section-2 (See page 6-3) BT001 : BT001 (V/L rechargeable battary) FP-571 flexible board on the mount position. (See page 4-65) CAUTION : Danger of explosion if battery is incorrectly replaced.
Page 114: Cabinet (Upper) Section-2
GV-D1000/D1000E 6-1-3. CABINET (UPPER) SECTION-2 ns : not supplied Ref. No. Part No. Description Ref. No. Part No. Description 3-945-884-11 SCREW (2X6) 3-072-563-01 FRAME, EX 3-072-564-01 FK FRAME A-7078-066-A EX-39 BOARD, COMPLETE A-7078-065-A FK-81 BOARD, COMPLETE 1-960-864-11 HARNESS (PL-53) 3-968-729-51 SCREW (M2), LOCK ACE, P2...
Page 115: Lcd Section
GV-D1000/D1000E 6-1-4. LCD SECTION ns : not supplied ND901 SP901 LCD901 SP902 Ref. No. Part No. Description Ref. No. Part No. Description X-3952-180-1 CABINET ASSY, LCD WINDOW 3-945-884-11 SCREW (2X6) 3-064-405-01 PLATE, SP GROUND 1-960-864-11 HARNESS (PL-53) 3-948-339-61 TAPPING 3-064-404-01 BRACKET, LS...
Page 116: Assembly
GV-D1000/D1000E 6-1-5. CASSETTE COMPARTMENT AND DRUM BLOCK ASSEMBLY M901 LS chassis block assembly (See page 6-6) Mechanism chassis block assembly (See page 6-7) Ref. No. Part No. Description Ref. No. Part No. Description 3-703-816-14 SCREW (M1.4) 3-704-197-21 SCREW (M1.4X2.5), SPECIAL HEAD...
Page 117: Ls Chassis Block Assembly
GV-D1000/D1000E 6-1-6. LS CHASSIS BLOCK ASSEMBLY ns : not supplied Q901 D901 H902 S903 H901 Q902 FP-102 (Note) Note: FP-102 is included in the LS sub assy and is attached to chassis by hot-press. Because installation of FP-102 requires a very high accuracy, FP-102 is not supplied as an independent service parts.
Page 118: Mechanism Chassis Block Assembly
GV-D1000/D1000E 6-1-7. MECHANISM CHASSIS BLOCK ASSEMBLY ns : not supplied M903 M902 (Including belt) Ref. No. Part No. Description Ref. No. Part No. Description 3-059-211-01 GEAR, CONVERSION 3-059-139-01 GEAR, GL DRIVING 3-059-220-01 GEAR, RELAY 3-059-188-01 GEAR, DECELERATION 3-059-187-01 SHAFT, WORM...
Page 119: Electrical Parts List
GV-D1000/D1000E EJ-35 EX-39 FK-81 6-2. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the • RESISTORS When indicating parts by reference number, parts list may be different from the parts All resistors are in ohms. please include the board name.
Page 120 GV-D1000/D1000E FK-81 FP-571 IO-69 LS-56 Ref. No. Part No. Description Ref. No. Part No. Description < SWITCH > D409 8-719-073-03 DIODE MA8082-(K8).S0 D410 8-719-062-16 DIODE 01ZA8.2(TPL3) S301 1-786-157-11 SWITCH, TACTILE (STOP s) D411 8-719-073-03 DIODE MA8082-(K8).S0 S302 1-786-157-11 SWITCH, TACTILE (PLAY G) D412 8-719-062-16 DIODE 01ZA8.2(TPL3)
Page 121 GV-D1000/D1000E MS-95 Ref. No. Part No. Description Ref. No. Part No. Description A-7096-970-A MS-95 BOARD, COMPLETE (SERVICE)(D1000) Electrical parts list of the MS-95 board are ************************************** A-7096-975-A MS-95 BOARD, COMPLETE (SERVICE)(D1000E) not shown. ************************************** Pages 6-10 to 6-11 are not shown.
Page 122 GV-D1000/D1000E PD-130 Ref. No. Part No. Description Ref. No. Part No. Description A-7078-090-A PD-130 BOARD, COMPLETE ********************** < CAPACITOR > C5501 1-119-750-11 TANTAL. CHIP 22uF 6.3V C5503 1-125-777-11 CERAMIC CHIP 0.1uF C5504 1-125-777-11 CERAMIC CHIP 0.1uF C5505 1-164-943-11 CERAMIC CHIP 0.01uF...
Page 123 GV-D1000/D1000E PD-130 Ref. No. Part No. Description Ref. No. Part No. Description C5522 1-107-826-11 CERAMIC CHIP 0.1uF Q5506 8-729-037-52 TRANSISTOR 2SD2216J-QR(K8).SO C5523 1-125-777-11 CERAMIC CHIP 0.1uF Q5601 8-729-037-74 TRANSISTOR UN9213J-(K8).SO C5524 1-107-682-11 CERAMIC CHIP Q5602 8-729-039-43 TRANSISTOR FP216-TL C5527 1-164-943-11 CERAMIC CHIP 0.01uF...
Page 124 GV-D1000/D1000E PD-130 PR-41 VC-275 Ref. No. Part No. Description Ref. No. Part No. Description < TRANSFORMER > C1032 1-125-777-11 CERAMIC CHIP 0.1uF C1033 1-125-777-11 CERAMIC CHIP 0.1uF 0 T5601 1-435-229-21 TRANSFORMER, INVERTER C1034 1-107-823-11 CERAMIC CHIP 0.47uF ************************************************************ C1035 1-125-777-11 CERAMIC CHIP 0.1uF...
Page 125 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description C1321 1-115-566-11 CERAMIC CHIP 4.7uF C2502 1-125-777-11 CERAMIC CHIP 0.1uF C1322 1-135-201-11 TANTALUM CHIP 10uF C2503 1-107-819-11 CERAMIC CHIP 0.022uF C1323 1-115-566-11 CERAMIC CHIP 4.7uF C2504 1-119-751-11 TANTAL. CHIP...
Page 126 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description C3331 1-135-259-11 TANTAL. CHIP 10uF 6.3V C6003 1-164-943-11 CERAMIC CHIP 0.01uF C3332 1-164-943-11 CERAMIC CHIP 0.01uF C6004 1-135-259-11 TANTAL. CHIP 10uF 6.3V C3333 1-164-943-11 CERAMIC CHIP 0.01uF C6005 1-135-259-11 TANTAL.
Page 127 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description CN938 1-784-342-21 HOUSING, CONNECTOR 2P FB3308 1-414-760-21 FERRITE CN939 1-784-939-11 CONNECTOR, BOARD TO BOARD 60P FB3309 1-414-760-21 FERRITE CN940 1-784-939-11 CONNECTOR, BOARD TO BOARD 60P FB3701 1-414-760-21 FERRITE...
Page 128 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description L1315 1-469-524-91 INDUCTOR 4.7uH Q1310 8-729-037-52 TRANSISTOR 2SC4738F-Y/GR(TPL3) L1316 1-469-524-91 INDUCTOR 4.7uH Q1311 8-729-017-61 TRANSISTOR 2SB1581-T1 L1317 1-419-354-21 INDUCTOR 22uH Q1312 8-729-037-53 TRANSISTOR 2SA1832F-Y/GR(TPL3) L1318 1-414-430-11 INDUCTOR 4.7uH...
Page 129 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description R1023 1-217-671-11 METAL CHIP 1/10W R1186 1-218-953-11 RES-CHIP 1/16W R1024 1-217-671-11 METAL CHIP 1/10W R1187 1-218-953-11 RES-CHIP 1/16W R1025 1-218-946-11 RES-CHIP 1/16W R1188 1-218-953-11 RES-CHIP 1/16W R1027 1-218-977-11 RES-CHIP...
Page 130 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description R1293 1-218-977-11 RES-CHIP 100K 1/16W R2029 1-218-971-11 RES-CHIP 1/16W R1294 1-218-977-11 RES-CHIP 100K 1/16W R2501 1-218-953-11 RES-CHIP 1/16W R1295 1-218-977-11 RES-CHIP 100K 1/16W R2502 1-216-296-11 SHORT R1298 1-218-953-11 RES-CHIP...
Page 131 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description R3360 1-218-957-11 RES-CHIP 2.2K 1/16W R4807 1-218-975-11 RES-CHIP 1/16W R3361 1-208-709-11 METAL CHIP 0.5% 1/16W R4837 1-218-981-11 RES-CHIP 220K 1/16W R3364 1-208-709-11 METAL CHIP 0.5% 1/16W R4839 1-218-985-11 RES-CHIP...
Page 132 GV-D1000/D1000E VC-275 Ref. No. Part No. Description Ref. No. Part No. Description R6169 1-218-965-11 RES-CHIP 1/16W ACCESSORIES R6170 1-218-965-11 RES-CHIP 1/16W *********** R6171 1-218-949-11 RES-CHIP 1/16W 1-475-599-11 ADAPTOR, AC (AC-L10A) R6172 1-218-949-11 RES-CHIP 1/16W 1-475-950-21 REMOTE COMMANDER (RMT-811) R6173 1-216-805-11 METAL CHIP...
Page 134 Reverse 992992931.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2002.01 Official Release — —...

This manual is also suitable for:

Gv-d1000e

Sony GV-D1000 Service Manual

Service Note

Disassembly

Block Diagrams

Printed Wiring Boards and Schematic Diagrams

Adjustments

Page Table

Quick Links

Related Manuals for Sony GV-D1000

Summary of Contents for Sony GV-D1000

This manual is also suitable for:

Table of Contents
