Maintenance & Service Guide

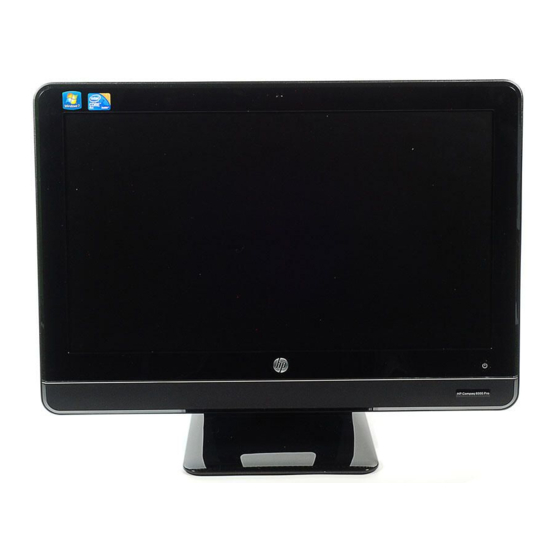

HP Compaq 6000 Pro All-in-One PC

Advertisement

Table of Contents
loading

Related Manuals for HP Compaq 6000 Pro

Summary of Contents for HP Compaq 6000 Pro

  • Page 1 Maintenance & Service Guide HP Compaq 6000 Pro All-in-One PC...
  • Page 2 Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. This document contains proprietary information that is protected by copyright.

  • Page 3: About This Book

    About This Book WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life. CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.
  • Page 4 About This Book...

  • Page 5: Table Of Contents

    Table of contents 1 Product Features ....................... 1 Front Components ........................3 Rear and Side Components ....................... 4 2 Installing and Customizing the Software ................5 Installing the Operating System ....................5 Downloading Microsoft Windows Updates ................. 6 Installing or Upgrading Device Drivers (Windows systems) ............6 Accessing Disk Image (ISO) Files ....................
  • Page 6 Preventing Electrostatic Damage to Equipment ............26 Personal Grounding Methods and Equipment ............. 27 Grounding the Work Area ..................27 Recommended Materials and Equipment ..............28 Operating Guidelines ......................28 Routine Care ......................... 29 General Cleaning Safety Precautions ................. 29 Cleaning the Computer Case ..................
  • Page 7 Display Control Board ......................72 Power Button Board ........................ 74 Inverter Board ........................76 Optical Drive Connector Board ....................78 Hood Sensor ......................... 80 Hard Drive Connector ......................82 Fan ............................84 Speakers ..........................86 System Board Shield ....................... 87 System Board ........................
  • Page 8 viii...

  • Page 9: Product Features

    Product Features The HP Compaq 6000 Pro All-In One Business PC offers the following features: ● Intel® Core™ 2 Duo processors ● Windows® 7 Professional 32- or 64-bit operating system ● Up to 8 gigabytes (GB) of DDR3 memory ●...
  • Page 10 ● Premium stereo speakers ● HP SkyRoom full version for professional quality visual collaboration built on HP Video and Image processing engines for hi-fi audio, hi-def video, and hi-performance 3D application sharing NOTE: SkyRoom is shipped only on computers with Dual Core Processors, at least 2 GB of memory, a selectable Windows operating system, and the selectable webcam/mic AV.

  • Page 11: Front Components

    IR Receiver and LED (select models only) (12) Optical drive eject button Adjustable tilt and swivel stand Brightness increase button (13) HP low-profile keyboard* with numeric keypad (14) Brightness decrease button HP optical mouse* *Wired or optional wireless Front Components...

  • Page 12: Rear And Side Components

    Rear and Side Components Component Component (13) HP 6-in-1 Media Card Reader Stereo audio line out IEEE 1394 port (14) (4) USB 2.0 ports (15) (2) USB 2.0 ports PS/2 mouse port Headphone jack (16) PS/2 keyboard port Microphone/line in jack (17) USB 2.0 port (used for optional wireless keyboard/mouse...

  • Page 13: Installing And Customizing The Software

    If the computer was shipped with Windows Vista or Windows 7 loaded, you will be prompted to register the computer with HP Total Care before installing the operating system. You will see a brief movie followed by an online registration form. Fill out the form, click the Begin button, and follow the instructions on the screen.

  • Page 14: Downloading Microsoft Windows Updates

    ● Corel WinDVD SD and BD – installation software for WinDVD – used to play DVD movies ● HP Insight Diagnostics OR Vision Diagnostics – software to perform diagnostic activities on your Chapter 2 Installing and Customizing the Software...

  • Page 15: Protecting The Software

    Protecting the Software To protect the software from loss or damage, keep a backup copy of all system software, applications, and related files stored on the hard drive. Refer to the operating system or backup utility documentation for instructions on making backup copies of your data files. Protecting the Software...

  • Page 16: Computer Setup (F10) Utility

    Computer Setup (F10) Utility Computer Setup (F10) Utilities Use Computer Setup (F10) Utility to do the following: ● Change factory default settings. ● Set the system date and time. ● Set, view, change, or verify the system configuration, including settings for processor, graphics, memory, audio, storage, communications, and input devices.

  • Page 17: Using Computer Setup (F10) Utilities

    ● Solve system configuration errors detected but not automatically fixed during the Power-On Self- Test (POST). ● Replicate the system setup by saving system configuration information on a USB flash drive and restoring it on one or more computers. ● Execute self-tests on a specified ATA hard drive (when supported by drive).
  • Page 18 Table 3-1 Computer Setup (F10) Utility (continued) Power Table 3-5 Computer Setup—Power on page 18 Advanced Table 3-6 Computer Setup—Advanced on page 19 Chapter 3 Computer Setup (F10) Utility...

  • Page 19: Computer Setup-File

    Computer Setup—File NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3-2 Computer Setup—File Option Description System Information Lists: ● Product name ● SKU number (some models) ● Processor type/speed/stepping ● Installed memory size/speed, number of channels (single or dual) (if applicable) ●...

  • Page 20: Computer Setup-Storage

    Computer Setup—Storage NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3-3 Computer Setup—Storage Option Description Device Lists all installed BIOS-controlled storage devices. Configuration When a device is selected, detailed information and options are displayed. The following options may be presented: Hard Disk: Size, model, firmware, serial number, connector color, SMART, emulation type.
  • Page 21 Table 3-3 Computer Setup—Storage (continued) Storage Options Removable Media Boot Enables/disables ability to boot the system from removable media. SATA Emulation Allows you to choose how the SATA controller and devices are accessed by the operating system. There are two supported options: AHCI and IDE. AHCI (default option) - Allows operating systems with AHCI device drivers loaded to take advantage of more advanced features of the SATA controller.

  • Page 22: Computer Setup-Security

    Computer Setup—Security NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3-4 Computer Setup—Security Option Description Setup Password Allows you to set and enable a setup (administrator) password. NOTE: If the setup password is set, it is required to change Computer Setup options, flash the ROM, and make changes to certain plug and play settings under Windows.
  • Page 23 Table 3-4 Computer Setup—Security (continued) USB Security Allows you to enable or disable groups of USB ports or individual USB ports: ● Front USB Ports ◦ USB Port 11 ◦ USB Port 12 ● Rear USB Ports ◦ USB Port 1 ◦...
  • Page 24 Table 3-4 Computer Setup—Security (continued) System Security Data Execution Prevention (some models) (enable/disable) - Helps prevent operating system security (some models: these breaches. options are hardware PAVP (Models with Blu-ray drives) (disabled/min/max) - PAVP enables the Protected Audio Video dependent) Path in the Chipset.
  • Page 25 Table 3-4 Computer Setup—Security (continued) Master Boot Record (Enable/Disable) Protects the master boot record from viruses or other corruption. Saves a copy of Security the current master boot record and allows you to restore the saved copy. Setup Security Level Provides a method to allow end-users limited access to change specified setup options, without having to know the Setup Password.

  • Page 26: Computer Setup-Power

    Computer Setup—Power NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3-5 Computer Setup—Power Option Description OS Power ● Runtime Power Management— Enable/Disable. Allows certain operating systems to reduce Management processor voltage and frequency when the current software load does not require the full capabilities of the processor.

  • Page 27: Computer Setup-Advanced

    Computer Setup—Advanced NOTE: Support for specific Computer Setup options may vary depending on the hardware configuration. Table 3-6 Computer Setup—Advanced Option Heading Power-On Options Allows you to set: ● POST mode (QuickBoot, Clear Memory, FullBoot, or FullBoot Every x Days). ◦...
  • Page 28 Factory Recovery Boot Support (enable/disable). Enabling this feature will cause an additional prompt, F11 = Recovery, to be displayed during POST on systems with HP Backup and Recovery software installed and configured with a recovery partition on the boot hard drive.
  • Page 29 Table 3-6 Computer Setup—Advanced (continued) Execute Memory Restarts the computer and executes the POST memory test/logging. Test (some models) BIOS Power-On Allows you to set the computer to turn on automatically at a time you specify. PCI Devices ● Lists currently installed PCI devices and their IRQ settings. ●...

  • Page 30: Recovering The Configuration Settings

    Table 3-6 Computer Setup—Advanced (continued) Management The Management Devices menu will only be displayed in the Advanced menu when the BIOS Devices detects multiple management options. This option is for installed NIC cards that support ASF or DASH. Use the Management Devices menu to select if the BIOS management operations will be through the embedded solution or one of the installed NIC cards.

  • Page 31: Serial Ata (Sata) Drive Guidelines And Features

    3.0 Gb/s SATA Hard Drive Cables SATA Data Cable Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA 1.5 Gb/s drives. Current HP desktop products ship with SATA 3.0 Gb/s hard drives.

  • Page 32: Smart Ata Drives

    SMART ATA Drives The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers have built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin retry count, and calibration retry count.

  • Page 33: Identifying The Chassis, Routine Care, And Disassembly Preparation

    Identifying the Chassis, Routine Care, and Disassembly Preparation This chapter provides general service information for the computer. Adherence to the procedures and precautions described in this chapter is essential for proper service. CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the system board.

  • Page 34: Electrostatic Discharge Information

    Electrostatic Discharge Information A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal cycle.

  • Page 35: Personal Grounding Methods And Equipment

    ● Place items on a grounded surface before removing them from their container. ● Always be properly grounded when touching a sensitive component or assembly. ● Avoid contact with pins, leads, or circuitry. ● Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive foam.

  • Page 36: Recommended Materials And Equipment

    Recommended Materials and Equipment Materials and equipment that are recommended for use in preventing static electricity include: ● Antistatic tape ● Antistatic smocks, aprons, or sleeve protectors ● Conductive bins and other assembly or soldering aids ● Conductive foam ● Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance ●...

  • Page 37: Routine Care

    ● Keep liquids away from the computer and keyboard. ● Never cover the ventilation slots on the monitor with any type of material. ● Install or enable power management functions of the operating system or other software, including sleep states. Routine Care General Cleaning Safety Precautions Never use solvents or flammable solutions to clean the computer.

  • Page 38: Cleaning The Monitor

    Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver) ● Phillips #2 screwdriver ● Diagnostics software ● HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamper- resistant bits (Smart Cover FailSafe Key, PN 166527-002) Chapter 5 Identifying the Chassis, Routine Care, and Disassembly Preparation...

  • Page 39: Screws

    If an incorrect screw is used during the reassembly process, it can damage the unit. HP strongly recommends that all screws removed during disassembly be kept with the part that was removed, then returned to their proper locations.
  • Page 40 In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP, their authorized partners, or their agents. Chapter 5 Identifying the Chassis, Routine Care, and Disassembly Preparation...

  • Page 41: Illustrated Parts Catalog

    Illustrated parts catalog Computer major components Computer major components...
  • Page 42 Item Description Spare part number System board 607818-001 Heat sink assembly (thermal module) (includes replacement thermal material) MXM graphic interface 625255-001 UMA graphic interface 625256-001 Memory modules (PC3-10600, 1333-MHz; not illustrated) 4-GB 593896-001 2-GB 593895-001 Graphics card G210, 512 MB 621426-001 HD5570, 1 GB 628380-001...
  • Page 43 Item Description Spare part number 1000-GB 621418-001 500-GB 621421-001 320-GB 621420-001 250-GB 621419-001 80-GB solid-state drive 607817-001 Optical drive (does not include bezel) 8X DVD±RW SuperMulti DL Drive with LightScribe 619238-001 4X DVD±RW SuperMulti DL Drive with LightScribe 619239-001 8X DVD±RW SuperMulti DL Drive with LightScribe, HF 615944-001 (10) Bluetooth module...

  • Page 44: Mass Storage Devices

    Item Description Spare part number USB, mini for use in the United States 611375-003 Mouse (not illustrated) PS/2 optical 609250-001 USB, laser, jack black 570580-001 USB, optical, carbon 444740-001 USB, optical, Portia 621416-001 Wireless, includes dongle 621417-001 Washable 619580-001 Mass storage devices Item Description Spare part number...

  • Page 45: Sequential Part Number Listing

    613035-001 Intel Core2 Duo E5500 processor (2.80-GHz, 2-MB L2 cache, 800-MHz FSB) 613125-001 Keyboard, washable, for use in the United States 613463-003 Keyboard, USB, Smartcard, for use in the United States 613990-001 HP TV tuner module Sequential part number listing...
  • Page 46 Spare part Description number 615944-001 8X DVD±RW SuperMulti DL Drive with LightScribe, HF 617047-001 Bluetooth module 617450-001 Cable, DisplayPort to HDMI 618019-001 AC adapter, 150W (external) 618020-001 AC adapter, 180W (external) 619238-001 8X DVD±RW SuperMulti DL Drive with LightScribe 619239-001 4X DVD±RW SuperMulti DL Drive with LightScribe 619580-001 Mouse, washable...

  • Page 47: Removal And Replacement Procedures All-In One (Aio) Chassis

    Disconnect all other attached cables from the back of the computer. Place the computer face down on a soft flat surface. HP recommends that you set down a blanket, towel, or other soft cloth to protect the touch screen surface from scratches or other damage.

  • Page 48: Small Rear Cover

    Small Rear Cover The small rear cover is located above the stand. You must remove it to remove the drive cover. To remove the small rear cover: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).

  • Page 49: Port Cover

    Port Cover The port cover is located on the rear, bottom of the back of the computer. You must remove it to access the I/O panel on the back of the computer. To remove the port cover: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).

  • Page 50: Stand

    Stand The stand is secured with four screws. To remove the stand: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39). Remove the small rear cover (see Small Rear Cover on page 40). Remove the port cover (see Port Cover on page 41).

  • Page 51: Optical Drive

    Optical Drive Description Spare part number 8X DVD±RW SuperMulti DL Drive with LightScribe 619238-001 4X DVD±RW SuperMulti DL Drive with LightScribe 619239-001 8X DVD±RW SuperMulti DL Drive with LightScribe, HF 615944-001 The optical drive is located under the drive cover on the left side of the computer (when viewed from behind).
  • Page 52 Slide the drive cover off the computer. Figure 7-5 Removing the drive cover Move the screw (1) that secures the drive to the computer. Insert a tool into the slot (2) to push the drive out of the bay, and then slide the drive out of the computer (3).

  • Page 53: Hard Drive

    Hard Drive Description Spare part number 1000-GB 621418-001 500-GB 621421-001 320-GB 621420-001 250-GB 621419-001 80-GB solid-state drive 607817-001 The hard drive is located under the drive cover on the left side of the computer (when viewed from behind). The drive is secured with one captive screw and is housed in a removable cage. Figure 7-7 Hard drive location To remove the hard drive:...
  • Page 54 Slide the drive cover off the computer. Figure 7-8 Removing the drive cover Loosen the captive screw (1) that secures the drive to the computer. Using the drive cage handle (2), slide the cage away from the computer, and then lift the drive out of the computer (3).
  • Page 55 To remove the hard drive from the hard drive cage, remove the four Phillips screws that secure the drive to the cage (1), and then slide the drive out of the cage (2). Figure 7-10 Removing the hard drive from the hard drive cage To replace the hard drive, reverse the removal procedures.

  • Page 56: Memory

    Memory Description Spare part number 4 GB 593896-001 2 GB 593895-001 Memory modules are located on the right side of the computer (when viewed from behind) under the memory cover. The computer has two memory slots. Figure 7-11 Memory location To remove a memory module: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page...
  • Page 57 Slide the memory cover off the computer. Figure 7-12 Removing the memory cover Open both latches of the memory module socket (1), and remove the memory module from the socket (2). Figure 7-13 Removing the memory module NOTE: If you are removing both cards, you must remove the upper one before removing the lower one.

  • Page 58: Upper Rear Panel

    Upper Rear Panel The upper rear panel is secured with three screws. Removing it allows access to the fans, heat sink, processor, and optional TV tuner. Figure 7-14 Upper rear panel location To remove the upper rear panel: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 59 Remove the three screws that secure the panel to the computer. Figure 7-15 Removing the upper rear panel Lift the panel from the computer. To replace the panel, reverse the removal procedures. Upper Rear Panel...

  • Page 60: Webcam Module

    Webcam Module Description Spare part number Webcam module 625254-001 The webcam module is located at the top of the computer. It is secured with two screws and has one connector. Figure 7-16 Webcam module location To remove the webcam module: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 61 Remove the two screws that secure the webcam module to the computer. NOTE: Make note of grounding wire placement for proper installation later. Figure 7-17 Removing the webcam module Lift the webcam module as much as the cable allows, and then disconnect the cable from the module.

  • Page 62: Bluetooth Module

    Bluetooth Module Description Spare part number Bluetooth module 617047-001 The Bluetooth module is located at the top of the computer to the right of the webcam module. The Bluetooth module is secured in a plastic holder and has one cable. Figure 7-18 Bluetooth module location To remove the Bluetooth module:...
  • Page 63 Lift the Bluetooth module as much as the cable allows, remove the tape from the connector on the module (4), and then unplug the cable from the module. Figure 7-19 Removing the Bluetooth module To install a Bluetooth module, reverse the removal procedures. Bluetooth Module...

  • Page 64: Small Fan

    Small Fan The small fan is located on the right side of the computer near the memory modules. To remove the small fan: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39). Remove the small rear cover (see Small Rear Cover on page 40).

  • Page 65: Heat Sink (Thermal Module)

    Heat Sink (Thermal Module) Description Spare part number Heat sink (thermal module), MXM graphics 625255-001 Heat sink (thermal module), UMA graphics 625256-001 The heat sink is secured with nine screws. You do not have to remove the large fan to remove the heat sink.

  • Page 66: Processor

    Processor Description Spare part number Intel Core2 Duo processors (include replacement thermal material) E8600, 6-MB cache, 3.33 GHz 497732-001 E8500, 6-MB cache, 3.16 GHz 466170-001 E8400, 6-MB cache, 3.00 GHz 466169-001 E7600, 3-MB cache, 3.06 GHz 573954-001 E7500, 3-MB cache, 2.93 GHz 531988-001 Intel Pentium processors (include replacement thermal material) E6700, 2-MB cache, 3.20 GHz...
  • Page 67 Carefully lift the processor from the socket (3). CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board. CAUTION: The heat sink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.

  • Page 68: Graphics Board

    Graphics Board Description Spare part number Graphics card, G210, 512 MB 621426-001 Graphics card, HD5570, 1 GB 628380-001 The graphics board is located under the bottom part of the heat sink. You must remove the heat sink to remove the graphics board. The board is secured with two screws. Figure 7-22 Graphics board location To remove the graphics board:...
  • Page 69 Rotate the outer side of the board upward (2), and then remove it at an angle (3). Figure 7-23 Removing the graphics board To install the graphics board, reverse the removal procedures. NOTE: Graphics boards are designed with a notch to prevent incorrect insertion. Graphics Board...

  • Page 70: I/O Panel

    I/O Panel The I/O panel is secured with two screws. Figure 7-24 I/O panel location To remove the I/O panel: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39). Remove the small rear cover (see Small Rear Cover on page 40).
  • Page 71 Lift the panel from the computer (2). Figure 7-25 Removing the I/O panel Remove the panel from the computer. To replace the panel, reverse the removal procedures. I/O Panel...

  • Page 72: Tv Tuner Module

    TV Tuner Module Description Spare part number HP TV tuner 613990-001 TV tuner module for use in the Asia-Pacific region 621424-001 TV tuner module for use in Hong Kong and the People’s Republic of China 621423-001 The TV tuner module is located on the right side of the computer just above the I/O panel. The module is secured with one screw and has one antenna.
  • Page 73 Lift the module to a 45-degree angle, and then remove it from the system board (3). Figure 7-27 Removing the TV tuner module To install a TV tuner module, reverse the removal procedures. NOTE: TV tuner modules are designed with a notch to prevent incorrect insertion. TV Tuner Module...

  • Page 74: Cable Connector

    Cable Connector The cable connector is located toward the bottom, right side of the computer. It is secured with two screws and had one antenna cable that also connects to the TV tuner module. Figure 7-28 Cable connector location To remove the cable connector: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 75 Lift the cable connector from the computer. Figure 7-29 Removing the cable connector To install the cable connector, reverse the removal procedures. Cable Connector...

  • Page 76: Wlan Module

    WLAN Module Description Spare part number WLAN module (802.11b/g/n) 593897-001 The WLAN module is located on the lower right side of the computer. The module is secured with one screw and has two connected antennas. Figure 7-30 WLAN module location To remove the WLAN module: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page...
  • Page 77 Lift the module to a 45-degree angle, and then remove it from the system board (3). Figure 7-31 Removing the WLAN module To install the WLAN module, reverse the removal procedures. NOTE: WLAN modules are designed with a notch to prevent incorrect insertion. WLAN Module...

  • Page 78: Outer/Left Rear Panel

    Outer/Left Rear Panel The outer/left rear panel is secured with two screws. You must pry it off at the seams around the edges of the computer. To remove the outer/left rear panel: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 79 Using a wedge-type tool, insert the tool in the seams on the sides of the computer and work your way around, loosening the tabs that secure the front of the computer to the rear. Figure 7-33 Removing the outer/left rear panel Remove the panel from the computer.

  • Page 80: Display Control Board

    Display Control Board The display control board is mounted on its side on the left side of the computer. It is secured with two screws and has one connector. Figure 7-34 Display control board location To remove the display control board: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 81 Disconnect the cable from the board (2). NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull on the wires. Figure 7-35 Removing the display control board Remove the board from the computer. To install the display control board, reverse the removal procedures.

  • Page 82: Power Button Board

    Power Button Board The power button board is located on the bottom left side of the computer. It is secured with three screws and has two connectors. Figure 7-36 Power button board location To remove the power button board: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 83 Lift the board as far as the cables allow, and then disconnect the two cables from the board (3). NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not pull on the wires. Figure 7-37 Removing the power button board Remove the board from the computer.

  • Page 84: Inverter Board

    Inverter Board Description Spare part number Inverter board for use with AUO displays 633227-001 Inverter board for use with CMO displays 633228-001 The inverter board is located on the left side of the computer. It is secured with two screws and has three connectors.
  • Page 85 Disconnect the three cables from the board (2). NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not pull on the wires. Figure 7-39 Removing the inverter board Remove the inverter board from the computer. To install the inverter board, reverse the removal procedures.

  • Page 86: Optical Drive Connector Board

    Optical Drive Connector Board The optical drive connector board is located near the bottom left side of the fan sink. It is secured by two screws and has one connector. Figure 7-40 Optical drive connector board location To remove the optical drive connector board: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 87 Lift the board to gain easier access to the connector, and then disconnect the cable from the board (2). NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull on the wires. Figure 7-41 Removing the optical drive connector board Remove the board from the computer.

  • Page 88: Hood Sensor

    Hood Sensor The hood sensor is located just below the fan sink. It is secured with one screw and has one connector. Figure 7-42 Hood sensor location To remove the hood sensor: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 89 Lift the connector end of the hood sensor, slide the sensor at an angle toward the large fan to remove it from the tab in the holder, and then remove the sensor from the computer (3). NOTE: Be careful not to damage the cable when disconnecting it from the connector. Do not pull on the wires.

  • Page 90: Hard Drive Connector

    Hard Drive Connector The hard drive connector is located near the middle of the computer, below the fan. It is secured with two screws and has two connectors. The cables are routed under the metal casing to the system board connectors.
  • Page 91 Remove the tape that secures the power cable to the computer, and then pull the cables through the metal casing (3). Figure 7-45 Removing the hard drive connector Remove the hard drive connector from the computer. To install the hard drive connector, reverse the removal procedures. Hard Drive Connector...

  • Page 92: Fan

    The fan is located near the top of the computer. It is secured with three screws. Figure 7-46 Fan location To remove the fan: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39). Remove the small rear cover (see Small Rear Cover on page 40).
  • Page 93 Remove the three screws that secure the fan to the computer. Figure 7-47 Removing the fan Lift the fan from the computer. To install the fan, reverse the removal procedures.

  • Page 94: Speakers

    Speakers The speakers are located at the bottom of the computer. Two separate speakers are each secured by two screws. The left speaker connects to the right speaker, and the right speaker connects to the system board. Figure 7-48 Speaker location To remove the speakers: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page...

  • Page 95: System Board Shield

    Remove the tape that secures the speaker wires to the computer. Disconnect the speaker cable from the system board connector. NOTE: The speakers can be disconnected from each other. The right speaker connects to the system board. To install the speakers, reverse the removal procedures. System Board Shield The system board shield sits above the system board.
  • Page 96 Remove the seven screws that secure the shield to the computer. NOTE: Ground cables for the inverter, speaker, and webcam module (circled in yellow in the image) are secured by system board shield screws. If you previously removed these components, these screws have already been removed.

  • Page 97: System Board

    System Board Description Spare part number System board 607818-001 The system board is located on the upper right side of the computer (when viewed from the rear). It is secured with nine screws. Figure 7-51 System board location To remove the system board: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 98 Remove the WLAN module (see WLAN Module on page 68). Remove the fan (see Fan on page 84). Remove the graphics board (see Graphics Board on page 60). Remove the system board shield (see System Board Shield on page 87). Disconnect all cables from the system board, noting their location for reinstallation.

  • Page 99: Display Panel

    Display Panel Description Spare part number Display, 21.5-inch, non-glare, non-ZBD, AUO 633225-001 Display, 21.5-inch, non-glare, ZBD, AUO 633226-001 The display panel is secured with 14 screws. To remove the display panel: Prepare the computer for disassembly (see Preparing to Disassemble the Computer on page 39).
  • Page 100 Lift the display panel from the computer. Figure 7-53 Removing the display panel To install a display panel, reverse the removal procedures. Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis...

  • Page 101: Appendix A Post Error Messages

    POST Error Messages This appendix lists the error codes, error messages, and the various indicator light and audible sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable source of the problem, and steps you can take to resolve the error condition. POST Message Disabled suppresses most system messages during POST, such as memory count and non-error text messages.

  • Page 102: Post Numeric Codes And Text Messages

    POST Numeric Codes and Text Messages This section covers those POST errors that have numeric codes associated with them. The section also includes some text messages that may be encountered during POST. NOTE: The computer will beep once after a POST text message is displayed on the screen. Table A-1 Numeric Codes and Text Messages Control panel message...
  • Page 103 Memory configuration incorrect. Run Computer Setup or Windows utilities. Make sure the memory module(s) are installed properly. If third-party memory has been added, test using HP-only memory. Verify proper memory module type. 201-Memory Error RAM failure. Ensure memory modules are correctly installed.
  • Page 104 Table A-1 Numeric Codes and Text Messages (continued) Control panel message Description Recommended action 301-Keyboard Error Keyboard failure. Reconnect keyboard with computer turned off. Check connector for bent or missing pins. Ensure that none of the keys are depressed. Replace keyboard. 303-Keyboard Controller Error I/O board keyboard controller.
  • Page 105 Install a processor supported by your system. by the system. 1805-Ambient Temperature Previously Over This system was placed in a low power state Make sure the system meets the HP enclosure Limit to prevent damage due to excessive guidelines as listed in the QuickSpecs, environmental temperature.
  • Page 106 Table A-1 Numeric Codes and Text Messages (continued) Control panel message Description Recommended action 2201-MEBx Module did not checksum Memory error during POST execution of the Reboot the computer. correctly Management Engine (ME) BIOS Extensions Unplug the power cord, re-seat the option ROM.
  • Page 107 Table A-1 Numeric Codes and Text Messages (continued) Control panel message Description Recommended action 2219-USB Key Provisioning file has invalid Provisioning file contained on the USB key Recreate the provisioning file using third header identifier has been corrupted or is not a valid version party management console software.
  • Page 108 Table A-1 Numeric Codes and Text Messages (continued) Control panel message Description Recommended action Network Server Mode Active and No Keyboard failure while Network Server Reconnect keyboard with computer Keyboard Attached Mode enabled. turned off. Check connector for bent or missing pins.

  • Page 109: Interpreting Post Diagnostic Front Panel Leds And Audible Codes

    Interpreting POST Diagnostic Front Panel LEDs and Audible Codes This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them. WARNING! When the computer is plugged into an AC power source, voltage is always applied to the system board.
  • Page 110 LEDs continue until Reseat DIMMs. problem is solved. Replace DIMMs one at a time to isolate the faulty module. Replace third-party memory with HP memory. Replace the system board. Red Power LED flashes six Pre-video graphics error. For systems with a graphics card: times, once every second, Reseat the graphics card.
  • Page 111 Table A-2 Diagnostic Front Panel LEDs and Audible Codes (continued) Activity Beeps Possible Cause Recommended Action Red Power LED flashes eight Invalid ROM based on Reflash the system ROM with the latest BIOS times, once every second, bad checksum. image. followed by a two second Replace the system board.
  • Page 112 Table A-2 Diagnostic Front Panel LEDs and Audible Codes (continued) Activity Beeps Possible Cause Recommended Action Red Power LED flashes eleven The current processor does Install a TXT capable processor. times, once every second, not support a feature Disable TXT in the Computer Setup (F10) followed by a two second previously enabled on this utility.

  • Page 113: Appendix B Connector Pin Assignments

    Connector Pin Assignments This appendix contains the pin assignments for many computer and workstation connectors. Some of these connectors may not be used on the product being serviced. Ethernet BNC Connector and Icon Signal Data Ground Connector and Icon Signal +5 VDC - Data + Data...

  • Page 114: Headphone

    Headphone Connector and Icon (1/8” miniphone) Signal 1 (Tip) Audio_left 2 (Ring) Power_Right 3 (Shield) Ground Line-in Audio Connector and Icon (1/8” miniphone) Signal 1 (Tip) Audio_In_Left 2 (Ring) Audio_In_Right 3 (Shield) Ground Line-out Audio Connector and Icon (1/8” miniphone) Signal 1 (Tip) Audio_Out_Left...

  • Page 115: Appendix C Power Cord Set Requirements

    Power Cord Set Requirements The power supplies on some computers have external power switches. The voltage select switch feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC. Power supplies on those computers that do not have external power switches are equipped with internal switches that sense the incoming voltage and automatically switch to the proper voltage.

  • Page 116: Country-Specific Requirements

    Country-Specific Requirements Additional requirements specific to a country are shown in parentheses and explained below. Country Accrediting Agency Country Accrediting Agency Australia (1) EANSW Italy (1) Austria (1) Japan (3) METI Belgium (1) CEBC Norway (1) NEMKO Canada (2) Sweden (1) SEMKO Denmark (1) DEMKO...

  • Page 117: Appendix D Specifications

    Specifications All-in One Models Table D-1 Specifications Desktop Dimensions 16.9 in 42.9 cm Height 21.5 in 54.6 cm Width 2.6 in 6.6 cm Depth Approximate Weight 18.2 lb 8.25 kg Temperature Range 41° to 95°F 5° to 35°C Operating -22° to 149°F -30°...

  • Page 118: Index

    Index headphone pin assignments 106 AC adapter display panel heat sink spare part numbers 35, 38 removing 91 removing 57 audible codes 101 spare part numbers 35, 38, heat sink assembly spare part number 34, 38 DisplayPort to HDMI cable hood sensor battery spare part number 35, 38...
  • Page 119 optical drive connector board system board shield numeric error codes 94 removing 87 outer/left rear panel 70 port cover 41 opening the computer 39 tamper-proof screws power button board 74 operating guidelines 28 tool 30 preparing to disassemble the optical drive temperature control 28 computer 39 removing 43...
