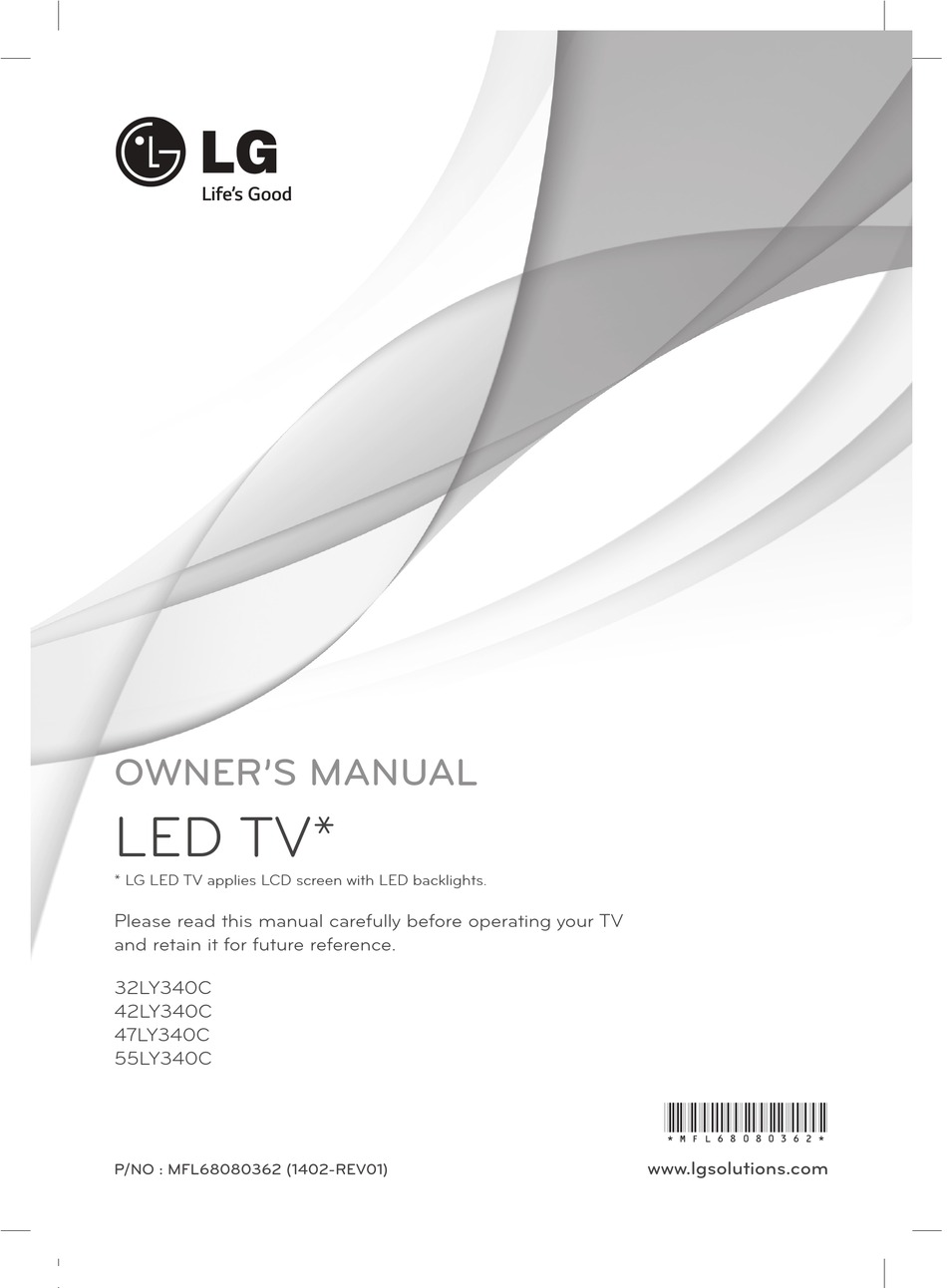

- Page 1 OWNER’S MANUAL LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your TV and retain it for future reference. 32LY340C 42LY340C 47LY340C 55LY340C *MFL68080362* www.lgsolutions.com P/NO : MFL68080362 (1402-REV01)
-
Page 2: Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. Read these instructions. WARNING/CAUTION Keep these instructions. Heed all warnings. RISK OF ELECTRIC SHOCK Follow all instructions. DO NOT OPEN •... -
Page 3: Instructions
IMPORTANT SAFETY INSTRUCTIONS • Protect the power cord from being walked on • CAUTION concerning the Power Cord or pinched particularly at plugs, convenience (Can differ by country): receptacles, and the point where they exit It is recommended that appliances be from the apparatus. -
Page 4: Instructions
If you smell smoke or other odors coming any way without written authorization from from the TV, unplug the power cord and LG Electronics. Unauthorized modification contact an authorized service center. could void the user’s authority to operate this •... -
Page 5: Instructions
IMPORTANT SAFETY INSTRUCTIONS • Dot Defect Preventing image burn or burn-in on your The panel is a high technology product with TV screen resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. -
Page 6: Instructions
LG Electronics evaluates products’ recyclability at the design step using LG’s recyclability evaluation tool, with the goal of improving recyclability where practicable. Through these activities, LG seeks to contribute to conserving natural resources and protecting the environment. -
Page 7: Licenses
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to opensource@lge.com. -
Page 8: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS IMPORTANT SAFETY IR CODES INSTRUCTIONS EXTERNAL CONTROL DEVICE LICENSES SETUP RS-232C Setup Type of Connector; OPEN SOURCE SOFTWARE D-Sub 9-Pin Male NOTICE RS-232C Configurations Communication Parameters Command Reference List TABLE OF CONTENTS Transmission / Receiving Protocol ASSEMBLING AND PREPARING Unpacking Parts and Buttons... -
Page 9: Assembling And Preparing
The illustrations in this manual may differ from the actual product and item. Remote Control, Owner’s Manual Power Cord Stand Base Batteries (AAA) (For 32LY340C) (For 42/47/55LY340C) Stand Screws Stand Screws Cable Holder Stand Holder 4 EA, M4 x L20... -
Page 10: Parts And Buttons
ASSEMBLING AND PREPARING CAUTION • Do not use any unapproved items to ensure the safety and product’s lifespan. • Any damages or injuries by using unapproved items are not covered by the warranty. • Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it. -
Page 11: Using The Joystick Button
ASSEMBLING AND PREPARING Using the Joystick Button You can simply operate the TV functions, pressing or moving the joystick button up, down, left or right Basic functions When the TV is turned off, place your finger on the joystick button and Power On press it once and release it. -
Page 12: Lifting And Moving The Tv
ASSEMBLING AND PREPARING Lifting and Moving the TV When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION • Avoid touching or applying pressure to the screen at all times, as this may result in damage to the screen. -
Page 13: Setting Up The Tv
Connect the power cord to a wall outlet. CAUTION • Do not place the TV near or on sources of heat, as this may result in fire or other damage. B Stand Base (For 32LY340C) 4 EA M4 x L20 (For 42/47/55LY340C) 4 EA M4 x L14... -
Page 14: Mounting On A Wall
Securing the TV to a wall (optional) An optional wall mount can be used with your (Depending on model) LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. - Page 15 • If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. When using a third-party wall mount, it is not covered by the warranty.
-
Page 16: Making Connections
MAKING CONNECTIONS MAKING CONNECTIONS • Image shown may differ from your TV. You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. -
Page 17: Other Connections
MAKING CONNECTIONS Other Connections Connect your TV to external devices. For the best picture and audio quality, connect digital devices using an HDMI cable. Any separate cable is not provided. Digital Audio System Speaker (8 Ω) OPTICAL AUDIO IN OPTICAL EXTERNAL DIGITAL SPEAKER OUT... - Page 18 MAKING CONNECTIONS Blu-Ray / HD Cable Box / HD STB / DVD / PC HDMI DVI OUT AUDIO OUT OPTICAL EXTERNAL DIGITAL SPEAKER OUT AUDIO OUT RGB IN (PC) RS 232C IN (CONTROL & SERVICE) ANTENNA/ CABLE IN MHL Cable Mobile phone VIDEO/...
-
Page 19: Remote Control
REMOTE CONTROL REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. -
Page 20: Maintenance
MAINTENANCE MAINTENANCE Cleaning your TV Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan. CAUTION • Before cleaning, turn the power off and disconnect the power cord and all other cables. • When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. -
Page 21: Troubleshooting
The software may be updated for improvement in performance. The customer is responsible to ensure the compatibility of their equipment with any LG Electronics software. If needed, please consult with LG Electronics and update new software versions according to the guidance provided by LG Electronics. -
Page 22: Specifications
Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % 32LY340C 42LY340C MODELS (32LY340C-UA) (42LY340C-UA) 732 x 481 x 207 (mm) 961 x 612 x 218 (mm) With stand 28.8 x 18.9 x 8.1 (inches) - Page 23 SPECIFICATIONS RGB (PC), HDMI (PC) supported mode Component port connecting information (HDMI IN 2 does not support PC mode.) Component ports on the TV Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) 640 x 350 31.468 70.09 Video output ports on DVD player 720 x 400 31.469 70.08...
-
Page 24: Ir Codes
IR CODES IR CODES (Depending upon model) Code Code Function Note Function Note (Hexa) (Hexa) ◄◄ (POWER) Remote control Button Remote control Button (Power On/Off) AV MODE Remote control Button 79 RATIO Remote control Button INPUT Remote control Button PICTURE Remote control Button Remote control Button SOUND... -
Page 25: External Control Device Setup
EXTERNAL CONTROL DEVICE SETUP EXTERNAL CONTROL Type of Connector; D-Sub 9-Pin Male DEVICE SETUP RS-232C Setup Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V control system) to control the product’s functions externally. -
Page 26: Rs-232C Configurations
EXTERNAL CONTROL DEVICE SETUP RS-232C Configurations Set ID Set ID number; “Real Data Mapping” 7-Wire Configuration (Serial female-female NULL modem cable) Press SETTINGS to access the main menus. Press the Navigation buttons to scroll to Option and press OK. Press the Navigation buttons to scroll to Set ID and press OK. -
Page 27: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate: 9600 bps (UART) • Stop bit: 1 bit • Data length: 8 bits • Communication code: ASCII code • Parity : None • Use a null modem cable. Command Reference List DATA DATA COMMAND1 COMMAND2... -
Page 28: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the set.(j, k, m or x) [Command 2] : Second command to control the set. [Set ID] : You can adjust the set ID to choose desired set ID number in Option menu. Adjustment range is 1~ 99. - Page 29 EXTERNAL CONTROL DEVICE SETUP 01. Power (Command: k a) 04. Screen Mute (Command: k d) To control Power On/Off of the set. To select screen mute on/off. Transmission [k][a][ ][Set ID][ ][Data][Cr] Transmission [k][d][ ][Set ID][ ][Data][Cr] Data 00: Power Off Data 01: Power On Data 00: Screen mute off (Picture on), Video- out Mute off...
- Page 30 EXTERNAL CONTROL DEVICE SETUP 08. Brightness (Command: k h) 12. OSD Select (Command: k l) To adjust screen brightness. To select OSD (On Screen Display) on/off. You can also adjust brightness in the PICTURE Transmission [k][l][ ][Set ID][ ][Data][Cr] menu. Data 00: OSD off Data 01: OSD on Transmission [k][h][ ][Set ID][ ][Data][Cr]...
- Page 31 EXTERNAL CONTROL DEVICE SETUP Data03 04: 3D Picture Balance 00: Right to Left 05: 3D Optimization 01: Left to Right Data04 Data02: It has own range for each 3D option determined by Data01. 3D Depth: Min : 00 ~ Max : 14 1) When Data01 is 00 (*transmit by Hexadecimal code) 00: Right to Left...
- Page 32 EXTERNAL CONTROL DEVICE SETUP Data 01 & 02: Major Channel Number 21. Key (Command: m c) Data 01: High byte Data 02: Low byte To send IR remote key code. Two bytes are available for the Major and Transmission [m][c][ ][Set ID][ ][Data][Cr] Minor, normally only the second byte is used.
- Page 33 EXTERNAL CONTROL DEVICE SETUP * Table List (Channel Tuning) Two/One Using Main/Sub Part Physical Step Picture Reserved Channel Channel Main NTSC Air No Use NTSC Cable ATSC Air ATSC Cable_std ATSC Cable_hrc ATSC Cable_irc ATSC cable_auto Reserved Reserved...
-
