HP ProBook 4520s Quickspecs

HP ProBook 4520s Quickspecs

Notebook pc
Hide thumbs Also See for ProBook 4520s:

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual, Quickspecs
QuickSpecs

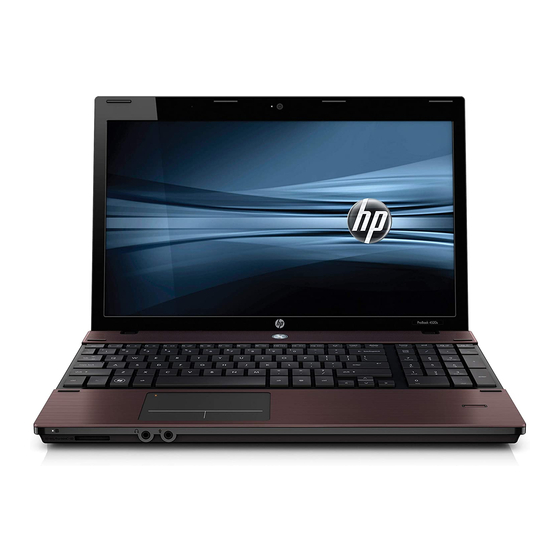

Overview
1.
WWAN antennas
2.
WLAN antennas
3.
Integrated microphone
4.
Webcam LED (works with optional webcam)
5.
Optional 2 MP webcam
6.
Power button with LED indicator
7.
Stereo speakers
8.
Wireless switch with LED indicator
9.
Battery charging LED indicator
10. Power connector
11. Optical drive (select models)
12. Optional RJ-11/modem port
1.
Kensington Lock slot
DA - 13569 North America — Version 17 — September 29, 2011
HP ProBook 4520s Notebook PC
HP ProBook 4720s Notebook PC
13. (2) USB 2.0 ports
14. Optional HP Fingerprint Sensor
15. ClickPad with left and right ClickPad buttons
16. Stereo microphone in
17. Stereo headphone/line out
18. Media Card Reader
19. Hard drive activity LED indicator
20. HP QuickLook 3 button with LED indicator
21. HP QuickWeb button with LED indicator
22. Volume mute button
23. Volume down button
24. Volume up button
5.
Combo eSATA/USB port
Page 1

Advertisement

loading

Related Manuals for HP ProBook 4520s

Summary of Contents for HP ProBook 4520s

  • Page 1 18. Media Card Reader Stereo speakers 19. Hard drive activity LED indicator Wireless switch with LED indicator 20. HP QuickLook 3 button with LED indicator Battery charging LED indicator 21. HP QuickWeb button with LED indicator 10. Power connector 22. Volume mute button 11.
  • Page 2 HP Face Recognition for HP ProtectTools for easy logins using the optional integrated 2 MP webcam Up to 500 GB 7200 rpm hard drive or 750 GB 5400 rpm hard drive with HP 3D DriveGuard protection HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption HP QuickLook 3 (quick access to e-mail, calendar, contacts and tasks), HP QuickWeb, HP DayStarter HP Connection Manager 3.1...
  • Page 3 QuickSpecs HP ProBook 4720s Notebook PC Overview HP ProBook 4520s offers choice of 9-cell or 6-cell battery to customize weight and run-time to your needs Integrated Media Card Reader and ExpressCard/34 slot Widescreen LED-backlit HD display with 16:9 aspect ratio HP ProBook 4520s: 15.6-inch diagonal...

  • Page 4: Standard Features (Availability May Vary By Country)

    Chipset Mobile Intel HM57 Express Chipset Graphics Integrated graphic:s (HP ProBook 4520s only) Intel HD Graphics Microsoft DirectX 10 capable Discrete graphics: (HP ProBook 4720s only) ATI Mobility Radeon HD 5470 graphics controller with 512 MB dedicated video memory...
  • Page 5 * Memory speed is processor dependent. NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
  • Page 6 * In countries where 802.11n is not allowed, this capability is not enabled (Intel 802.11a/b/g only). Keyboard The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, full separate numeric keypad, and 12 function keys.
  • Page 7 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Standard Features (availability may vary by country) Storage Internal Storage Device 250/320/500 GB 7200 rpm SMART SATA II Hard Drive 640/750 GB 5400 rpm SMART SATA II Hard Drive NOTE: Up to 15 GB is reserved for the system recovery software.
  • Page 8 HP Recovery Manager Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 15 GB of the hard drive is reserved for the system recovery software.
  • Page 9 For more information on HP security solutions refer to: http://www.hp.com/go/security. HP ProtectTools Security HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP ProtectTools Security Manager is an extensible client security console that delivers enhanced security Manager capabilities through add-on software modules.
  • Page 10 6-foot (1.8-meter) power cord included; total length including external AC adapter is 12 feet (3.66 meter) HP Fast Charge* * HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP 9-cell battery. Battery...
  • Page 11 1-year limited warranty on primary battery. Warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
  • Page 12 HP 2 GB (DDR3 1333 MHz) SODIMM AT912AA HP 4 GB (DDR3 1333 MHz) SODIMM AT913AA Storage HP 250 GB USB Pocket Media Hard Drive FE477AA HP External USB CD/DVD R/RW Drive FS943AA Communication HP WLAN 802/11 a/b/g/draft-n Mini-card Kit...
  • Page 13 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Options (availability may vary by country) Carrying Cases HP Deluxe Nylon Backpack RR317AA HP Value Nylon Case RR314AA HP Universal Nylon Case RR315AA HP Executive Leather Case RR316AA HP Deluxe Roller Case...
  • Page 14 NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Availability of 4 GB or more of memory requires Windows Vista Business 64-bit or Linux.

  • Page 15: Internal Storage Device

    HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Storage Removable Media Drive Support Quantity Supported Drive Bay Blu-ray ROM DVD+/-RW Fixed optical drive bay SuperMulti DL LightScribe Drive* DVD+/-RW SuperMulti DL Fixed optical drive bay LightScribe Drive * Support for the Blu-ray DVD drive on configurations with integrated graphics requires Windows7 or Windows Vista;...

  • Page 16: Technical Specifications

    HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications System Unit Dimensions (HxWxD) HP ProBook 4520s: 1.09 in (at front) x 14.64 in x 9.83 in 27.7 mm (at front) x 371.8 mm x 249.6 mm HP ProBook 4720s: 1.11 in (at front) x 16.17 in x 10.49 in...
  • Page 17 (ICCP) SABS UKRSERTCOMPUTER * Configurations of the HP ProBook 4520s and HP Probook 4720s that are ENERGY STAR qualified are identified as HP ProBook 4520s ENERGY STAR and HP Probook 4720s ENERGY STAR on HP websites and on www.energystar.gov. ** EPEAT registration varies by country. See www.epeat.net...
  • Page 18 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications HP 65W Smart AC Adapter Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm) Weight 0.62 lb (280 g) Input 100 to 240 VAC...
  • Page 19 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications 17.3-inch LED HD+ anti- Active Area (W x H) 15.0 x 8.5 in (38.2 x 21.5 cm) glare Diagonal Size 17.3 in (43.9 cm) Surface Treatment Anti-glare...
  • Page 20 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications 750 GB 5400 rpm SATA Drive Weight 0.27 lb (125 g) Hard Drive Capacity 750 GB Height 0.50 in (12.7 mm) Width 2.75 in (70 mm) Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ...
  • Page 21 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications 320 GB 7200 rpm SATA Drive Weight 0.25 lbs (115g) Hard Drive Capacity 250 GB Height 0.37 in (9.5 mm) or on some models 0.28 in (7 mm) Width 2.75 in (70 mm)
  • Page 22 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications DVD+/-RW SuperMulti DL Access Times Random < 150ms CD (typical) LightScribe Drive < 160 ms DVD (typical) Max Data Transfer Rate 24X CD-ROM Up to 3,600 KB/s...
  • Page 23 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Interface Gen 1 SATA Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW.
  • Page 24 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Audio Output Quality Frequency Response 20 Hz - 20 kHz Signal to Noise Ratio >85 dB Total Harmonic Distortion 0.01% Noise Floor -110 dB Play/Record Sampling 8 kHz - 48kHz...
  • Page 25 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications V.92 56K Data/Fax Modem Form Factor MDC 1.5 Daughtercard Power Management APM Revision 1.2, ACPI Support Approvals/ UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other...
  • Page 26 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Data Rates 802.11b: 1, 2, 5.5, 11 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: many possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n specification...
  • Page 27 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Intel Centrino Advanced-N Wireless LAN Standards IEEE 802.11a IEEE 802.11b 6200 IEEE 802.11g IEEE 802.11n* * In countries where 802.11n is not allowed, this capability is not enabled.
  • Page 28 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Operating Voltage 3.3V +/- 9% Temperature Operating 32° to 176° F (0° to 80° C) Non-operating -40° to 176° F (-40° to 80° C) Humidity Operating 10% to 90% (non-condensing)
  • Page 29 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Output Power (for OFDM; 15 dBm , nominal power varies by data rate) Power Consumption Idle associated: 250 mW Idle unassociated: 150 mW Transmit: 2.0 W (max) Receive: 2.0 W (max)
  • Page 30 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric BT 3.0 + HS Throughput up to 25 Mbps Transmit Power -6 dBm to 4 dBm (Bluetooth Class II) Receiver Sensitivity Better than -80 dBM at 0.1 % raw bit error rate...
  • Page 31 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Basic Imaging Profile (BIP) Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP) indicates the profile is supported by Microsoft Windows XP SP2 indicates the profile is part of Windows Vista...
  • Page 32 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications Altitude Operating 15,000 ft (4,572 m) Non-operating 40,000 ft (12,192 m) Bluetooth Profiles Serial Port Profile (SPP) Supported Service Discovery Applicaton Profile (SDAP) Dial-Up Networking (DUN) Generic Object Exchange Profile (GOEP)
  • Page 33 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 34 HP ProBook 4520s Notebook PC QuickSpecs HP ProBook 4720s Notebook PC Technical Specifications HP follows these guidelines to decrease the environmental impact of product packaging: Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
  • Page 35 This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive - 2002/95/EC. information This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive - 2002/96/EC. This product is in compliance with California Proposition 65 (State of California;...
  • Page 36 HP ProBook 4520s Notebook PC and HP ProBook 4720s Notebook PC Material Usage This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the Environment: (http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ gen_specifications.html):...
  • Page 37 HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
