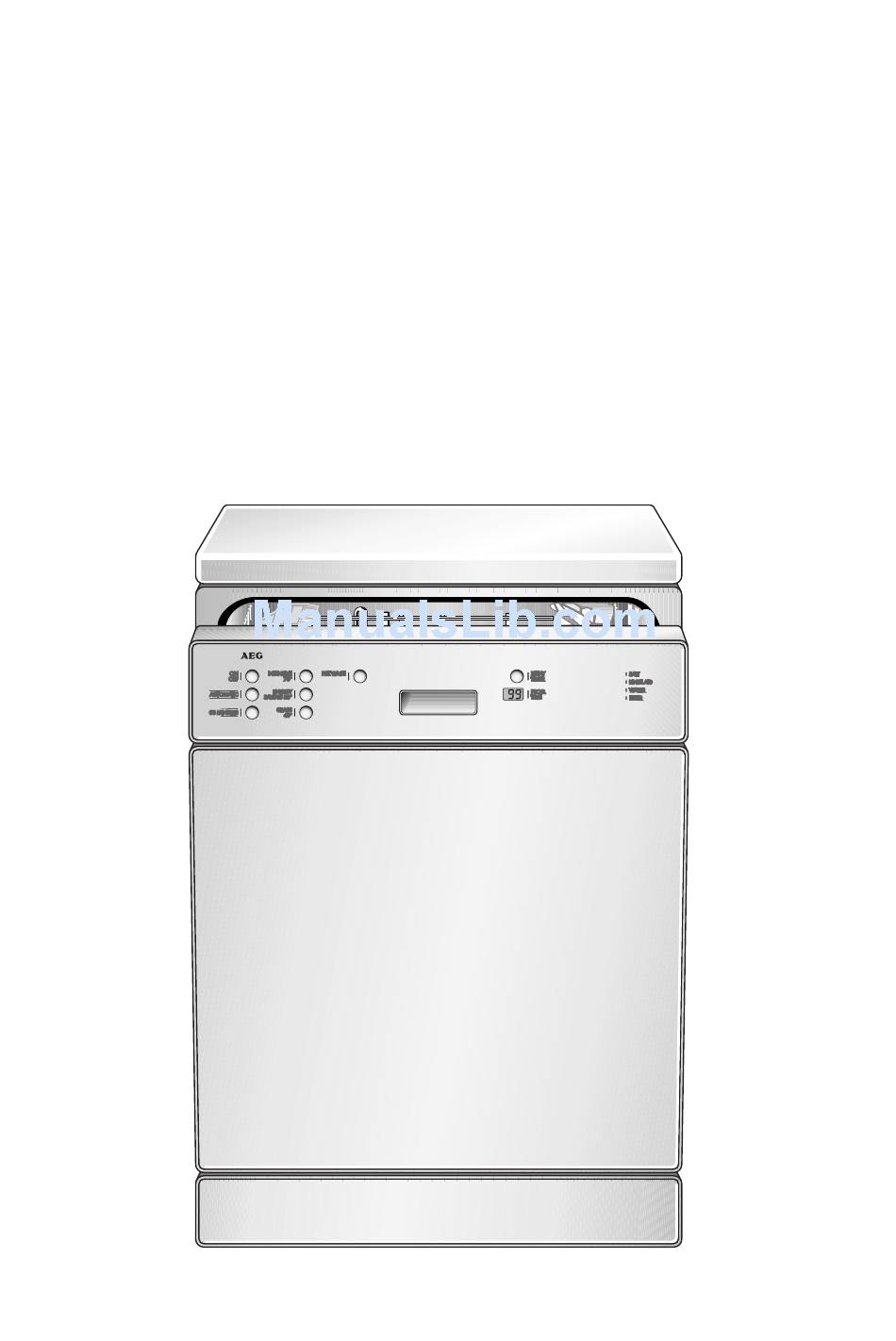

- Page 1 FAVORIT 60870 Dishwasher User Instructions...
- Page 2 In the event of a malfunction, these operating instructions contain information on how to rectify faults yourself, see the "What to do, if..." section. If these instructions are insufficient, please contact your AEG Service Force Centre. In this respect please read the chapter "Service & Spare Parts".
-
Page 3: Table Of Contents
Contents CONTENTS Operating Instructions ........Safety Instructions . - Page 4 Contents Care and Cleaning ..........32 Cleaning the Filter .
-
Page 5: Operating Instructions
Operating Instructions OPERATING INSTRUCTIONS Safety Instructions The safety aspects of AEG electrical appliances comply with accepted technical standards and the German Appliance Safety Law. Neverthe- less, as a manufacturer we consider it our obligation to make you aware of the following safety information: Installation, Connection and Placing into Operation •... -
Page 6: Correct Use
• If the mains lead is damaged, or is to be replaced for a longer lead, the cable (obtainable from AEG Service Force) must be changed by a service engineer authorised by AEG. • Never unplug the appliance by pulling on the cable, always pull the plug. -
Page 7: Disposal
Operating Instructions • Do not sit or stand on the open door, the appliance may tip over. • In the event of a fault, first close the tap, then switch off the appli- ance and unplug it from the mains. If the appliance is permanently wired to the mains: remove the fuse. -
Page 8: Appliance Features And Control Panel
Operating Instructions Appliance Features and Control Panel Top Spray Arm Rubber Seal for Connecting the Water Feed to the Spray Arm Spray Arms Water hardness switch Container for Salt Container for Detergent Container for Filters Rating Plate Rinse Aid... -
Page 9: Control Panel
Operating Instructions Control Panel Set Start Delay Function Buttons Door Handle Indicators Function Buttons Control Panel Multi-Display The control panel consists of the ON/OFF button and the programme buttons with LED displays. Function buttons: In addition to the stated wash programme the fol- lowing functions can also be set using these buttons: Function Button 1 Adjust the water softener... -
Page 10: Prior To Using For The First Time
Operating Instructions Indicators have the following significance: SALT Refill with special salt RINSE AID Refill with rinse aid WATER Open the tap FILTER Clean the dishwasher’s filter system The FILTER indicator is intended to remind you to check the filters in the dishwasher from time to time and, if necessary, to clean it. -
Page 11: Setting The Water Softener
Operating Instructions Setting the water softener To avoid scale deposits on the dishes and in the dishwasher, the dishes must be washed with soft water, i.e. water with a low lime content. The dishwasher therefore has a built-in water softener, in which tap water with a hardness of 4°d (German degree) and harder is softened with the aid of special salt. -
Page 12: Setting The Water Softener
Operating Instructions Setting the water softener Using the table as a guide, adjust the water softener to that which cor- responds to the hardness of the water in your area: The dishwasher must be switched off. Manual setting: 1. Open the dishwasher door. 2. -
Page 13: Special Salt For The Water Softener
Operating Instructions Special salt for the water softener If the water hardness in your area is less than 4 °d, then the water in your dishwasher does not need to be softened and you do not need to use special salt or salt substitute. Water can be softened in one of two ways: •... -
Page 14: Adding Special Salt
Operating Instructions If the water softener is electronically set at “1” for the purpose of using detergent that includes special salt, the special salt indicator is deacti- vated. Adding special salt If you are using dishwasher detergent and special salt separately, add the special salt: –... -
Page 15: Rinse Aid
Operating Instructions Rinse Aid Rinse aid ensures thorough rinsing, spot and streak free drying of dishes and glassware. Rinse aid can be added in one of two ways: • If you are using dishwasher detergent that already contains rinse aid, the detergent including the rinse aid is put into the detergent compartment. -
Page 16: Adding Rinse Aid
Operating Instructions The multi-display will indicate the current setting: Rinse aid dispenser deactivated Rinse aid dispenser activated (factory setting) 4. Pressing function button 2 changes the setting. 5. Once the multi-display is indicating the required setting, press the ON/OFF button. The setting is now saved. -
Page 17: Adjusting Rinse Aid Dosing
Operating Instructions 4. Fill with rinse aid exactly up to the level marked “max”; this corresponds to a quantity of approx. 140 ml. 5. Close the lid and press until it locks into place. 6. Wipe up any spilt rinse aid with a cloth. -
Page 18: In Daily Use
Operating Instructions In Daily Use • Check the salt and rinse aid levels. • Load cutlery and dishes into the dishwasher • Fill with dishwasher detergent • Select a wash programme suitable for the cutlery and dishes • Start the wash programme Loading Cutlery and Dishes Sponges, household cloths and any object that can absorb water should not be washed in the dishwasher... -
Page 19: Loading Cutlery
Operating Instructions – Do not lay small objects (e.g. lids) in the cutlery rack Loading Cutlery Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be posi- tioned horizontally in the upper basket. - Page 20 Operating Instructions On some models of dishwasher it is possible to open the cutlery basket. To ensure that the cutlery basket cannot open on removal from the appliance, you should always hold both parts of the two part handle. 1. Place the cutlery basket on a table or work surface 2.
-
Page 21: Loading Pans, Frying Pans And Large Plates
Operating Instructions Loading Pans, Frying Pans and Large Plates Load large and heavily soiled dishes in the lower basket (Plates up to 29cm in diameter). Your dishwasher has one of the following four types of lower basket: Type 1: None of the plate inserts in the lower basket can be removed Type 2: The right-hand plate inserts in the lower basket can be folded over to the left To ease the loading of large items,... - Page 22 Operating Instructions Type 3: The right-hand plate inserts in the lower basket can be folded across one another To ease the loading of large items, the two right-hand plate inserts in the lower basket can be folded across one another. Type 4: The two rear plate inserts in the lower basket can be folded across one another To ease the loading of large items,...
-
Page 23: Loading Cups, Glasses And Coffee Services
Operating Instructions Loading Cups, Glasses and Coffee Services Load small, delicate items and long pointed cutlery in the upper basket. • Arrange items of crockery on the folding cups racks so that they are offset from each other and water can reach all items. -
Page 24: Adjusting The Height Of The Upper Basket
Operating Instructions Adjusting the Height of the Upper Basket Maximum Height of the Dishes in the Upper Basket Lower Basket With upper basket raised 22 cm 31 cm With upper basket lowered 24 cm 29 cm The height of the basket can also be adjusted when it is loaded. Lowering the Upper Basket: 1. -
Page 25: Filling With Detergent
Operating Instructions Filling with Detergent Only use dishwasher detergent. Fill with detergent: – Prior to the start of a wash programme (not for the pre wash pro- gramme). The detergent is released into the wash water during the programme. Please observe the manufacturer's dosing and storage recommenda- tions as stated on the detergent packaging. -
Page 26: Use Of "3 In 1"/ Combi Detergent Tablets
Operating Instructions Use of "3 in 1"/ Combi Detergent Tablets General Advice These products are tablets with combined detergent/rinse-aid and salt functions. 1. Before using these products you should first check that the water hard- ness in your supply is compatible with the use of these products as per the detergent manufacturers instructions (on the product packaging). -
Page 27: Concentrated Detergent
Operating Instructions Concentrated Detergent Based on their chemical composition, dishwasher detergents can be split into two basic types: – conventional, alkaline detergents with caustic components – low alkaline concentrated detergents with natural enzymes. The use of 50 °C wash programmes in conjunction with concentrated detergents reduces pollution and is good for your dishes;... -
Page 28: Selecting The Wash Programme (Programme Table)
Operating Instructions Selecting the Wash Programme (Programme Table) Choose the most suitable wash programme with the aid of this table: Type of Dinner Service and Cooking Dishes Coffee Service and Dessert Dishes Utensils without Pans Dishes In Addition with delicate glasses Type of •... -
Page 29: Starting A Programme
Operating Instructions Starting a programme 1. Check that the dishes and cutlery are stacked in the dishwasher in such a way that the spray arms are free to rotate. 2. Turn on the water tap fully. 3. Close the door. 4. -
Page 30: Setting Or Changing The Start Delay
Operating Instructions Interrupting the programme by opening the dishwasher door Hot steam may escape when the door is opened. There is a risk of scald- ing. Open the door carefully. 1. Open the door of the dishwasher. The programme will stop. 2. -
Page 31: Load Sensing - Sensor Logic
Operating Instructions Cancelling the start delay: As long as the programme has not started you are able to cancel the start delay. Continue pressing the DELAY TIMER button until the length of the selected programme appears in the multi-display. The selected programme will start immediately. -
Page 32: Switching Off The Dishwasher
Operating Instructions Switching Off the Dishwasher Switch the dishwasher off when the multi-display indicates "0" for the remaining programme time. 1. Press the ON/OFF button. The ON/OFF button indicator extinguishes. Hot steam may escape from the appliance when opening the door immediately after the end of the programme. -
Page 33: Cleaning The Filter
Operating Instructions Cleaning the Filter The filters should be checked and cleaned regularly. Dirty filters will give poor wash results. 1. Open the door, remove the lower basket. 2. The dishwasher filter system com- prises a coarse/fine filter, microfilter and a flat filter. Unlock the filter sys- tem using the handle on the microfil- ter, and remove. -
Page 34: What To Do, If
Operating Instructions What to do, if ... Try to rectify minor faults on the dishwasher with the aid of the instructions given here. If you call an engineer to resolve a of fault listed here, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is in guarantee. - Page 35 Operating Instructions Malfunction Possible cause Remedy The FILTER indicator is only intended to remind you to occasionally check the dish- The indicator goes out The FILTER indicator is con- washer’s filter and to clean automatically at the tinuously illuminated. it out when necessary. It start of the next pro- illuminates at regular inter- gramme.
-
Page 36: There Are Problems With The Operation Of The Dishwasher
Operating Instructions ...there are problems with the operation of the dish- washer. Symptom Possible Cause Solution The door of the dishwasher is Shut the door. not closed properly. Mains plug is not plugged in. Insert mains plug. The programme does House fuse is defective. -
Page 37: Technical Data
Operating Instructions There are streaks, milky spots or a bluish coating on glasses and dishes. – Lower rinse aid dosing. There are dried water drops on the glasses and dishes. – Increase rinse aid dosing. – The detergent may be the cause. Contact the detergent manufac- turer’s customer advisor. -
Page 38: Notes For Test Institutes
Operating Instructions Notes for Test Institutes Testing in accordance with EN 60704 must be carried out with the appliance fully loaded and using the test programme (see Programme Table). Tests in accordance with EN 50242 must be carried out when the salt dispenser and rinse aid container have been filled with salt and rinse aid respectively and using the test programme (see Programme Table). -
Page 39: Installation And Connection Instructions
Installation and Connection Instructions INSTALLATION AND CONNECTION INSTRUCTIONS Installing the Dishwasher • The dishwasher must be installed on a firm floor and adjusted such that it is stable and level. • To compensate for unevenness in the floor and to match the height of the appliance to that of surrounding units extend the threaded feet by unscrew- ing:... -
Page 40: Dishwashers That Can Be Integrated
Installation and Connection Instructions Dishwashers That Can Be Integrated (see installation template supplied) The door of the appliance can be fitted with a wooden/facing panel with the following dimensions: Width: 591 – 594 mm Thickness: 16 – 24 mm – Aperture height Height: dependent on –... -
Page 41: Connecting The Dishwasher
Installation and Connection Instructions Connecting the Dishwasher Water Connection The dishwasher is fitted with safety devices that prevent the wash water returning into the drinking water system and comply with the applicable plumbing regulations. • The dishwasher must be connected to a cold water supply. •... -
Page 42: Water Inlet Hose With Safety Valve
Installation and Connection Instructions The following section is only applicable to dishwashers that have a safety valve on the threaded hose fitting for the tap: Water inlet hose with safety valve After connecting the double-walled water inlet hose, the safety valve is next to the tap. -
Page 43: Water Drain
– Minimum required height 40 cm above the lower edge of the machine. Extension hoses • Extension hoses are available from AEG Service Force. The internal diameter of the extension hoses must be 19 mm to ensure that the function of the appliance is not impeded. -
Page 44: Leak Prevention System
Installation and Connection Instructions Leak Prevention System For protection from damage due to water leaks, the dishwasher is equipped with a leak prevention system, the AQUA CONTROL SYSTEM. In the event of a fault, the safety valve in the appliance immediately interrupts the inflow of water and the drain pump is activated. -
Page 45: Connections
Installation and Connection Instructions • The wire coloured green and yellow must be connected to the termi- nal marked with the letter “E“ or by the earth symbol or coloured green and yellow. • The wire coloured blue must be connected to the terminal “N“ or col- oured black. -
Page 46: Guarantee Conditions
GUARANTEE CONDITIONS Standard guarantee conditions We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or any part thereof is proved to be defective by reason only of faulty work- manship or materials, we will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •... -
Page 47: Service And Spare Parts
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls. Customer Care For general enquiries concerning your AEG appliance or for further information on AEG products please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.aeg.co.uk. - Page 48 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 822 960 331 -00- 0603 Subject to change without notice...
