OPERATOR'S MANUAL

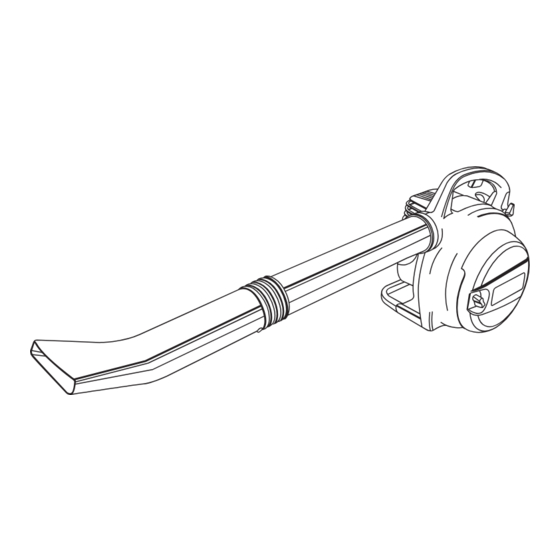

Vac Attack II
Blower / Vacuum
UT08934D
Your blower / vacuum has been engineered and manufactured to Homelite's high standard for dependability, ease of opera-
tion, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
To reduce the risk of injury, the user must read and understand the operator's manual before
using this product.
Thank you for buying a Homelite blower.
SAVE THIS MANUAL FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading

Related Manuals for Homelite VAC ATTACK II UT08934D

Summary of Contents for Homelite VAC ATTACK II UT08934D

  • Page 1 Vac Attack II Blower / Vacuum UT08934D Your blower / vacuum has been engineered and manufactured to Homelite’s high standard for dependability, ease of opera- tion, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance. WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual before...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS n Introduction ... 2 n General Safety Rules ... 3 n Specific Safety Rules... 3 n Symbols...4-5 n Features ...6-7 n Assembly ...7-8 n Operation...9-12 n Maintenance ...12-13 n Troubleshooting ... 14 n Warranty ...15-17 n Accessories ... 17 n Parts Ordering / Service ...

  • Page 3: General Safety Rules

    Always hold the blower in your right hand, refer to the Op- eration section in this manual for additional information.

  • Page 4: Symbols

    SYMBOL NAME Safety Alert Read The Operator’s Manual Eye and Hearing Protection Long Hair Blower Tubes Vacuum Door Loose Clothing Gasoline and Oil SYMBOLS DESIGNATION/EXPLANATION Precautions that involve your safety.

  • Page 5: Save These Instructions

    The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL DANGER: WARNING: CAUTION: CAUTION: SERVICE Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. For service we suggest you return the product to your nearest AUTHORIZED SERVICE CENTER for repair.

  • Page 6: Features

    MPH ...200 CFM ...420 HIGH VELOCITY NOZZLE WIDE SWEEPER NOZZLE WET LEAF SCRAPER VACUUM BAG SHOULDER STRAP FEATURES TUBE CLAMP UPPER BLOWER TUBE TUBE CLAMP VACUUM BAG ADAPTOR VACUUM BAG STARTER Page 6 UPPER HANDLE THROTTLE TRIGGER KNOB INLET COVER DOOR...

  • Page 7: Assembly

    12:1 ratio. It converts to a mulcher/ vacuum using no tools. THROTTLE TRIGGER The blower can be operated at any speed between idle and full throttle. VACUUM BAG The vacuum bag attaches to the blower easily using the vacuum bag adaptor.
  • Page 8 Place clamp around the neck of the blower housing outlet. Do not tighten the wing nut yet. n Align the locking tab on upper blower tube with the slot in the blower housing outlet. Push the tube into the housing.

  • Page 9: Operation

    WARNING: Do not allow familiarity with tools to make you care- less. Remember that a careless fraction of a second is sufficient to inflict serious injury. WARNING: Always wear safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes resulting in possible serious injury.
  • Page 10 To reduce sound levels, limit the number of pieces of equipment used at any one time. OPERATION THROTTLE TRIGGER WARNING: Keep away from all hot surfaces of the blower. Failure to do so could result in possible serious personal injury. Page 10 PRIMER BULB CHOKE LEVER Fig.
  • Page 11 Watch out for children, pets, open windows, or freshly washed cars, and blow debris safely away. n Use the full blower nozzle extension so the air stream can work close to the ground. n After using blowers or other equipment, CLEAN UP! Dispose of debris in trash receptacles.

  • Page 12: Maintenance

    A small rod or stick may be required to clear the entire tube length. Ensure that all debris has been cleared before reassembling the vacuum tubes. WARNING: When servicing, use only identical Homelite replacement parts. Use of any other parts may create a hazard or cause product damage. WARNING: Always wear safety goggles or safety glasses with side shields during power tool operation or when blowing dust.
  • Page 13 Drain all fuel from the tank into a container approved for gasoline. Run engine until it stops. n Clean all foreign material from the blower. Store it in a well-ventilated place that is inaccessible to children. Keep away from corrosive agents such as garden chemicals and de-icing salts.

  • Page 14: Troubleshooting

    If primer bulb fills, engine may be flooded (see next item). 3. Remove spark plug, turn blower so spark plug hole is aimed at the ground. Move choke lever to RUN and pull starter cord 10 to 15 times. This will clear excess fuel from engine.

  • Page 15: Warranty

    LIMITED WARRANTY STATEMENT Homelite Consumer Products, Inc. warrants to the original retail purchaser that this HOMELITE product is free from defect in material and workmanship and agrees to repair or replace, at Homelite Consumer Products, Inc.’s discretion, any defective product free of charge within these time periods from the date of purchase.
  • Page 16 Any manufacturer-approved or equivalent replacement part may be used for any warranty maintenance or repairs on emission-related parts, and must be provided free of charge to the owner if the part is still under warranty. Homelite Consumer Products, Inc., is liable for damages to other engine components caused by the failure of a warranted part still under warranty.

  • Page 17: Accessories

    THE PARTS FIRST SCHEDULED REPLACEMENT WHICHEVER COMES FIRST. The following recommended accessories are currently avail- able. ACCESSORIES Gutter Attachment Kit ... Homelite - A07069AA Air Filter ... Power Care - AP04107 Spark Plug... Champion - RCJ-6Y 2-Cycle Oil...Homelite / AH99G01...

  • Page 18: Parts Ordering / Service

    CALIFORNIA PROPOSITION 65 SERVICE For parts or service, contact your nearest Homelite authorized service dealer. Be sure to provide all relevant information when you call or visit. For the location of the authorized service dealer nearest you, please call 1-800-chainsaw (1-800-242-4672) or visit us online at www.homelite.com.
