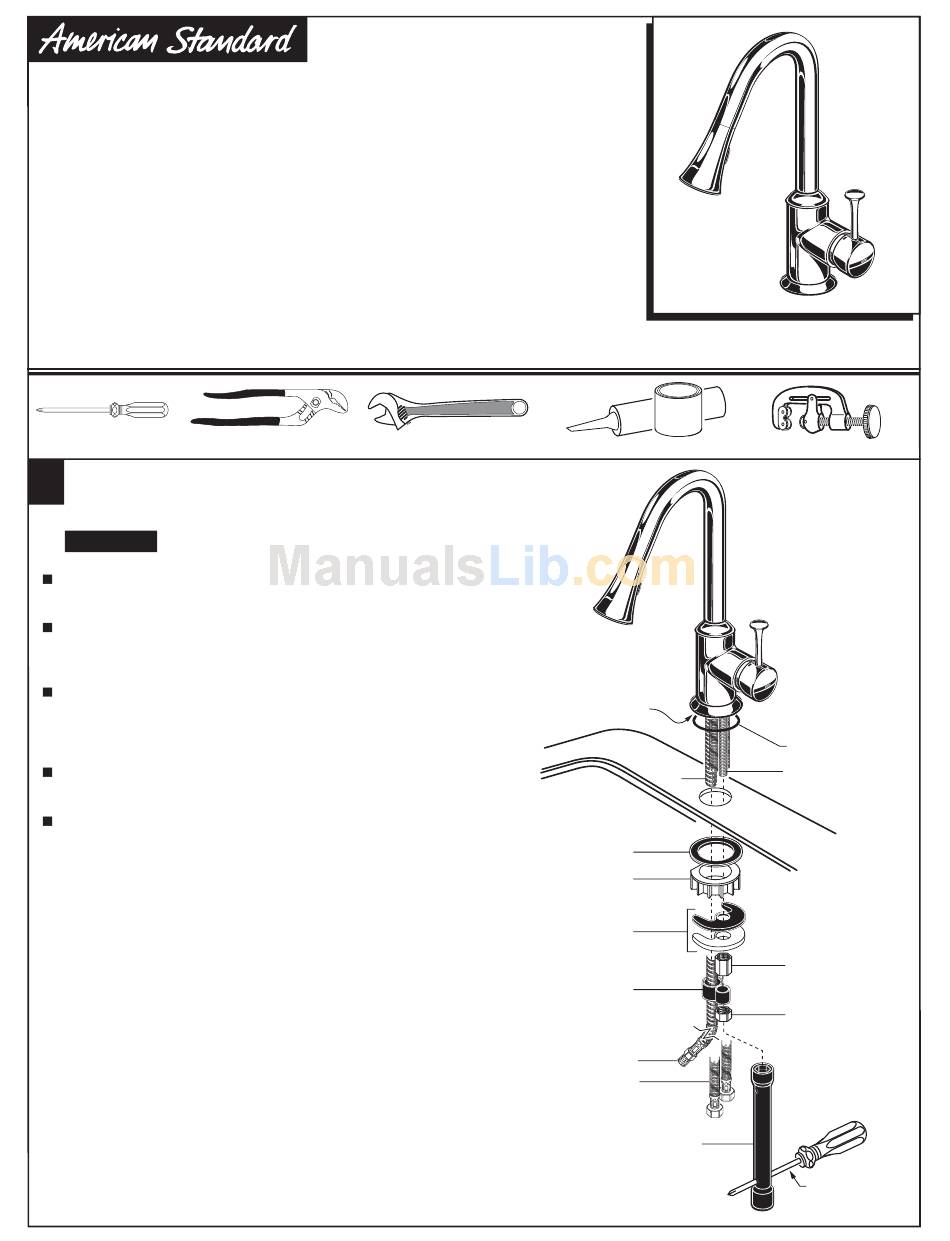

PEKOE PULL DOWN
SINGLE CONTROL KITCHEN
FAUCET with PULL DOWN SPRAY
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
Recommended Tools
Phillips Screwdriver
1
INSTALL FITTING
Turn off hot and cold water
CAUTION
supplies before beginning.
Make certain the O-RING SEAL (1) is properly seated
in recess of faucet body.
Insert supply HOSES (2), SHANK (3) and SPRAY
HOSE (4) through center hole of sink or mounting
surface.
Assemble RUBBER WASHER (5), PLASTIC WASHER (6),
RUBBER & METAL "C" WASHERS (7) and long LOCKNUT (8)
onto SHANK (3) from underside of sink. Hand tighten
LOCKNUT (8) and check that faucet is centered.
Tighten LOCKNUT (8) with WRENCH (12) supplied. Insert
screwdriver into hole in WRENCH (12) and tighten.
Feed HOSE END (9) through HOSE GUIDE (10). Slide other
side of HOSE GUIDE (10) onto SHANK (3) and secure with
LOCK NUT (11). Do not over tighten!
Channel Locks
Installation
Instructions
4332.300.XXX
Adjustable Wrench
Plumbers' Putty or Caulking
Certified to comply with ANSI A112.18.1M
M 9 6 8 5 8 1 R e v . 1 . 1
RECESS
4
5
6
7
10
9
2
12
Tubing Cutter
1
3
8
11
SCREWDRIVER
Advertisement
Related Manuals for American Standard Pekoe Pull-Down 4332.300.XXX
Summary of Contents for American Standard Pekoe Pull-Down 4332.300.XXX
- Page 1 PEKOE PULL DOWN SINGLE CONTROL KITCHEN FAUCET with PULL DOWN SPRAY Thank you for selecting American-Standard...the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin. Recommended Tools Phillips Screwdriver Channel Locks INSTALL FITTING...
- Page 2 MAKE WATER SUPPLY CONNECTIONS Turn off hot and cold water supplies before beginning. Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left supply (Marked with a Red Stripe) to Hot and right supply (Marked with Blue Stripe) to Cold wall supply.
- Page 3 TEST INSTALLED FAUCET Move HANDLE (1) into "off" position. Unthread SPRAY HOSE (3) from SPRAY (2). Turn on water supplies and check connections for leaks Hold HOSE END (3) in sink and operate HANDLE (1) on and off, hot and cold to flush water lines thoroughly. Replace SPRAY (2). Pull SPRAY (2) out and check hose and supply connections for leaks.
- Page 4 M962643-YYY0A SPRAY HOSE AND SEALS M962683-YYY0A PULL-OUT SPRAY WITH CHECK VALVE M962684-YYY0A AERATOR SET M962648-0070A SPOUT BUSHING & O-RING KIT M962685-YYY0A PEDESTAL M962686-0070A O-RING Replace the "YYY" with appropriate finish code CHROME STAINLESS STEEL M962650-0070A HOSE WEIGHTS M 9 6 8 5 8 1 R e v . 1 . 1 PEKOE PULL DOWN SINGLE CONTROL KITCHEN FAUCET WITH PULL...
