Porter-Cable 725 Instruction Manual

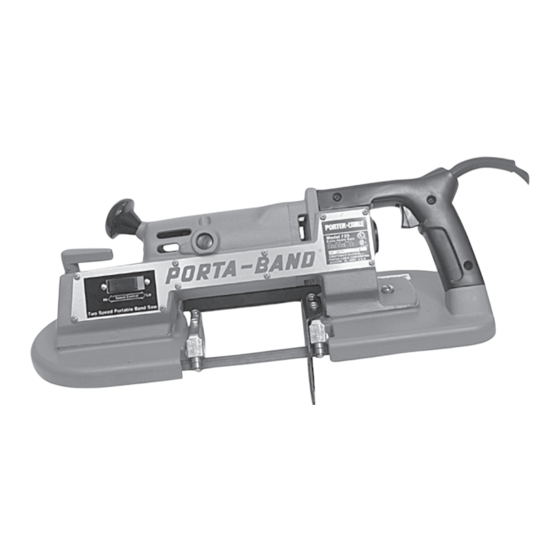

Two-speed porta-band band saw
Hide thumbs Also See for 725:

Advertisement

Instruction
manual
To learn more about Porter-Cable
visit our website at:
http://www.porter-cable.com
Copyright © 2005 Porter-Cable
ESPAÑOL: PÁGINA 15
FRANÇAIS : PAGE 27
PORTA-BAND
Please make certain that the person who
is to use this equipment carefully reads and
understands these instructions before starting
operations.
The Model and Serial No. plate is located on the main
housing of the tool. Record these numbers in the
spaces below and retain for future reference.
®
Model No.______________________________________
Type ___________________________________________
Serial No. ______________________________________
Two-Speed
Band Saw
MODEL 725
IMPORTANT
Part No. A14110 09-28-05 Rev. A
®

Advertisement

Table of Contents
loading

Summary of Contents for Porter-Cable 725

  • Page 1 PORTA-BAND ® Band Saw MODEL 725 IMPORTANT Please make certain that the person who To learn more about Porter-Cable is to use this equipment carefully reads and visit our website at: understands these instructions before starting http://www.porter-cable.com operations. The Model and Serial No. plate is located on the main housing of the tool.
  • Page 2: Table Of Contents

    There are certain applications for which tools and equipment are designed. Porter-Cable strongly recommends that this product NOT be modified and/or used for any application other than for which it was designed.
  • Page 3: Safety Guidelines - Definitions

    SAFETY GUIDELINES - DEFINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information. indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 4: General Safety Rules

    GENERAL SAFETY RULES Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. SAVE THESE INSTRUCTIONS Work area safety Keep work area clean and well lit.
  • Page 5 GENERAL SAFETY RULES continued Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
  • Page 6: Additional Specific Safety Rules

    ADDITIONAL SPECIFIC SAFETY RULES Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
  • Page 7 SYMBOL DEFINITION V ........volts A ........amperes Hz ........hertz W ........watts kW ........kilowatts F ........farads µF ........microfarads l.......... litres g ........grams kg........kilograms bar ........bars Pa ........pascals h ........hours min........minutes s.........
  • Page 8: Functional Description

    MOTOR Many Porter-Cable tools will operate on either D.C., or single phase 25 to 60 cycle A.C. current and voltage within plus or minus 5 percent of that shown on the specification plate on the tool. Several models, however, are designed for A.C.
  • Page 9: Assembly

    "HI". Fig. 2 BAND SAW BLADES MODEL 725 requires 44-7/8" blades that are .020" thick and 1/2" wide. Blades for stationary band saws WILL NOT fit the precision blade guides on portable band saws. DO NOT use stationary band saw blades.
  • Page 10 Never use liquid coolant with your band saw. Damage to the blade guide bearings or rubber tires on the pulleys may result. Porter-Cable’s "Lube Wax" is available as an accessory and is recommended when cutting aluminum, brass, and thick materials. Cut cast iron dry.
  • Page 11: Troubleshooting

    Wrong way position for various shapes. Right way Wrong way Right way Wrong way Fig. 6 TROUBLESHOOTING For assistance with your tool, visit our website at www.porter-cable.com for a list of service centers or call the Porter-Cable help line at 1-800-487-8665.
  • Page 12: Maintenance

    LUBRICATION Although all PORTER-CABLE tools have been thoroughly lubricated with a sufficient amount of high grade lubricant at the time of manufacture, it is recommended that the oil level in the gear chamber be checked before using your...
  • Page 13 FACTORY SERVICE CENTER. At approximately 100 hours of use, take or send your tool to your nearest authorized Porter-Cable Service Station to be thoroughly cleaned and inspected. Have worn parts replaced and lubricated with fresh lubricant. Have new brushes installed, and test the tool for performance.
  • Page 14: Service

    PORTER-CABLE LIMITED ONE YEAR WARRANTY Porter-Cable warrants its Professional Power Tools for a period of one year from the date of original purchase. We will repair or replace at our option, any part or parts of the product and accessories covered under this warranty which, after examination, proves to be defective in workmanship or material during the warranty period.
  • Page 15: Français

    FRANÇAIS : PAGE 27 Sierra de Banda Manual de PORTA-BAND ® Instrucciones de Dos Velocidades MODELO 725 IMPORTANTE Asegúrese de que la persona que va a usar Para obtener más información esta herramienta lea cuidadosamente y sobre Porter-Cable, comprenda estas instrucciones antes de visite nuestro sitio web en: empezar a operarla.
  • Page 16 Si usted tiene cualquiera pregunta el pariente a su aplicación no utiliza el producto hasta que usted haya escrito Porter-Cable y nosotros lo hemos aconsejado. La forma en línea del contacto en www. porter-cable. com...
  • Page 17 NORMAS GENERALES DE SEGURIDAD Lea todas las instrucciones. Si no se siguen todas las instrucciones que aparecen a continuación, el resultado podría ser sacudidas eléctricas, incendio y/ o lesiones graves. La expresión "herramienta mecánica" en todas las advertencias que aparecen a continuación se refiere a su herramienta mecánica alimentada por la red eléctrica (herramienta alámbrica) o su herramienta mecánica alimentada por baterías (herramienta inalámbrica).
  • Page 18 NORMAS GENERALES DE SEGURIDAD (continuación) Quite todas las llaves de ajuste o de tuerca antes de encender la herramienta mecánica. Una llave de tuerca o de ajuste que se deje colocada en una pieza giratoria de la herramienta mecánica podría causar lesiones corporales.
  • Page 19 NORMAS ESPECÍFICAS DE SEGURIDAD Detenga la herramienta por las superficies aisladas para hacer una operación donde el cuchillo de la herramienta pueda tocar un alambre escondido o su propio cable. El contacto con un alambre cargado «vivo» también cargará a las partes metálicas y le dará un choque al usuario. Mantenga las seguetas afiladas.
  • Page 20 MOTOR Muchas herramientas de Porter-Cable funcionarán con corriente continua o monofásica de 25 a 60 Hz corriente alterna y con un voltaje entre más o menos el 5 por ciento de lo indicado en la placa de especificaciones de la herramienta. Varios modelos son diseñados solamente para usar con corriente alterna.
  • Page 21 DESCRIPCIÓN FUNCIONAL PRÓLOGO El MODELO 725, la Sierra de Banda Portátil de PORTER-CABLE, fue diseñada para cortar varias clases de material hasta un diámetro de 3-3/8" (8.5 cm) o hasta un rectángulo de 3-3/8" x 4-1/8" (8.5 cm x 10.5 cm).
  • Page 22 "HIGH". Fig. 2 HOJAS DE SIERRA DE BANDA El MODELO 725 requiere hojas de 44-7/8" de largo, de .020" de espesor y de 1/2" de ancho. Las hojas para las sierras de banda estacionarias tienen un espesor (grueso) diferente que el indicado arriba y NO SE AJUSTARÁN a las guías de precisión de hoja de las sierras de banda...
  • Page 23 Puede dañar los baleros de guía de hoja o las ruedas de hule de las poleas. Una cera lubricante, "Lube Wax", de Porter-Cable, está disponible como accesorio. Se recomienda su uso al cortar aluminio, latón o materiales gruesos. Debe cortar el hierro fundido con la hoja seca.
  • Page 24 Incorrecto Fig. 6 LOCALIZACION DE FALLAS Para la ayuda con su instrumento, visite nuestro sitio web en www.porter-cable.com para una lista de centros de reparaciones o llama la línea de ayuda de Porter-Cable en 1-800-487-8665. MANTENIMIENTO MANTENGA LAS HERRAMIENTAS LIMPIAS Periódicamente sople todos los conductos de ventilación con aire seco a presión.
  • Page 25 DE FÁBRICA SERVICIO DE PORTER-CABLE•DELTA. Después de aproximadamente 100 horas de uso, lleve o mande su herramienta a la Estación de Servicio Autorizado por Porter-Cable más cercana para limpiarla a fondo y revisarla; para reemplazar partes gastadas, cuando sea necesario; para relubricarla de nuevo, si es requerido;...
  • Page 26: Piezas De Repuesto

    La Compañía de Porter-Cable garantiza sus herramientas mecánicas profesionales por un período de 1 año a partir de la fecha de compra. Porter-Cable reparará o reemplazará – según nuestra opción – cualquier parte o partes de la herramienta o de los accesorios protegidos bajo esta garantía que, después de examinarlas, demuestren cualquier defecto en los materiales o mano...
  • Page 27: Porter-Cable

    Manuel Scie à ruban d’instructions PORTA-BAND ® deux vitesses MODÈLE 725 ¡IMPORTANTE! Pour de plus amples renseignements Asegúrese de que la persona que va a usar esta concernant Porter-Cable, consultez herramienta lea cuidadosamente y comprenda notre Website à l’adresse suivante : estas instrucciones antes de empezar a operarla.
  • Page 28: Highway 45 North Jackson, Tn

    Si usted tiene cualquiera pregunta el pariente a su aplicación no utiliza el producto hasta que usted haya escrito Porter-Cable y nosotros lo hemos aconsejado. La forma en línea del contacto en www. porter-cable. com...
  • Page 29 NORMAS GENERALES DE SEGURIDAD Lea todas las instrucciones. Si no se siguen todas las instrucciones que aparecen a continuación, el resultado podría ser sacudidas eléctricas, incendio y/ o lesiones graves. La expresión "herramienta mecánica" en todas las advertencias que aparecen a continuación se refiere a su herramienta mecánica alimentada por la red eléctrica (herramienta alámbrica) o su herramienta mecánica alimentada por baterías (herramienta inalámbrica).
  • Page 30 NORMAS GENERALES DE SEGURIDAD (continuación) Quite todas las llaves de ajuste o de tuerca antes de encender la herramienta mecánica. Una llave de tuerca o de ajuste que se deje colocada en una pieza giratoria de la herramienta mecánica podría causar lesiones corporales.
  • Page 31 CONSIGNES DE SÉCURITÉ SPÉCIFIQUES Tenez l’outil par ses surfaces de prise isolées pendant toute operation où l’outil de coupe pourralt venir en contact avec un câblage dissimulé ou avec son propre cordon. En cas de contact avec un conducteur sous tension, les pièces métalliques à découvert de l’outil transmettraient un choc électrique à...
  • Page 32 MOTOR Muchas herramientas de Porter-Cable funcionarán con corriente continua o monofásica de 25 a 60 Hz corriente alterna y con un voltaje entre más o menos el 5 por ciento de lo indicado en la placa de especificaciones de la herramienta. Varios modelos son diseñados solamente para usar con corriente alterna.
  • Page 33 GUARDE ESTAS INSTRUCCIONES! DESCRIPTION FONCTIONNELLE AVANT-PROPOS La scie à ruban portable modèle 725 de PORTER-CABLE est conçue pour couper différents types de matériaux d’un diamètre jusqu’à 3-3/8 po ou d’une forme rectangulaire de dimension 3-3/8 x 4-1/8 po. CONTENUS DE BOITE Scie à...
  • Page 34 « HIGH ». Fig. 2 LAMES DE SCIE À RUBAN Le MODÈLE 725 nécessite des lames de 44-7/8 po de long avec épaisseur de 0,020 po et largeur de 1/2 po. Les lames de scies à ruban stationnaires sont d’une épaisseur différente qu’indiqué...
  • Page 35 à ruban. Des dommages aux paliers des guides de lame ou au caoutchouc des poulies pourraient en résulter. Le modèle «-cire lubrifiante-» de Porter-Cable est disponible en accessoire et recommandé quand vous coupez l’aluminium, le laiton et les materiaux épais. La fonte doit être coupée à...
  • Page 36 Bonne façon Mauvaise façon Bonne façon Mauvaise façon Fig. 6 DEPANNAGE Pour l'assistance avec votre outil, visiter notre site web à www.porter-cable.com pour une liste de centres de maintenance ou appeler la ligne d'aide de Porter- Cable à 1-800-487-8665.
  • Page 37 LUBRIFICATION Bien que tous les outils PORTER-CABLE aient été lubrifiés soigneusement à l’aide d’une quantité suffisante de lubrifiant de haute qualité au moment de la fabrication, il est recommandé de vérifier le niveau d’huile dans la chambre d’engrenages avant d’utiliser votre scie et périodiquement par la suite comme suit :...
  • Page 38 CENTRE DE USINE SERVICE PORTER-CABLE•DELTA. Après approximativement 100 heures d’utilisation, amener ou envoyer votre outil à la station autorisée par Porter-Cable la plus proche afin qu’il soit entièrement inspecté et nettoyé. Les pièces usées seront remplacées si cela s’avère nécessaire; il sera de même re-graisser si cela s’avère nécessaire;...
  • Page 39 Porter-Cable ou à la station autorisée. Il se peut qu’on vous demande de produire des pièces justificatives attestant de l’achat de l’outil. Cette garantie ne s’applique pas aux réparations ou aux remplacements nécessaires occasionnés par un mauvais usage de l’outil, un abus de l’outil,...
  • Page 40 The following are trademarks of PORTER-CABLE • DELTA (Las siguientes son marcas registradas de PORTER-CABLE • DELTA S.A.) (Les marques suivantes sont des marques de fabriquant de la PORTER-CABLE • DELTA): Auto-Set , BAMMER , B.O.S.S. , Builder’s Saw , Contractor’s Saw ®...
