JB-2MED, JB-2MD, JB-2HD
HANDSFREE COLOR VIDEO INTERCOM
HANDSFREE COLOR VIDEO INTERCOM
HANDSFREE COLOR VIDEO INTERCOM
HANDSFREE COLOR VIDEO INTERCOM
HANDSFREE COLOR VIDEO INTERCOM

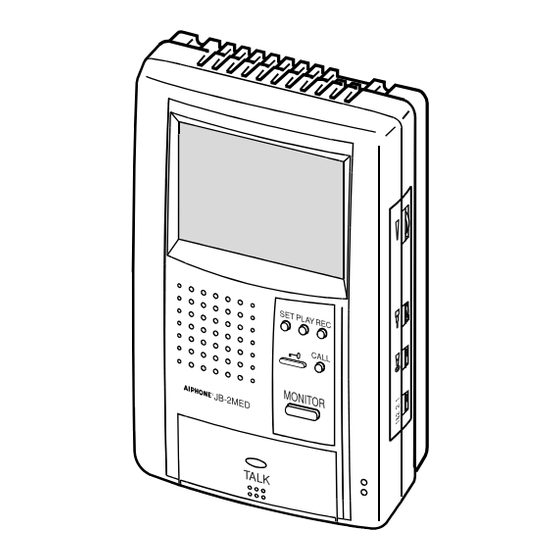

JB-2MED
Master monitor station (w/ built-in picture memory)
Master monitor station (w/ built-in picture memory)
Master monitor station (w/ built-in picture memory)
Master monitor station (w/ built-in picture memory)
Master monitor station (w/ built-in picture memory)
JB-2HD
Sub monitor station
Sub monitor station
Sub monitor station
Sub monitor station
Sub monitor station
INSTALLATION & OPERATION MANUAL
INSTALLATION & OPERATION MANUAL
INSTALLATION & OPERATION MANUAL
INSTALLATION & OPERATION MANUAL
INSTALLATION & OPERATION MANUAL
- 1 -
834555 0704 A
JB-2MD
Master monitor station
Master monitor station
Master monitor station
Master monitor station
Master monitor station
Advertisement
Table of Contents
Related Manuals for Aiphone JB-2MED
Summary of Contents for Aiphone JB-2MED
- Page 1 834555 0704 A JB-2MED, JB-2MD, JB-2HD HANDSFREE COLOR VIDEO INTERCOM HANDSFREE COLOR VIDEO INTERCOM HANDSFREE COLOR VIDEO INTERCOM HANDSFREE COLOR VIDEO INTERCOM HANDSFREE COLOR VIDEO INTERCOM JB-2MED JB-2MD Master monitor station (w/ built-in picture memory) Master monitor station Master monitor station (w/ built-in picture memory)
-
Page 2: General Precautions
If liquid crystal makes contact 6. Use Aiphone Power Supply or specified one by Aiphone. If not used, it may be a with the eyes or mouth, immediately wash away with water. - Page 3 5. Do not cover the unit with a cloth, etc. Fire or unit trouble could result. PRECAUTIONS Nederlands 6. Use Aiphone Power Supply or specified one by Aiphone. If not used, it may be a possible cause of fire or malfunction. General Prohibitions...
-
Page 4: Installation
+ 5 cm + 5 cm 2. Packet of screws (2") (2") 3. Connector for optional features 4. Door release connector (JB-2MD or JB-2MED only) 5. Mounting bracket 6. INSTALLATION & OPERATION MANUAL Français Package contents 1. JB-2MD or JB-2MED or JB-2HD JB-2MED 2. - Page 5 2. Do not use single loose wires, twisted pair cables or coaxial cables. B1, B2 3. When using a cable with unused wires, it is suggested that both ends of unused pair(s) be terminated with a 120 Ω resistor. JB-2MED JA-2SD JA-2SD Español...
- Page 6 [2] Mounting bracket [3] 1-gang box [4] Din rail JB-2MED 1. Press the RELEASE button (to insert or remove the wire). 2. Insert the cable into the terminal. NOTES: When a 1-gang box is not installed, the cable can be surface- run to the top or bottom of the unit.
- Page 7 Deutsch Options [1] Foot switch Connect a locally available pedal foot switch to PURPLE and JB-2M(E)D BLUE wires (dry closure contact). (PR) [2] Manual Press-to-Talk restriction Short PURPLE and GREEN wires together to prevent manual (BL) TALK button operation. (GR) [3] Selective door release (YE) Please refer to the wiring diagram #9 for detail connection.
-
Page 8: Wiring Diagram
WIRING DIAGRAM JB-2HD JB-2HD WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM WIRING DIAGRAM ON - OFF ON - OFF JB-2M(E)D RELEASE JA-2SD JA-2SD DC 18 V PS-1820DIN PS-1820 PS-1810DIN 230V AC 230 V AC IN 230V~ 50/60Hz IN 230V~ 50/60Hz 1A - + 2A - + 18V DC 100V - 240V -... - Page 9 Wiring Securely insert wires into each terminal as shown. Securely insert wires into each terminal as shown. 1. Master monitor station JB-2MD or JB-2MED 1. Master monitor station JB-2MD or JB-2MED 2. Sub monitor station JB-2HD or sub station JA-2SD 2.
- Page 10 [10] [17] REC button TALK Deutsch Names [1] LCD (3-1/2" color) [2] POWER switch JB-2MED [3] Open voice speaker for chime and internal call-in voice [4] Transmit LED [5] TALK button [6] Door call-in LED [11] [7] DOOR RELEASE button...
- Page 11 Select with the PLAY button to move upward, and the REC button to move downward, and set with the SET button. 5. Setting record mode: JB-2MED Select the number of pictures to be saved. Press PLAY button to move upward, and the REC button to move downward. Set with the SET button.
- Page 12 1. Mode selection: Press the SET button for 2 seconds or more to select the setting mode. JB-2MD JB-2MED 2. Setting the position of the date/time display: Press the PLAY button to move upward, and the REC button to move downward, and set with the SET button.
- Page 13 2. In step 2, the door call-in LED on the JB-2MED and JB- 5. If a call is received from an entrance station while already 2HD lights in red if called from entrance station 1, and in responding to another station, a chime tone sounds only at green if called from entrance station 2.
- Page 14 2. In step 2, the door call-in LED of the JB-2MED and JB- 2HD lights in red if called from entrance station 1, and in JB-2MD JB-2MED green if called from entrance station 2. 3. If you press the TALK button in step 4 for a short time (less than 2 sec.), communication will end.
- Page 15 2. If a JA-D (audio only) unit is connected to entrance 2, it is skipped (cannot be monitored). JB-2MD JB-2MED 4. Press the MONITOR button again to end. NOTES: 1. To talk to the entrance station during monitoring, press...
- Page 16 2. The "All Call" function is activated to link all of the inside stations. 3. If another person presses the TALK button, handsfree JB-2MD JB-2MED communication is possible. 4. Press and release the TALK button to end. 1. Do not press the TALK button during communication in step 3.
- Page 17 3. If the transferred station presses the TALK button, room-to-room communication starts. JB-2MED 4. If the transferred station presses the TALK button again, it switches to entrance station calling mode. By pressing the TALK button once more, communication is established with the entrance station.
- Page 18 7-10 recorded automatically. If you wish to record this screen, press REC button. JB-2MED 3. When automatic recording has finished, for approx. 15 sec. after the monitor screen goes off, automatic recording will not be activated for the same entrance station even if a call is placed (to prevent prank calls).
- Page 19 NOTES: Cancellation in step 3 is not possible while the SET button is 7-12 flashing. First play the recorded screen. Nederlands JB-2MED Absence set (Auto absence recording) 1. If the SET button is pressed once (less than 2 sec.), it will light and 16/32/60-picture mode 16-picture, 4-frame mode the unit will be set.
- Page 20 7-13 minute after the final operation. In 16-picture/4-frame mode, the selection sequence cannot be reversed. Pictures recorded manually (not divided into 4 frames) JB-2MED cannot be enlarged. Español Sub screen enlargement (16-picture/4-frame mode only) 1. If the REC button is pressed when playing a 4-frame picture (P20), the last picture (taken after 14 sec.) is enlarged.
- Page 21 (P23) Français Save JB-2MED 1. Press the SET button during play (P20) to save the picture. "M" is displayed to show it has been saved, and the number of the saved pictures is also displayed. A maximum of 8 pictures can be saved.
- Page 22 Deutsch • In calling and communication, sensored alarm does not Erase come out. 1. Use the play operation to display the picture you wish to erase. (P20) • Also the alarm does not come out through Sub room Push the SET button and REC button simultaneously for 2 sec. to master station(s).
-
Page 23: Specifications
DC 18V (JB-2MED, JB-2MD, JB-2HD) • Operating temperature: 0 °C to 40 °C (+32 °F to +104 °F) • Current consumption: (Max.) 770mA (JB-2MED) • After the unit is not used for a long time or after an extended power (Max.) 670 mA (JB-2MD) -
Page 24: Warranty
This • Communication: (AUTO) Handsfree warranty shall not apply to any Aiphone product which has been subject to misuse, (MANUAL) Press to talk, release to listen. neglect, accident, or to use in violation of instructions furnished, nor extended to units which have been repaired or altered outside of the factory. - Page 25 Increase the separation between the equipment and receiver. • Consult the dealer or an experienced radio/TV technician for help. http://www.aiphone.com/ AIPHONE CO., LTD., NAGOYA, JAPAN AIPHONE CORPORATION, BELLEVUE, WA, USA AIPHONE S.A., WISSOUS, CEDEX, FRANCE Printed in Japan...
