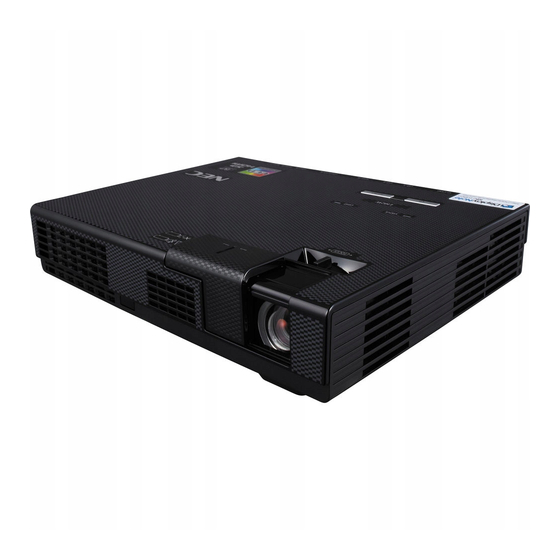

NEC L102W User Manual
Hide thumbs Also See for L102W:

Advertisement

Projector
L102W
User's Manual
Model No.
NP-L102W

Advertisement

Table of Contents
loading

Summary of Contents for NEC L102W

  • Page 1 Projector L102W User’s Manual Model No. NP-L102W...
  • Page 2 (3) Great care has been taken in the preparation of this user’s manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.
  • Page 3: Important Information

    Important Information Safety Cautions Precautions Please read this manual carefully before using your NEC projector and keep the manual handy for future reference. CAUTION To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.
  • Page 4: Important Safeguards

    The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been test- ed and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 Important Information Fire and Shock Precautions • Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10cm) of space between your projector and a wall. •...
  • Page 6: Remote Control Precautions

    Important Information Remote Control Precautions • Handle the remote control carefully. • If the remote control gets wet, wipe it dry immediately. • Avoid excessive heat and humidity. • Do not short, heat, or take apart battery. • Do not throw battery into fire. •...
  • Page 7 Important Information About High Altitude mode • Set [Fan Mode] to [High] when using the projector at altitudes approximately 2500 feet/760 meters or higher. • Using the projector at altitudes approximately 2500 feet/760 meters or higher without setting to [High] can cause the projector to overheat and the projector could shut down.
  • Page 8: Table Of Contents

    Table of Contents Table of Contents.......1 Using Multimedia ......36 Usage Notice ........2 How to operate ........37 Multimedia Menu Tree ......38 Precautions .........2 Supported Formats ......39 Introduction ........4 Using the Projector as a Storage Product Features ........4 Device ..........41 Package Overview ......5 Projecting Your Computer’s Screen Product Overview .......6...
  • Page 9: Usage Notice

    Usage Notice Precautions Follow all warnings, precautions and maintenance as recom- mended in this user’s guide to maximize the life of your unit. ■ Turn on the projector first and then the signal Warning- sources. Turkish RoHS information relevant for Turkish market EEE Yonetmeliğine Uygundur.
  • Page 10 Usage Notice ■ Turn off the product before cleaning. ■ Use a soft cloth moistened with mild detergent to clean the cabinet. ■ Disconnect the power plug from AC outlet if the product is not being used for a long period of time. ■...
  • Page 11: Introduction

    Introduction Product Features This product is a WXGA single chip 0.45” DLP projector. ® Features you’ll enjoy: ■ Light and small LED projector The projector uses LED as a light source instead of lamp. ■ Display popular wide screen High resolution display - 1,039,680 pixels (16:10 WXGA equivalent) ■...
  • Page 12: Package Overview

    Q uick Setup Guide For customers in Europe:You will for each country, some (P/N: 7N8N4551) find our current valid Guarantee regions may have dif-  Policy on our Web Site:www.nec- I mportant Information ferent accessories. display-solutions.com (P/N: 7N8N4541)) ... English...
  • Page 13: Product Overview

    Introduction Product Overview Projector Ventilation (intake) Ventilation (exhaust) Remote Sensor Speaker Lens Cover Lens Control Panel Focus Lever Inside pocket for the optional wireless LAN unit Inside pocket for the remote control English ...
  • Page 14: Connection Ports

    Introduction Connection Ports SD CARD Slot Used for Multimedia.  We do not warrant Insert the SD card into this slot with the label facing up. that the projector sup- Note: ports all SD cards and Supported SD card types are: all USB devices in the - SD card up to 2 GB market.
  • Page 15: Control Panel

    Introduction Control Panel STATUS indi- Indicate the projector’s tempera- cator ture status and Control Panel Lock is enabled. Refer to the Status Indicator on page 48. LIGHT indica- Indicate the projector’s light source (LED) status. Refer to the LIGHT Indicator on page 48. POWER and Press the “...
  • Page 16: Remote Control

    Introduction Remote Control  Before using the remote control for the first time, remove the transparent insulation tape. See page 11 for battery installation. POWER Refer to the “Power On/Off the Projector” section on pages 14-15 VOL. +/- Increase/decrease speaker vol- ume.
  • Page 17 Introduction Press “SD” to choose the SD CARD slot. Multimedia will start. USB-A Press “USB-A” to choose the USB-A port. Multimedia will start. With the optional wire- less LAN unit connected to the USB-A port, the wireless LAN standby screen will be displayed. USB-B Press “USB-B”...
  • Page 18: Battery Installation

    Introduction Battery Installation 1. Press firmly and slide the battery cover off. 2. Remove the old Lithium 3. Put the cover back. coin cell and install new one  The infrared signal (CR2025). Ensure that the operates by line-of- side with a “+” is facing up. sight up to a distance of about 22 feet/7 m and within a 60-degree...
  • Page 19: Installation

    Installation Connecting the Projector Connect to Computer/Notebook  Make sure that the Audio Output power plug is fully inserted into both the projector AC inlet and the wall outlet. MOLEX To the wall outlet SD CARD molex Note: When Viewing a DVI Digital Signal •...
  • Page 20: Connect To Video Sources

    Installation Connect to Video Sources DVD Player, Blu-ray Player, Set-top Box, HDTV receiver  Make sure that the power plug is fully inserted into both the projector AC inlet and the wall outlet. Audio Output To the wall outlet Video Output  Due to the differ- ence in applications for each country, some...
  • Page 21: Powering On/Off The Projector

     The Power indicator you will get the Startup will flash blue. The startup screen (NEC logo) will be dis- menu. This menu played. and the Power indicator will turn steady blue. gives you the opportu- nity to select the menu 4.
  • Page 22: Powering Off The Projector

    Installation Powering Off the Projector 1. Press the “POWER” button on the remote control or the button on the control panel to turn off the projector, you will In some cases the see a message as below on the on-screen display. POWER indicator can stay light for a certain period of...
  • Page 23: Warning Indicator

    Installation Warning Indicator When the “STATUS” indicator flashes red in two cycles, it  indicates the projector has overheated. The projector will automatically shut itself down. When the “STATUS” indicator flashes red in four cycles and  the message below displays on-screen, it indicates the fan failed.
  • Page 24: Adjusting The Projected Image

    Installation Adjusting the Projected Image Adjusting the Height of Projector Image The projector is equipped with an adjustable foot to raise and lower the image to fill the screen. Rotate the tilt adjustable foot counter clockwise to raise the projector or clockwise to lower it. Tilt adjusting foot The tilt adjusting foot can be extended up to 0.4 inch/10 mm.
  • Page 25: Adjusting The Projector Focus

    Installation Adjusting the Projector Focus To focus the image, rotate the focus lever until the image is clear. The projector will focus at distances from 20.5” to 118.1”/52  to 300 cm. Focus Lever Adjusting Projection Image Size Projection Image Size from 17” to 100” (0.43 to 2.540 meters). ...
  • Page 26: User Controls

    User Controls On Screen Display The Projector has a multilingual On Screen Display (OSD) that allows you to make image adjustments and change a variety of settings. The projector will automatically detect the source. How to operate When “Advanced”, To open the OSD, press the MENU button on the remote control. “Signal”, or “Informa- When OSD is displayed, use the buttons to select any item...
  • Page 27: Menu Tree

    User Controls Menu Tree Settings Main Menu Sub Menu Picture Mode Presentation / High-Bright / Video / Movie / IMAGE sRGB / Blackboard / Color Extension / User Wall Color Off / Red / Green / Blue / Cyan / Magenta / Yellow Brightness 0 to 100...
  • Page 28 User Controls Main Menu Sub Menu Settings OPTIONS Input Search Off / On Fan Mode AUTO / High Speed Eco Mode Off / On Information Hide Off / On Background Color Black / Blue Information Model No. Serial Number Source Resolution Software Version Software2 Version...
  • Page 29: Image

    User Controls IMAGE Picture Mode There are many factory presets optimized for various types of im- ages. Use the button to select the item. Presentation: For computer or notebook.  High-Bright: Maximum brightness from PC input.  Video: This mode is recommended for typical TV program view- ...
  • Page 30 User Controls Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Press the button to decrease the contrast.  Press the button to increase the contrast.
  • Page 31: Image | Advanced

    User Controls IMAGE | Advanced Gamma This allows you to choose a gamma table that has been fine-tuned to bring out the best image quality for the input. Film: for home theater.  Video: for video or TV source.  Graphics: for image source.
  • Page 32 User Controls Input Use this option to enable / disable input sources. Press to enter the sub menu and select which sources you require. Press the EN- TER button to finalize the selection. The projector will not search for inputs that are not selected. Exit Press to return to the previous menu.
  • Page 33: Screen

    User Controls SCREEN Aspect Ratio Use this function to choose your desired aspect ratio. AUTO: Automatically selects the appropriate display format.  4:3: This format is for 4×3 input sources.  16:9: This format is for 16×9 input sources, like HDTV and DVD ...
  • Page 34: Screen | 3D Settings

    User Controls SCREEN | 3D Settings Off: Choose “Off” to display normal (2D) picture.  The projector will  work only with On: Choose “On” to display 3D format.  the DLP Link 3D 3D Invert glasses. “3D Invert” is only ...
  • Page 35: Setting

    User Controls SETTING Language Choose the multilingual OSD menu. Press the button into the sub menu and then use the button to select your preferred language. Press to finalize the selection. The rear projection  is to be used with a translucent screen.
  • Page 36 User Controls Standard V Flip H Flip H+V Flip Menu Location Choose the menu location on the display screen. Signal Refer to next page. Mute Choose “On” to turn mute on.  Choose “Off” to turn mute off.  Volume Press the button to decrease the volume.
  • Page 37: Setting | Signal (Rgb)

    User Controls SETTING | Signal (RGB) “Signal” is only  supported in Analog VGA (RGB) Phase signal. Synchronize the signal timing of the display with the graphic card. If the image appears to be unstable or flickers, use this function to correct it.
  • Page 38: Setting | Advanced

    User Controls SETTING | Advanced Logo Use this function to display the startup screen (NEC logo). On: Displays the NEC logo.  Off: No logo is displayed.  Closed Caption Use this function to enable close caption and activate the closed caption menu.
  • Page 39: Options

    User Controls OPTIONS Input Search On: The projector will search for other signals if the current  input signal is lost. Off: The projector will only search current input connection.  Fan Mode AUTO: The built-in fans automatically run at a variable speed ...
  • Page 40 User Controls Information Refer to next page. Advanced Refer to page 35. Reset Choose “Yes” to return the display parameters on all menus to the factory default settings..English...
  • Page 41: Options | Information

    User Controls OPTIONS | Information Information To display the projector information for source, resolution, and software version on the screen. “Aspect Ratio”, and  “Color Space” are only supported un- der HDMI source. English ...
  • Page 42: Options | Advanced

    User Controls OPTIONS | Advanced Direct Power On Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the buton on the projector control panel or the POWER ON button on the remote control. Auto Power Off (min) To reduce power ...
  • Page 43: Using Multimedia

    User Controls Using Multimedia Multimedia is an interactive PC-less presentation solution. It equipped several mode (Photo, Video, Music, Office Reader, and Setting) with user-friendly user interface. To display the main menu of the Multimedia, press the USB- A, USB-B or SD button on the remote control or press the SOURCE button.
  • Page 44: How To Operate

    User Controls How to operate To open the OSD, press the MENU button on the remote control. When OSD is displayed, use the buttons to select any item in the main menu. While making a selection on a particular page, press the ENTER button to enter sub menu.
  • Page 45: Multimedia Menu Tree

    Display Ratio Auto/Orignal Size Play Mode Once/Repeat Once/Repeat/Random Auto Play On/Off Firmware Upgrade Yes/No To upgrade the firmware, visit at: http://www.nec-display.com/dl/en/index.html To check the version of your projector, from the menu, select [Options] -> [Information] -> [Software2 Version]. English ...
  • Page 46: Supported Formats

    User Controls Supported Formats ■ Supported graphic formats: JPG, BMP JPG file supports JPEG Baseline and progressive JPEG. BMP file supports full color only. - Some files supported by the above requirements may not be displayed ■ Supported audio formats: WAV, MP3, WMA, OGG WAV supports PCM and AD-PCM.
  • Page 47 User Controls Restrictions on displaying Microsoft Office files and PDF files The Office Reader allows you to give a simplified display of a Microsoft Office file or PDF file. Due to simplified display, however, actual display may be dif- ferent from the one on your computer application program. ■...
  • Page 48: Using The Projector As A Storage Device

    User Controls Using the Projector as a Storage Device Important: • Use the projector’s storage area as a temporary storage. Back up your data on your computer’s hard disk drive before using the projector as a storage device. We will not be liable for any data loss or damage that could result from using the projector.
  • Page 49 User Controls Note: • Wait at least 5 seconds after disconnecting a USB memory device before recon- necting it and vice versa. The computer may not identify the USB memory device if it is repeatedly connected and disconnected in rapid intervals. •...
  • Page 50: Projecting Your Computer's Screen Image From The Projector Via The Usb Cable (Usb Display)

    User Controls Projecting Your Computer’s Screen Image from the Projector via the USB Cable (USB Display) Using a commercially available USB cable (compatible with USB 2.0 specifications) to connect the computer with the pro- jector allows you to send your computer screen image to the projector for displaying.
  • Page 51: Wireless Projection

    5. Display the wireless LAN standby screen on the projector. at http://www. 6. Display the wireless network setting screen of your computer. nec-display.com/ap/ 7. Select “NECPJ” (initial setting) for your network. en_projector/others/ 8. Open the Web browser to change the network settings for the wlan.html.
  • Page 52: Appendices

    Appendices Troubleshooting If you experience trouble with the projector, refer to the fol- lowing information. If the problem persists, please contact your local dealer or service center. Problem: No image appears on screen Ensure all the cables and power connections are correctly and ...
  • Page 53 2. Press the toggle output settings. example: [Fn]+[F4] Compaq=> [Fn]+[F4] Hewlett => [Fn]+[F4] Dell => [Fn]+[F8] Packard Gateway=> [Fn]+[F4] NEC=> [Fn]+[F3] IBM=> [Fn]+[F7] Toshiba => [Fn]+[F5] Macintosh Apple: System Preference-->Display-->Arrangement-->Mirror display If you experience difficulty changing resolutions or your monitor ...
  • Page 54 Appendices Problem: Image is out of focus Adjust the Focus Lever on the projector lens.  Make sure the projection screen is between the required distance  20.5” to 118.1”/52 to 300 mm from the projector (refer to page 18). Problem: The image is stretched when displaying 16:9 DVD The projector automatically detects 16:9 DVD and adjusts the aspect ratio by digitizing to full screen with 4:3 default setting.
  • Page 55 Appendices Problem: Indicator lighting message Power Indicator Indicator Condition Projector Condition Note The main power is off Blinking light Blue 0.5 sec On, The projector is getting ready to turn on. Wait for a moment. 0.5 sec Off 2.5 sec On, Off Timer is enabled.
  • Page 56: Specifications

    Appendices Specifications Model Number NP-L102W Optical Projection System Single DLP® chip (0.45”, aspect ratio 16:10) Resolution 1,039,680 pixels (16:10 WXGA) Lens Fixed lens, manual focus f=13.9mm at 60”, F=1.5 Light Source 3 LEDs Image Size (Diagonal) Minimum: 43.2 cm/17 inches to maximum: 254 cm/100 inches Projection Distance 0.52 m /20.5 inches to 3.0 m/118 inches...
  • Page 57 2500 feet/760 m to 5000 feet/1500 m in the range of 41° to 95°F (5 to 35°C) 5000 feet/1500 m to 10000 feet/3000 m in the range of 41° to 86°F (5 to 30°C) For additional information visit: http://www.necdisplay.com/ Europe: http://www.nec-display-solutions.com/ Global: http://www.nec-display.com/global/index.html For information on our optional accessories, visit our website or see our brochure.
  • Page 58: Compatibility Modes

    Appendices Compatibility Modes Analog RGB  Aspect Refresh Rate Signal Resolution (dots) Ratio (Hz) 640x480 60/72/75/85 SVGA 800x600 56/60/72/75/85 1024x768 60/70/75/85 XGA+ 1152x864 70/75/85 1280x720 16:9 1280x768 15:9 60/75/85 WXGA 1280x800 16:10 1366x768 16:9 Quad-VGA 1280x960 60/75 SXGA 1280x1024 60/72/75 SXGA+ 1400x1050 WXGA+...
  • Page 59: Hdmi

    Appendices HDMI  Aspect Refresh Rate Signal Resolution (dots) Ratio (Hz) 640x480 60/72/75/85 SVGA 800x600 56/60/72/75/85 1024x768 60/70/75/85 XGA+ 1152x864 70/75/85 HDTV(1080p) 1920x1080 16:9 50/60 HDTV(1080i) 1920x1080 16:9 50/60 HDTV(720p) 1280x720 16:9 50/60 SDTV(480p) 720x480 4:3/16:9 SDTV(576p) 720x576 4:3/16:9 1280x768 15:9 60/75/85 WXGA...
  • Page 60: Tripod Stand Installation

    Appendices Tripod Stand Installation 1. You can install this projector using a camera tripod. 2. The tripod specifications: Type: 1/4”-20UNC  Camera Tripod CAUTION:  - Do not use on an unstable surface. Doing so may cause the tripod to fall over, resulting in damage.
  • Page 61: Cabinet Dimensions

    Appendices Cabinet Dimensions Unit: mm/inch 233.1/9.18” 49.9/1.96” 45.4/1.79” 35.1/1.38” 106.0/4.17” 76.7/3.02” 118.3/4.66” Lens Center 238.3/9.38” 53.4/2.10” 167.6/6.60” English ...
  • Page 62: Pin Assignments Of D-Sub Computer Input Connector

    Appendices Pin Assignments of D-Sub COMPUTER Input Connector Mini D-Sub 15 Pin Connector Pin No. RGB Signal (Analog) YCbCr Signal 11 12 13 14 15 Green 9 10 Blue Ground Ground Signal Level Red Ground Cr Ground Video signal : 0.7Vp-p (Analog) Green Gro Y Ground Sync signal : TTL level...
  • Page 63: Troubleshooting Check List

    Troubleshooting Check List Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently. * Print the following pages.
  • Page 64: Installation Environment

    Native resolution: Refresh rate: Video adapter: Other: DVD Player Projector Signal cable Video equipment NEC standard or other manufacturer’s cable? VCR, DVD player, Video camera, Video game or other Model number: Length: inch/m Manufacturer: Distribution amplifier Model number: Model number:...
  • Page 65: Register Your Projector! (For Residents In The United States, Canada, And Mexico)

    Upon receipt, we will send a confirmation letter with all the details you will need to take advantage of fast, reliable warranty and service programs from the industry leader, NEC Display Solutions of America, Inc.
  • Page 66 © NEC Display Solutions, Ltd. 2013 7N952011...
