Heatcraft Refrigeration Products PST Technical Manual

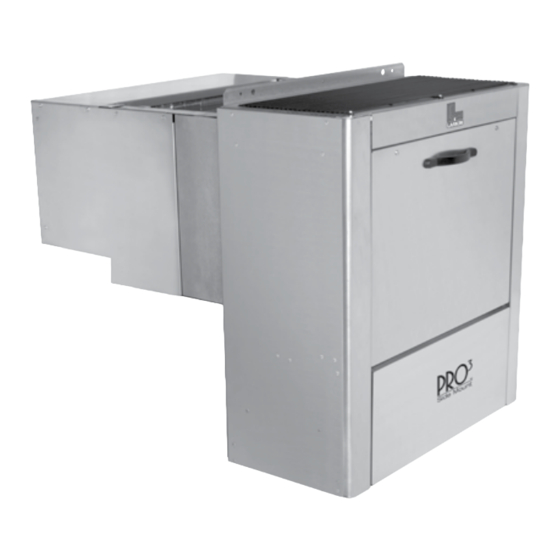

Pro3 side mount packaged refrigeration system

Advertisement

Quick Links

LK-PSMTB
May 2008
Replaces LK-PSMTB, February 2008
FPO
PRO
Side Mount Packaged
3

Refrigeration System

Technical Guide
Model PST

Advertisement

loading

Summary of Contents for Heatcraft Refrigeration Products PST

  • Page 1: Refrigeration System

    LK-PSMTB May 2008 Replaces LK-PSMTB, February 2008 Side Mount Packaged Refrigeration System Technical Guide Model PST...
  • Page 2: Table Of Contents

    NOMENCLATURE NOMINAL TEMPERATURE CAPACITY RANGE High/ x 100 Medium Temp Temp Medium Temp w/ electric defrost MEA Accepted REFRIGERANT VOLTAGE MOTOR TYPE 6 R-404A B 208- 230/1/60 motors motors (evap only) ©2008 Heatcraft Refrigeration Products LLC...
  • Page 3: Features & Benefits

    Features and Benefits The PRO packaged refrigeration systems combine evaporator and condensing unit into one unit — simplifying installation and reducing refrigerant charge — saving time, money and energy. The latest addition to the PRO family, the PRO small- to medium-sized restaurant and convenience store applications where maximum airflow is essential for pulling down the temperature of foods or beverages.
  • Page 4: Performance, Capacities And Specifications

    Performance, Capacities and Specifications Model PST High/Medium Temperature | Air Defrost | Cooler Application 80° F Ambient Model 5° F 8° F PST070H6B* 7,066 7,414 PST090H6B* 9,196 9,644 PST131H6B* 13,244 13,946 PST147H6B* 14,982 15,702 Model PST Medium Temperature | Electric Defrost | Cooler Application 80°...
  • Page 5: Dimensions

    Dimensions Figure A Model PST | Small Cabinet TOP VIEW 30-1/2" 775 mm 28" 711 mm SIDE VIEW 49-1/8" 1248 mm 46-1/4" 1175 mm 29-5/8" 752 mm 17-1/4" 20-1/4" 438 mm 514 mm 12-1/4" 311 mm 32-5/8" 905 mm 49-1/8"...
  • Page 6: Dimensions

    Dimensions Figure B Model PST | Large Cabinet TOP VIEW 36-1/2" 927 mm 34" 864 mm SIDE VIEW 29-5/8" 752 mm 17-1/4" 20-1/4" 438 mm 514 mm 12-1/4" 311 mm 32-5/8" 905 mm 49-1/8" 1248 mm 13-3/8" 16-1/4" 340 mm 413 mm 33-7/8"...
  • Page 7: Replacement Parts By Interlink

    Replacement Parts Right source. Right parts. Right now. InterLink™ is your link to a complete line of dependable and certified commercial refrigeration parts, accessories and innovative electronic controls for all Larkin equipment. At InterLink, we provide our wholesalers with a comprehensive selection of product solutions and innovative technologies for the installed customer base.
  • Page 8 For more information on Larkin refrigeration products, contact your Sales Representative or visit our web site at www.larkinproducts.com. A Brand of Heatcraft Refrigeration Products LLC 2175 West Park Place Blvd. • Stone Mountain, GA 30087 800.848.9889 • Fax: 770.465.5990 www.larkinproducts.com Since product improvement is a continuing effort, we reserve the right to make changes in specifications without notice.
