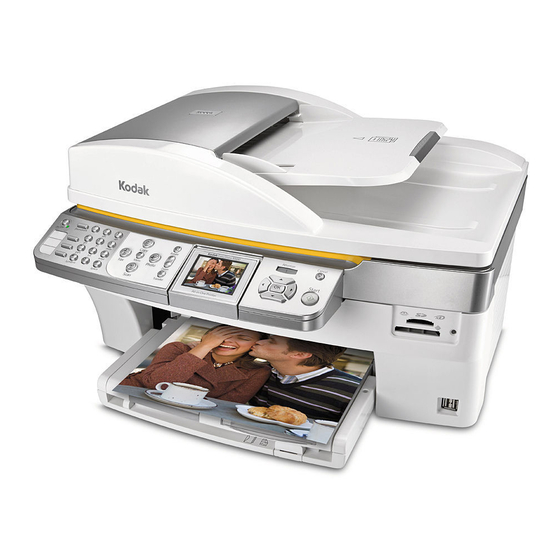

EasyShare 5500
All-in-One Printer
User's Guide

Advertisement

Table of Contents
loading

Summary of Contents for Kodak EasyShare 5500

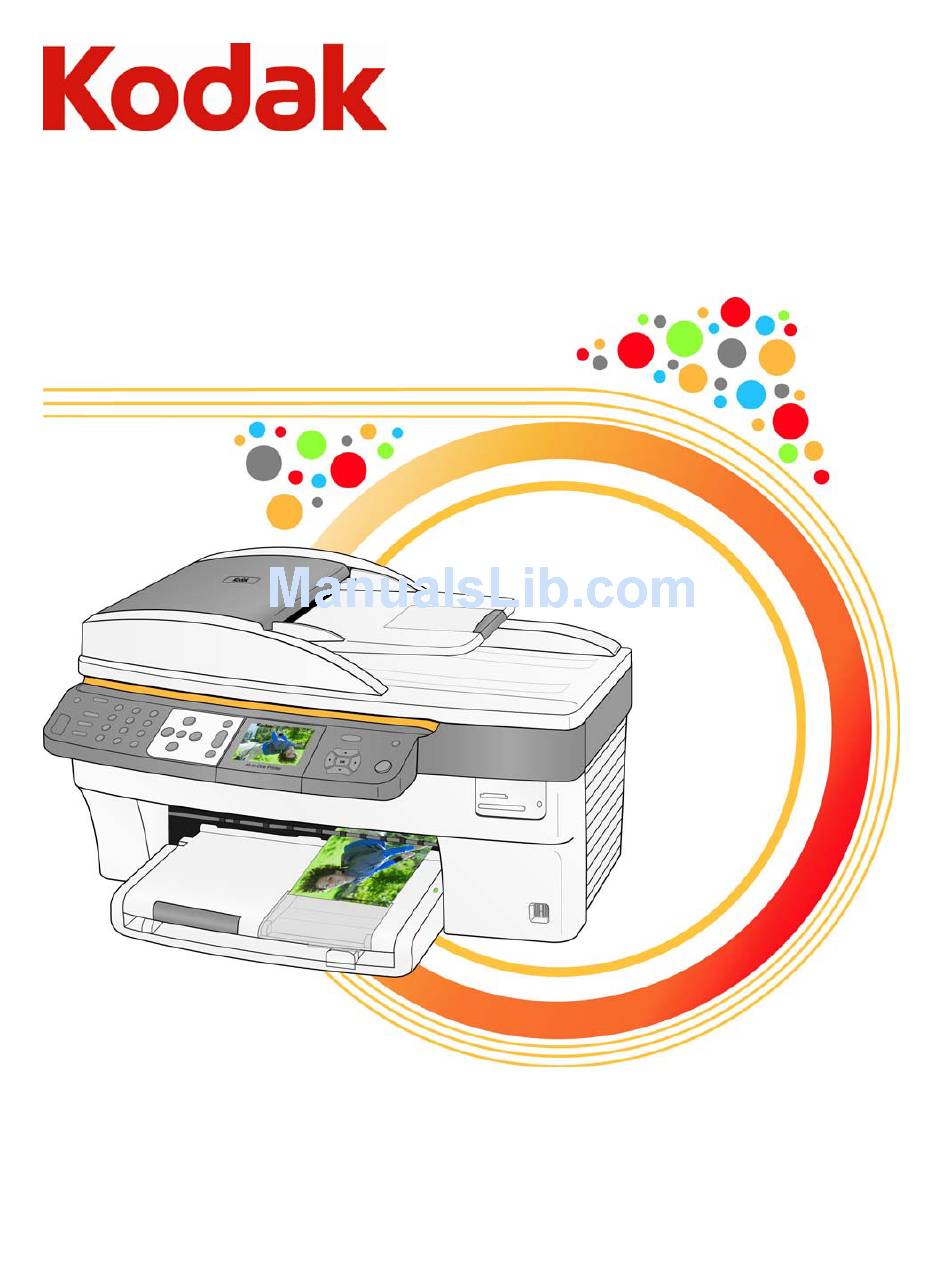

  • Page 1 EasyShare 5500 All-in-One Printer User’s Guide...
  • Page 2 © Eastman Kodak Company, 2008 P/N 1K3247 February 2008 Kodak and EasyShare are trademarks of Eastman Kodak Company. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks is under license.
  • Page 3: Table Of Contents

    Table of contents Product overview............................. 1 Main components............................... 1 Control Panel Layout............................2 Status lights................................. 3 LCD display screen............................8 Memory card slots and USB port ........................9 Automatic document feeder......................... 10 Getting started............................11 Connect power ..............................11 Install the printhead ............................11 Install ink cartridges ............................13 Install the duplexer ............................
  • Page 4 Support ..............................93 Contact Kodak..............................93 Limited warranty ............................. 93 Telephone customer support........................95 Troubleshooting............................... 96 Appendix ..............................107 All-in-One specifications..........................107 Computer requirements ..........................108 Paper types ..............................108 Safety................................. 110 Regulatory compliance ..........................111 Glossary ..............................115 Index...............................117 Kodak EasyShare 5500 AiO...
  • Page 5: Product Overview

    Product overview Product overview The Kodak EasyShare 5500 All-in-One (AiO) Printer allows you to print, copy, scan and fax photos or documents. Many functions can be operated directly from the control panel. You can print, store, manage and share your digital photos with family members and friends with the Kodak EasyShare software. You can buy optional accessories to enhance your Kodak AiO printer experience.
  • Page 6: Control Panel Layout

    Used for selection in conjunction with the 4-way controller. When the AiO printer is in Photo Preview mode, pressing enters Multiview. – Zoom Button When a photo has been magnified with the Zoom button, pressing decreases the magnification in 0.5X increments. Kodak EasyShare 5500 AiO...
  • Page 7: Status Lights

    The printer is initialising. None: Allow the printer to the display has the following complete the initialisation message: process. Kodak EasyShare system starting up (please wait) The five boxes at the bottom are flash walking left to right. User’s Guide...
  • Page 8 There may be an issue with the Visit Kodak.com for additional power supply. troubleshooting steps or contact your local Kodak call centre. Power lead light is on. The power lead and power Ensure that the power lead is supply are properly connected...
  • Page 9 (about 30 seconds). If the flashing green persists, you may have an issue with the printer. Visit Kodak.com for additional troubleshooting steps or contact your local Kodak call centre. Light is a flashing yellow.
  • Page 10 None: Please wait and allow the printer to complete the initialisation process. If the flashing green persists, you may have an issue with the printer. Visit Kodak.com for additional troubleshooting steps or contact your local Kodak call centre. Kodak EasyShare 5500 AiO...
  • Page 11 Product overview Attention light Light status Cause Action/Solution Light is off. No error. None Light is blinking steadily. Recoverable error. Paper jam while printing. Main tray empty. Photo tray empty. Carrier stall during pick. Media size mismatch. Media type mismatch. Paper jam during pick.
  • Page 12: Lcd Display Screen

    Until the highlight is advanced, pressing Navigate Up ( ) returns you to the previous page. Holding down any of the 4-way Navigation buttons causes them to repeat (scroll). Kodak EasyShare 5500 AiO...
  • Page 13: Memory Card Slots And Usb Port

    AiO printer or connect your camera directly through one of the two USB ports on the front panel, using a USB cable. Your Kodak AiO printer can read the contents of the memory card while it is still in the camera.
  • Page 14: Automatic Document Feeder

    35 cm (10 to 14") long, including 27.5 x 21.3 cm (11 x 8.5") pages. Paper is automatically detected when loaded. CAUTION The automatic document feeder is for plain paper only and cannot feed photo paper. NOTE: You can make 2-sided to 1-sided copies, but not full duplex copies. Kodak EasyShare 5500 AiO...
  • Page 15: Getting Started

    Getting started Getting started It is important to find a good location for your AiO printer. Place the printer on a clean, flat surface in a dry location and out of direct sunlight. Make sure the printer has proper ventilation. Avoid areas where ventilation ducts, open doors or high traffic might expose the AiO printer and paper to high levels of dust and debris.
  • Page 16 Remove and discard the clear plastic casing and the orange protective cap. Place the printhead into the carriage. Push against the back wall of the printhead until it clicks into place. 7 Install the ink cartridges Kodak EasyShare 5500 AiO...
  • Page 17: Install Ink Cartridges

    Getting started Install ink cartridges After installing the printhead, you need to install the black and colour ink cartridges. 1 Printhead 2 Colour ink cartridge 3 Black ink cartridge Tear open the black ink cartridge bag at the notch and remove the ink cartridge. IMPORTANT: Insert the ink cartridge immediately to prevent any drying of the ink.
  • Page 18: Install The Duplexer

    30°C (85°F). Install the duplexer The Kodak AiO printer supports an optional duplexer (Kodak EasyShare 5000 Series two-sided printing accessory) that enables printing on both sides of the paper. When installed, the duplexer is automatically detected by the printer and computer system software.
  • Page 19: Start-Up

    Centre (See General settings). Start-up When you power on your Kodak EasyShare All-in-One, status information is displayed on the LCD. After the start-up is complete, the AiO printer enters Copy mode unless a photo device is attached. If a photo device is attached or memory card inserted, the AiO printer enters Photo mode.
  • Page 20: Menu Button

    Proofsheet Print Proofsheet Scan Proofsheet Fax settings Ans. Machine Mode Rings to answer Busy redial attempts 1-14 Redial if No Answer Fax speaker Print fax confirmation page Dialling mode Tone Pulse Disable call waiting Error correction Kodak EasyShare 5500 AiO...
  • Page 21 Getting started Fax speed 33.6K Baud (V.34) 14.4K Baud (V.37) 9.6K Baud (V.29) Print fax settings Prints the current fax settings. Fax header Fax Header Form Print fax cover page Prints fax cover sheet. Print fax activity log Prints a report of fax activities.
  • Page 22 Photo button Layout Borderless Bordered 2 per page 3 per page 4 per page 9 per page Index 2x2 poster 3x3 poster 4x4 poster Quantity 1-99 Colour Colour Black & white: Quality Normal Best Draft Save settings Kodak EasyShare 5500 AiO...
  • Page 23: Copy Button

    Getting started Copy button Quantity 1-99 Colour Black & white: Colour Quality Normal Draft Best Output Same Size Fit to Page Scale Percent Photo Layouts Size Output = Scale Percent 10-500 Output = Photo Layouts Borderless Bordered 2 per page 3 per page 4 per page 9 per page...
  • Page 24: Demo Sheet

    Colour Brightness -3 to +3 Save settings Demo sheet You can print a page that demonstrates the functions and features of your Kodak AiO printer printer. Press Menu. Press until Print Demo Sheet is selected. Press OK. Press Start to begin printing.
  • Page 25: Configuring Settings

    DPOF file that identifies which photos have been tagged for printing. Your Kodak AiO printer can read the DPOF file from the memory card in a camera so you do not have to re-select the photos to print.
  • Page 26 Press OK. Minutes to standby When the Kodak EasyShare All-in-One is idle for the standby power setting timeout period, it enters the Standby state. The On/Off indicator remains lit, but power consumption is reduced. When in the Standby state, any activity such as a single button press or inserting a memory card brings the AiO printer out of the Standby state and returns it to the Ready state.
  • Page 27: Date And Time

    Getting started Date and time Your Kodak EasyShare All-in-One contains a clock for stamping the date and time on scans to a memory card and on faxes. 1 Press Menu to display the main menu. Press until Date and Time is selected.
  • Page 28: Fax Connections

    AiO printer. Obtain a DSL filter from your DSL provider. Connect the phone cord supplied with your Kodak AiO printer to the open port on the DSL filter and the port labelled 1-LINE. Connect the DSL filter cord to the telephone wall jack.
  • Page 29 Separate fax line (no voice) Connect your Kodak AiO printer to the phone line as shown in the illustration if you have a separate fax line on which you receive no voice calls and you have no other equipment connected to this phone line.
  • Page 30 Fax line with modem Connect your Kodak AiO printer to the phone line as shown in the illustration if you have a fax line on which you receive no voice calls and you also have a modem connected on this line.
  • Page 31 Shared with answering machine Connect your Kodak AiO printer to the phone line as shown in the illustration if you receive both voice calls and fax calls at the same phone number with an answering machine. Disconnect the phone cord from the wall jack that connects your modem to the telephone wall jack and plug it into the port labelled 2-EXT on your All-in-One.
  • Page 32 The AiO printer will not automatically answer calls. Instead, the answering machine will answer the call and the AiO printer will monitor the line. If the AiO printer detects fax tones, the AiO printer will receive the fax. If the call is a voice call, the AiO printer ignores the call. Kodak EasyShare 5500 AiO...
  • Page 33: Handling And Loading Paper

    Keep paper away from direct sunlight and out of high-temperature environments (such as a vehicle parked in the sun). You can load many different types and sizes of paper in your Kodak AiO printer, including letter paper, photo paper, transparencies and envelopes (see Paper types in the Appendix). The AiO printer automatically detects the size and type of paper you load in the input tray and then adjusts to generate the highest quality output for that paper.
  • Page 34: Load Main Tray

    Insert the stack of paper into the input tray with the short edge forward and the print side down. Slide the stack of paper forwards until it stops. Slide the paper-width and paper-length guides inwards until they stop at the edges of the paper. Lower the output tray. Kodak EasyShare 5500 AiO...
  • Page 35: Load Photo Tray

    Handling and loading paper Pull the extender tray out. Load photo tray You can load up to 20 sheets of 10 mil thick 150 x 100 mm (6 x 4") photo paper into the photo tray. TIP: To avoid fingerprints, handle the paper by the edges or by the perforated tabs. Avoid touching the glossy side of the paper.
  • Page 36: Load Envelopes

    Close the photo tray lid. Load envelopes You can load plain envelopes into the main input tray of your Kodak AiO printer. Do not use envelopes with cut-outs or cellophane windows. Lift the output tray. Remove any paper in the input tray.
  • Page 37: Load Labels

    Handling and loading paper Slide the paper guides inwards against the stack of envelopes until they stop. Close the output tray. Load labels Use letter or A4 (designed for use with ink jet printers) label sheets. Ensure that none of the pages are sticking together. Place a stack of label sheets on top of standard paper in the input tray, label side down.
  • Page 38 Chapter 3 Kodak EasyShare 5500 AiO...
  • Page 39: Print

    Print Print The memory card slots accept most of the popular memory cards (see Supported memory cards). When you insert a memory card into the card slot or connect a PTP camera or USB flash drive, the first photo is displayed on the LCD display.
  • Page 40: Print Photos From A Camera

    The Photo Print mode is initiated by pressing the Photo button, inserting a memory card or connecting a USB device to the Kodak EasyShare All-in-One. Insert a memory card into the appropriate slot or a mass storage device into the USB port, or connect a digital camera to the USB port.
  • Page 41: Index Print

    Print Index print The purpose of an index print is to catalogue the contents of a memory card or USB flash drive. An index print contains the following: Sequence numbers for the relative position of each photo within the defined set of photos, incrementing from 001 and continuing progressively across all pages of a multi-page index print.
  • Page 42: Tagged Photos (Dpof)

    DPOF file that identifies which photos have been tagged for printing. Your Kodak AiO printer can read the DPOF file from the memory card in a camera so you do not have to re-select the photos to print.
  • Page 43: Bluetooth Printing

    Bluetooth printing Bluetooth is a short-range radio technology that enables wireless connectivity between electronic devices. This feature supports an optional Kodak USB Bluetooth Adaptor that accepts JPEG/EXIF image file types from the following types of Bluetooth-enabled devices: Mobile camera phones...
  • Page 44: Print With Computer

    Change any other settings, such as paper size and print layout, then click Print. Layouts The photo layouts on your Kodak AiO printer "snap" to the nearest standard print size whenever possible, based on the combination of layout and paper size loaded. Otherwise the layouts are based on a standard 75 x 50 mm (3 x 2") aspect ratio.
  • Page 45 Print ISO 216 paper sizes A4 (21 x 30 centimetres) A5 (15 x 21 centimetres) A6 (10 x 15 centimetres) B5 (17.6 x 25 centimetres) The international paper size standard, ISO 216, consists of an A series and a less common B series. This standard has been adopted by all countries in the world except the United States and Canada.
  • Page 46 Chapter 4 Kodak EasyShare 5500 AiO...
  • Page 47 Print Set print layout Press Photo. The Print menu is displayed with Layout selected. Press to change the print layout. Press OK to set the selected layout and continue to set options, press Photo to preview or Start to print. User’s Guide...
  • Page 48 Chapter 4 125 x 88 mm (5 x 3.5") paper 1 per page borderless 2 per page 1 per page bordered 3 per page 4 per page 9 per page Kodak EasyShare 5500 AiO...
  • Page 49 Print 150 x 100 mm (6 x 4") paper 1 per page borderless 1 per page bordered 2 per page 3 per page 4 per page 9 per page User’s Guide...
  • Page 50 Chapter 4 175 x 125 mm (7 x 5") paper 1 per page borderless 1 per page bordered 2 per page 3 per page 4 per page 9 per page Kodak EasyShare 5500 AiO...
  • Page 51 Print 250 x 200 mm (10 x 8") paper 1 per page borderless 1 per page bordered 2 per page 3 per page 4 per page 9 per page User’s Guide...
  • Page 52 Chapter 4 US Letter 1 per page borderless 1 per page bordered 2 per page 3 per page 4 per page 9 per page Kodak EasyShare 5500 AiO...
  • Page 53 Print Panoramic User’s Guide...
  • Page 54 Chapter 4 A4 paper 1 per page borderless 1 per page bordered 2 per page 3 per page 4 per page 9 per page Kodak EasyShare 5500 AiO...
  • Page 55 Print A5 paper 1 per page borderless 1 per page bordered 2 per page 3 per page 4 per page 9 per page User’s Guide...
  • Page 56 Chapter 4 A6 paper 1 per page borderless 1 per page bordered 2 per page 4 per page 9 per page 3 per page Kodak EasyShare 5500 AiO...
  • Page 57: Setting Print Options

    Print B5 paper 2 per page 1 per page borderless 1 per page bordered 3 per page 4 per page 9 per page Setting print options Before you print photos, you may want to change the following default settings: Layout: Borderless Quantity: 1 print Colour: Colour print Quality: Normal...
  • Page 58: Save Settings

    Press OK to set the selected layout and continue to set options, press Photo to preview or Start to print. Set print quality The Kodak EasyShare All-in-One provides three options that affect print speed and quality for plain paper. Print quality is automatically set to Kodak Picture Quality when photo paper is detected. Draft Produces the fastest print speed but the lowest quality.
  • Page 59: Previewing Photos

    Print Previewing photos The Print Preview screen contains a crop box and displays the current photo number on the card or USB host device and the total number of photos on the card or device. It displays a checkbox indicating whether or not the currently displayed photo has been selected for printing.
  • Page 60 Press OK when finished. The photo is displayed with a crop box around the magnification and position you selected. Press to select the number of prints and press Start to print the area displayed in the crop box. Kodak EasyShare 5500 AiO...
  • Page 61 Print Multiview The Multiview screen shows thumbnails of nine photos. The current photo number and the total photo number are also displayed. Insert a memory card into the appropriate slot or a mass storage device into the USB port, or connect a digital camera to the USB port.
  • Page 62 Chapter 4 Kodak EasyShare 5500 AiO...
  • Page 63: Copy

    Copy Copy The Kodak AiO printer allows you to produce high-quality colour and black and white copies on a variety of paper types, including transparencies. Once copying has started, you may at any time abort a copy operation by pressing the Cancel button.
  • Page 64 If desired, make changes to the following copy options with the Copy menu: See Set number of copies See Set Colour See Set quality See Change brightness See Set preview Press Start. If you turned preview on, the AiO printer enters Preview mode; otherwise it starts making copies. Kodak EasyShare 5500 AiO...
  • Page 65 Copy Scale percent copy The default copy scale is 100%; however you can scale copies from 10% to 500%. Scaling is anchored to the upper left-hand corner of the original. Place your original face down on the rear left-hand corner of the scanner glass. If you have more than one original, place them face up in the automatic document feeder.
  • Page 66 Chapter 5 Photo layout copy You can set the layout for making copies of photos on your Kodak EasyShare All-in-One. The following layouts are supported: Borderless (default) Bordered 2 per page 3 per page 4 per page 9 per page...
  • Page 67: Setting Copy Options

    Press OK to set and continue setting options or Start to copy. Set quality Kodak picture quality is automatically selected when photo paper is detected in the main or photo input trays. The Kodak EasyShare All-in-One provides three options that affect speed and quality for copying documents to plain paper.
  • Page 68: Previewing Copies

    Copy Preview mode is entered when the following conditions exist: The AiO printer is in Copy mode. Preview is set to Yes. The Start button is pressed. The Copy Preview feature can be used for photos or documents. Kodak EasyShare 5500 AiO...
  • Page 69 Copy Zoom and crop To zoom and crop a photo before making a copy, you must be in Preview mode (see Turning copy preview on). With Preview set to Yes on the Copy menu, press Start to enter Preview mode. The photo on the glass is scanned and displayed with a crop box.
  • Page 70 Chapter 5 Kodak EasyShare 5500 AiO...
  • Page 71: Scan

    You can start a scan from either the Kodak AiO control panel or your computer. Scan with control panel Pressing Scan places the Kodak AiO printer in Scan mode and displays the Scan menu on the screen. Save scan settings When you change scan settings from the control panel, the settings apply only to the current scan job.
  • Page 72 Place a photo or photos face down on the scanner glass. Press Scan to display the Scan menu. Press to select Photo. Press to select Scan To. Press to select Memory Card. Press Start. Kodak EasyShare 5500 AiO...
  • Page 73: Scanning Documents

    Press Scan to display the Scan menu. Press to select Document. Press Start. The document is scanned and saved based on the Kodak AiO Home Centre scan document settings (see Scan document settings). User’s Guide...
  • Page 74 Press Scan to display the Scan menu. Press to select Document. Press to select Scan To. Press to select Application. Press to until Application is selected. Press to select another application. Press Start. Kodak EasyShare 5500 AiO...
  • Page 75 Scan Scan to memory card Insert a memory card into the appropriate card slot. WARNING Never attempt to remove a memory card while it is being accessed. Doing so may damage files on the card. You can safely remove a card only when the status light next to the slots is not blinking.
  • Page 76 Chapter 6 Kodak EasyShare 5500 AiO...
  • Page 77: Fax

    You can use your Kodak AiO printer to send and receive faxes, including colour faxes. You can set up speed dials to send faxes quickly and easily to frequently used numbers. From the control panel, you can also set a number of fax options.
  • Page 78 Provides the best quality fax when sending photographs. If you choose Photo, be aware that the faxing process takes longer to complete. Press Fax. The Fax menu is displayed with Resolution selected. Press to change the resolution. Press OK to set and continue setting options or Start to fax. Kodak EasyShare 5500 AiO...
  • Page 79 Save Settings to Yes. Press OK to set and continue setting options or Start to fax. Fax set-up options The following set-up options are available for setting up your Kodak AiO Printer to send and receive faxes. Answering Machine Mode Rings to Answer...
  • Page 80 Chapter 7 Answering machine mode Your Kodak EasyShare AiO can be set up to receive faxes with or without an answering machine connected. Refer to the table below to determine how you should set up your EasyShare AiO to answer incoming fax calls based on your home or office set-up.
  • Page 81 Busy redial attempts You can set your Kodak AiO printer to redial a busy number from 0 to 14 times. The default number of attempts is 5. Press Menu to display the main menu.
  • Page 82 Chapter 7 Print fax confirmation page Your Kodak AiO printer can print a confirmation that a fax was sent successfully. The default setting is No. Press Menu to display the main menu. Press until Fax Settings is displayed. Press OK to display the Adjust Fax Settings menu.
  • Page 83: Sending A Fax

    Error Correction. Fax speed You can set the fax speed used to communicate between your Kodak EasyShare All-in-One and other fax machines when sending and receiving faxes. The default fax speed is Fast (33.6K). If you experience problems sending and receiving faxes, you might want to try setting the fax speed to 14.4K Baud (v.37) or 9.6K Baud (v.29).
  • Page 84: Send A Basic Fax

    Press Start. Send a fax with speed dial You can quickly send a fax from the Kodak EasyShare AiO using speed dials. Speed dial entries will not appear until you have set them up with the Home Centre software. Place your originals face up in the automatic document feeder.
  • Page 85: Receiving A Fax

    Receiving a fax If you receive a legal-size fax and your EasyShare AiO is not currently set to use legal-size paper, the device automatically reduces the fax so that it fits on the paper that is loaded. User’s Guide...
  • Page 86 Chapter 7 Kodak EasyShare 5500 AiO...
  • Page 87: Maintenance

    Maintenance Maintenance The Kodak EasyShare All-in-One requires little maintenance. However, you should clean the glass and lid backing to remove dust and fingerprints. Fingerprints and other debris on the glass or lid backing could slow down performance and affect the accuracy of scanning.
  • Page 88: Clean The Scanner Glass

    Dry the glass with a lint-free cloth. Clean the scanner lid Minor debris can accumulate on the document backing located underneath the scanner lid of the Kodak AiO printer. Turn off the AiO printer and raise the lid.
  • Page 89: Print Diagnostic Sheet

    Click Firmware Upgrade. Ink cartridges Your Kodak AiO printer uses separate black and colour ink cartridges. The ink levels are displayed on the control panel and the printer software. Generic or non-Kodak ink cartridges may not function in the KODAK EASYSHARE All-in-One Printer. Kodak recommends using Kodak ink cartridges.
  • Page 90: Replace Ink Cartridges

    30°C (85°F). WARNING or non-Kodak ink cartridges may not function in the KODAK EASYSHARE All-in-One Printer. Kodak recommends using Kodak ink cartridges. Third party ink cartridges may not contain the necessary Smart Chip information to notify you before the ink cartridge is empty.
  • Page 91 Maintenance Remove the bagged ink cartridge from the box and tear open the bag at the notch and remove the ink cartridge. IMPORTANT: Insert the ink cartridge immediately to prevent any drying of the ink. Remove the orange cap from the cartridge by grasping the top edge and pulling/rotating it off the ink cartridge.
  • Page 92: Printhead

    Clean the printhead Calibration The Kodak AiO printer performs a calibration every time you install or replace a printhead. However, you can run a calibration if you are seeing changes in the image quality. Calibration aligns the printheads and performs a nozzle health check to enable high-quality prints.
  • Page 93 Maintenance To clean printhead from control panel Press Menu to display the main menu. Press until Clean Printhead is selected. Press OK to go to the Clean Printhead menu. Press OK to perform a Basic Clean. Press to select Deep Clean and press OK to perform a Deep Clean. Replace printhead Make sure the AiO printer is on.
  • Page 94 Remove the new printhead from its bag. Remove and discard the plastic casing and the orange protective cap. Place the printhead into the carriage. Push against the back wall of the printhead until it clicks into place. Kodak EasyShare 5500 AiO...
  • Page 95 Maintenance Reinstall the ink cartridges. User’s Guide...
  • Page 96 Chapter 8 Kodak EasyShare 5500 AiO...
  • Page 97: Support

    You may be required to ship Products, at your expense, to the authorised service facility for the country where the Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labour as well as any necessary adjustments and/or replacement parts.
  • Page 98: Your Rights

    Chapter 9 Kodak along with proof of the purchase price paid. Repair, replacement or refund of the purchase price are the sole remedies under this warranty. If replacement parts are used in making repairs, those parts may be remanufactured or may contain remanufactured materials.
  • Page 99: Telephone Customer Support

    Amount of memory (MB) and free hard disk space Printer serial number Version of Kodak EasyShare software Version of Kodak Home Centre software Print a diagnostics page Exact error message you received Your unit's Kodak service number (under the printer access door). User’s Guide...
  • Page 100: Troubleshooting

    If you are using a power strip, make sure it is turned on. If you are using a switched power outlet, make sure the switch is on. Make sure the power outlet is supplying power. If none of the above corrects the problem, contact Kodak support. Kodak EasyShare 5500 AiO...
  • Page 101: Device Not Recognised

    Corrective action Enter a PIN of 1111 into the sending device. Device not recognised Any of the following can prevent your Kodak AiO printer from reading a connected digital camera or memory card. The camera is turned OFF. The USB connector from the camera is not fully inserted in the port.
  • Page 102: No Communication With Computer

    After checking connections, restart your computer. Make sure your computer meets the minimum system requirements. Upgrade your system if necessary. For more information on connecting your Kodak AiO printer to your computer, see the Set-up Poster that came with your unit. No paper feed Paper does not feed.
  • Page 103: Paper Jam

    Support Reload the paper tray(s). Do not overfill. ngage the photo tray, if printing 150 x 100 mm (6 x 4") photos, then press Start to resume printing. Paper jam The paper did not advance or was not picked properly from the paper tray. Open the paper trays and remove the paper supply.
  • Page 104: Wrong Paper Size

    Make sure your computer meets the minimum system requirements. Upgrade your system if necessary. NOTE: The Kodak AiO printer is compatible with the Kodak 8-in-1 card reader (sold separately). Other Kodak USB card readers may work with the printer; however, other manufacturers' card readers are not supported.
  • Page 105 Change the picture quality setting (or resolution) on your digital camera to 3:2. See your camera user guide for details. Adjust cropped pictures using Kodak EasyShare software on your computer. If you are printing from an application on your computer, select the proper paper size in print options.
  • Page 106 Adjust the exposure compensation on your camera and try re-taking the picture. See your camera user guide for details. Edit the picture using Kodak EasyShare software on your computer. See the EasyShare software Help for details. Make sure the printer is not placed in direct sunlight or is not operating in a high-temperature environment.
  • Page 107: Copy Troubleshooting

    Support Printing stops Printing stops mid-print. Paper stops feeding and Status light may blink. IMPORTANT: For best results, use only Kodak ink cartridges and paper for your printer. Check the paper. Disengage the photo tray if engaged. Check the paper access on the back of the printer.
  • Page 108: Scan Troubleshooting

    Connect your EasyShare AiO to your computer with a 2.0 USB cable. Probable cause 3 The AiO printer Home Centre software is not installed. Insert the Kodak EasyShare 5000 All-in-One Printer installation CD and install the software. Probable cause 4 Your computer system resources may be low.
  • Page 109: Fax Troubleshooting

    Support Scanned image blank Your original is not placed correctly on the scanner glass. Place your original face down on the rear left-hand corner of the scanner glass. Proofsheet scan unsuccessful Probable cause 1 The scanner glass is dirty. Make sure the scanner glass is completely clean or the proofsheet might not scan properly (see Clean the scanner glass).
  • Page 110 Probable cause 1 Your answering machine is not properly connected to the Kodak All-in-One. When you have an answering machine and Kodak All-in-One on the same phone line, they must be connected as shown below. Make sure that your AiO printer is set to automatically receive faxes and that the Rings to Answer setting is correct.
  • Page 111: Appendix

    32 / 10.5 / 5 ppm Colour plain paper print speed (Draft/Normal/Best) 30 / 6 / 3 ppm Photo print speed - 4X6 Kodak Studio Gloss 2.14 ppm [28 sec/print] Photo print speed - 8X10 Kodak Studio Gloss 0.86 ppm [70sec/print] B&W plain paper copy speed...
  • Page 112: Computer Requirements

    USB 2.0 Removable drive CD-ROM CD-ROM Paper types The following tables show the paper types and sizes that the Kodak AiO printer supports for copying and printing. Supported paper types 75 to 90 gsm Plain paper (17 to 24 lb)
  • Page 113 Appendix Supported paper sizes Usage Size Tray A4 (297 x 210 mm) (11.8 x 8.4") A5 (210 x 148 mm) (8.4 x 5.9") A6 (148 x 105 mm) (5.9 x 4.2") Document page sizes US Executive (263 x 181 mm) (10.5 x 7.25") Main Labels US Legal (350 x 213 mm) (14 x 8.5")
  • Page 114: Safety

    AC adaptor will be left unused for long periods of time, unplug the AC adaptor from the power outlet and the phone line from the modem. WARNING The use of an accessory attachment that is not recommended by Kodak, such as an AC adaptor, could cause fire, electric shock or injury. WARNING Pushing objects through the equipment openings can result in an electric shock or risk of fire.
  • Page 115: Regulatory Compliance

    WARNING Do not expose this product to liquid, moisture or extreme temperatures. KODAK AC adaptors are intended for indoor use only. The use of controls, adjustments or procedures other than those specified herein may result in exposure to shock and/or electrical or mechanical hazards.
  • Page 116: Fcc And Industry Canada

    Observation des normes-Class B - Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. Eastman Kodak Company hereby declares that this Kodak Wi-Fi card is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 117: Notice To Users In The European Economic Area

    (PSTN). Please connect the TAE N telephone connector plug provided with the Kodak EasyShare All-in- One Series 5000 into the wall socket (TAE 6) code N. This Kodak fax product can be used as a single device and/or in combination (in serial connection) with other approved terminal equipment.
  • Page 118 Chapter 10 If you have trouble with this KODAK EASYSHARE 5500 All-in-One Printer, or for repair or warranty information, please contact Eastman Kodak - Rochester NY. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
  • Page 119: Glossary

    JPEG is a compressed image file format. JPEG is a "lossy" format, which means that some quality is lost when the image is compressed. KPT: Kodak Perfect Touch PictBridge: A Camera and Imaging Products Association standard that enables direct printing between any PictBridge compliant digital cameras and any PictBridge compliant printer.
  • Page 120 Glossary TKIP: Temporal Key Integrity Protocol Wired Equivalent Privacy WEP: Wireless Fidelity Wi-Fi: Wi-Fi Local Area Network WLAN: Wi-Fi Protected Access WPA: Kodak EasyShare 5500 AiO...
  • Page 121: Index

    Index Index Fax colour ..............75 2-sided printing accessory ........14 Fax problems ............106 Fax resolution .............74 A6 paper..............52 Fax settings ..............75 Answering machine........... 27, 76 Firmware upgrade .............85 Audio feedback............22 Fit to Page..............60 Format ................. 84 B5 paper............... 53 Bluetooth ..............
  • Page 122 White edges ............. 103 Scan document (control panel) ....69, 70, 71 Scan photo............67, 68 Zoom................56 Scan problems..........104, 105 Zoom and crop ............65 Scan settings...............67 Scanner glass ............. 84 *1K3247* *1K3247* 1K3247 Kodak EasyShare 5500 AiO...
