QuickSpecs
Overview
1. (2) external 5.25" drive bays for optional optical drives
2. (1) external 3.5" drive bay for optional media reader or
diskette drive
3. (2) USB 2.0 ports, audio ports
4. 300-watt max power supply
5. (4) USB 2.0 ports, (2) PS/2, (1) RJ-45, (1) VGA, (1) audio in – (1)
audio out – (1) MIC
Microtower
DA - 12921 North America — Version 25 — July 28, 2009

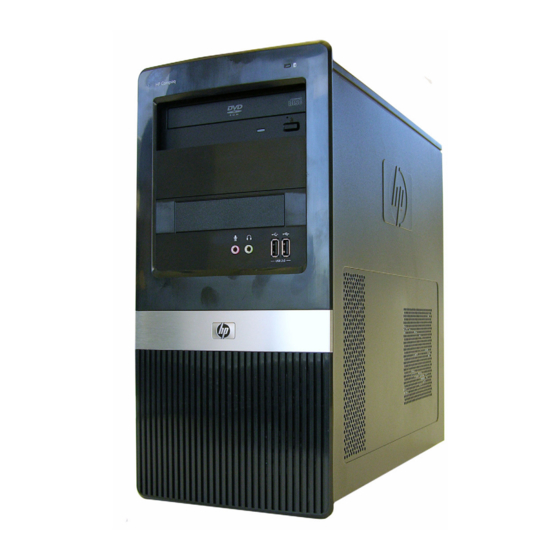

HP Compaq dx2400 Microtower Business PC
HP recommends
Windows Vista
6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots,
(1) PCIe x16 slot
7. (2) internal 3.5" drive bays
8. PS/2 Scroll Mouse
9. HP Standard Keyboard
10. Monitor (sold separately)
®
Business
Page 1

Advertisement

Table of Contents
loading

Summary of Contents for HP Compaq dx2400

  • Page 1 QuickSpecs HP Compaq dx2400 Microtower Business PC Overview HP recommends ® Windows Vista Business Microtower 1. (2) external 5.25” drive bays for optional optical drives 6. (1) full-height PCI 2.3 slot, (2) PCIe x1 slots, (1) PCIe x16 slot 2. (1) external 3.5” drive bay for optional media reader or 7.
  • Page 2 Realtek 8111C-GR Gigabit Ethernet controller Choice of hard drives and optical drives DDR2 SDRAM system memory Protected by HP Services. Terms and conditions vary by country. Certain restrictions and exclusions apply. * RAID mode not supported NOTE: Feature availability may vary by region/country.
  • Page 3: Standard Features And Configurable Components

    QuickSpecs HP Compaq dx2400 Microtower Business PC Standard Features and Configurable Components Processor and Speed Intel Celeron Processors One of the following Intel Celeron 420 Processor (1.60-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 430 Processor (1.80-GHz, 512-KB L2 cache, 800-MHz FSB) Intel Celeron 450 Processor (2.2-GHz, 512K L2 cache, 800-MHz FSB)
  • Page 4 QuickSpecs HP Compaq dx2400 Microtower Business PC Standard Features and Configurable Components Operating Systems and Genuine Windows Vista Ultimate 32 (English Only) * Application Software Genuine Windows Vista Business 32* Genuine Windows Vista Home Basic 32* † Genuine Windows Vista Business with Genuine Windows XP Professional custom pre-installed* Free DOS * Certain Windows Vista product features require advanced or additional hardware.
  • Page 5 One or more of the 1.44-MB Diskette Drive following (see Storage Media Reader section below) HP 16-in-1 Media Reader and additional USB 2.0 port HP 22-in-1 Media Card Reader HP 22-in-1 Media Card Reader with 1394 port Optical Drives (Serial ATA) SATA DVD-ROM Drive...
  • Page 6 Intel PRO/1000 PT Gigabit PCIe Controller (full height) – optional Agere 56K PCI Modem – optional LSI PCIe x1 Hi-Speed 56K International SoftModem – optional HP Wireless A+G PCI Card (full height) – optional HP Wireless 802.11 b/g/n PCIe Card Graphics Intel Graphics Media Accelerator 3100 –...
  • Page 7: System Details

    QuickSpecs HP Compaq dx2400 Microtower Business PC System Details Base Unit Micro ATX microtower chassis, including power supply and front bezel Five (5) drive bays and four expansion slots Microsoft operating system CD – optional Active type heatsink 92 x 92 x 25 mm chassis fan...
  • Page 8 QuickSpecs HP Compaq dx2400 Microtower Business PC System Details Weight & Dimensions Chassis Dimensions 15.16 x 7.28 x 16.38 in. with bezel (385 x 185 x 416 mm) (H x W x D) 14.88 x 6.50 x 16.10 in. without bezel...
  • Page 9 QuickSpecs HP Compaq dx2400 Microtower Business PC System Details Unit Environment and General Unit Operating Guidelines Operating Conditions Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is operated within the specified operating range.
  • Page 10 QuickSpecs HP Compaq dx2400 Microtower Business PC System Details Rear Side I/O Ports 1 x PS/2 keyboard port 1 x PS/2 mouse port 4 x USB 2.0 ports 1 x RJ-45 10/100/1000 port 1 x D-sub 15 pin analog VGA port...
  • Page 11 Performance of system, options, and ancillary equipment will vary depending on the system Specs configuration. Levels presented do not account for non-HP/Compaq installed hardware. Ambient Air Temperature Operating 50° to 95°F (10° to 35°C) at sea level with an altitude de-rating of 1.0°C per every 1000 ft (300 m) above sea level to a maximum of 8000 ft (2500 m), no direct sustained sunlight.
  • Page 12 NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country.
  • Page 13: After-Market Options

    FH970AA Connectivity HP Surge Protector, LAN & Printer Cable RT174AA Hard Disk Drives HP 500-GB SATA 3.0-Gb/s SMART IV Hard Drive KW347AA HP 320-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive FH963AA HP 250-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive PY278AA HP 160-GB SATA (NCQ/Smart IV) 3.0-Gb/s Hard Drive...
  • Page 14 NR078AA (launching July HP DisplayPort To DVI-D Adapter FH973AA DMS-59 to Dual VGA Cable Kit GS567AA HP DMS59 DVI Dual-head Connector Cable (supports DY599A/RD069AA/AH050AA) DL139A HP ADD2 SDVO DVI-D Adapter DY674A HP FireWire / IEEE 1394 PCI Card PA997A Belken USB to Serial Adapter EM449AA Serial &...
  • Page 15 RA373AA#ABA HP LP2065 20-inch LCD Monitor EF227A4#ABA HP LP2275 22-inch Widescreen LCD Monitor KE289A4#ABA HP LP2275 22-inch Widescreen LCD Monitor Bulk Pack (6 baseless units) KD289A6#ABA HP LP2475w 24-inch Widescreen LCD Monitor KD911A4#ABA HP LP2480zx 24-inch DreamColor Widescreen LCD Monitor...
  • Page 16 QuickSpecs HP Compaq dx2400 Microtower Business PC After-Market Options Options HP USB 2.0MP Business WebCam NX252AA HP Flat Panel Speaker Bar EE418AA HP Quick Release Kit EM870AA HP Integrated Work Stand (stand alone) GN783AA HP DreamColor Advanced Profiling Solution (aka Puck)
  • Page 17 Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board. HP recommends dual-channel symmetric configurations for maximum performance. For best performance, add the same amount of total memory to each channel and do not mix speeds. For dual-channel symmetric performance, the total amount of memory in each channel must be equal.
  • Page 18 QuickSpecs HP Compaq dx2400 Microtower Business PC Storage HP Compaq dx2400 Microtower Business PC Maximum Quantity Supported Position Supported Controller Drive Support Diskette Drives Media Reader Internal USB 2.0 port DVD-ROM Drives 1, 2 SATA CD-RW/Combo Drives 1, 2 SATA...
  • Page 19: Technical Specifications - Audio

    QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Audio Integrated Realtek Type Integrated ALC888S Audio HD Audio compatible codec Sampling Supports 48/96 KHz Audio Jacks Mic-In Line-In Line-Out / Headphone Out Power Support Digital: 3.3V Analog: 5V Other...
  • Page 20: Technical Specifications - Communications

    QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Communications Integrated Realtek Controller 8111C-CG 8111C-GR GbE Ethernet Memory Controller Data rates supported 2.5GHz data rate with X1 link width Compliance IEEE802.3, IEEE 802.3u, IEEE 802.3ab Bus architecture PCIexpress 1.1...
  • Page 21 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Communications Management capabilities ASF 2.0, WOL, PXE, DMI, WFM 2.0. ((Wake-on-LAN supported from S1, S3, S4 only. Not supported from S5). HP Wireless A+G PCI Dimensions 4.99 x 2.54 x 0.71 in (126.8 x 64.4 x 18.0 mm) Weight 0.268 lb (65 g)
  • Page 22 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Communications Controller Ralink RT2790 System interface PCIExpress x1 Network standard 802.11 b/g/n Frequency band 2.400 - 2.497 GHz Operating temperature 14° to 149°F, operating (-10° to 65°C, operating) Storage temperature -40°...
  • Page 23 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Communications Data transfer rate Data Rate (MCS) Minimum Throughput 1 Mbps (802.11 b) 700 kbps 2 Mbps (802.11 b) 1.4 Mbps 5.5 Mbps (802.11 b) 3.5 Mbps 11 Mbps (802.11 b) 5.9 Mbps...
  • Page 24 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Communications Agere 56K PCI Modem Data Transmission 56,000 Kbps maximum downstream data NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed.
  • Page 25 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Communications LSI PCIe x1 56K Data Transmission Technology speeds: 56,000 Kbps maximum downstream data, controllerless International SoftModem NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server sites. Other conditions may limit modem speed.
  • Page 26: Technical Specifications - Graphics

    1920x1080 1920x1200 1920x1440 2048x1536 2560x1600 NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. DA - 12921 North America — Version 25 — July 28, 2009 Page 26...
  • Page 27 NVIDIA GeForce 8400 GS (256 MB SH) PCIe x16 Graphics Controller display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as they may not have been tested and qualified by HP. Maximum Refresh Rate (Hz)
  • Page 28 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Graphics HP ADD2 SDVO PCIe x16 Models HP ADD2 SDVO DVI-D Out Adapter DVI-D Adapter Form Factor Low-profile card DVI-D Connector Digital connection only Dual Head Support Yes, when used with the integrated VGA connector...
  • Page 29 Immunity Characteristics – Limits and Methods of Measurement. ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Maximum Refresh Rate (Hz)
  • Page 30 Linux x86 and x86_64 distributions using XFree86 or X.Org**. ** Linux drivers are available from ATI's website and may be available in a Linux distribution. Refer to the Open Source and Linux from HP website: http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
  • Page 31 ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Maximum Refresh Rate (Hz)
  • Page 32 ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card display resolutions and refresh rates NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP Maximum Refresh Rate (Hz)
  • Page 33: Technical Specifications - Input Devices

    QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Input Devices HP PS/2 or USB Standard Physical Keys 104, 105, 106, 107, 109 layout (depending upon country) Keyboard characteristics Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm) Weight 2 lb (0.9 kg) minimum...
  • Page 34 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Input Devices HP USB 2-Button Laser Scroll Wheel Mouse Maximum Rotation Speed 48 rats/sec Switch Type wheel Switch Life Button – 3,000,000 Wheel – 1,000,000 times Tilt switch – 500,000 times...
  • Page 35 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Input Devices HP PS/2 Optical Scroll Dimensions (H x L x W) 3.95 x 6.21 x 11.7 cm (1.56 x 2.44 x 4.61 in) Mouse Weight 4.44 oz (126 g)
  • Page 36 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Input Devices HP USB Optical Scroll Dimensions (H x L x W) 1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm) Mouse Weight 0.27 lb (0.12 kg) Cable length 72.8 in (185 cm)
  • Page 37: Technical Specifications - Hard Drives

    QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Hard Drives Serial ATA Hard Drives 80 GB Capacity 80,026,361,856 bytes (7200 rpm) Height 1 in (2.54 cm) Width Media diameter: 3.5 in (8.9 cm) Physical size: 4 in (10.2 cm) Interface Serial ATA (3.0 Gb/s)
  • Page 38 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Hard Drives Seek Time (typical reads, Single Track 2.0 ms includes controller Average 11 ms overhead, including Full-Stroke 21 ms settling) Rotational Speed 7,200 rpm Logical Blocks 488,397,168 Operating Temperature 41°...
  • Page 39: Technical Specifications - Optical Storage

    QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Optical Storage SATA DVD-ROM Drive Height 5.25-inch, half-height, tray-load Orientation Either horizontal or vertical Interface type SATA/ATAPI Disc capacity Single layer: Up to 4.7 GB (6 times capacity of CD-ROM) Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
  • Page 40 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Optical Storage Environmental Temperature 41° to 122° F (5° to 50° C) (all conditions Relative Humidity 10% to 90% non-condensing) Maximum Wet Bulb 86° F (30° C) Temperature SATA CD-RW/DVD-ROM Height 5.25-inch, half-height, tray-load...
  • Page 41 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Optical Storage HP SATA SuperMulti Height 5.25-inch, half-height, tray-load LightScribe DVD Writer Orientation Either horizontal or vertical Drive Interface type SATA/ATAPI Disc capacity 8.5 GB DL or 4.7 GB standard Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
  • Page 42: Technical Specifications - Removable Storage

    QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Removable Storage 1.44-MB Diskette Drive Size 3.5 in (8.89 cm) LED Indicators Green (front panel) Read/Write Capacity per 1.44 MB/720 KB Diskette (high/low) Drive Height One-third Drive Rotation 300 rpm...
  • Page 43 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Removable Storage Length (5.25”) 171.6 cm Width (5.25”) 148.9 cm Height (5.25”) 42.7 cm Environmental Operational Test Parameters/Conditions – Power applied, unit operating on system ±5% nominal supply voltage. environmental extremes 10°C 10% R.H.
  • Page 44 QuickSpecs HP Compaq dx2400 Microtower Business PC Technical Specifications - Removable Storage miniSD miniSD High Capacity Micro SD (T-Flash) Micro SD HC Memory Stick Memory Stick Select Memory Stick Duo (MS Duo) Memory Stick PRO (MS PRO) Memory Stick PRO Duo (MS PRO Duo)
  • Page 45: Technical Specifications - Environmental Data

    Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
