HP Compaq 8100 Elite Series Quickspecs

Small form factor business pc
Hide thumbs Also See for Compaq 8100 Elite Series:
Table of Contents

Advertisement

Quick Links

See also: Maintenance and Service Manual , Illustrated Parts & Service Map
QuickSpecs
Overview
1
Rear I/O includes (6) USB 2.0 ports, serial port, PS/2 mouse and keyboard ports, RJ-45 network interface, DisplayPort
and VGA video interfaces, and audio in/out jacks
2
Low profile expansion slots include (1) PCI slot, (1) PCI Express x1 slots and (2) PCI Express x16 graphics slot
3
Front I/O includes (4) USB 2.0 ports, dedicated headphone output, and a microphone/headphone jack
4
HP Optical Mouse
5
HP Keyboard
6
3.5" external drive bay supporting a media card reader or a secondary hard disk drive
7
5.25" external drive bay supporting an optical disk drive
8
3.5" internal drive bay supporting primary hard disk drive
9
240W standard or 89% high efficiency Power Supply
10
HP Monitor (sold separately)

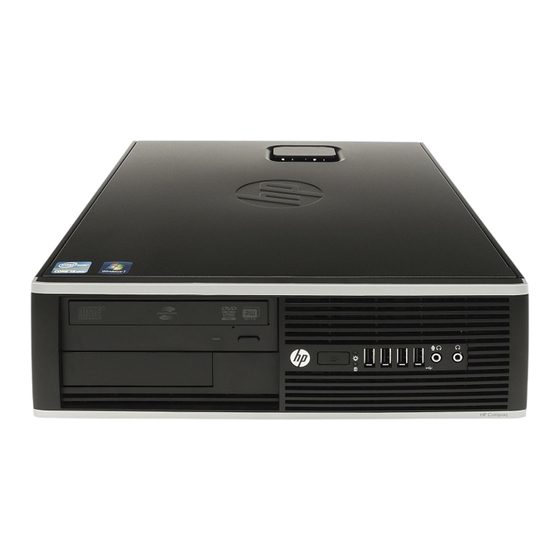

HP Compaq 8100 Elite Small Form Factor Business PC
HP Compaq 8100 Elite Small Form Factor Business PC
HP Compaq 8100 Elite Small Form Factor Business PC
HP Compaq 8100 Elite Small Form Factor Business PC
DA - 13524
North America — Version 26 — September 30, 2011
HP Compaq 8100 Elite Series
HP Compaq 8100 Elite Series
HP Compaq 8100 Elite Series
HP Compaq 8100 Elite Series
Page 1
