Summary of Contents for Dell OptiPlex 740

  • Page 1 Dell ™ Optiplex ™...

  • Page 2: Power Efficiency

    The Dell OpTiplex 740 is The righT chOice fOr cusTOmers aiming TO balance image sTabiliTy anD enD-user perfOrmance. Dell exTenDs The OpTiplex 740’s value by Offering a lOnger lifecycle wiTh prOven inDusTry-sTanDarD feaTures such as asf 2.0, Tpm 1.2, anD raiD 0 & 1.

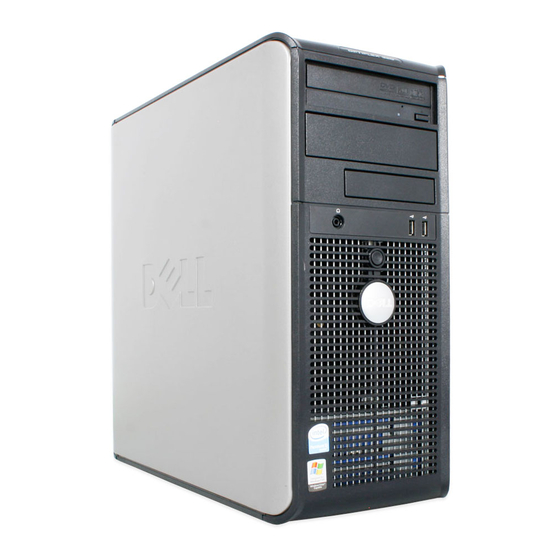

  • Page 3: Mini Tower Computer (Mt) View

    mini Tower computer (mT) view front view back view 5.25-inch drive bay cover-release latch 5.25-inch drive bay padlock ring 3.5-inch drive bay voltage selection switch USB 2.0 connectors (2) power connector LAN indicator light back panel connectors diagnostic lights card slots (4) power button power light hard drive activity light...

  • Page 4: Desktop Computer (Dt) View

    Desktop computer (DT) view front view USB 2.0 connectors (2) LAN indicator light power button Dell badge power light diagnostic lights hard drive activity light headphone connector microphone connector 3.5-inch drive bay 5.25-inch drive bay back view card slots back panel connectors...

  • Page 5: Small Form Factor Computer (Sff) View

    (sff) view front view USB 2.0 connectors (2) LAN indicator light power button Dell badge power light diagnostic lights hard drive activity light headphone connector microphone connector 3.5-inch drive bay 5.25-inch drive bay back view card slots...

  • Page 6: Marketing System Configurations

    Global Standard Products (GSP) are a subset of Dell’s relationship products that are managed for availability and synchronized transitions on a worldwide basis. They ensure the same platform is available for purchase globally. This allows customers to reduce the number of configurations managed on a worldwide basis, thereby reducing their costs. They also enable companies to implement global IT standards by locking in specific product configurations worldwide.

  • Page 7: Advanced System Manageability Modes

    ADVANCeD sYsteM MANAGeABilitY MODes basic client systems management (broadcom full asf 2.0) MeMORY Your computer supports a maximum of 8 GB of memory when you use four 2-GB DIMMs; however, 32-bit operating systems, such as the 32-bit version of Microsoft® Windows® XP, can only use a maximum of 4 GB of address space. Moreover, certain components within the computer require address space in the 4GB range.

  • Page 8: System Board Connectors

    (slimline) media card reader: (uses Floppy Diskette Drive slot) Dell 19 in 1 media card reader This only pertains to drives physically contained within the chassis and does not refer to HDDs attached via eSATA (including port multiplier), USB or optional 1394.

  • Page 9: External Ports/Connectors

    256mb aTi radeon™ hD 2400 prO with Dvi and Tv Out Optional full height or low profile card 256mb aTi radeon™ hD 2400 xT Dual monitor Optional full height or low profile card with vga cable and Tv Out 256mb aTi radeon™ hD 2400 xT Dual monitor with Dvi Optional full height or low profile card and vga cables and Tv Out 256mb aTi raDeOn™...

  • Page 10: Audio And Speakers

    For a copy of our guarantees or limited warranties, please write Dell USA L.P., Attn: Warranties, One Dell Way, Round Rock, TX 78682. For more information, visit www.dell.com/warranty. Service may be provided by third-party. Technician will be dispatched if necessary following phone-based troubleshooting. Subject to parts availability, geographical restrictions and terms of service contract.

  • Page 11: Detailed Engineering Specifications

    DetAileD eNGiNeeRiNG speCiFiCAtiONs sysTem DimensiOns (physical) nOTe: System Weight* and Shipping Weight* is based on a typical configuration and may vary based on PC configuration. A typical configuration includes: integrated graphics, one hard drive, one optical drive, and one diskette drive. chassis volume liters 10.7 chassis weight*...
  • Page 12 DimensiOns (physical) nOTe: These form factors utilize a more efficient Active Power Factor Correction (APFC) power supply. Dell recommends only Universal Power Supplies (UPS) based on Sine Wave output for APFC PSUs, not an approximation of a Sine Wave, Square Wave, or quasi-Square Wave (see UPS technical specifications).
  • Page 13 Audio Jack Impedance Microphone 150 kΩ Line-In 150 kΩ Line-Out 190 Ω Headphone .5 Ω Internal Speaker Power Rating 2 Watts COMMuNiCAtiONs - NetWORk ADApteR (NiC) nOTe: MT SUPPORTS FUll HEIGHT CARD, DT SUPPORTS lOW PROFIlE CARD OR FUll HEIGHT CARD WITH OPTIONAl RISER.
  • Page 14 BROADCOM NetxtReMe 10/100/1000 pCie GiGABit NetWORkiNG CARD Integrated Memory 64KBytes RX, 8KBytes TX Data Transfer Mode Bus-Master DMA Power Consumption (full operation per data rate connection 2.84W (860mA @ +3.3V) speed) Power Consumption (standby operation) Less than 300mW IEEE Standards Compliance 802.3, 802.2, 802.3x, 802.1p Hardware Certifications FCC B, VCCI B, CE...
  • Page 15 GRAphiCs/ViDeO CONtROlleR nOTe: MT supports full height card, DT supports low profile card or full height card with optional riser. SFF supports low profile card. inTegraTeD nnviDial® QuaDrO nvs 210s1 Bus Type Integrated GPU Core Clock 300MHz Integrated 24 bit RAMDAC Frame Buffer Memory (onboard and shared) Size and Speed Up to 128MB of shared system memory Maximum Power Consumption...
  • Page 16 128mb aTi raDeOn x1300 wiTh Dvi anD Tv OuT 6.6x3.35in/ Dimensions of low profile card inches/centimeters (L x H) 167.64x85mm Environmental Operating Conditions Operating Temperature Range 50°-122°F (10°-50° C) Relative Humidity Range 5-90% RH Altitude Range 0-20,000 ft. 256mb aTi raDeOn™ hD 2400 prO wiTh Dvi anD Tv OuT Bus Type PCIEx16 GPU Core Clock...

  • Page 17: Hard Drives

    256mb nviDianviDia gefOrce 9300 ge Bus Type (example integrated or PCIe x16) PCIEx16 GPU core clock 540Mhz Frame Buffer Memory (onboard and shared) Size and Speed 500Mhz Maximum power consumption Overlay Planes Maximum Color Depth 32-bit Maximum Vertical Refresh Rate 85Hz Multiple Display Support Operating Systems Graphics/ Video API Support...
  • Page 18 Temperature Range -40°F to 149°F (-400C to 650C) Relative Humidity Range 10% to 90% non-condensing Maximum Wet Bulb Temperature 100.4°F (380C) Altitude Range -50 ft to 35000 ft Environmental Non-Operating Conditions (Non-Condensing): Tempurature Range -40°F to 149°F (-400C to 650C) Tempurature Range 10% to 90% non-condensing Tempurature Range...
  • Page 19 250gb saTa 7200 rpm hDD Capacity (bytes) 250,059,350,016 Dimensions inches (W x D x H) 5.87 x 4 x 1 Interface type and Maximum speed Up to 3Gb/s Internal buffer size (range) 8-16 MB Average Seek Time 8.5 ms Rotational Speed 7200 rpm Logical Blocks 488,397,168...
  • Page 20 500gb saTa 7200 rpm hDD Capacity (bytes) 500,107,862,016 Dimensions inches (W x D x H) 5.87 x 4 x 1 Interface type and Maximum speed Up to 3Gb/s Internal buffer size 16 MB Average Seek Time 8.5 ms Rotational Speed 7200 rpm Logical Blocks 976,773,168...
  • Page 21 OptiCAl DRiVes DvD +/- rw External Dimensions inches/ 128.0 mm (5.04)/ 12.7mm (0.5 in)/ centimeters (Without Bezel – 148.2mm(6in)/42mm (2in)/ 190.5 (max) 148.2mm(6in)/42mm (2in)/ 190.5 (max) 126.1mm (4.97in) W x H x D) Weight (max) pounds/ 800g 800g 170g kilograms Interface type and speed SATA 16x SATA 16x...
  • Page 22 Operating Temperature 5C to 50C 5C to 50C 5C to 50C Range Relative Humidity 20% to 80% RH 20% to 80% RH 20% to 80% RH Range Maximum Wet Bulb Temperature Altitude Range -200 to 3048m -200 to 3048m -200 to 3048m Environmental Non- Operating Conditions (Non- Condensing):...

  • Page 23: Onboard Devices

    Maximum Wet Bulb Temperature Altitude Range -200 to 10600m -200 to 10600m -200 to 10600m More details for optical drives can be found at: http://support.dell.com/support/systemsinfo/documentation.aspx?c=us&l=en&s=gen&~cat=7 BIOS Defaults BIOS Factory Defaults (All chassis unless noted) Diskette drive: Internal SATA-0: SATA-1: Drives...

  • Page 24: Maintenance

    Primary Video: Auto Video Video Memory Size 64MB Multiple CPU Core: Performance HDD Acoustic Mode: Bypass Admin Password: (none) System Password: (none) SATA-0 Password: (none) SATA-1 Password: (none) Security SATA-2 Password depends on chassis SATA-3 Password Depends on chassis Password Changes: Unlocked No Execute: Computrace®:...

  • Page 25: Regulatory Compliance And Environmental

    Details of Dell’s environmental stewardship program to conserve product energy consumption, reduce or eliminate materials for disposal, prolong product life span and provide effective and convenient equipment recovery solutions may be viewed at www.dell. com/environment. Product related conformity assessment, regulatory authorizations, and information encompassing Environmental, Energy Consumption, Noise Emissions, Product Materials Information, Packaging, Batteries, and Recycling relevant to this product may be viewed by clicking the Design for Environment link on the webpage.
