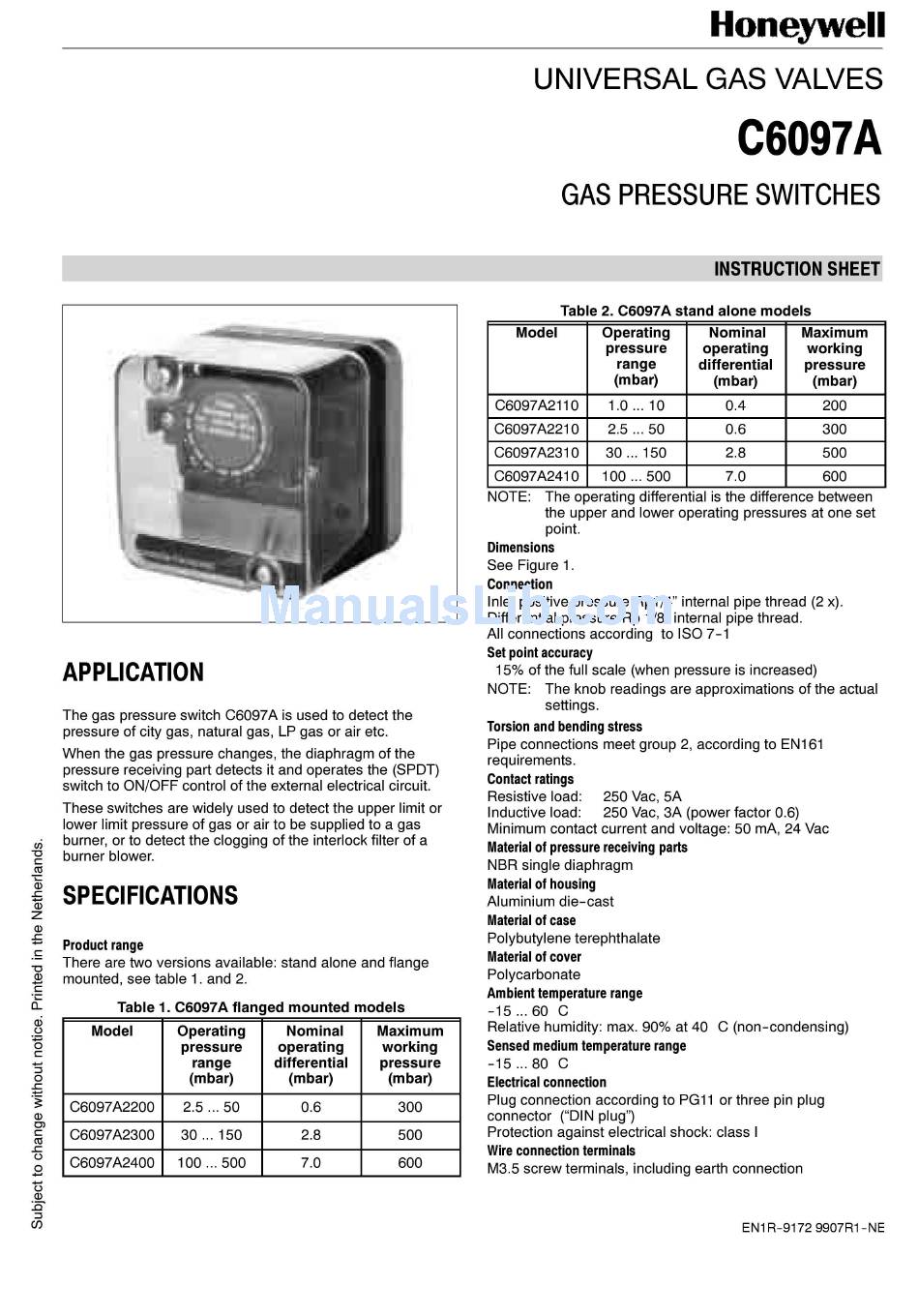

APPLICATION
The gas pressure switch C6097A is used to detect the
pressure of city gas, natural gas, LP gas or air etc.
When the gas pressure changes, the diaphragm of the
pressure receiving part detects it and operates the (SPOT)
switch to ON/OFF control of the external electrical circuit.
These switches are widely used to detect the upper limit or
lower limit pressure of gas or air to be supplied to a gas
burner, or to detect the clogging of the interlock filter of a
burner blower.
SPECIFICATIONS
Product range
There are two versions available: stand alone and flange
mounted, see table 1. and 2.
Table 1. C6097A flanged mounted models
Model Operating Nominal Maximum
pressure operating working
range differential pressure
(mbar) (mbar) (mbar)
C6097A2200 2.5 ... 50 0.6
300
C6097A2300 30 ... 150 2.8 500
C6097A2400 100 ... 500 7.0 600
Honeywell
UNIVERSAL GAS VALVES
C6097A
GAS PRESSURE SWITCHES
INSTRUCTION SHEET
Table 2. C6097A stand alone models
Model Operating Nominal Maximum
pressure
operating working
range
differential pressure
(mbar)
(mbar) (mbar)
C6097A2110 1.0 ... 10 0.4 200
C6097A2210 2.5 ... 50 0.6 300
C6097A2310 30 ... 150 2.8 500
C6097A2410 100 ... 500 7.0
600
NOTE: The operating differential
IS
the difference between
the upper and lower operating pressures at one set
point.
Dimensions
See Figure 1.
Connection
Inlet positive pressure Rp1/4" internal pipe thread (2 x).
Differential pressure Rp 1/8" internal pipe thread.
All connections according to ISO 7-1
Set point accuracy
15% of the full scale (when pressure is increased)
NOTE: The knob readings are approximations of the actual
settings.
Torsion and bending stress
Pipe connections meet group 2, according to EN161
requirements.
Contact ratings
Resistive load: 250 Vac, 5A
Inductive load: 250 Vac, 3A (power factor 0.6)
Minimum contact current and voltage: 50 mA, 24 Vac
Material of pressure receiving parts
NBR single diaphragm
Material of housing
Aluminium die-cast
Material of case
Polybutylene terephthalate
Material of cover
Polycarbonate
Ambient temperature range
-15 ... 60 C
Relative humidity: max. 90% at 40 C (non-condensing)
Sensed medium temperature range
-15 ... 80 C
Electrical connection
Plug connection according to PG11 or three pin plug
connector ("DIN plug")
Protection against electrical shock: class I
Wire connection terminals
M3.5 screw terminals, including earth connection
EN1 R-9172 9907R1-NE
