Cradlepoint PHS300 Quick Start Manual

RegisterÊ yourÊ PHS300Ê
PersonalÊ WiFiÊ HotspotÊ Today!
~ YOU WILL RECEIVE ~
FREE Technical Support
FREE Firmware Upgrades
cradlepoint.com/register
What's Included In The Box

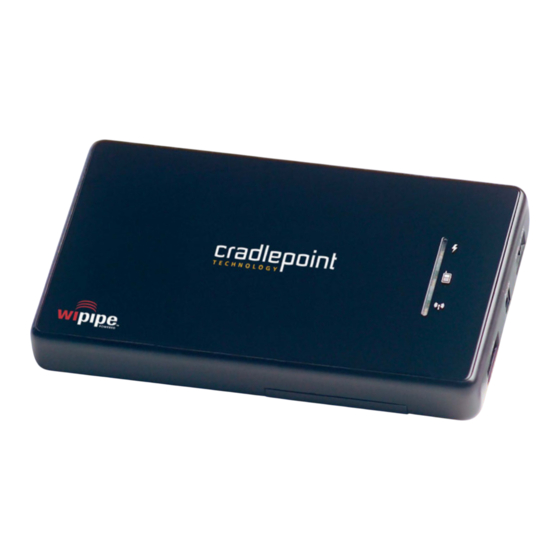

3G/4G Personal WiFi Hotspot
•
Quick Start Guide
•
Wireless Setup using a Mobile Broadband
(cellular) Data Modem or Compatible Phone
Connect Power Supply and USB modem.*
Then establish a wireless internet connection as shown below.
Battery
* Mobile Broadband Modem not included. See your Mobile Broadband Service Provider for details.
Establishing a Wireless Internet Connection
I dentify the PHS300
find connection starting with "PHS"
Windows XP
Open your computer's "Wireless Network
Connection" to associate with the router's
"Wireless Access Point." This is typically
completed by opening the "View Available
Wireless Networks" window. After you
have highlighted the PHS-xxx, click the
"Connect" button.
Windows Vista
Open Connect to a Network by clicking the
Start button, and then clicking Connect. In
the "Show" list, click "Wireless". You'll see
a list of the wireless networks currently
available. Click on the PHS-xxx network,
and then click Connect.
Mac
Open your Mac's wireless connection list
by clicking the "Airport" icon on your menu
bar. Highlight the PHS-xxx.
Connecting To The Router
1) Using either a Windows or Mac platform, open a
browser window. A default CradlePoint page will
appear asking for a password.
2) The password is the last six digits of the MAC
address shown on the box label and on the
bottom of the router. This is a unique number
identifying your router.
3) Once you have correctly entered your password,
click "OK". You can now access the Internet.
Note: CradlePoint recommends that WiFi security
be setup at this point. See the "Setting WiFi security
on your CradlePoint Router" section of this guide.
New Product Information
Special Offers & Promotions
Li-Ion Battery
•
AC Power Adapter
•
Power
Supply
USB
PHS-300
PHS-300
PHS-300
PHS300
3G/4G
Personal nal
WiFi
Hotspot ot
Share Your Internet Connection With Up To
16 WiFi Enabled Devices
• Place your PHS300 anywhere in your home or office for the best signal
• Share your mobile broadband connection with all your WiFi enabled devices
such as: laptops, desktop PCs, printers, VoIP phone, PDA, and more
Connect mobile
broadband modems
Finding Your Password and Network Name
LED Status Lights
NETWORK
WLAN CONNECTION POWER
WLAN Signifies that the WiFi radio of the router is "On". Blinking indicates traffic.
NETWORK
Indicates that recognizable cellular device is connected to the router.
CONNECTION
Green Connection is Established
Orange Connection is Negotiating
Red Connection Not Made
POWER
Signifies the PHS300 power level.
Green Plugged into Wall Power, Internal Battery is Fully Charged
Operating Remotely on Fully Charged Internal Battery
or
Orange
Plugged into Wall Power, Internal Battery is Charging
Red Battery Charge is Very Low
QUICK START GUIDE
(~150' Range)
MAC Media Access Control Address (MAC Address)
ADDRESS is a unique identifier assigned to the PHS300
Your default password for your PHS300 is the
last six characters of the MAC Address
and can be found on the back of the unit.
SSID
Service Set Identifier (SSID) is used to identify
your wireless network name.
Your default Network Name will be PHS-xxx
You can change the name of your Network in
the Setup Wizard.
SERIAL When you register your product online, you will
NUMBER be asked for your Serial Number.
RESET If you need to do a factory reset, consult the
BUTTON CradlePoint Knowledge Base for instructions.
EXTEND YOUR
BATTERY LIFE
Turn your PHS300 OFF
when not in use for best battery performance
