Your new miter clamping kit has been engineered and manufactured to Ryobi's high standard for dependability,
ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator's manual.
Thank you for buying a Ryobi accessory kit.
SAVE THIS MANUAL FOR FUTURE REFERENCE
OPERATOR'S MANUAL
Miter Clamping Kit
4710300
(For use with BT3000 & BT3100 Table Saws)

Advertisement

Table of Contents
loading

Related Manuals for Ryobi 4710300

Summary of Contents for Ryobi 4710300

  • Page 1 (For use with BT3000 & BT3100 Table Saws) Your new miter clamping kit has been engineered and manufactured to Ryobi's high standard for dependability, ease of operation, and operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.

  • Page 2: Rules For Safe Operation

    RULES FOR SAFE OPERATION Safe operation of this accessory requires that you read ALWAYS WEAR SAFETY GLASSES WITH SIDE and understand this operator's manual, the operator’s SHIELDS. Everyday eyeglasses have only impact- manual for the table saw and all labels affixed to the tool. resistant lenses;...

  • Page 3: Tools Needed

    UNPACKING INFORMATION WARNING: Your miter clamping kit includes a miter clamp and the If any parts are missing do not assemble the kit until connecting hardware necessary to assemble and attach the missing parts are replaced. Failure to do so the miter clamp to the miter fence of your saw.
  • Page 4 ASSEMBLY WARNING: LOOSEN The table saw should never be connected to a power KNOB BOLT supply when you are assembling parts. Disconnect- ing the saw will prevent accidental starting that could TIGHTEN MITER CLAMP cause serious personal injury. ASSEMBLING THE T-NUT See Figure 3.

  • Page 5: Operation

    OPERATION PREPARING FOR CUTTING MITER CLAMPING KIT See Figure 3. INSTALLED Place the workpiece in the desired position against POST RAISE the saw’s miter fence. LOOSEN Loosen the knob bolt. Slide the miter clamp down against the workpiece as shown. KNOB BOLT Tighten the knob bolt securely.
  • Page 6 NOTES...

  • Page 7: Replacement Parts

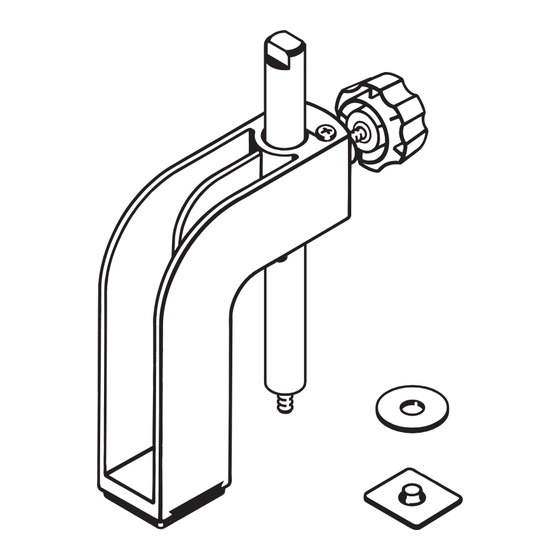

    REPLACEMENT PARTS PARTS LIST KEY NO. DESCRIPTION QUANTITY Miter Clamp ....................1 Post ......................1 Wire Formed Spring ................... 2 Screw (#8-32 x 3/8 in. Phillips Pan Head Tapping) ........4 Knob Bolt (#5/16-18 x 1 in.) ............... 1 Spacer ......................1 5/16-18 T-Nut (Special) ................

  • Page 8: Warranty

    Miter Clamping Kit 4710300 WARRANTY Ryobi warrants its accessories for a period of 90 days from the date of purchase. Batteries and chargers are warranted for a period of two years from the date of purchase. PARTS AND SERVICE For parts or service, contact your nearest Ryobi authorized service center. Be sure to provide all relevant information when you call or visit.
