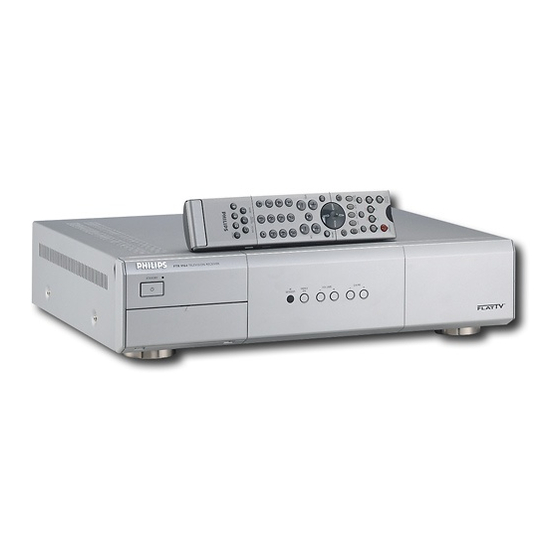

Philips FTR9964 User Manual

Philips tv
Hide thumbs Also See for FTR9964:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
RS232
~ MAINS
L
R
VGA 1
RS232
DVI-D
VGA 2
~ MAINS
AUDIO
3
CABLE
1
ANTENNA
MAINS INLET
3
VIDEO 1
(AV1)
VGA 1
VGA 2
RC-OUT
Y/C S-VHS
DVI-D
VIDEO 2
(AV2)
L
VGA 1
VGA 2
RC-OUT
R
DVI-D
Y/C S-VHS
AUDIO IN
AV2
2
EXTERNAL 4
EXTERNAL 3
L
EXTERNAL 1
EXTERNAL 2
AUDIO OUT
R
CVBS 1
CVBS 2
Y/C
Y
Cb/Pb
Cr/Pr
VGA
R/Cr/Pr
G/Y
B/Cb/Pb
HD
VD
DVI
EXTERNAL
CONTROL
H
CVBS
B/Pb/Cb
G/Y/Y
R/Pr/Cr
V
VIDEO 3
(AV3)
CVBS
B/Pb/Cb
H
3
L
R
AUDIO IN
G/Y/Y
R/Pr/Cr
V
AUDIO IN
AV1
AV3
2
EXTERNAL 5
Y
AUDIO
Pb
L
CENTER IN
Pr
R
L
PL/MAC IN
AUDIO
R
2
L
L
MAINS
INLET
R
R
VGA IN
AUDIO
AUDIO
VGA OUT
IN
OUT
2
NO FUNCTION
~ MAINS
4
L
AUDIO
MONITOR OUT
R
AUDIO IN
Y
CVBS
AV1
CVBS
Y/C
L
S-VHS
AV3
AV4
AUDIO
AV2
R
Cb
Cr

Advertisement

Table of Contents
loading

Related Manuals for Philips FTR9964

Summary of Contents for Philips FTR9964

  • Page 1 CVBS 1 CVBS 2 Cb/Pb Cr/Pr R/Cr/Pr B/Cb/Pb MAINS INLET EXTERNAL CONTROL CVBS B/Pb/Cb VIDEO 1 AUDIO IN CVBS (AV1) VGA 1 VGA 2 RC-OUT MAINS CVBS INLET S-VHS AUDIO RS232 VGA IN ~ MAINS AUDIO AUDIO VGA OUT Y/C S-VHS G/Y/Y R/Pr/Cr DVI-D...

  • Page 2: Table Of Contents

    If this instruction manual does not give an answer or if ‘Tips’ do not solve your TV Connecting and selecting equipment 28-31 problem, you can call your Local Philips Customer or Service Centre. See the supplied Remote Control functions for peripherals 32-33 World-wide guarantee booklet.

  • Page 3: Installation

    ◊ Video recorder function p. 32 SMART SMART ZOOM fi U Time display p. 13 fi Multipip on/off p. 21 (FTR9964 only) INSTANT SOUND PICTURE ® h Enlarge in TXT p. 26 Zoom on/off p. 13 Q Surround mode p. 13 ®...

  • Page 4: Preparation

    Preparation & Place the receiver box wherever you want, but make sure that air can circulate freely through the ventilation slots. Do not install the receiver box in a confined space such as a book case or a similar unit. To prevent any unsafe situations, no naked flame sources, such as lighted candles, should be placed on or in the vicinity.

  • Page 5: To Use The Menus And The Menu System

    To use the menus and the menu system Attention: point the remote control to the indicator of the monitor. & TAPE TUNER Ï key on the remote control to summon the main menu. Press the MENU Ì Which items appear in the main menu depends on the peripherals connected. MOVIE SPORT CHILD...

  • Page 6: Select The Menu Language

    Select the menu language & Ï key on the remote control. TAPE TUNER Press the MENU Ì MOVIE SPORT CHILD NEWS OTHER Picture Sound Features æ return or switch (DVD) main menu on/off (VCR) MENU Ï cursor to select (Receiver) adjustments Setup ¬...

  • Page 7: Store Tv Channels

    Store TV channels You can now search for and store the TV channels in two different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel). Select your choice with the cursor right. After the new or extra TV channels have been stored, the TV automatically transfers those TV channels to the video recorder if it is equipped with the EasyLink function.

  • Page 8: Give Name

    Give name Give name ® ® Space Delete VCR1 π BBC1 BBC2 ® ® Shift Special ..π It is possible to change the name stored in the memory or to assign a name to a TV channel for which a name has not yet been entered. A name with up to 5 letters or numbers can be given to the programme numbers 0 to 99.

  • Page 9: Select Tv Setup

    9 programmes channels which can be selected. (See Use of the Remote Control, p. 13.) Dual screen format (FTR9964 only) The Dual screen and PIP functions allow you to view two TV channels or sources at one time, hearing audio from the main screen through the speakers and audio from the other screen through the headphones.
  • Page 10 Multipip format (FTR9964 only) Multipip format allows you to view multiple channels or sources at one time, General hearing audio from the main screen through the speakers. Setup In this menu you can select which format you prefer to see in Multipip: PIP 3, PIP 8 or PIP 12, referring to the number of PIP screens being displayed pressing the fi...
  • Page 11 Programme title & Select with the cursor down. Programme title General é Press the cursor right to select Programme title Yes Setup When selected , after the selection of a TV programme or after pressing the i key on the remote control, a TV channel which broadcasts teletext may transmit the name of the TV channel or the programme title.
  • Page 12 Source Source This menu allows you to select the peripheral you connected to one of the Setup external inputs. EXT1 & Select with the cursor right. Source EXT2 é EXT3 Press the cursor down to select one of the external inputs. EXT4 “...

  • Page 13: Operation

    (tape, CD, tuner or CD-recordable). A red indicator lights up. Press the key again within 3 seconds to return to the function b Dual screen/PIP on/off (FTR9964 only) named above the key. See Setup, General menu, p. 8, and Dual screen/PIP, p.

  • Page 14: Use Of The Remote Control

    4:3 letterbox picture format. Time display on/off The time is displayed on the screen. Swapping screens in Dual screen or PIP (FTR9964 only) fi Multipip (FTR9964 only) See Setup, General menu, p. 8 and Dual Press fi...

  • Page 15: Keys In Front Of The Tv Receiver Box

    Active Control Smart keys Active Control is a pro-active and automatic To select predefined picture and sound system.The TV continuously measures and settings. corrects all incoming signals in order to Note: The Smart keys are disabled when a VGA provide the best picture possible. source is being displayed.

  • Page 16: Tv Menu

    TV menu TAPE TUNER Ï key on the remote control to summon the main menu. Press the MENU Ì MOVIE SPORT CHILD NEWS OTHER Note: When the main menu is accessed from the keypad in front of the TV receiver box, it has an additional Exit item, which lets you dismiss the menu.

  • Page 17: Sound Menu

    Picture Colour enhancement Contrast When activated, this feature automatically controls green enhancement and Brightness blue stretch. It makes the colours more vivid. Colour Select in order to activate/de-activate Colour Enhancement with Sharpness the cursor right. Tint Dig. natural motion Dynamic Contrast Hue (only available when a NTSC peripheral is connected) Colour enhancement This control allows you to adjust the colour mix of the picture.
  • Page 18 Headphone volume This control allows you to adjust the volume level of the headphone. Dual I-II (Only available with dual sound transmission) Sound This control allows you to switch from during Language I Language II dual sound transmission. Volume Your selection is stored per TV channel. Treble Bass Balance...

  • Page 19: Features Menu

    Features menu Select the menu items in the Features menu with the cursor up/down and adjust the settings with the cursor left/right. Programme list Features This list will display all the stored TV channels. Select a programme number with the cursor up/down. Programme Press the OK key to switch over to the selected TV channel or external.
  • Page 20 On timer With the On timer function you can make your TV automatically switch to a specific programme number from standby or switch over to a different programme number at a specific time. Note:Your TV receiver box and your monitor should not be powered off with the Features B power key.

  • Page 21: Dual Screen/Pip (Ftr9964 Only)

    Dual screen/PIP (FTR9964 only) Press the b key to turn on or off Dual screen or PIP, according to the format selection made in the Dual screen format list in the General menu. See Setup, General, p. 8. TAPE TUNER Audio from the main screen (the left screen in Dual screen and the full size Ì...

  • Page 22: Multipip (Ftr9964 Only)

    Multipip (FTR9964 only) In the Setup menu, General, p. 9 you selected which Multipip format you prefer to see. & Press the fi key on the remote control to toggle the selected Multipip PIP 3 format The main screen displays the channel or source tuned before Multipip was activated and the highlight is on the main screen.

  • Page 23: Teletext Guide

    Teletext Guide TV channels which broadcast teletext also transmit a page with the programme guide of the day. If the displayed teletext programme guide page satisfies the Video Programming via Teletext (VPT) requirements, it will be possible to record, remind, watch or lock programmes. TAPE TUNER &...

  • Page 24: Basic Functions

    Basic functions page ball The functions Review, Record, Remind,Watch and Lock can be activated (if selection function subpages ball ball available) with the corresponding colour keys on the remote control. Mon 05 Feb 16.35 Move the cursor over the selection ball and select a programme with the puck BBC1 cursor up/down.

  • Page 25: Teletext Guide

    Record in the menu will not be present. Upload video recorder overview (only with Philips VCR’s) When the TV is switched on, the timer recordings are uploaded to the TV to check if any manual addition or deletions have been done.This is shown in the Review.

  • Page 26: Teletext

    Teletext Most TV channels broadcast information via teletext. Depending on the TV channel, teletext is transmitted in different systems. colour keys to The colours used in the bottom line of the teletext page correspond with the TAPE TUNER select colour keys of your remote control. Ì...

  • Page 27: Select Subpages

    Select subpages When a selected teletext page consists of different subpages, one of the subpages appears on the screen. Press the cursor right to highlight the subpagenumber. Press the cursor up/down to select the next or previous subpage or enter TAPE TUNER the subpagenumber with the digit keys.
  • Page 28 Timed page To display a specific page at a certain time. puck Mon 05 Feb 16.35.22 Menu 100 1 & Press the cursor right to select B B C C E E F A X Reveal Cycle subpages é LIONS RECORD ANOTHER WIN Enter the time and pagenumber with the cursor keys or the digit keys.

  • Page 29: Connect Peripheral Equipment

    Connect Peripheral Equipment There is a wide range of audio and video equipment that can be connected to your receiver.The following connection diagrams show you how to connect them to the back or the front side of the receiver. Note: in case of the monitor in a stand alone situation without the receiver box connected, see the instructions with the monitor.

  • Page 30: Dvd Player

    Video recorder and other peripherals & Connect the aerial cables 1, 2 and 3 as shown (only if your peripheral has TV aerial in-/output). ≈ Connect your equipment with a cable 4 or 5 to one of the EXTERNAL euroconnectors EXT1, 2, 3 or 4 to obtain a better picture quality. CABLE é...

  • Page 31: Multi Channel Surround Receiver

    Note: When a TV channel or external source is blocked via the Childlock menu (see p. 18), also the headphone is muted. When Dual screen PIP is activated (see p. 20) (FTR9964 only) : - if the main screen displays a TV channel picture, you hear the sound from the Dual screen/PIP picture through your headphone;...

  • Page 32: To Select Connected Equipment

    To select connected equipment Equipment connected with an aerial cable only : Select the programme number under which you have stored the test signal with the digit keys. Equipment connected to a euroconnector, to the VGA MONITOR IN connector or to the front side of the receiver box Press the w key repeatedly to select EXT1 EXT2, EXT3, EXT4, EXT5,...

  • Page 33: Remote Control Functions For Peripherals

    Video recorder with EasyLink The video recorder can be operated via the VCR menu on screen. & Ï key on the remote control. Press the MENU é Select the menu with the cursor up/down. Ò ‡ π † ® Play Stop Play Eject “...
  • Page 34 DVD keys ® Press one of the following keys after you have pressed the key. Ò Ï to switch the DVD menu on or off ‡ to select a DVD chapter TAPE TUNER π Ì to select a DVD title †...

  • Page 35: Recording

    Record with your video recorder without EasyLink To record S-VHS quality, connect an S-VHS peripheral directly to the video recorder. Record a TV programme & Select the programme number on your video recorder. é Set your video recorder to record. See the handbook for your video recorder.

  • Page 36: Tips

    Tips Poor Picture Remote control reused. At the end of life specialised • Have you selected the correct TV • If your monitor no longer responds to the companies can dismantle the discarded flat system? remote control, the batteries may be colour television to concentrate the reusable •...

  • Page 37: Glossary

    Glossary Automatic Channel Installation (ACI) Easy Text Sleeptimer Automatically installs all TV channels in Teletext memory that automatically Function with which you can set a time the same order as offered by your cable memorises Teletext pages and gives you period after which the TV should switch company, provided of course that the data instant access to them.
