Page 1: Operating Instructions

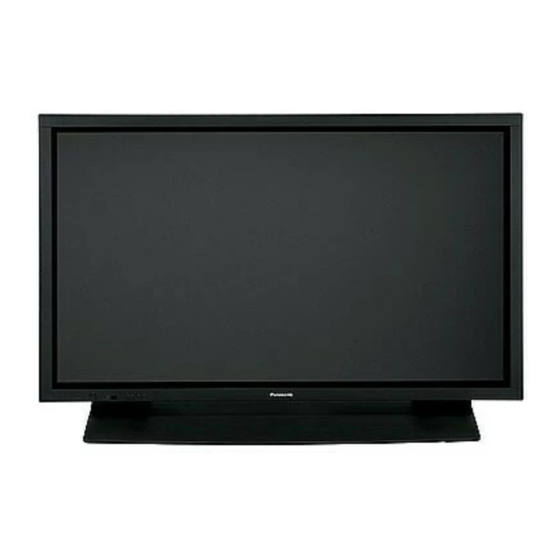

Operating Instructions High Defi nition Plasma Display TH-65PF9BK Model No. The illustration shown is an image. Please read these instructions before operating your set and retain them for future reference. English... -
Page 2: Table Of Contents
Dear Panasonic Customer Welcome to the Panasonic family of customers. We hope that you will have many years of enjoyment from your new Plasma Display. To obtain maximum benefit from your set, please read these Instructions before making any adjustments, and retain them for future reference. -
Page 3: Important Safety Notice
If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fi tted moulded plug is unsuitable for the socket outlet in your home, then the fuse shall be removed and the plug cut off and disposed of safety. -
Page 4: Safety Precautions
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result in fi re or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic dealer. - Page 5 If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet becomes damages, disconnect the power supply plug immediately. • A short circuit may occur, which could cause fi re. Contact your local Panasonic dealer for any repairs that need to be made.
-
Page 6: Cleaning And Maintenance
Safety Precautions CAUTION When using the Plasma Display Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display. • Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result. -
Page 7: Accessories
Accessories Accessories Supply Check that you have the accessories and items shown Operating Instruction book Remote Control I Year Guarantee ( Customer Transmitter Registration Relationship EUR7636090R Management) Power supply cord Fixing bands × 2 Batteries for the Remote Control Transmitter (2 ×... -
Page 8: Connections
Connections When connecting the speakers, be sure to use only the optional accessory speakers. Refer to the speaker’s Installation Manual for details on speaker installation. Speakers (Optional accessories) SPEAKERS Terminals (L) SPEAKERS AC cord connection Terminals (R) (see page 12) –... -
Page 9: Pc Input Terminals Connection
Connections PC Input Terminals connection COMPUTER AUDIO PC IN R - STANDBY POWER ON INPUT MENU ENTER Conversion adapter (if necessary) Mini D-sub 15p PC cable Audio Stereo plug Connect a cable which matches the audio output terminal on the computer. Notes: •... -
Page 10: Serial Terminals Connection
JUST Just • If an incorrect command is sent by mistake, this SELF Panasonic Auto unit will send an “ER401” command back to the With the power off, this display responds to PON command computer. only. -
Page 11: Dvi-D Connection
Connections DVI-D connection PC with DVI-D DVI-D video out video cable AUDIO (Within 5 m) DVI-D IN SLOT2 Mini-plug (M3) DVI-D Input Connector Pin No. Signal Name Pin No. Signal Name Pin Layouts T.M.D.S. data 2- T.M.D.S. data 3+ T.M.D.S. data 2+ +5 V DC T.M.D.S. -
Page 12: Power On / Off
Power On / Off Connecting the AC cord plug to the Plasma Display. Fix the AC cord plug securely to the Plasma Display with the clamper. (see page 8) Connecting the plug to the Wall Outlet Note: Main plug types vary between countries. The power plug shown at right may, therefore, not be the type fi... -
Page 13: Initial Selections
Initial selections Selecting the input signal Select the input signals to be connected by installing the optional Terminal Boards. Press to select the input signal to be played back from the equipment which has been connected to the Plasma Display. Input signals will change as follows: INPUT1 INPUT2... -
Page 14: Basic Controls
Basic Controls Remote control sensor Volume Adjustment Volume Up “+” Down “–” When the menu screen is displayed: “+” : press to move the cursor up INPUT MENU ENTER R - STANDBY “–” : press to move the cursor down POWER ON (see page 16) Enter / Aspect button... - Page 15 Basic Controls Standby (ON / OFF) button The Plasma Display must fi rst be plugged into the wall outlet and turned on at the power switch (see page 12). Press ON to turn the Plasma Display On, from Standby mode. Press OFF to turn the Plasma Display Off to Standby mode.
-
Page 16: On-Screen Menu Displays
On-Screen Menu Displays To Picture adjust menu The MENU button on the unit can also (see page 23) Press to select. be pressed. Picture INPUT MENU ENTER Normalise Normal Normal Picture Mode Contrast Brightness Colour [ from the unit ] Each time the MENU button is pressed, Tint the menu screen will switch. -
Page 17: To Setup Screensaver
Colour system Auto P-NR P-NR Cinema reality Cinema reality P-NR H-Freq. 33.8 Panasonic Auto (4 : 3) 4 : 3 H-Freq. 33.8 V-Freq. 60.0 P-NR V-Freq. 60.0 Note : “Signal” setup menu displays different setting condition for each input signals. (see page 13) -
Page 18: Aspect Controls
• For a 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i, 750 (720) / 60p · 50p signal input, the mode is set to “16:9” mode, and switching is not possible. • Panasonic Auto can be selected only during Video signal input. • The aspect mode is memorized separately for each input terminal. -
Page 19: Adjusting Pos. /Size
H-Size V-Pos controlled by the Picture Pos./Size function. V-Size • If adjusting the Picture V-Pos/V-Size in Panasonic Auto with 16:9 mode, the Dot Clock adjustment is not memorized. When exiting the mode, the screen will return Clock Phase to a former adjustment. - Page 20 Adjusting Pos. /Size Auto Setup Automatically adjust H-Pos / V-Pos / Clock Phase / Dot Clock and set H-Size / V-Size the standard value when RGB signal is input. Notes: • If the dot clock frequency is 162 MHz or higher, Dot Clock cannot be made. •...
-
Page 21: Multi Pip
MULTI PIP Press repeatedly. Each time pressing this button main picture and sub picture will be displayed as follows below. [Picture and Picture] [Picture out Picture] [Picture in Picture] Main picture Sub picture Main picture Sub picture Main picture Sub picture MULTI PIP MULTI PIP MULTI PIP... -
Page 22: Advanced Pip
Advanced PIP Press to display the Setup menu. Press to select “OSD Language”. Press and hold until the Options menu is displayed. Press to select Advanced PIP. Options Off-timer function Enable Onscreen display Initial INPUT Press to adjust the menu. Initial VOL level Off : Sets normal two screen display mode Maximum VOL level... -
Page 23: Picture Adjustments
Picture Adjustments Press to display the Picture menu. Select to adjust each item. Press to select the menu to adjust. Select the desired level by looking at the picture behind the menu. Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting. -
Page 24: Advanced Settings
Picture Adjustments Notes: Item Effect Adjustments • “Colour” and “Tint” settings cannot be Selects the proper brightness and adjusted for “RGB/PC” and “Digital” Contrast density for the room. Less More input signal. • You can change the level of each Adjusts for easier viewing of dark function (Contrast, Brightness, Colour, Brightness... -
Page 25: Sound Adjustment
Sound Adjustment Press to display the Sound menu. Select to adjust each item. Press to select the menu to adjust. Select the desired level by listening to the sound. Bass Emits the original sound. Sound Normal Adjusts low pitch sounds Normalise Normal Normal... -
Page 26: Digital Zoom
Digital Zoom This displays an enlargement of the designated part of the displayed image. Display the “Operation Guide”. Press to access Digital Zoom. Exit The “Operation Guide” will be displayed. During Digital Zoom, only the following buttons can be operated. [Remote control] [Unit] POSITION / ACTION... -
Page 27: Present Time Setup / Set Up Timer
PRESENT TIME Setup / Set up TIMER The timer can switch the Plasma Display On or Off. Before attempting Timer Set, confi rm the PRESENT TIME and adjust if necessary. Then set POWER ON Time / POWER OFF Time. Press to display the Setup menu. Press to select Set up TIMER or PRESENT TIME Setup. -
Page 28: Set Up Timer
PRESENT TIME Setup / Set up TIMER Set up TIMER Display the Set up TIMER screen. Press to select Set up TIMER POWER ON Time / POWER OFF Time. PRESENT TIME 99:99 Press to setup POWER ON Function 0:00 POWER ON Time POWER ON Time / POWER OFF Time. -
Page 29: Screensaver (For Preventing After-Images)
Screensaver (For preventing after-images) Do not display a still picture, especially in 4:3 mode, for any length of time. If the display must remain on, a Screensaver should be used. Press to display the Setup menu. Setup Press to select Screensaver. Screensaver MULTI DISPLAY Setup Setup TIMER... -
Page 30: Setup Of Screensaver Time
Screensaver (For preventing after-images) Setup of Screensaver Time After selecting Time Designation or Interval, the relevant Time Setup will become available for selection and the Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.) Screensaver Screensaver Screensaver... -
Page 31: Side Panel Adjustment
Screensaver (For preventing after-images) Side Panel Adjustment side panel Do not display a picture in 4:3 mode for an extended period, as this can cause an after-image to remain on the side panels either side of the display fi eld. To reduce the risk of such an after-image, illuminate the side Screen Display panels. -
Page 32: Reduces Power Consumption
Reduces power consumption • Power save: When this function is turned On, luminous level of the Plasma Display is suppressed, so power consumption is reduced. • Standby save: When this function is turned On, power consumption of the microcomputer is reduced during power supply standby (see page 12, 14-15), so standby power of the set is reduced. -
Page 33: Setup For Multi Display
Setup for MULTI DISPLAY By lining up Plasma Displays in groups, for example, as illustrated below, an enlarged picture may be displayed across all screens. For this mode of operation, each plasma display has to be set up with a Display number to determine its location. (Example) group of 4 (2 ×... -
Page 34: For Each Plasma Display
Setup for MULTI DISPLAY How to set the display location number for each Plasma Display Press to select Horizontal Scale. MULTI DISPLAY Setup MULTI DISPLAY Setup Press to select “× 1”, “× 2”, “× 3”, “× 4”. × 2 Horizontal Scale Vertical Scale ×... -
Page 35: Seam Hides Video Setting
Setup for MULTI DISPLAY Seam hides video Setting To show joints between TVs. To hide joints between TVs. Reference Suitable for moving image display. Suitable for still image display. Step 6, Page 34 ID Remote Control Function You can set the remote control ID when you want to use this remote control on one of several different TVs. Switch on the right side. -
Page 36: Setup For Input Signals
Press ACTION ( ) button Press to exit from adjust mode. [ AV ] Signal 3D Y/C Filter (NTSC) Colour system Auto Cinema reality Note: Panasonic Auto (4 : 3) 4 : 3 When On, this setting only affects NTSC input signals. P-NR... -
Page 37: Colour System / Panasonic Auto
M.NTSC NTSC Panasonic Auto Set to “4 : 3” to view 4:3 images in an unchanged format when Panasonic Auto is selected. (4 : 3) If you would like to view 4:3 images in Just format, set to “Just”. Note: Panasonic AUTO does not function when TY-FB9BD (BNC Dual Video Terminal Board (option)) is used. -
Page 38: Sync
Setup for Input Signals Sync Select Signal from the “Setup” menu during RGB input signal. Setup Press to adjust. Signal Component/RGB-in select Input label Power save Standby save Power management Auto power off English ( UK ) OSD Language Press ACTION ( ) button [ RGB ] Press to exit from adjust mode. -
Page 39: Options Adjustments
Options Adjustments Press to display the Setup menu. Press to select “OSD Language”. Press and hold until the Options menu is displayed. Press to select your preferred menu. Press to adjust the menu. Options Off-timer function Enable Onscreen display Initial INPUT Press to confi... - Page 40 Options Adjustments Options Off-timer function Enable Onscreen display Initial INPUT Initial VOL level Maximum VOL level INPUT lock Studio W/B Advanced PIP Display size Item Effect Adjustments Press button to adjust the volume when TV is turned on. Off: Sets normal volume. Initial VOL Sets your preferred volume.
- Page 41 Options Adjustments Options Button lock Remocon User level ID select Remote ID Serial ID Item Effect Adjustments MENU&ENTER Off: All the buttons at the bottom of the main unit can be used. MENU & ENTER: Button lock Locks buttons on bottom face of main unit. MENU ENTER/ Locks all the button on bottom face of main unit.
-
Page 42: Shipping Condition
Shipping condition This function allows you to reset the unit to the factory setting. Press to display the Setup menu. Press to select “OSD Language”. Press and hold till the SHIPPING menu is Setup displayed. Signal Component/RGB-in select Input label Power save Standby save Power management... -
Page 43: Troubleshooting
Troubleshooting Before you call for service, determine the symptoms and make a few simple checks as shown below. Symptoms Checks Picture Sound Electrical Appliances Interference Noisy Sound Cars / Motorcycles Fluorescent light Volume Normal Picture No Sound (Check whether the mute function has been activated on the remote control.) Not plugged into AC outlet Not switched on No Picture... -
Page 44: Dvi-D/Component/Rgb/Pc Input Signals
DVI-D/COMPONENT/RGB/PC input signals Applicable input signals for Component / RGB, Mini D-sub 15P (Component / RGB), DVI-D ( Mark) Component / RGB Horizontal frequency Vertical frequency Signal name / Mini D-sub 15P DVI-D (kHz) (Hz) (Component / RGB) 525 (480) / 60i 15.73 59.94 ∗... -
Page 45: Specifi Cations
Specifi cations TH-65PF9BK Power Source 220 - 240 V AC, 50/60 Hz Power Consumption Power on 725 W Stand-by condition Save off 1.2 W, Save on 1.0 W Power off condition 0.3 W Plasma Display panel Drive method : AC type... - Page 46 Memo...
- Page 47 Memo...
- Page 48 • Visit our website for product information www.panasonic.co.uk • E-mail: customer.care@panasonic.co.uk Direct Sales at Panasonic UK • Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care Centre Monday – Thursday 9:00am – 5:30pm, Friday 9:30am –...
