This product offers:
INVENTORY OF CONTENTS
1.
Wireless Temperature Station
2.
Wireless Temperature Sensor (TX40U-IT) and mounting bracket.
3.
Instruction Manual
WEATHER STATION
Instruction Manual
INSTANT TRANSMISSION is the state-of-the-art new wireless
transmission technology, exclusively designed and developed by
LA CROSSE TECHNOLOGY. INSTANT TRANSMISSION offers you
an immediate update (every 4 seconds!) of all your outdoor data
measured from the transmitters: follow your climatic variations in
real-time!
1
Advertisement
Table of Contents
Related Manuals for La Crosse Technology Weather Station
Summary of Contents for La Crosse Technology Weather Station
-
Page 1: Weather Station

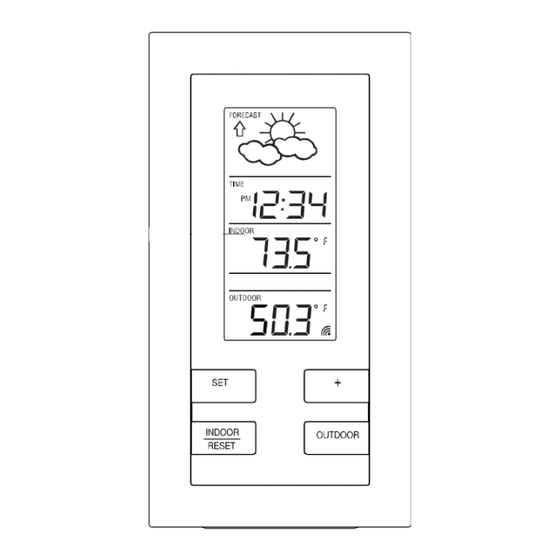

INSTANT TRANSMISSION is the state-of-the-art new wireless This product offers: transmission technology, exclusively designed and developed by LA CROSSE TECHNOLOGY. INSTANT TRANSMISSION offers you an immediate update (every 4 seconds!) of all your outdoor data measured from the transmitters: follow your climatic variations in... - Page 2 FEATURES: The Weather Station Hanging hole display Battery compartment cover Function keys Detachable stand 12/24 hour display Calendar (year, month and day display in setting mode only) Temperature display in degrees Celsius (ºC) or Farenheit (ºF) ...
- Page 3 Signal reception interval at 4 seconds Low battery indicators Wall mounting or table standing (detachable stand) The Outdoor Temperature Transmitter Remote transmission of outdoor temperature to weather station by 915 MHz signals Shower proof casing Wall mounting and table-standing...
- Page 4 Within 30 seconds, insert the batteries into weather station (see “Install and replace batteries in the weather station”). Once the batteries are in place, all segments of the LCD will light up briefly. Then the time (default 12:00) and the weather icon will be displayed. If these are not displayed after 60 seconds, remove the batteries and wait for at least 60 seconds before reinserting them.
-
Page 5: How To Install And Replace Batteries In The Temperature Transmitter
HOW TO INSTALL AND REPLACE BATTERIES IN THE WEATHER STATION The weather station uses 2 x AA, IEC LR6, 1.5V batteries. When batteries need to be replaced, the low battery icon will appear on the LCD. To install and replace the batteries, please follow the steps below: Lift up the battery compartment cover. -
Page 6: Battery Change
The temperature transmitter uses 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries, please follow the steps below: Remove the battery compartment cover at the back of the transmitter. Insert the batteries, observing the correct polarity (see marking). Replace the battery compartment cover on the unit. -
Page 7: Function Keys
FUNCTION KEYS: Weather station: The weather station has four easy to use function keys. SET key INDOOR/RESET key OUTDOOR key... - Page 8 SET key Press and hold to enter manual setting modes: 12/24 hour time, manual time, calendar, ºF/ºC temperature unit setting + key To change any values in manual set modes INDOOR/RESET key To display indoor MIN/MAX temperature records ...
-
Page 9: Lcd Screen
LCD SCREEN: Weather tendency indicator Weather forecast icon Time Low battery indicator Indoor (weather station) temperature in °F/ºC Minimum icon Maximum icon Low battery indicator Outdoor (transmitter) temperature in °F/ºC Outdoor reception Signal icon *... -
Page 10: Manual Settings
* When the outdoor signal is successfully received by the weather station, this icon will be switched on. (If not successful, the icon will not be shown in LCD) So user can easily see whether the last reception was successful (icon on) or not (icon off). -
Page 11: Manual Time Setting
The minutes digits will flash. Use the + key to set the minutes. Press the SET key again to confirm and enter the Calendar setting. CALENDAR SETTING The weather station can display year, month and day in setting mode only:... -
Page 12: F/°C Temperature Unit Setting
Month.Day. (12h display) Year (flashing) Day. Month (24h display) The year will flash. Use the + key to set the year (between year 2011-2039). Default setting: 2011. Press the SET key again to confirm and to enter the month setting. The month will flash. Use the + key to set the month. -
Page 13: To Exit The Manual Setting Mode
The default temperature display is set to °F (degree Fahrenheit). To select °C (degree Celsius): The “°F or C” will flash. Use the + key to toggle between “°C” and “°F”. Once the desired temperature unit has been chosen, confirm with the SET key and exit the setting mode. TO EXIT THE MANUAL SETTING MODE To exit the manual setting mode anytime during the manual setting, wait for automatic timeout. - Page 14 If the icons do not change, then it means either the air pressure has not changed or the change has been too slow for the Weather station to register. However, if the icon displayed is a sun or raining cloud, there will be no change of icon if the weather gets any better (with sunny icon) or worse (with rainy icon) since the icons are already at their extremes.
-
Page 15: The Weather Tendency Indicator
30 seconds. By doing this, the Weather Station will not mistake the new location as being a possible change in air- pressure when really it is due to the slight change of altitude. - Page 16 INDOOR MIN/MAX TEMPERATURE RECORDS The current indoor temperature is displayed on the third section of the LCD. Maximum Minimum indoor indoor temperature temperature MIN icon MAX icon (flashing) (flashing) Press and release the INDOOR/RESET key repeatedly, the current indoor temperature will alternate between the MIN/MAX temperature recordings and the current value.
-
Page 17: Low Battery Indicator
3 minutes after setting up (not successfully continuously, the outdoor display shows “- - -” ), please check the following points: The distance of the weather station or transmitter should be at least 5 to 6.5 feet (1.5 -2 meters) away from any interfering sources such as computer monitors or TV sets. -
Page 18: Positioning The Weather Station
(see Setting up above) otherwise transmission problems may occur. The transmission range is about 200 feet/100 m from the transmitter to the weather station (in open space). However, this depends on the surrounding environment and interference levels. If no reception is possible despite the observation of these factors, all system units have to be reset (see Set up). - Page 19 Fix a screw (not supplied) into the desired wall, leaving the head extended out by about 5mm. Remove the stand from the weather station by pulling it away from the base and hang the station onto the screw. Remember to ensure that it locks into place before releasing.
-
Page 20: Care And Maintenance
To wall mount: Secure the bracket onto a desired wall using the screws and plastic anchors. Clip the remote temperature sensor onto the bracket. Note: Before permanently fixing the transmitter wall base, place all units in the desired locations to check that the outdoor temperature reading is receivable. -
Page 21: Specifications
When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings. Do not submerge the unit in water. Special care shall be taken when handling a damaged LCD display. The liquid crystals can be harmful to user's health. -
Page 22: Warranty Information
America and only to the original purchaser of this product. To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for problem determination and service procedures. Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be... - Page 23 La Crosse Technology, Ltd will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above.
- Page 24 LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
- Page 25 Contact info for warranty or technical support: La Crosse Technology 2817 Losey Blvd. S. La Crosse, WI 54601 Product Info and Support: www.lacrossetechnology.com/9215 Product Registration: www.lacrossetechnology.com/support/register.php All rights reserved. This handbook must not be reproduced in any form, even in excerpts, or duplicated or processed using electronic, mechanical or chemical procedures without written permission of the publisher.
- Page 26 FCC ID: OMO-TX38U + TX40U (transmitter) FCC DISCLAIMER RF Exposure mobile: The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm (8 inches) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."...
