Coleman 2000001653 Instructions

Before you begin
Read all instructions before set up.
• Select a level site clear of rocks, branches, and other hard or sharp objects, to install your sun shade.
WARNING: Keep clear of overhead power lines.
• Do not set up your sun shade under trees because of potential lightning strikes or falling tree limbs in inclement weather.
• Secure with all stakes and guylines provided to prevent property damage or personal injury.
• For best results in windy conditions, position narrow end of sun shade into the wind.
• Enlist the help of at least one other person to assist you when it is time to assemble the sun shade .
• Under no circumstance should this product be used to cover automobiles, marine products or similar.

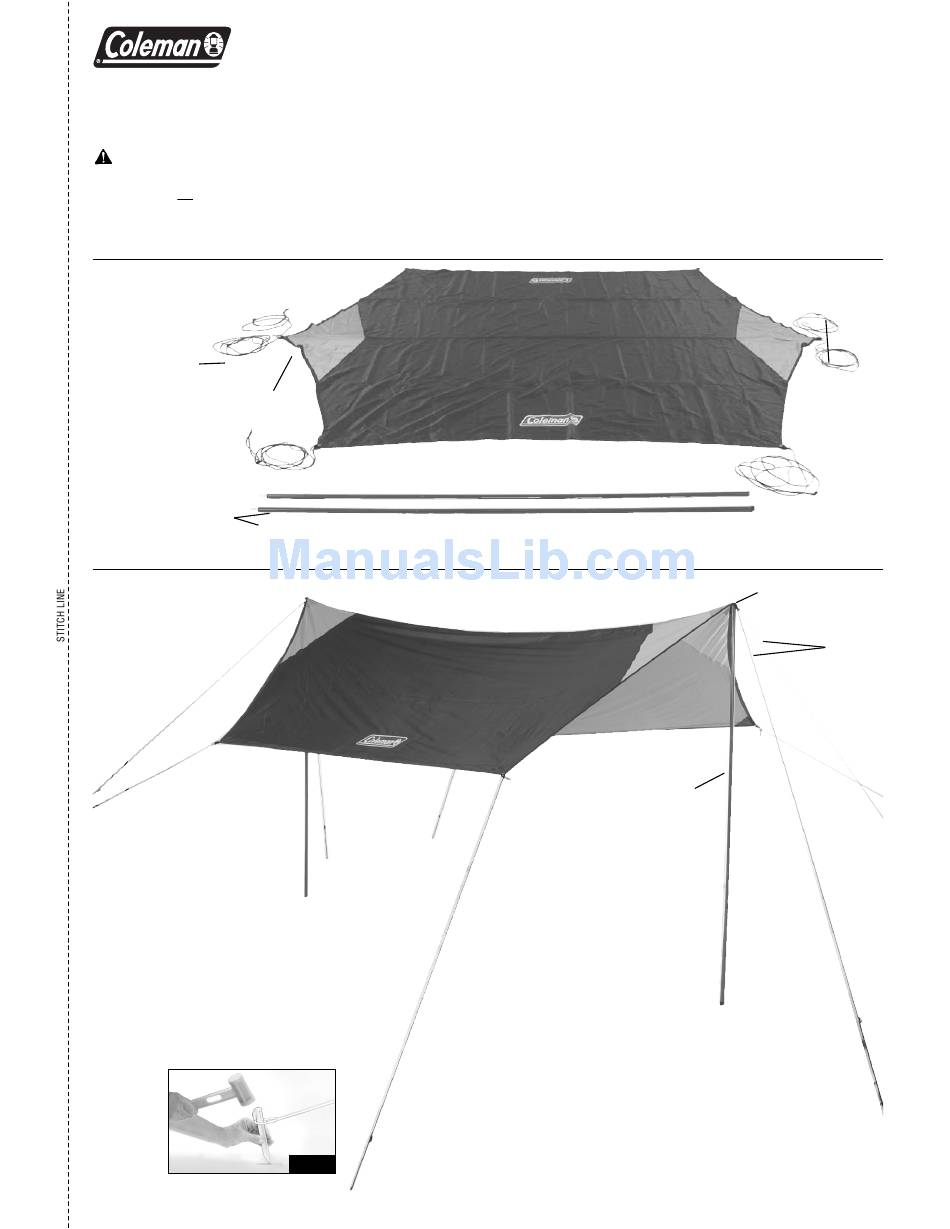

ASSEMBLY PARTS
Guyline
Grommet
Pole Tip
2-POLE SUN SHADE
Fig. 1
Metal Poles (2) – Part No. 5010000658
Fig. 2
Sun Shade Assembly
1. Assemble the two shock-corded support poles. (Fig. 1)
2. Insert narrow metal tip on pole into metal grommet located on the
web strap of the long end of the sun shade. (Fig. 2)
3. Lift pole to upright position; then extend out the guylines tied onto
theweb strap. (Fig. 2)
4. Slip loop on each guyline over plastic stake and drive in at a slight
angle to secure. (Fig. 3)
5. Repeat steps 3 & 4 above for the remaining support pole and guylines.
6. Extend out remaining guylines and each corner of the sun shade until
Fig. 3
taut and secure with plastic stakes. (Fig. 2)
MODEL 2000001653
MODEL 2000002626
Sun Shade (1)
Metal Pole
(continued on other side)
Grommet
Grommet
Guylines
